Eagle HD Bariatric Portable Wheelchair


Scroll To Bottom To View Price & Order Form.

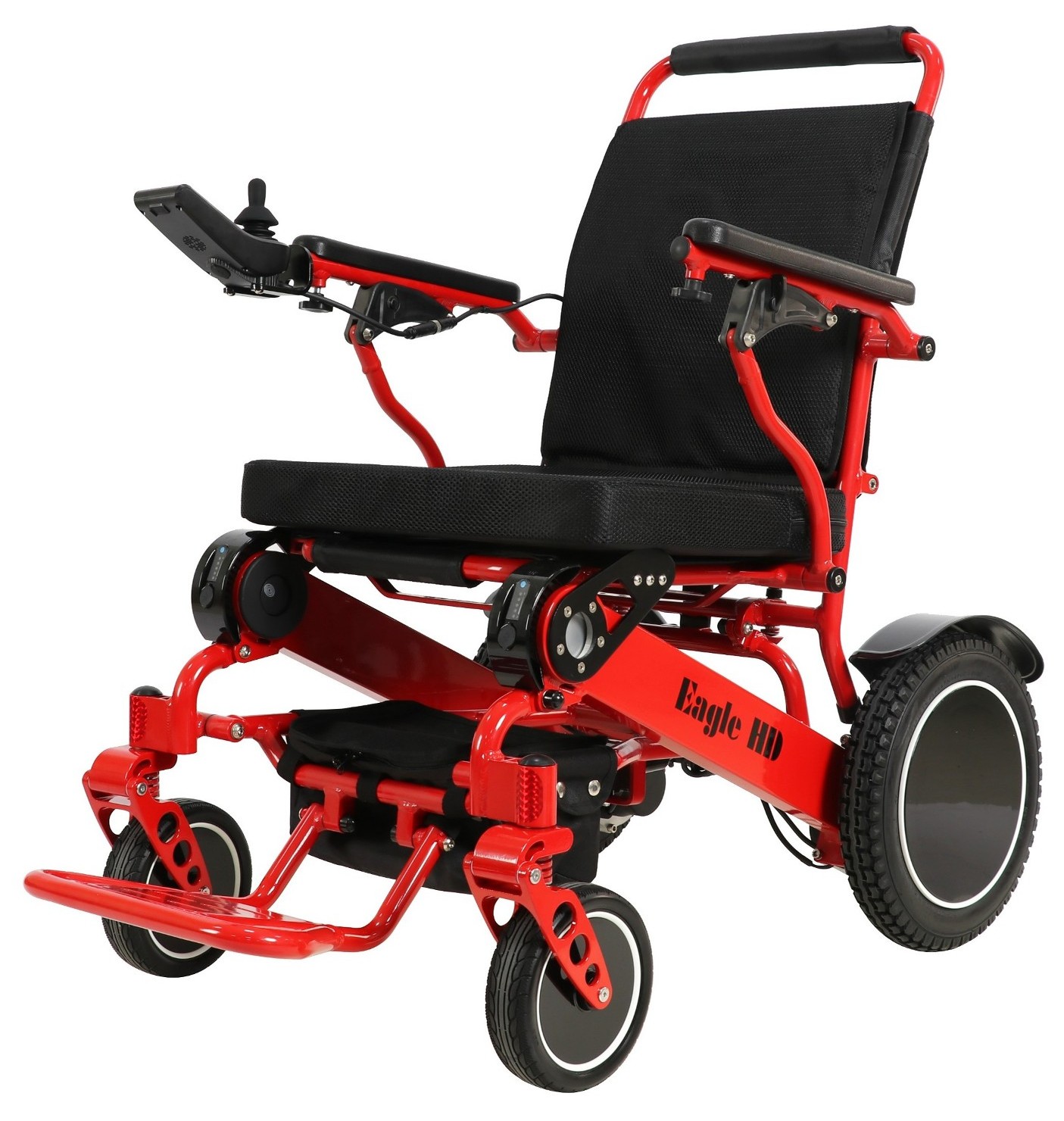

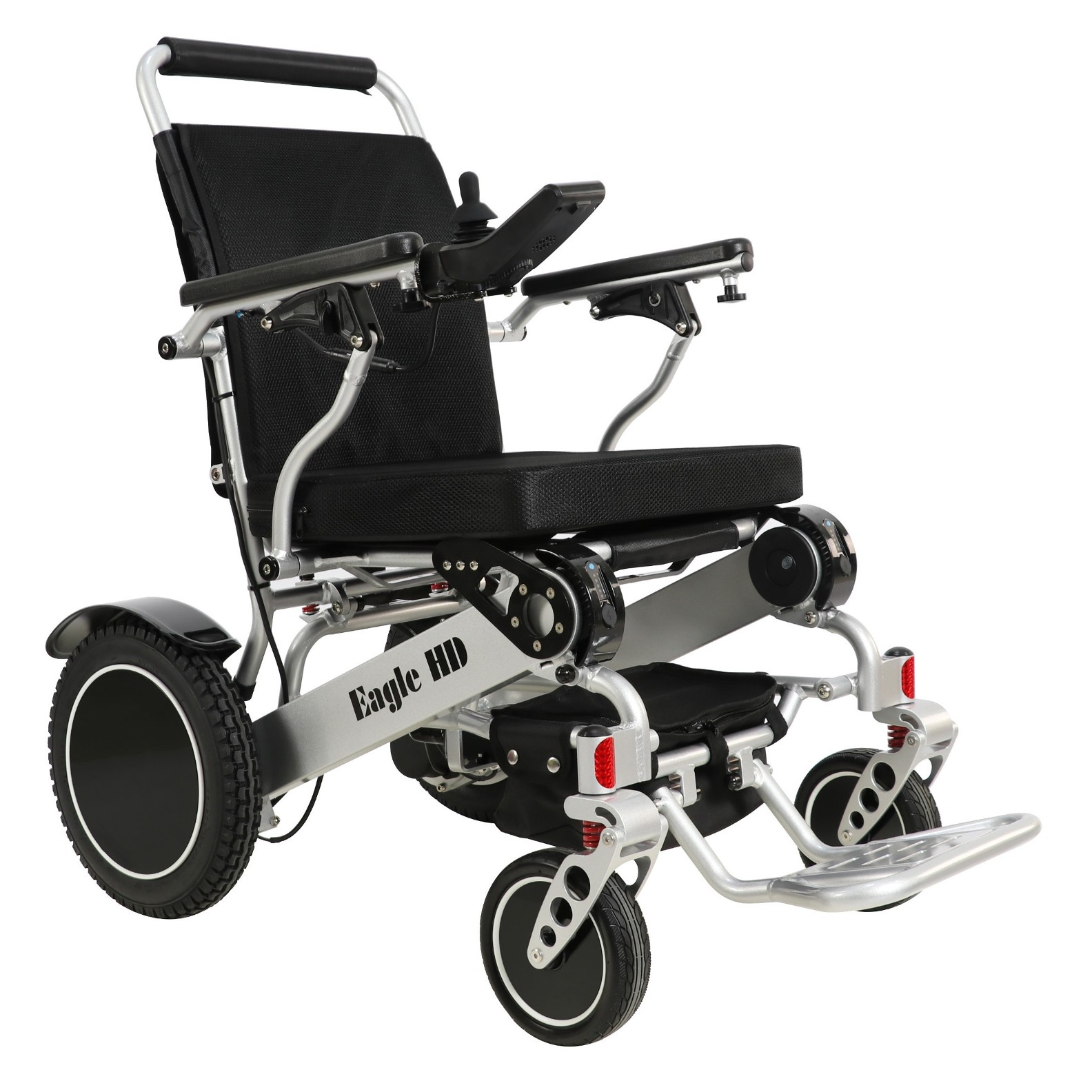

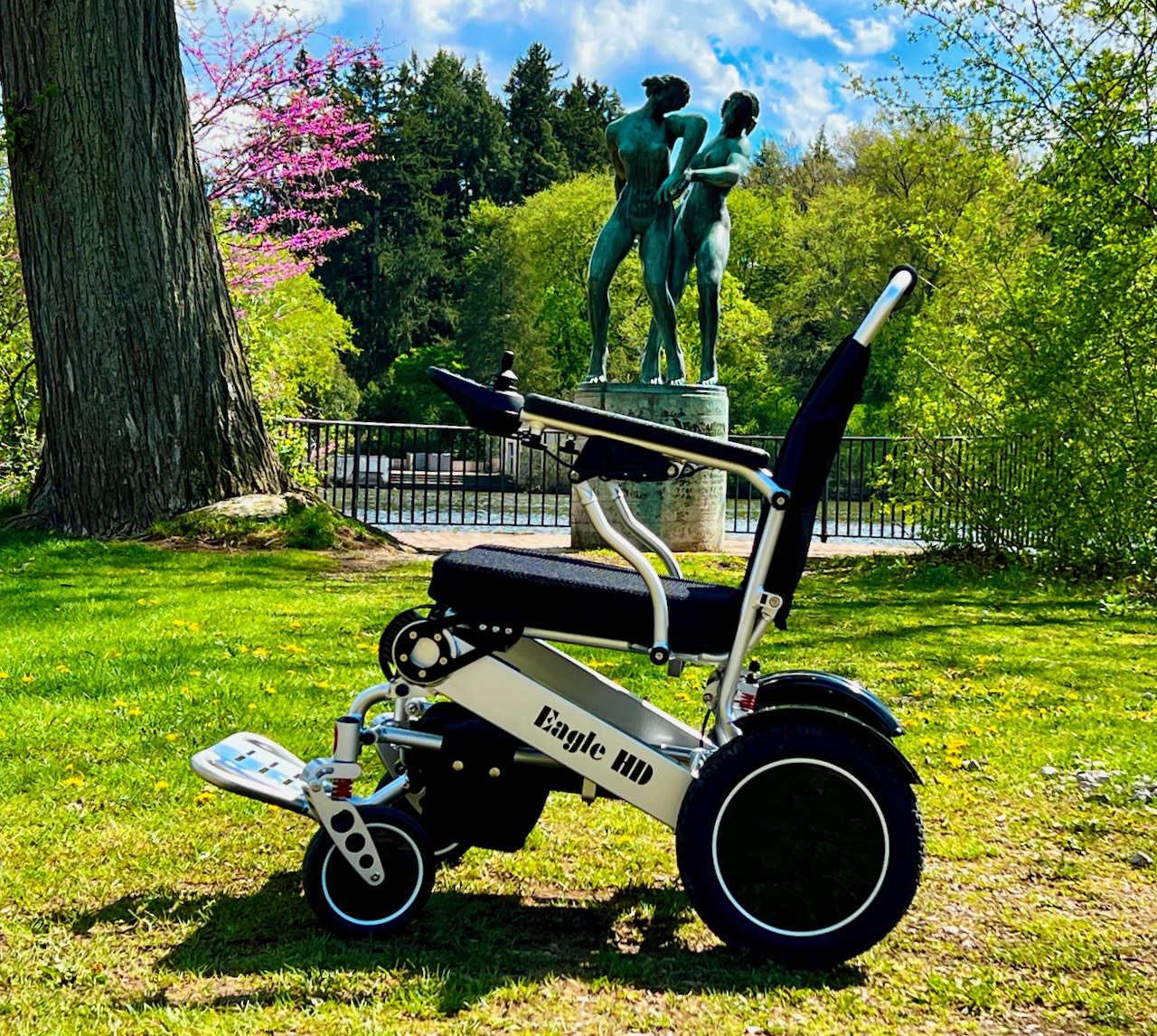

The Eagle HD heavy duty bariatric portable power wheelchair with a weight capacity of 400 lbs only weighing 50 lbs. The Eagle HD has large 12 inch rear tires providing a smooth ride with lots of traction to allow you to travel through most any terrain. The Eagle HD is powered by two 250 watt motors providing lots of power even when going up hills and inclines. The Eagle HD also comes standard with two battery packs giving users that added range to go long distances without the concern of a dead battery.
The Eagle HD is made of a high strength aircraft quality aluminum alloy that provides high strength yet is extremely light weight allowing the Eagle HD to provide a weight capacity of 400 lbs while only weighing 50 lbs without the batteries.
Power, Strength and Portability.



Easily move the joystick from left to right and back again in seconds for right handed and left handed users.

Two 250 watt motors provides you with all the power you could possibly need even on hills and inclines. Also the Eagle HD has a freewheel or neutral option allowing it to be used as a manual chair so a caregivers can opted to push it manually.

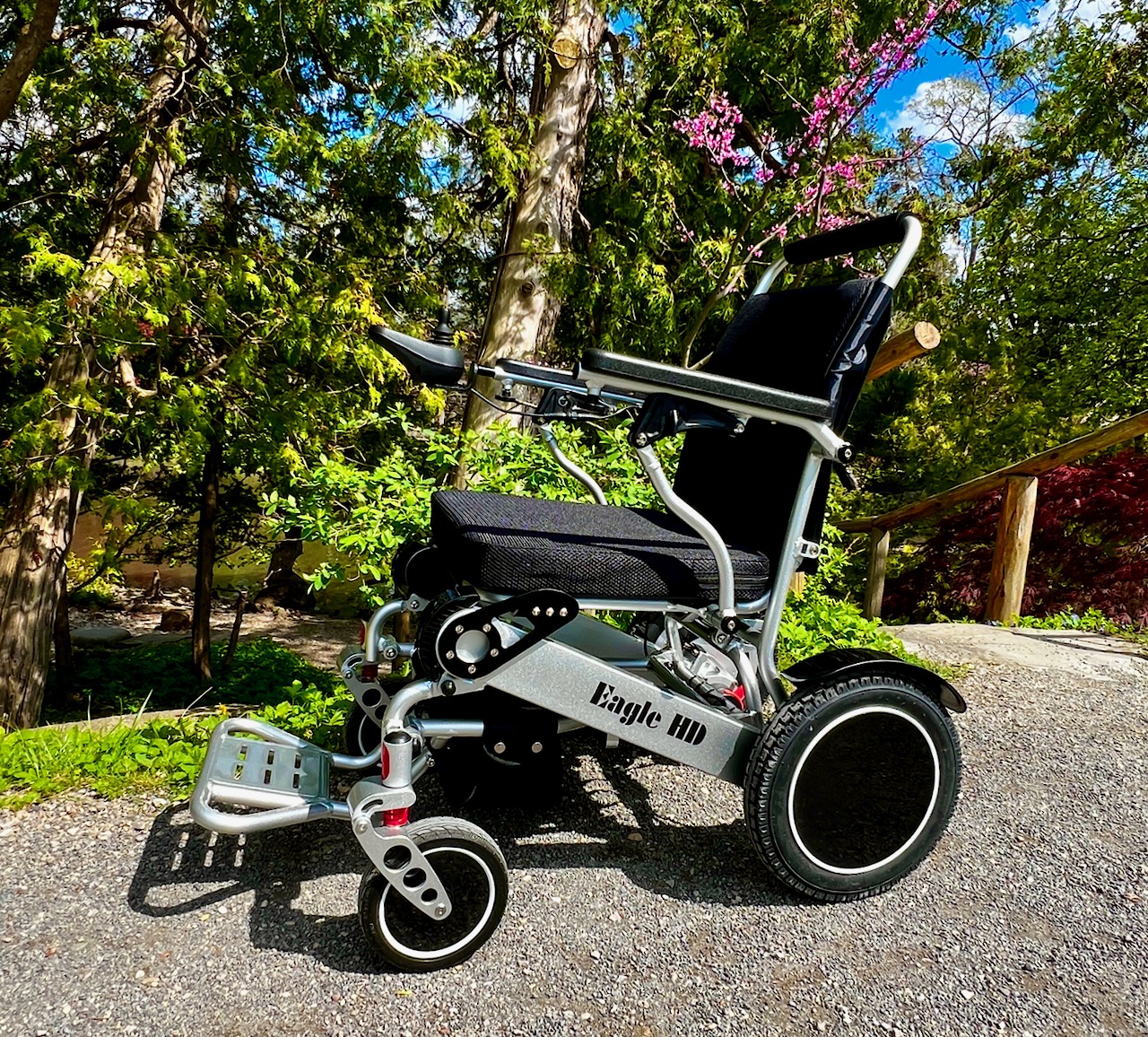

Large dual posi-traction drive wheels provide lots of traction even in dirt and gravel.

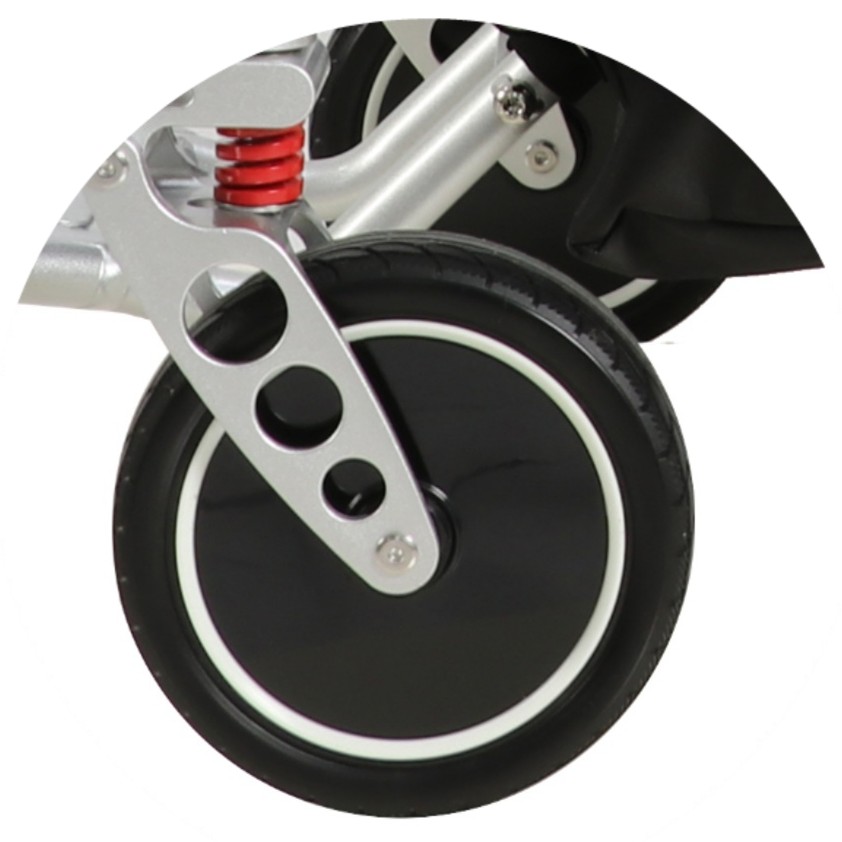

Heavy Duty Front Casters And Front Forks That Can Easily Handel High Weight Capacity As Well As High Impact From Rough Terrain.

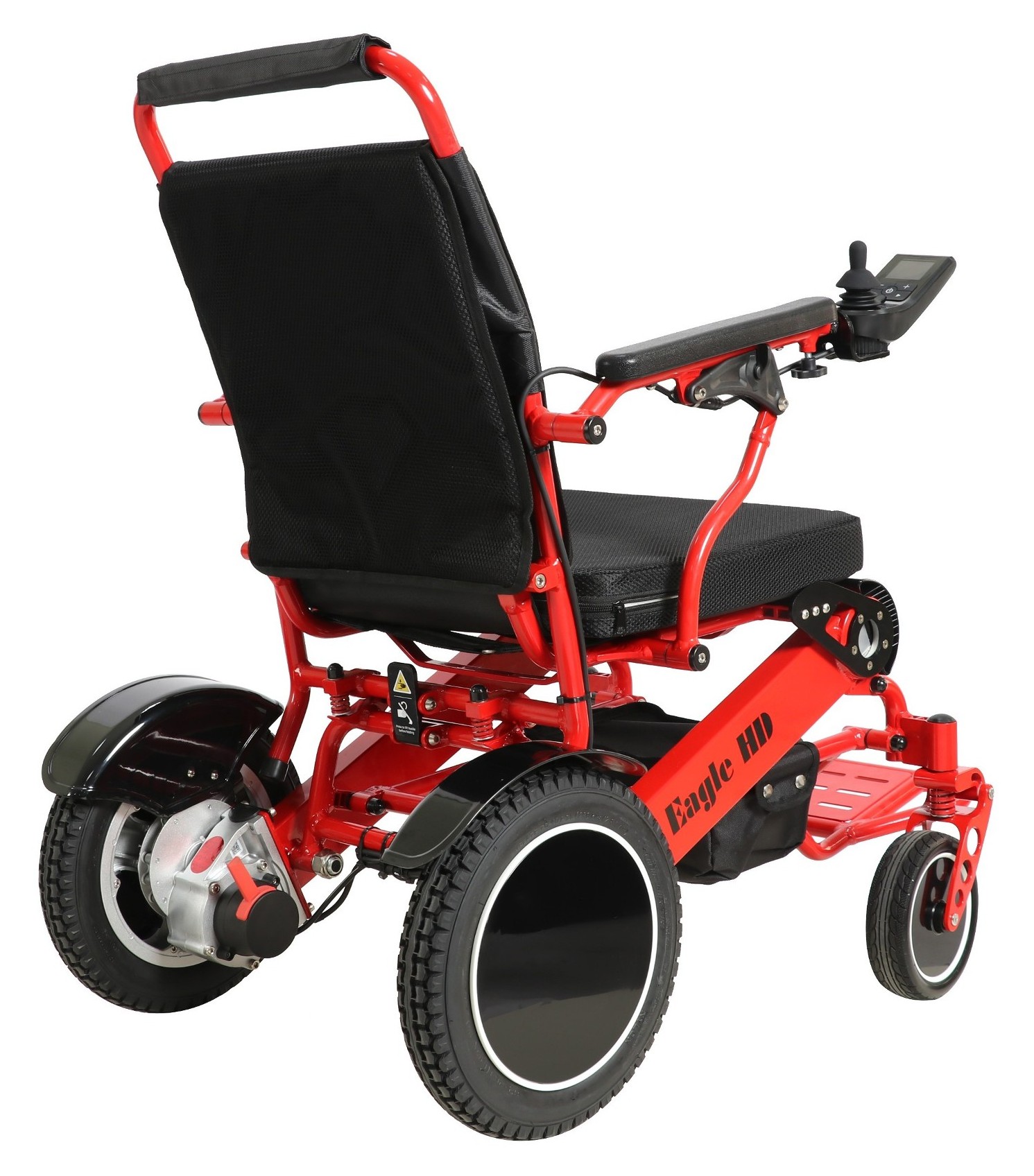

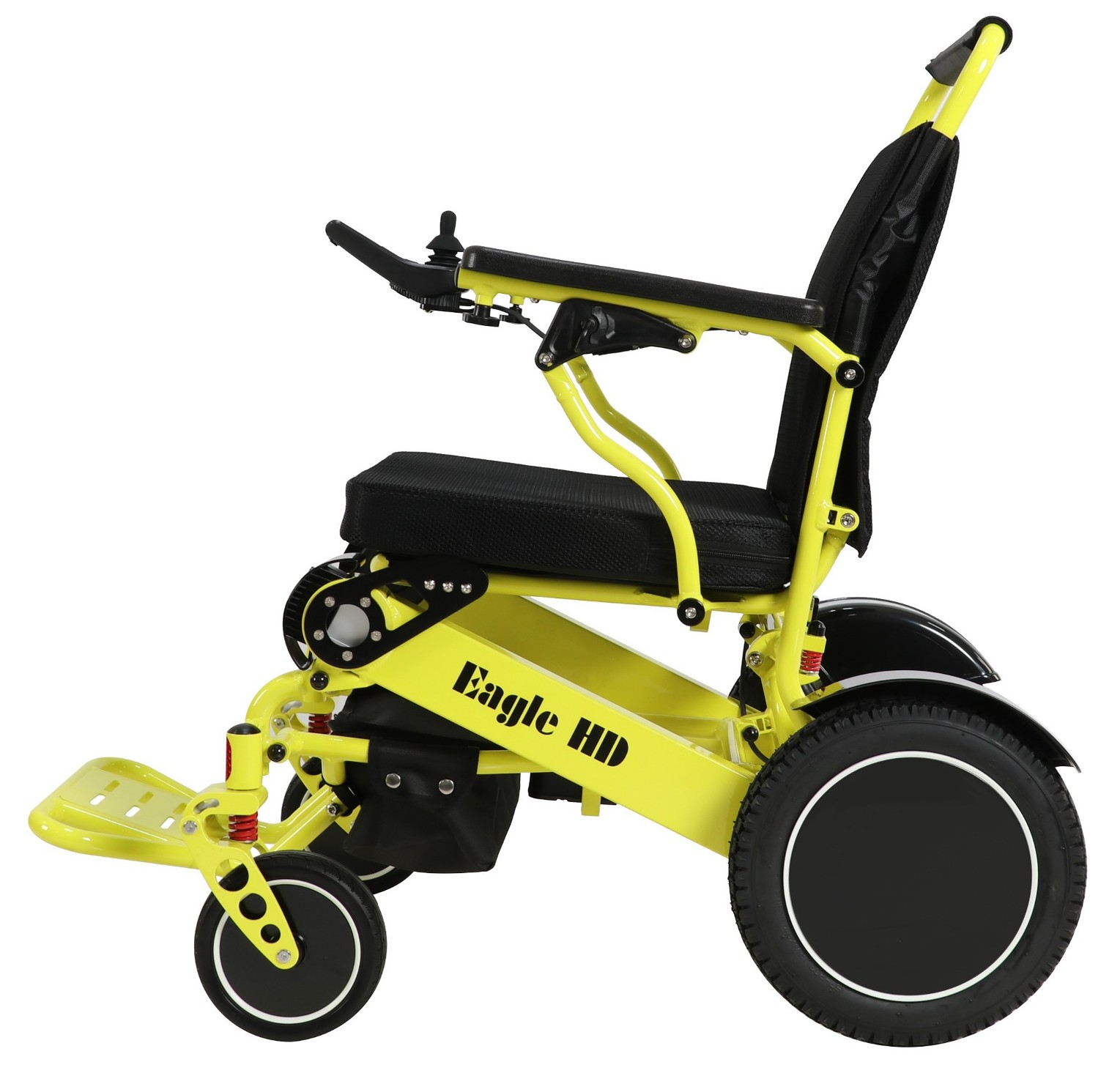

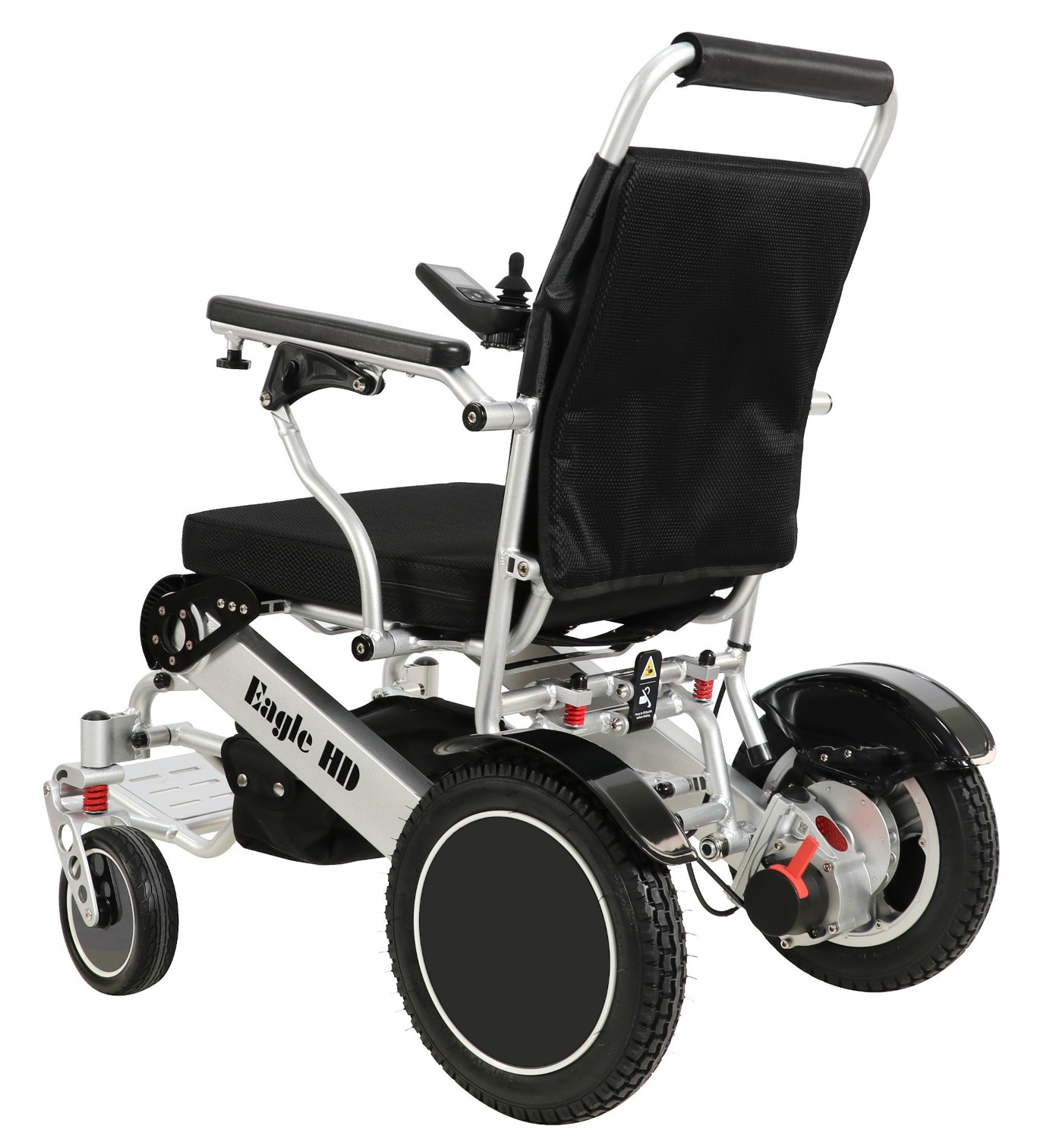

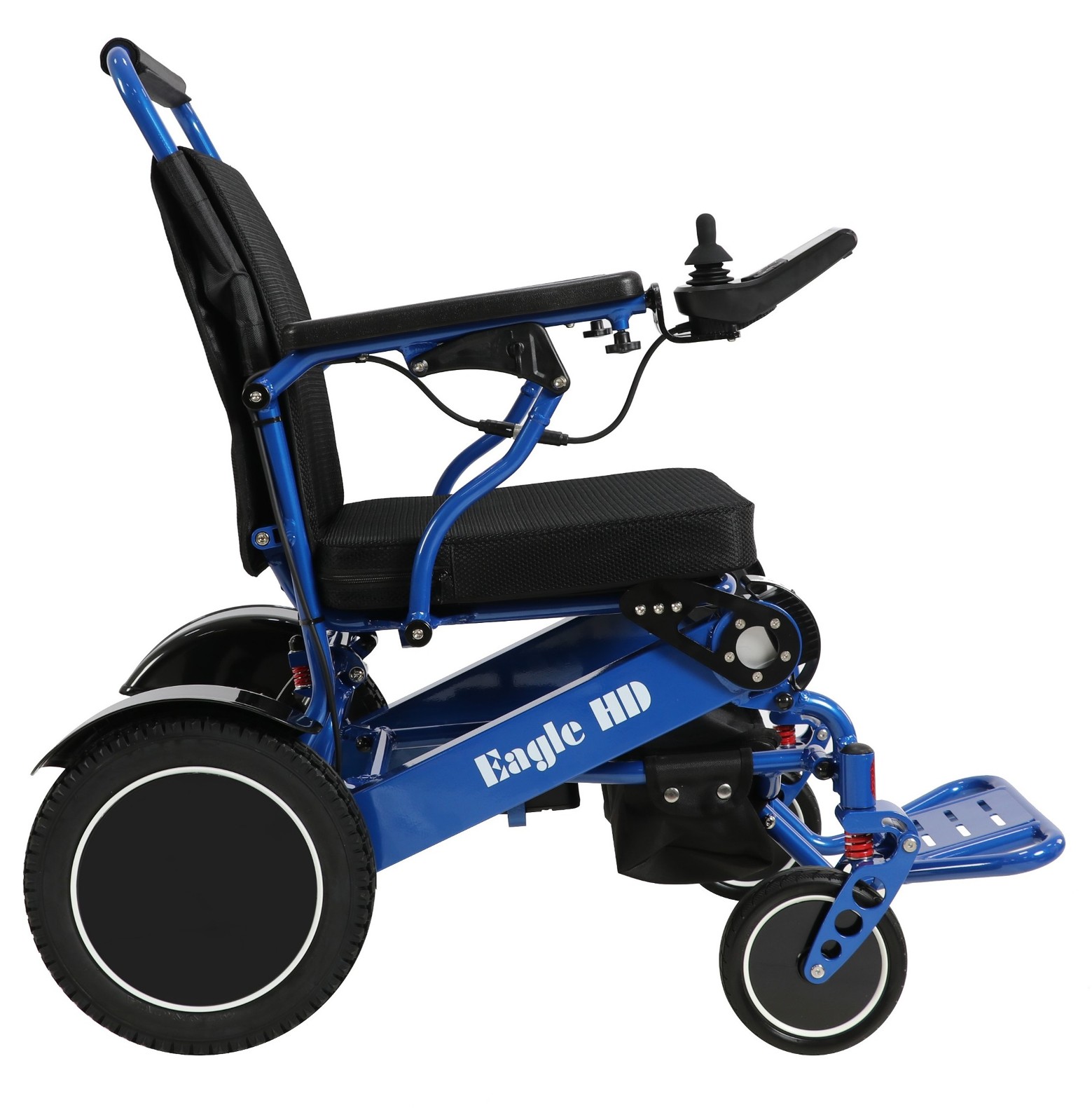

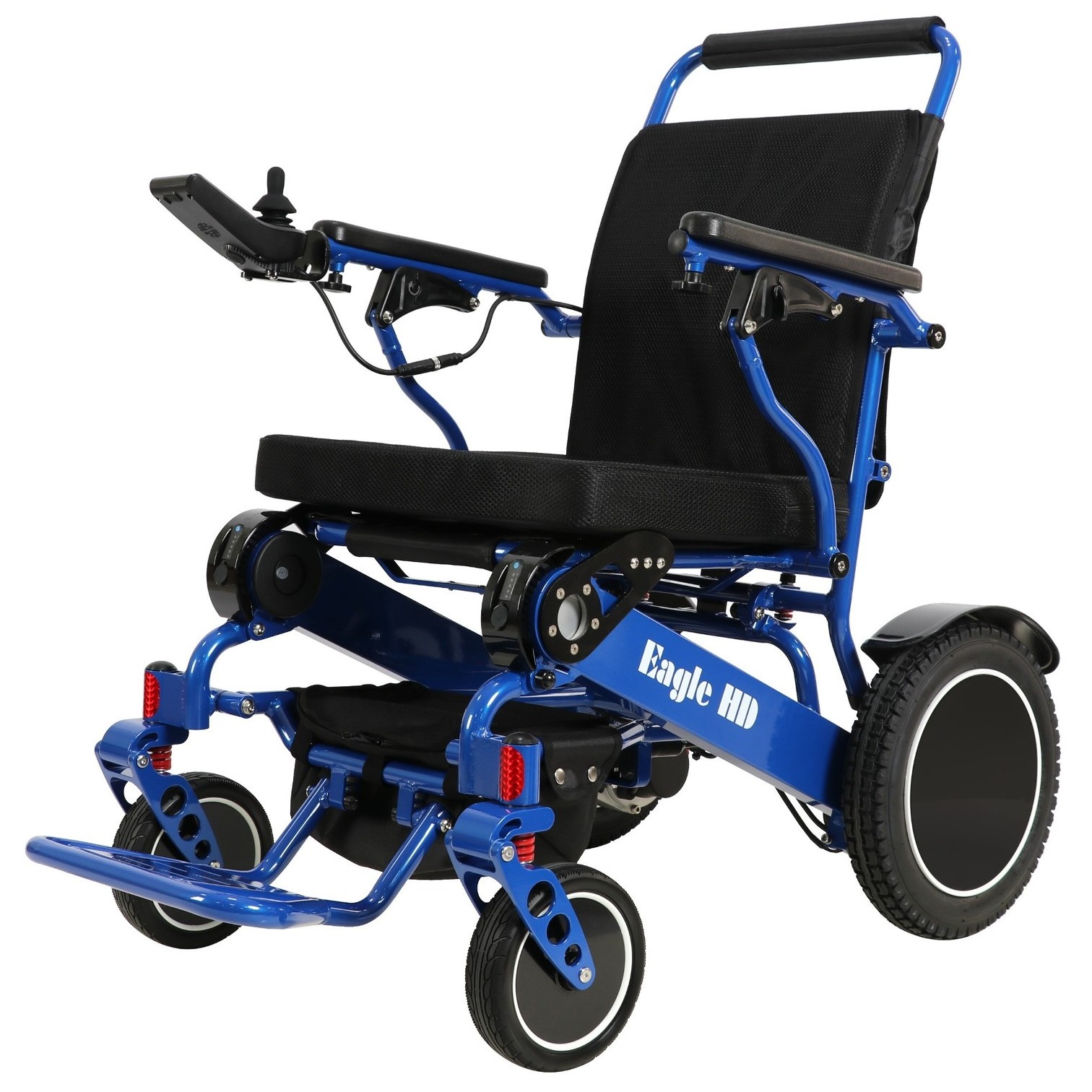

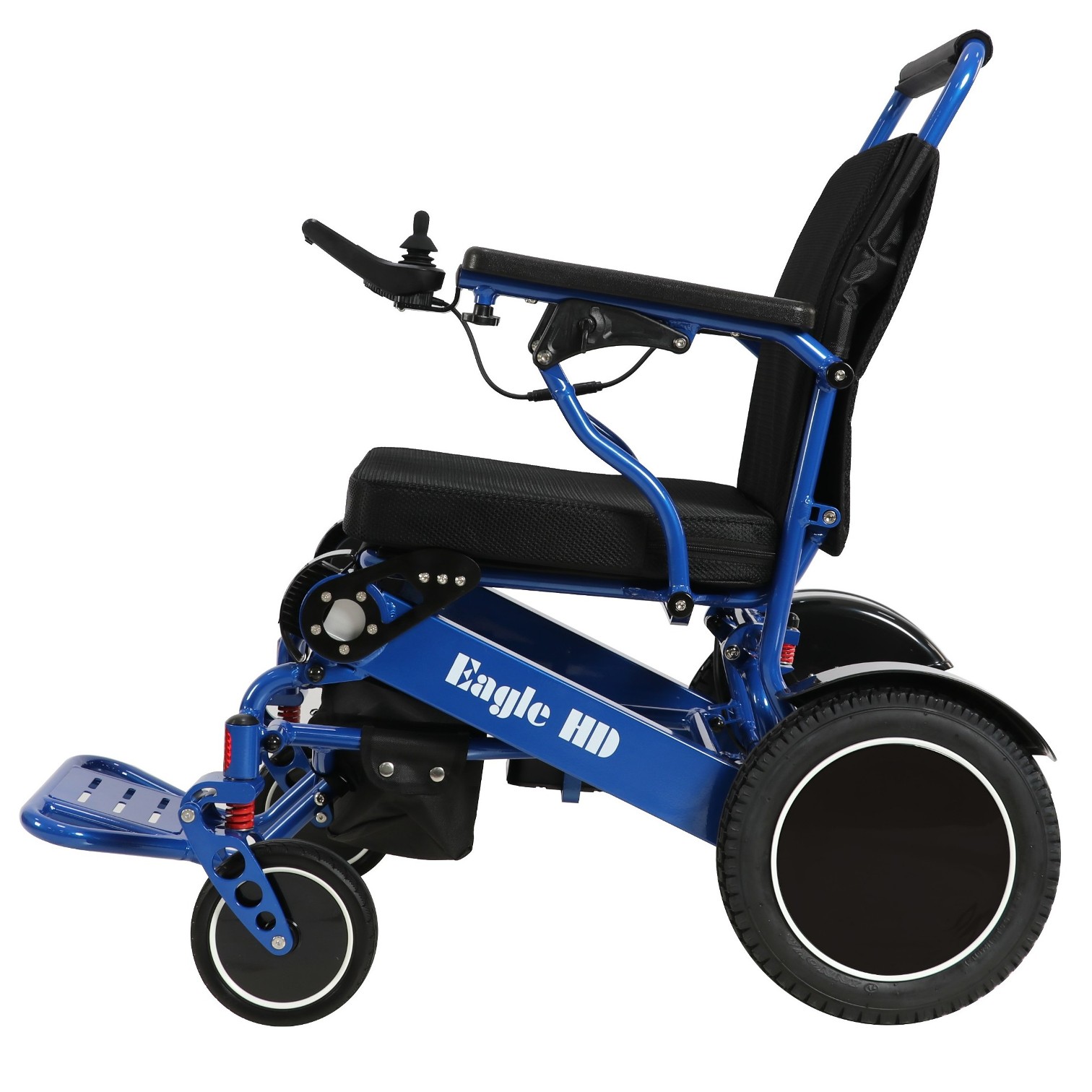

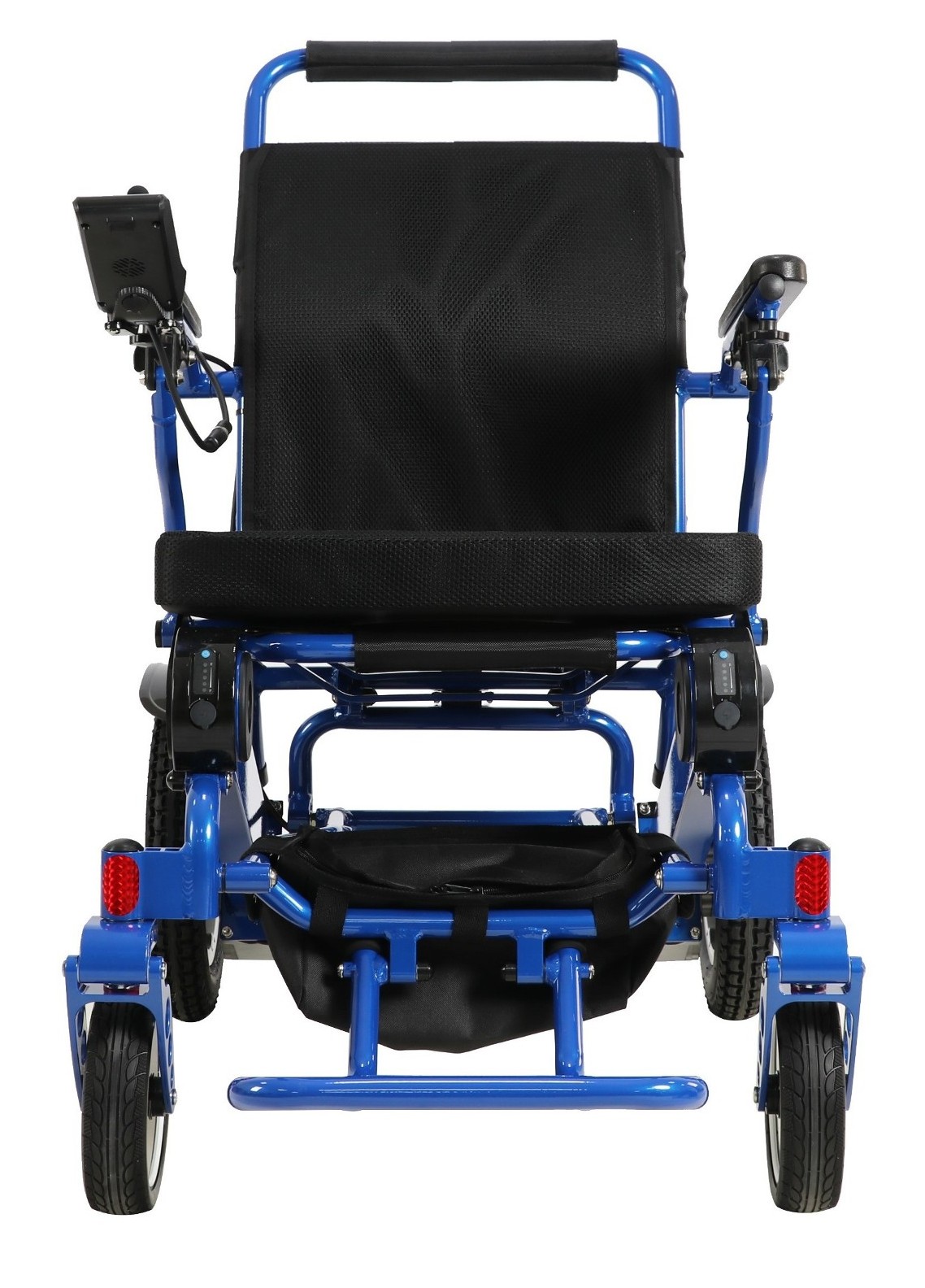

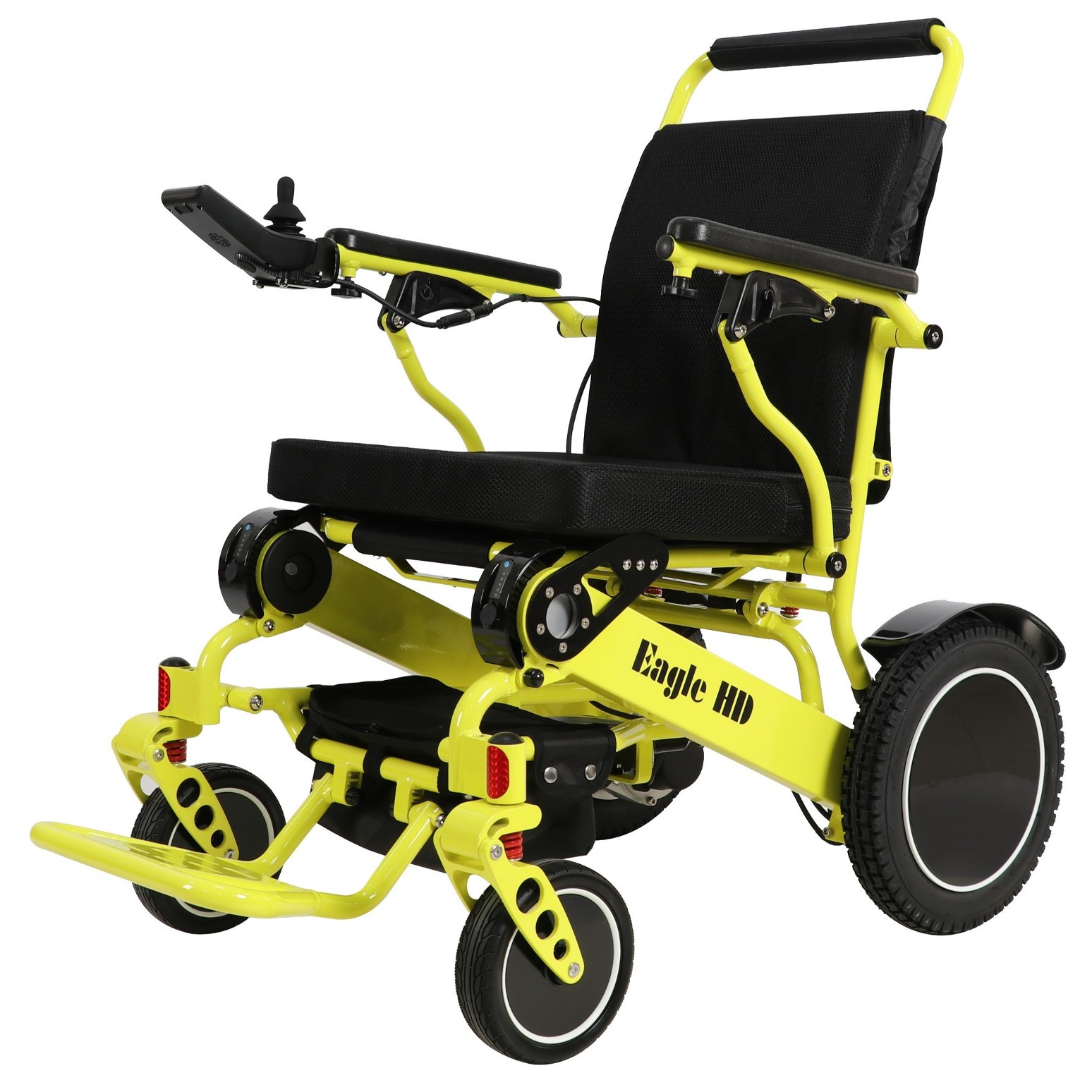

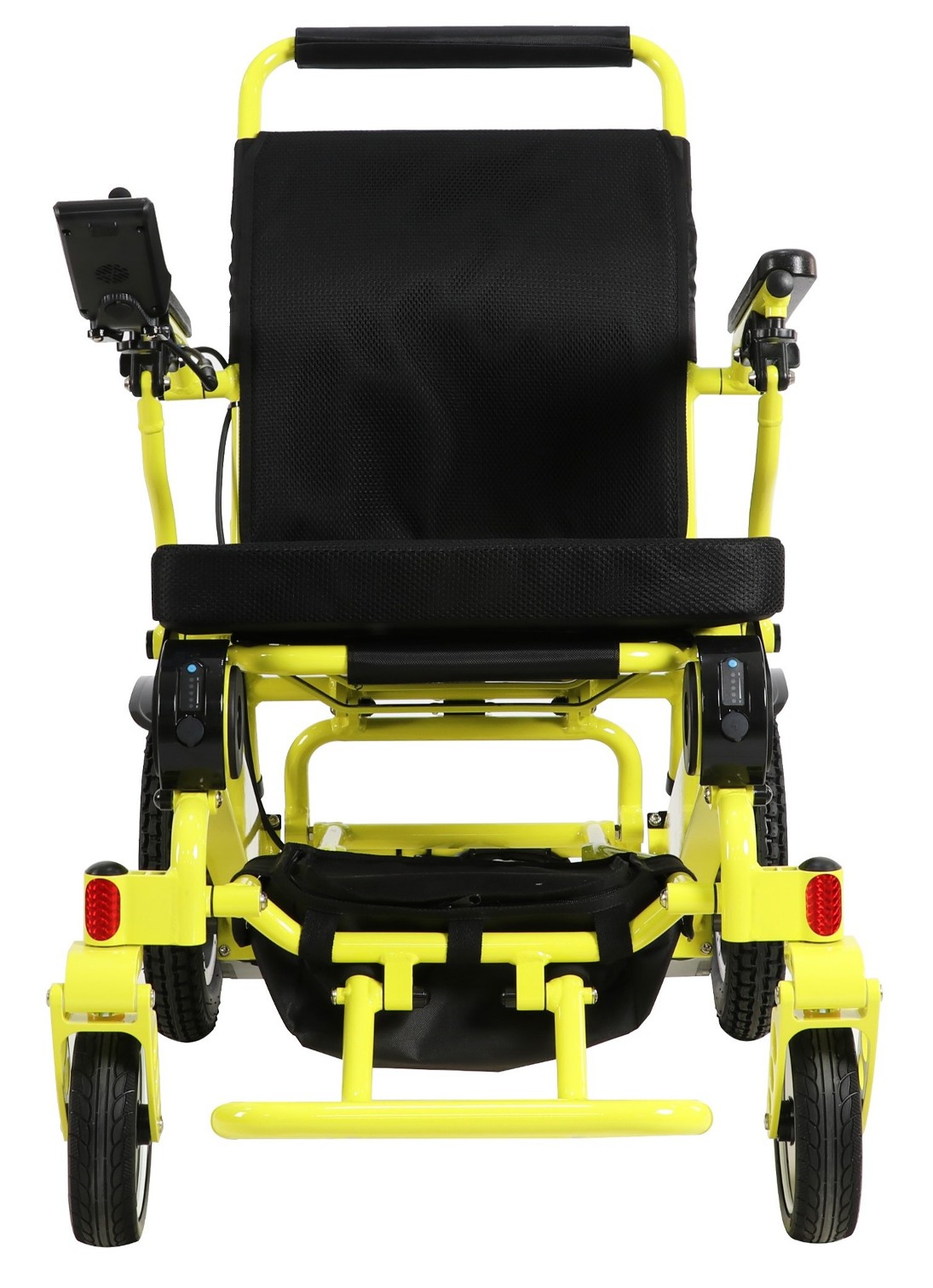

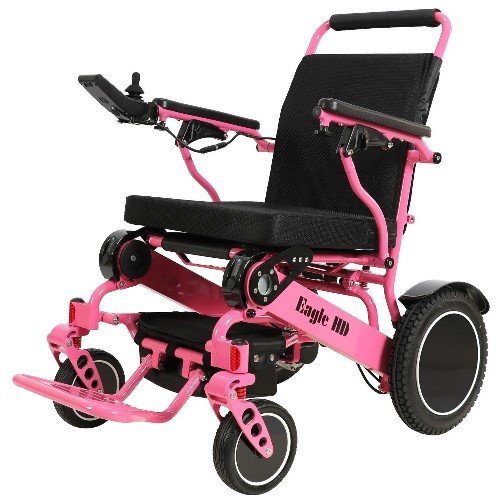

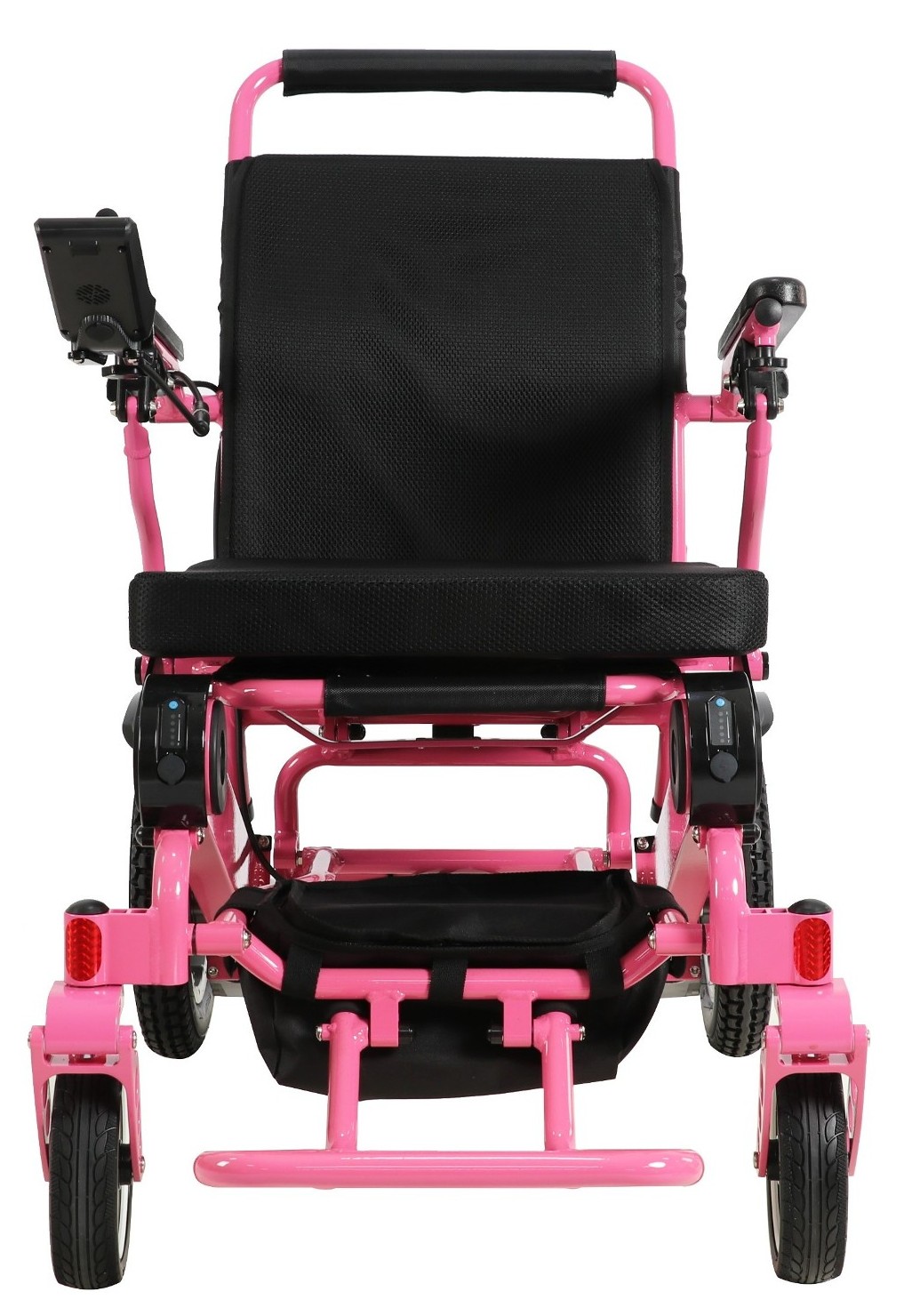

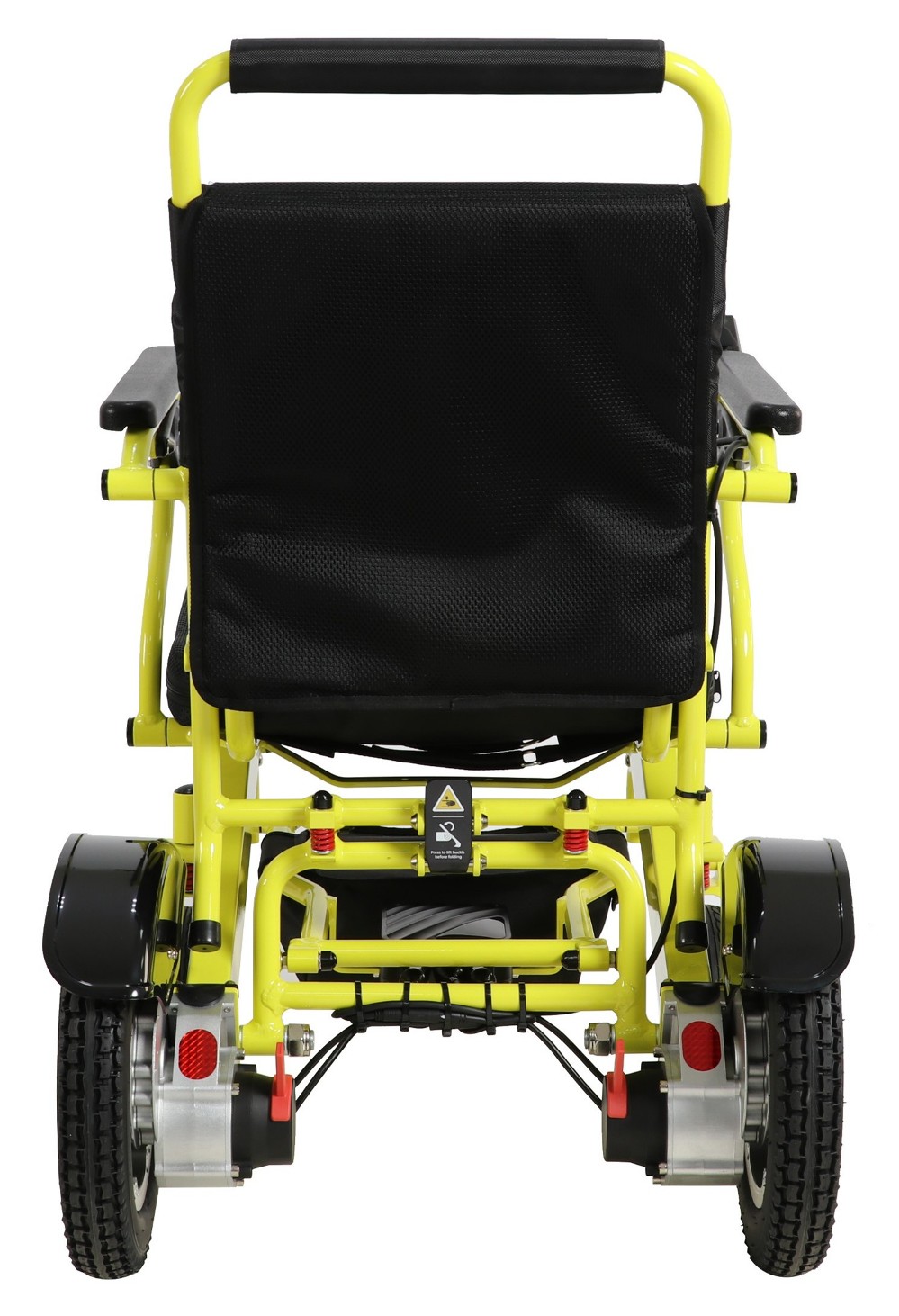

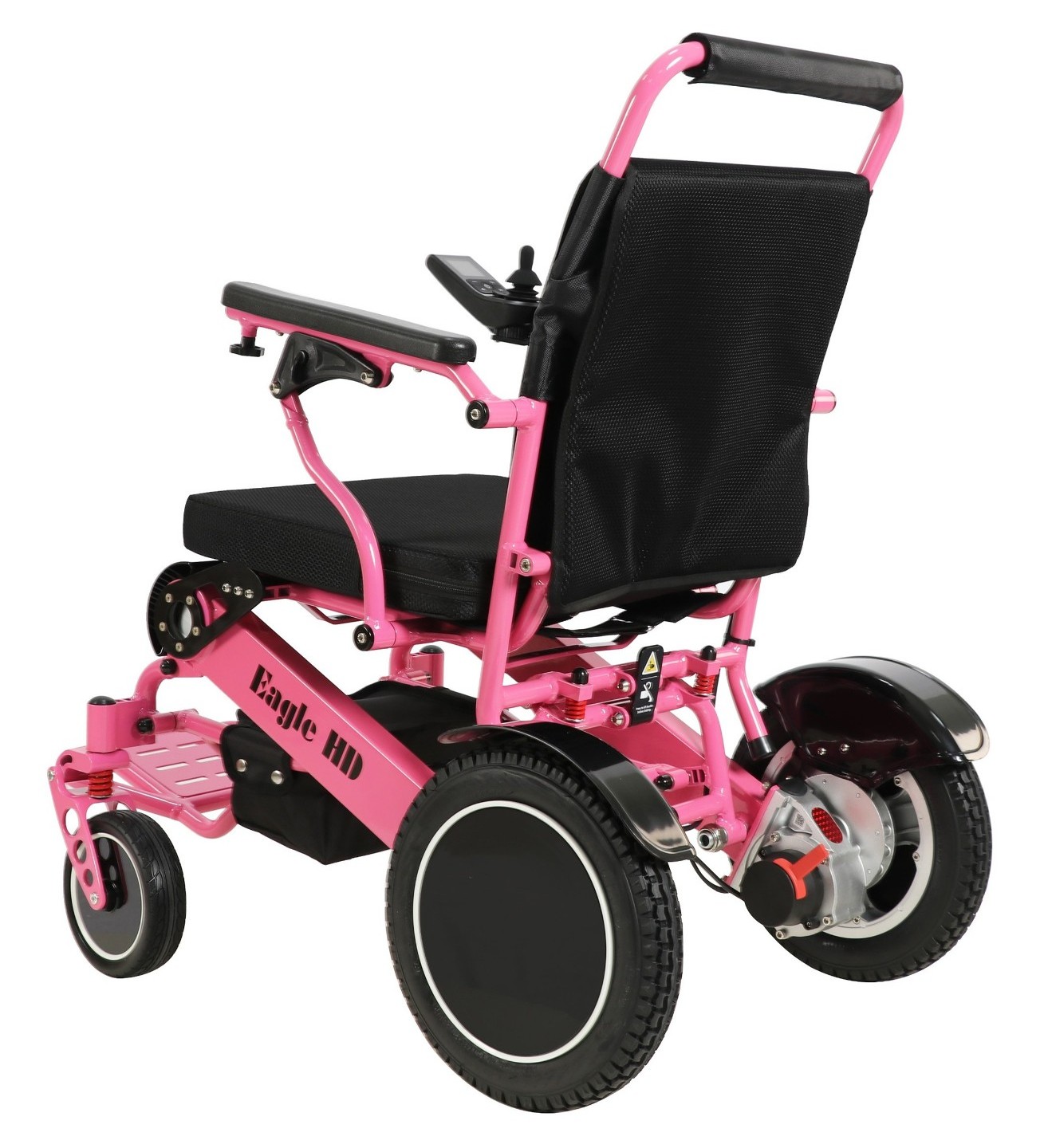

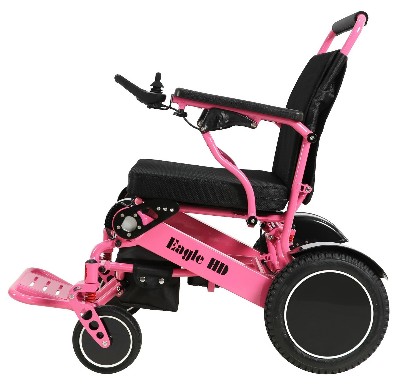

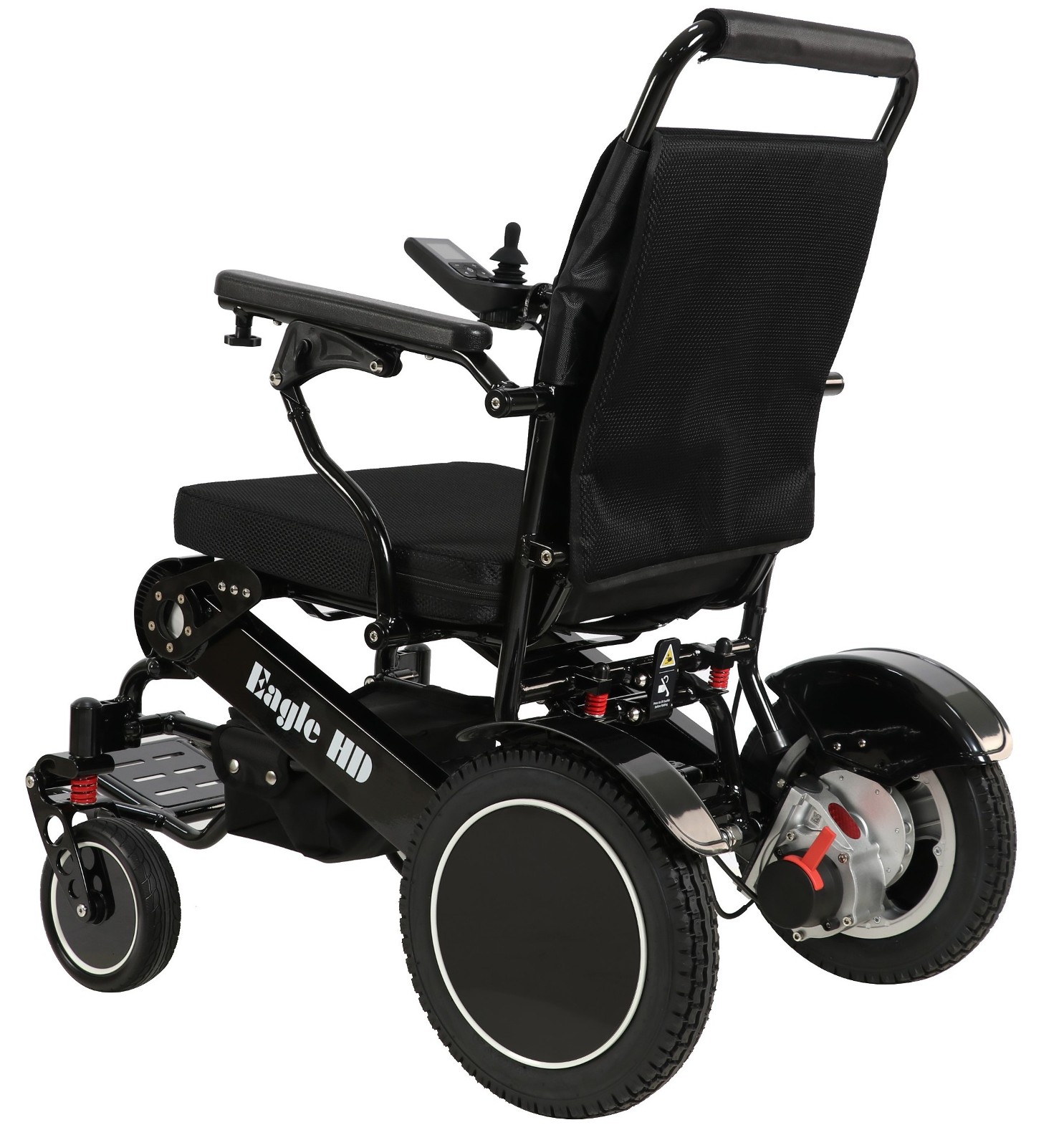

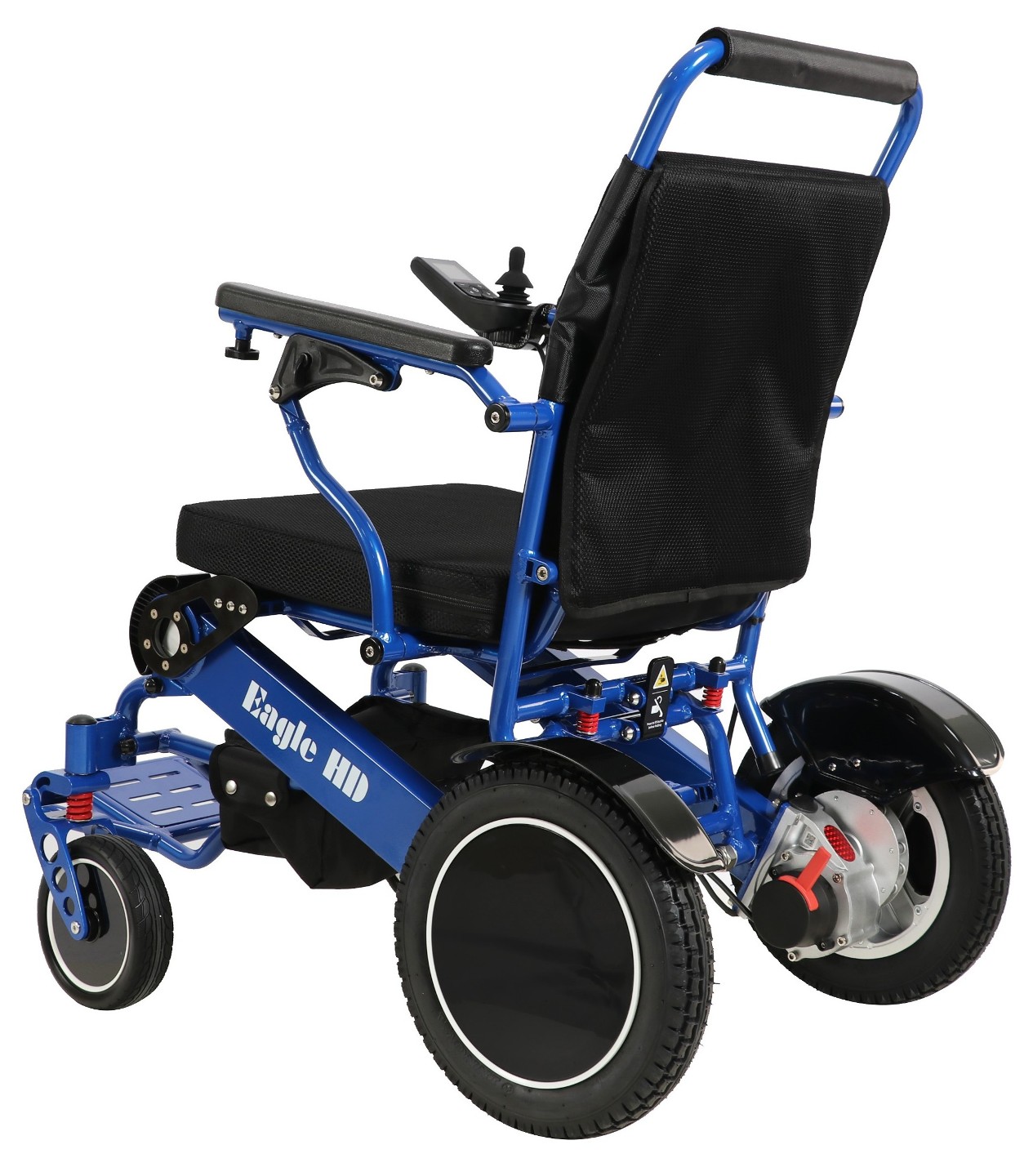

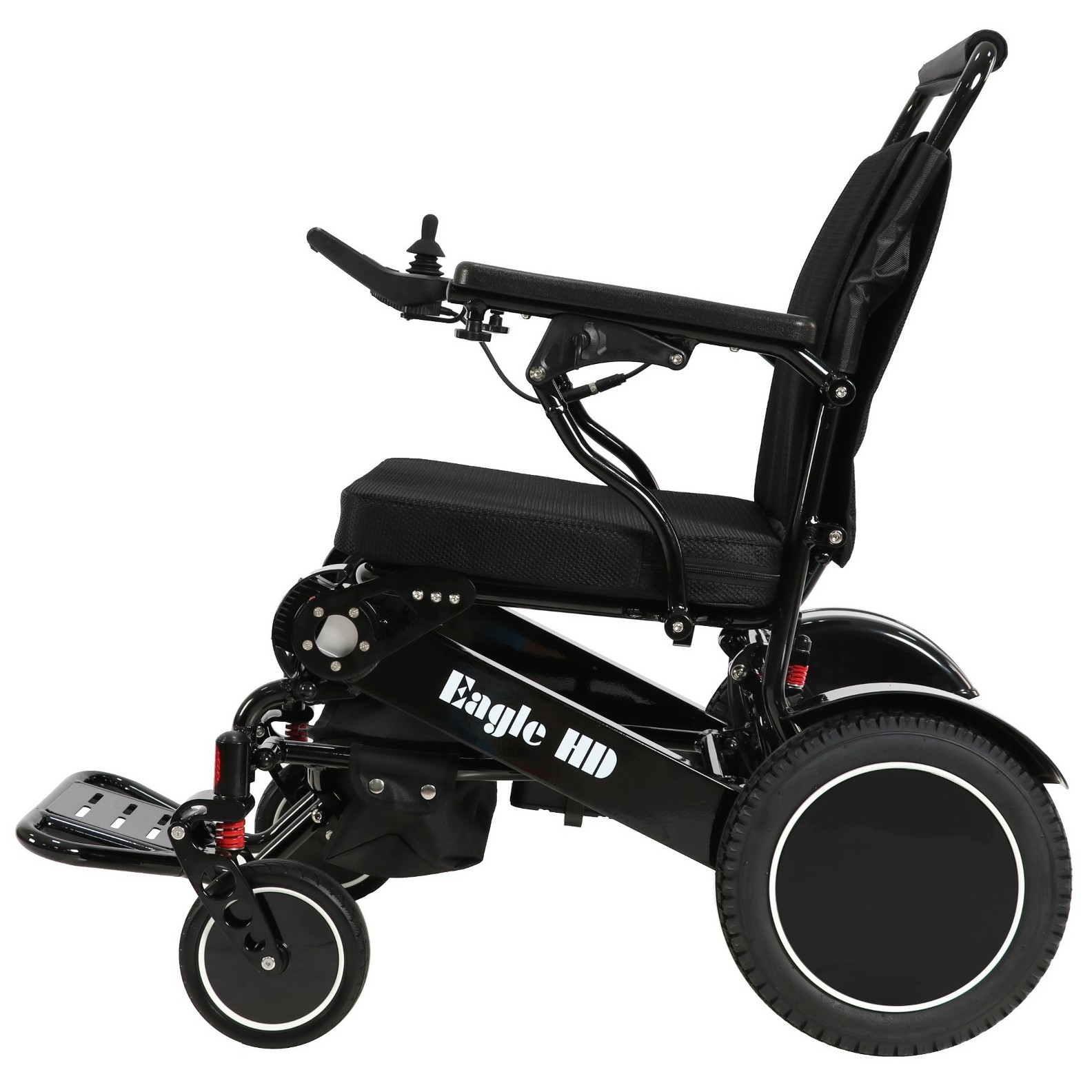

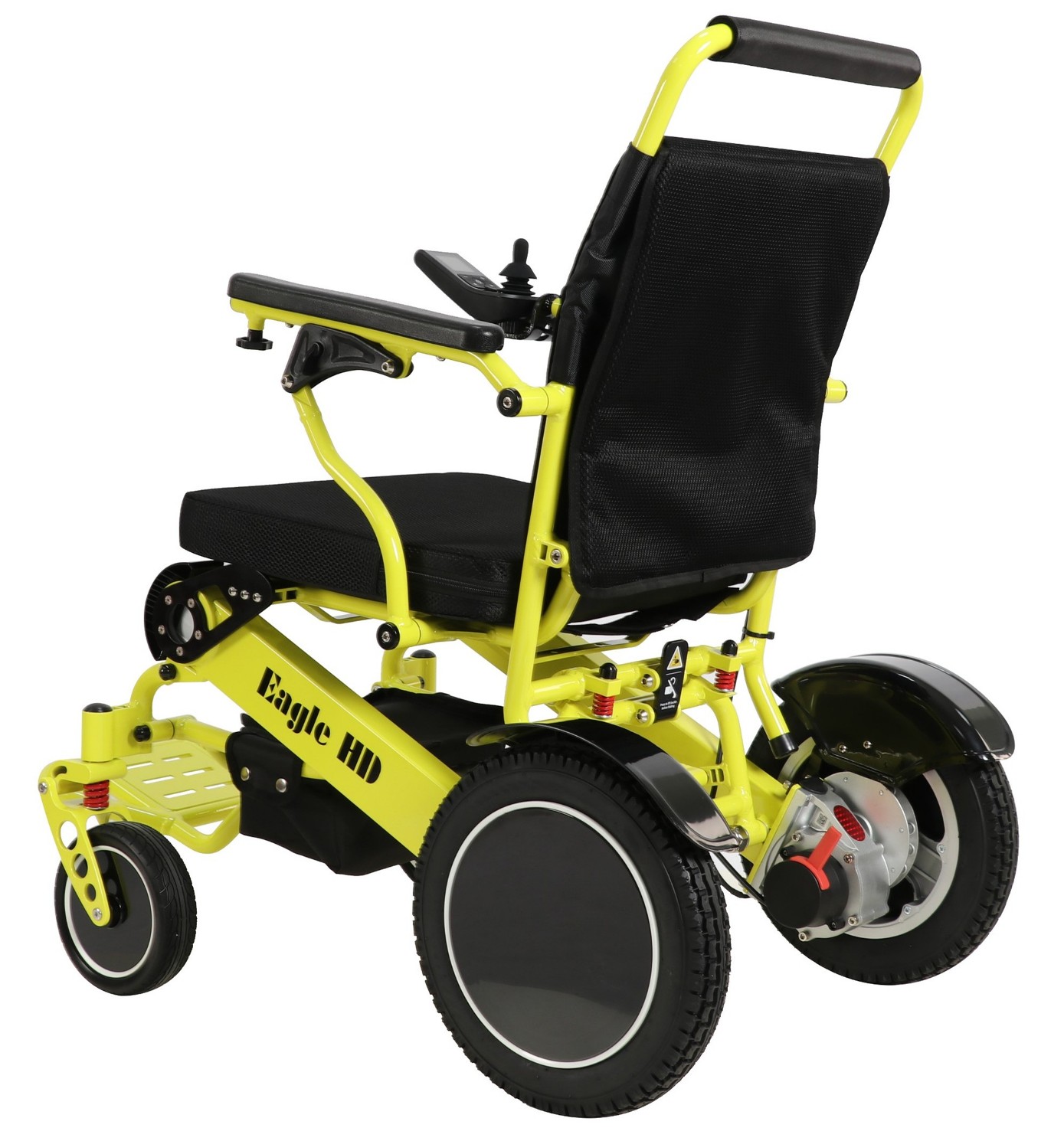

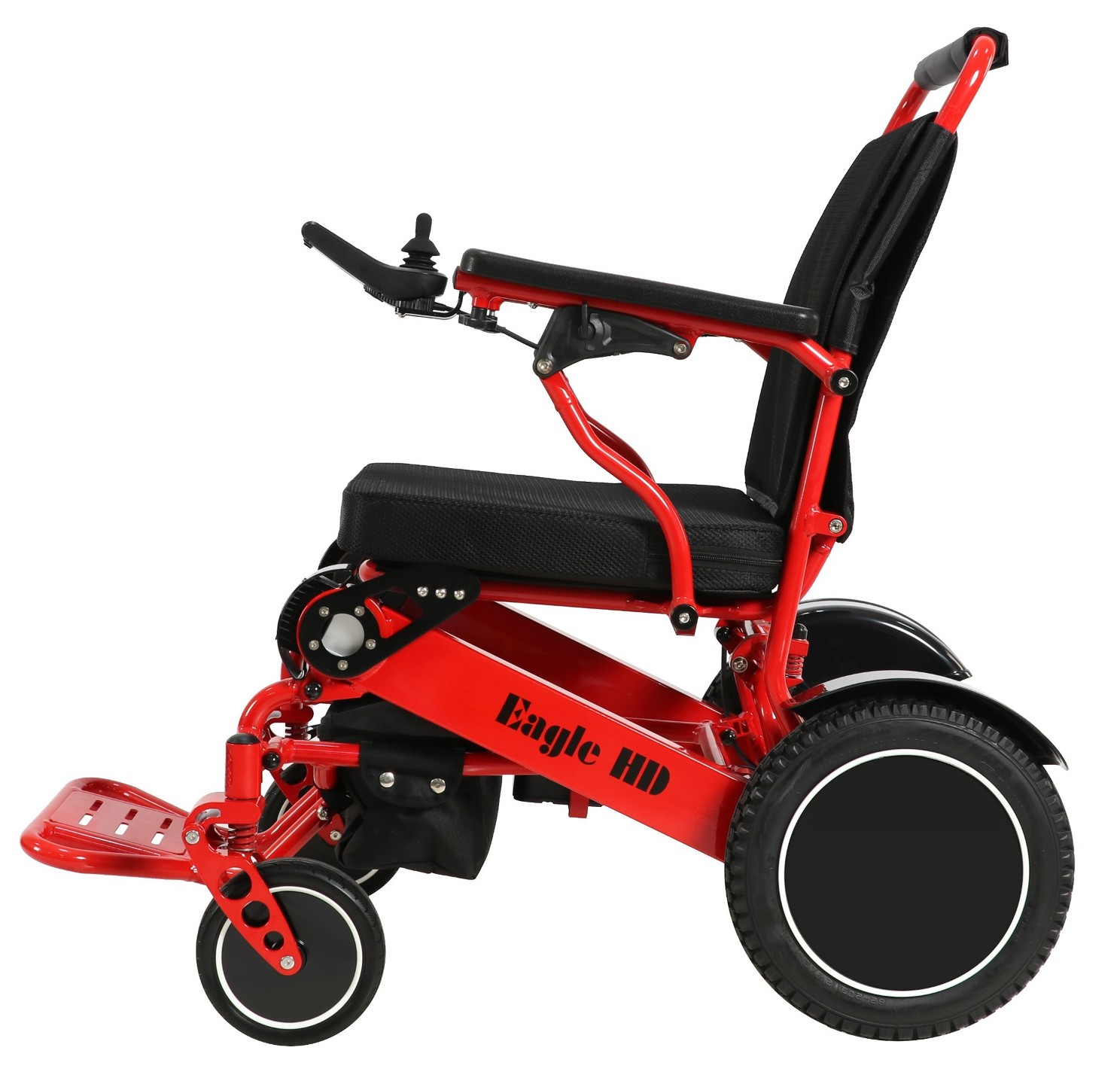

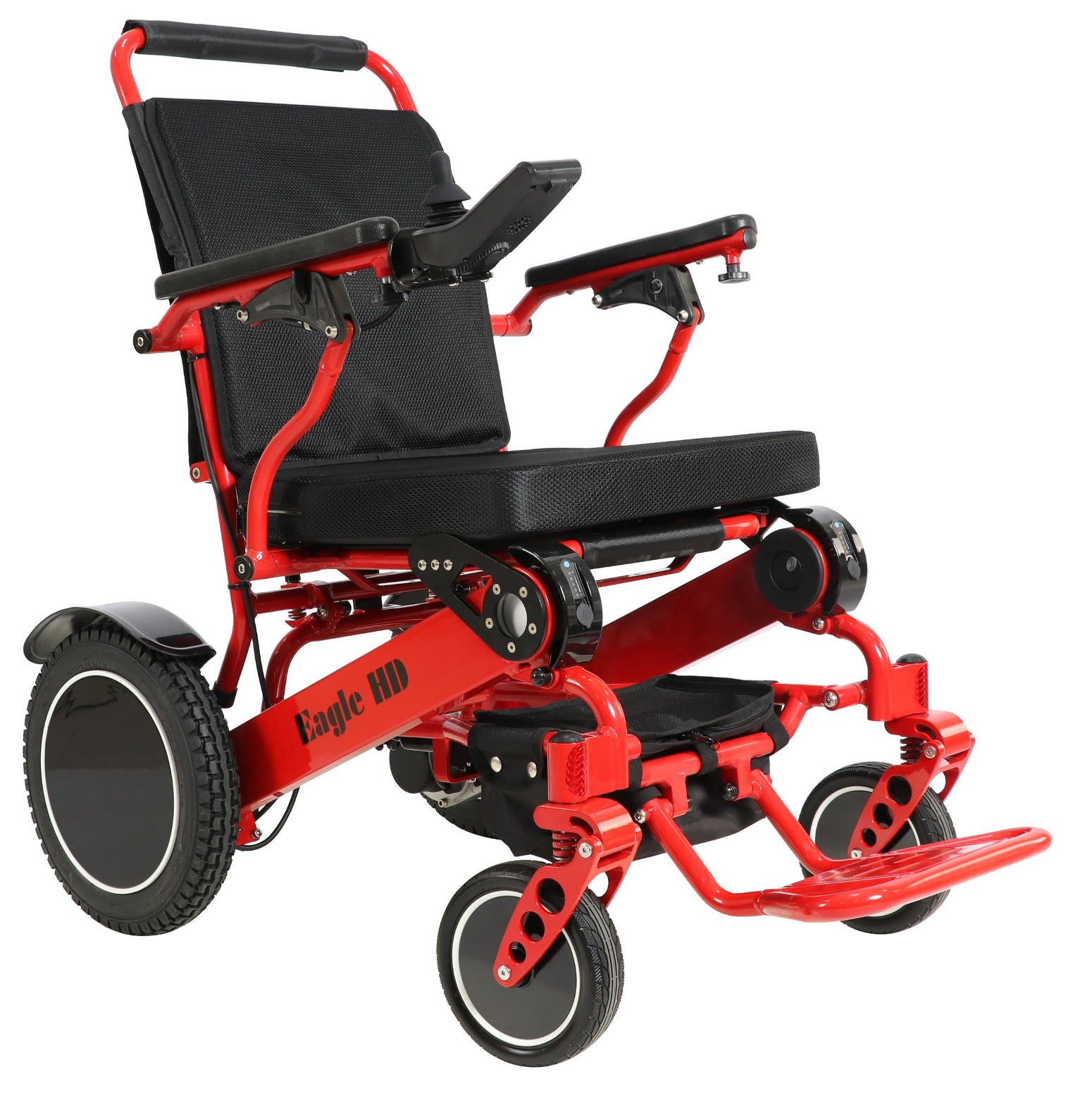

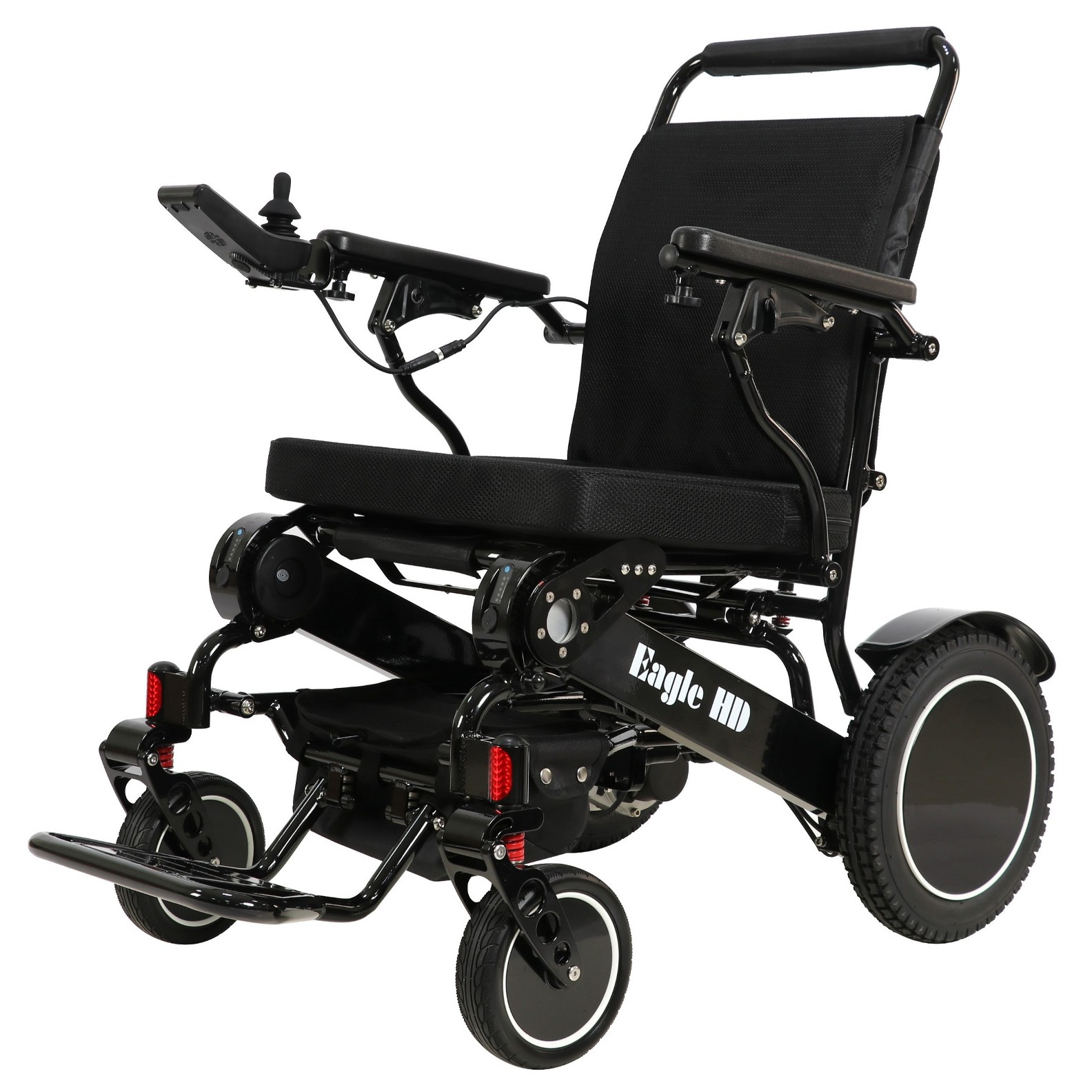

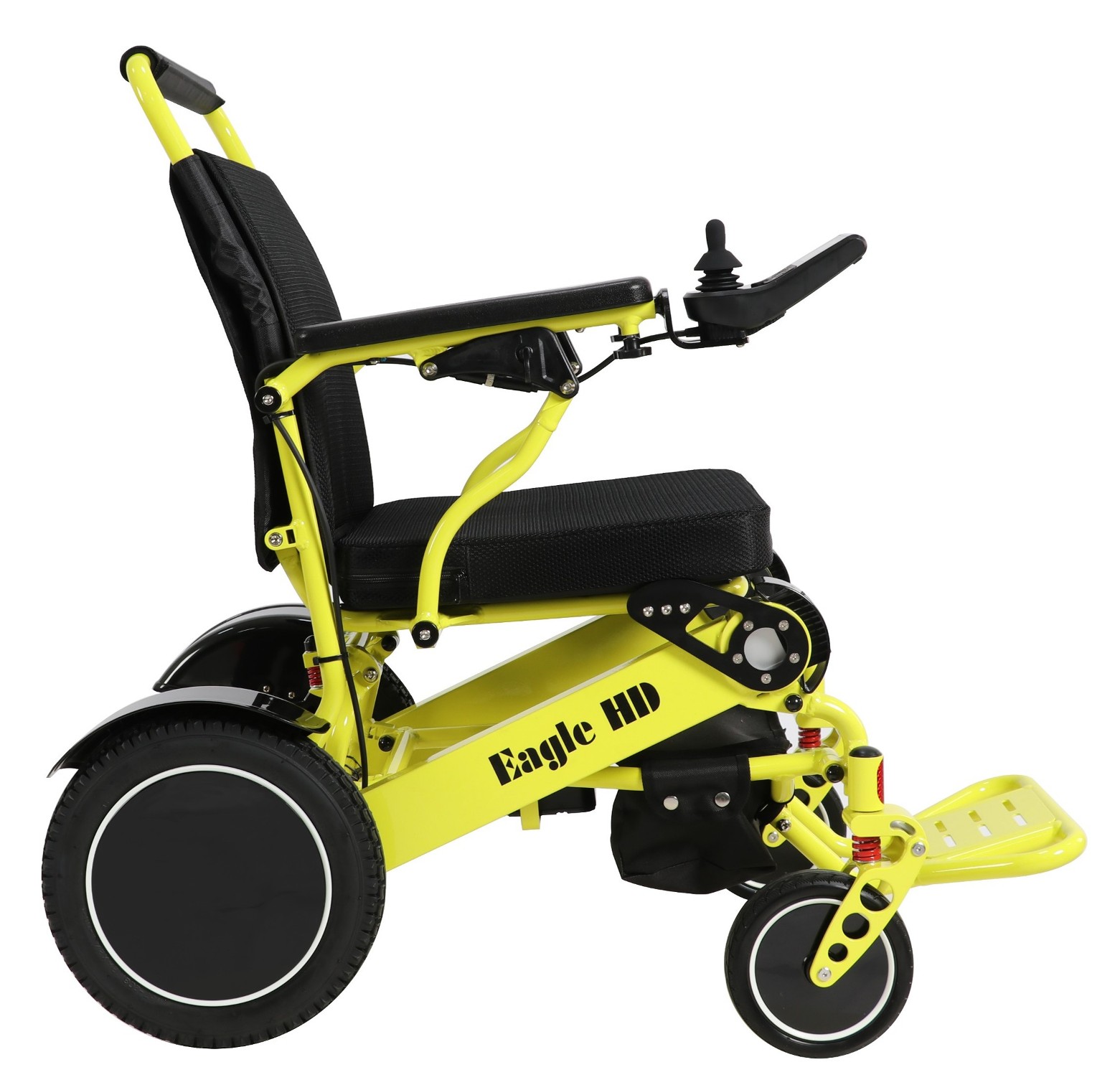

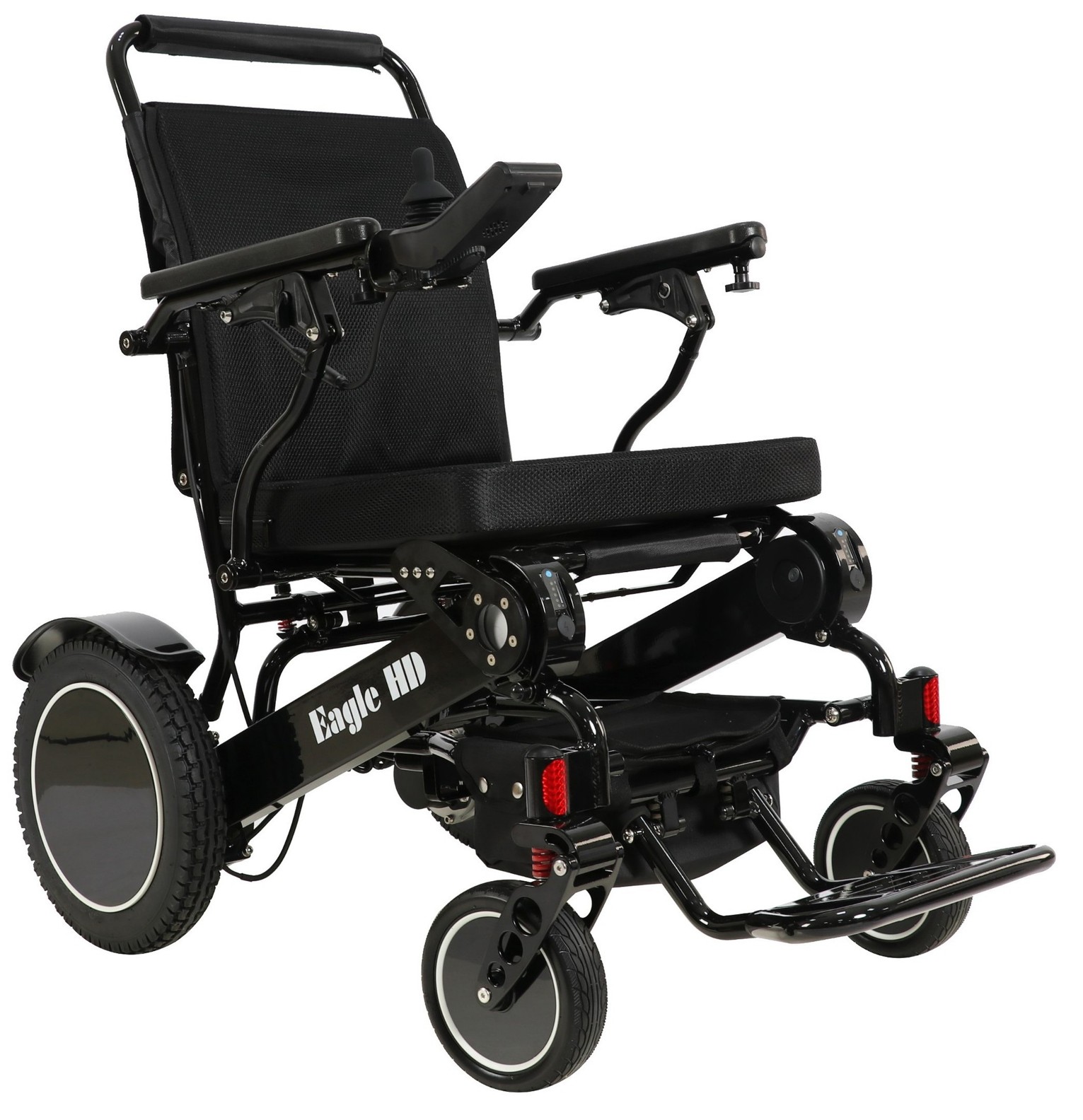

The Eagle HD Heavy Duty Foldable Wheelchair With A 400 Lb Weight Capacity And Only Weighs 50 lbs



The Eagle HD Offers A Smooth Ride And Lots Of Power.

The Eagle HD Is Also Equipped Standard With A Extra Battery For Added Range And A Piece Of Mind.

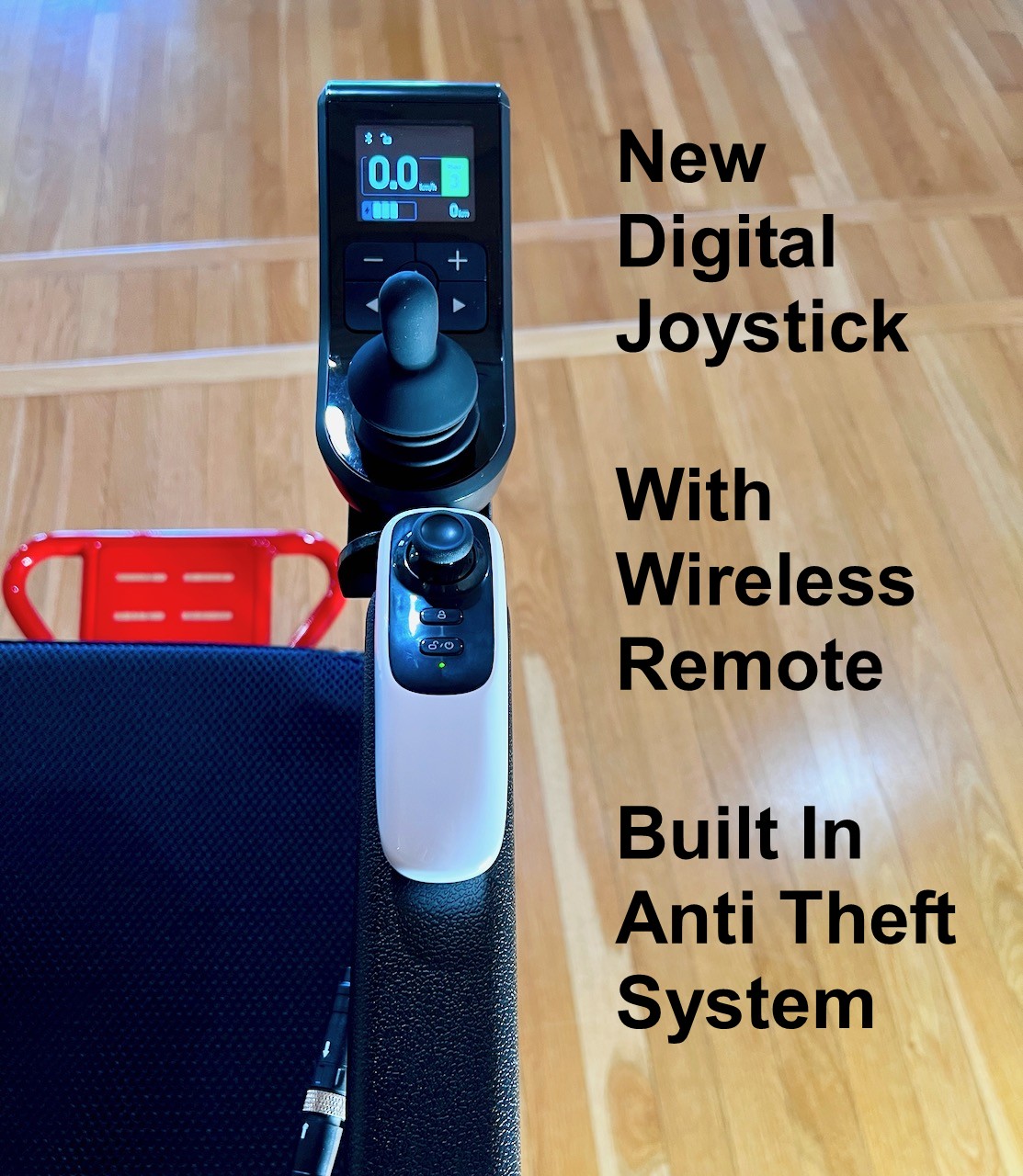

High Control Easy Touch Joystick Controller.
High Strength Aircraft Quality Aluminum Alloy Frame.
ivers50 Watt Motors X 2 With Free Wheel "Neutral Feature".

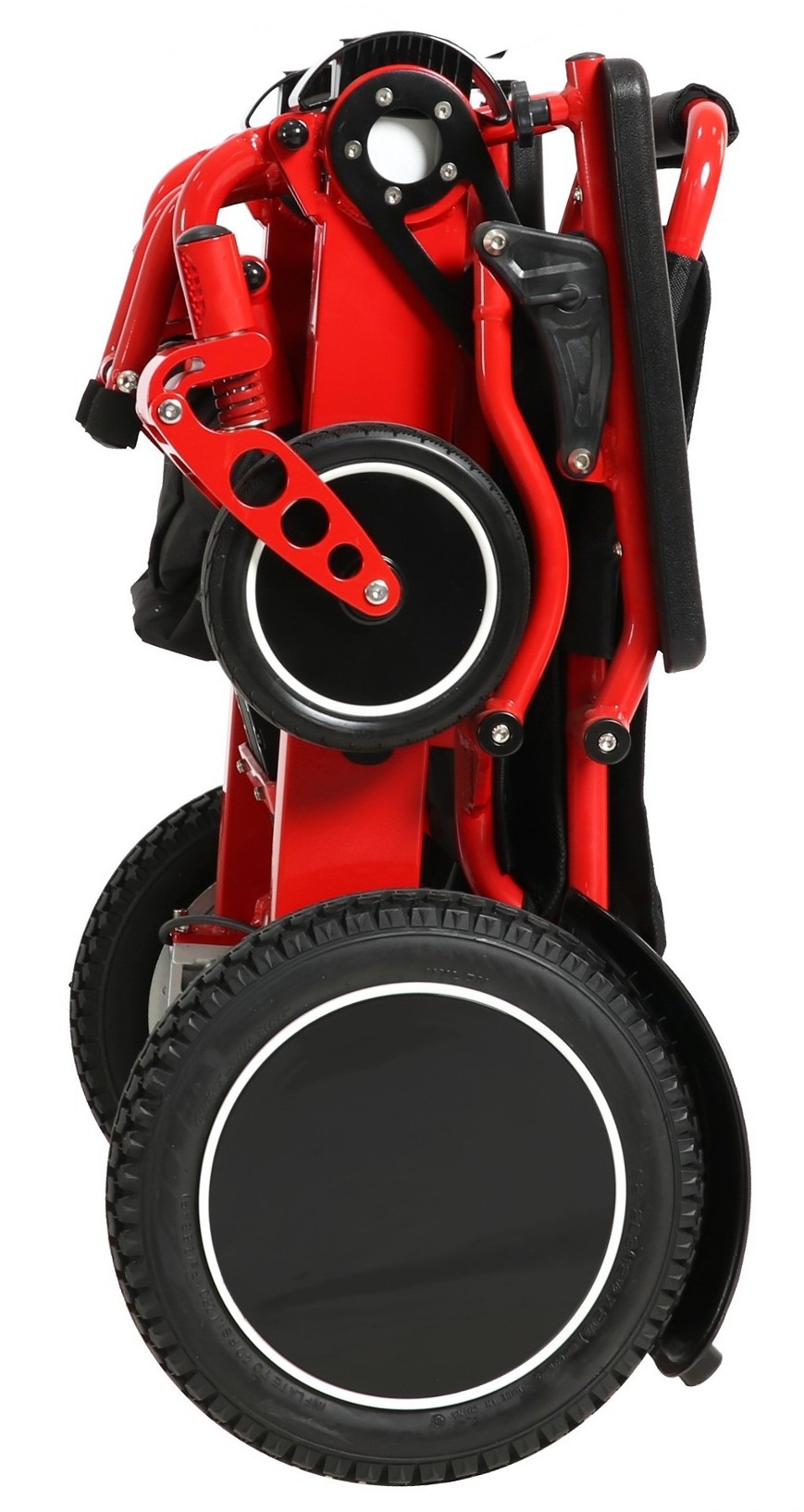

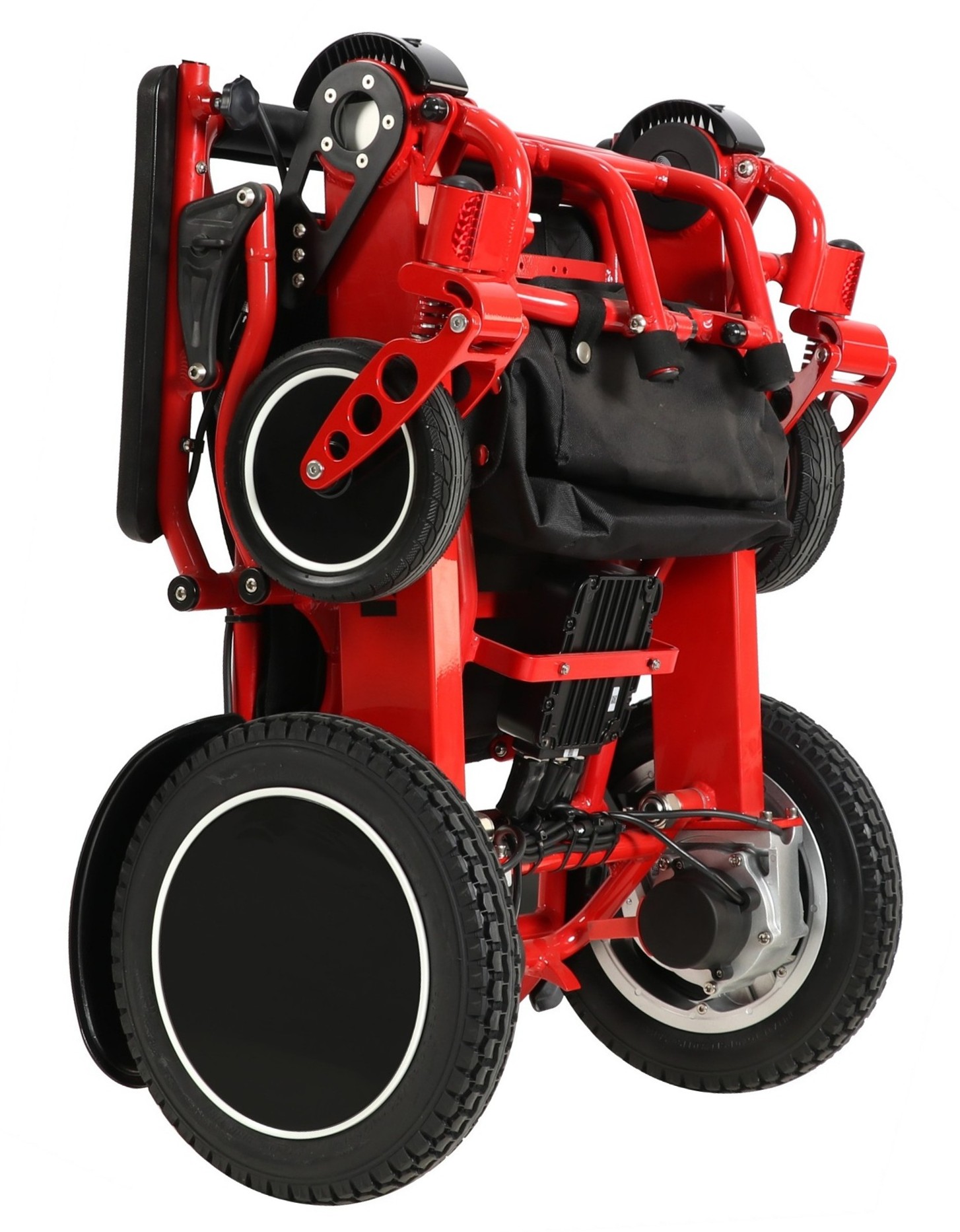

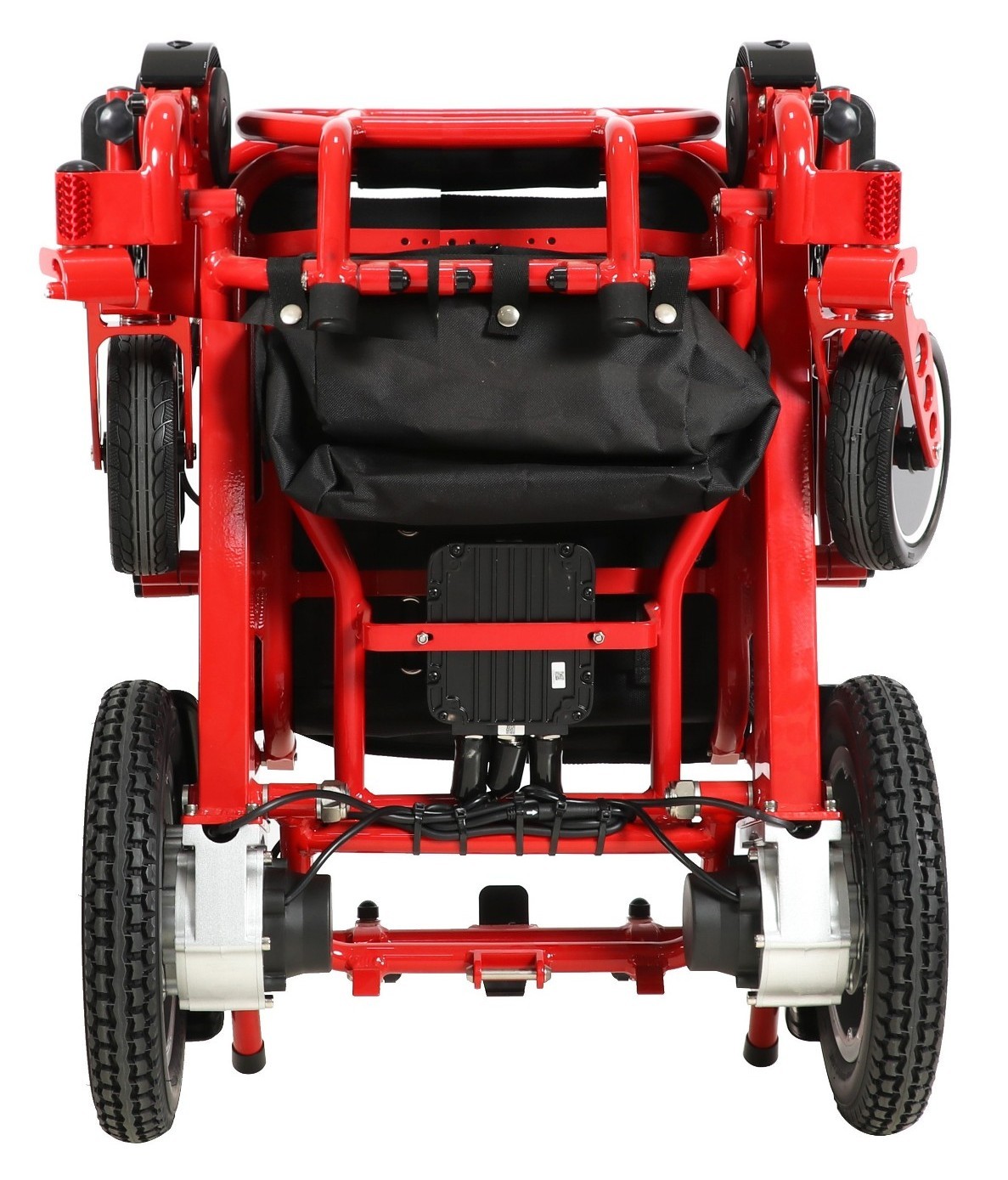

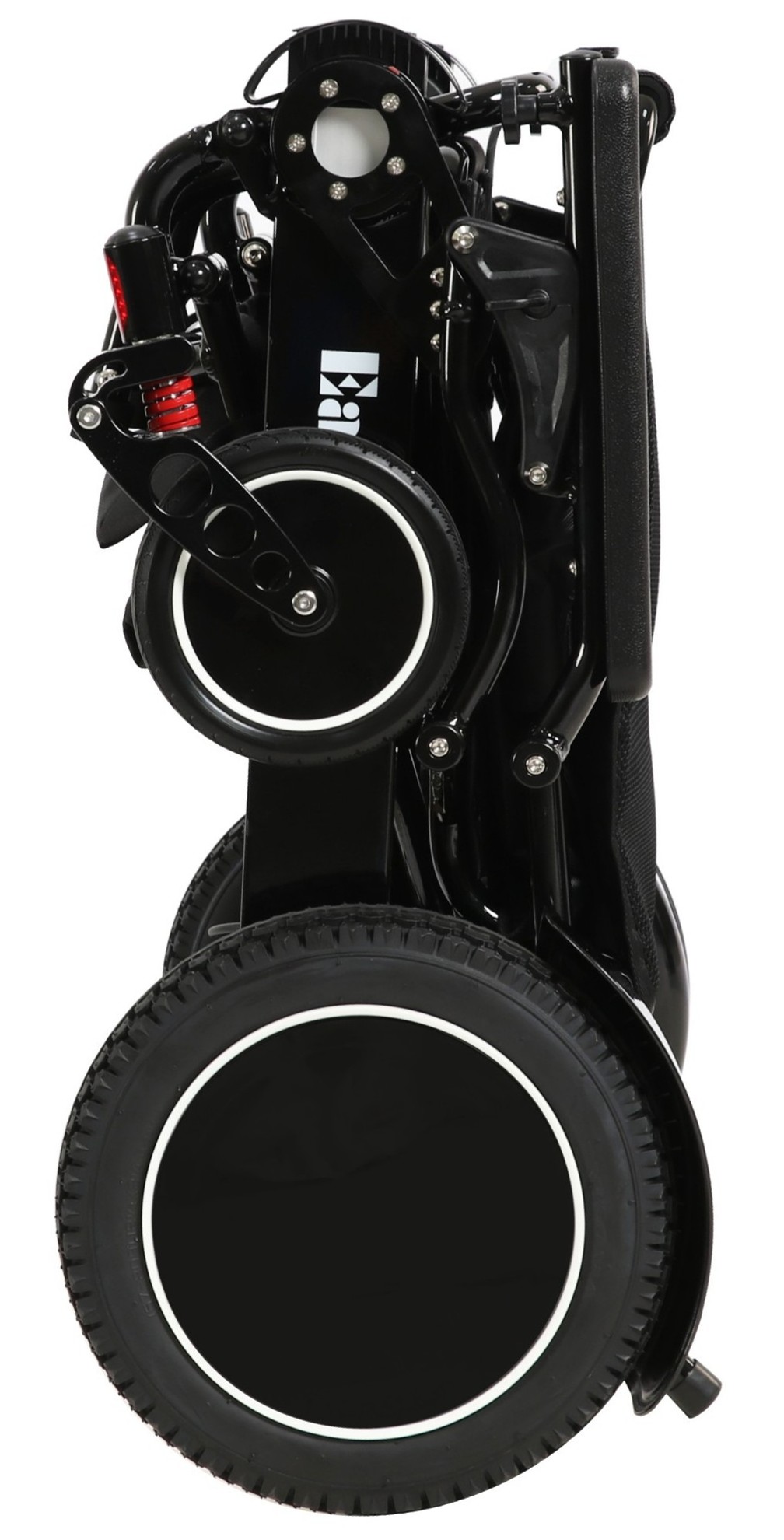

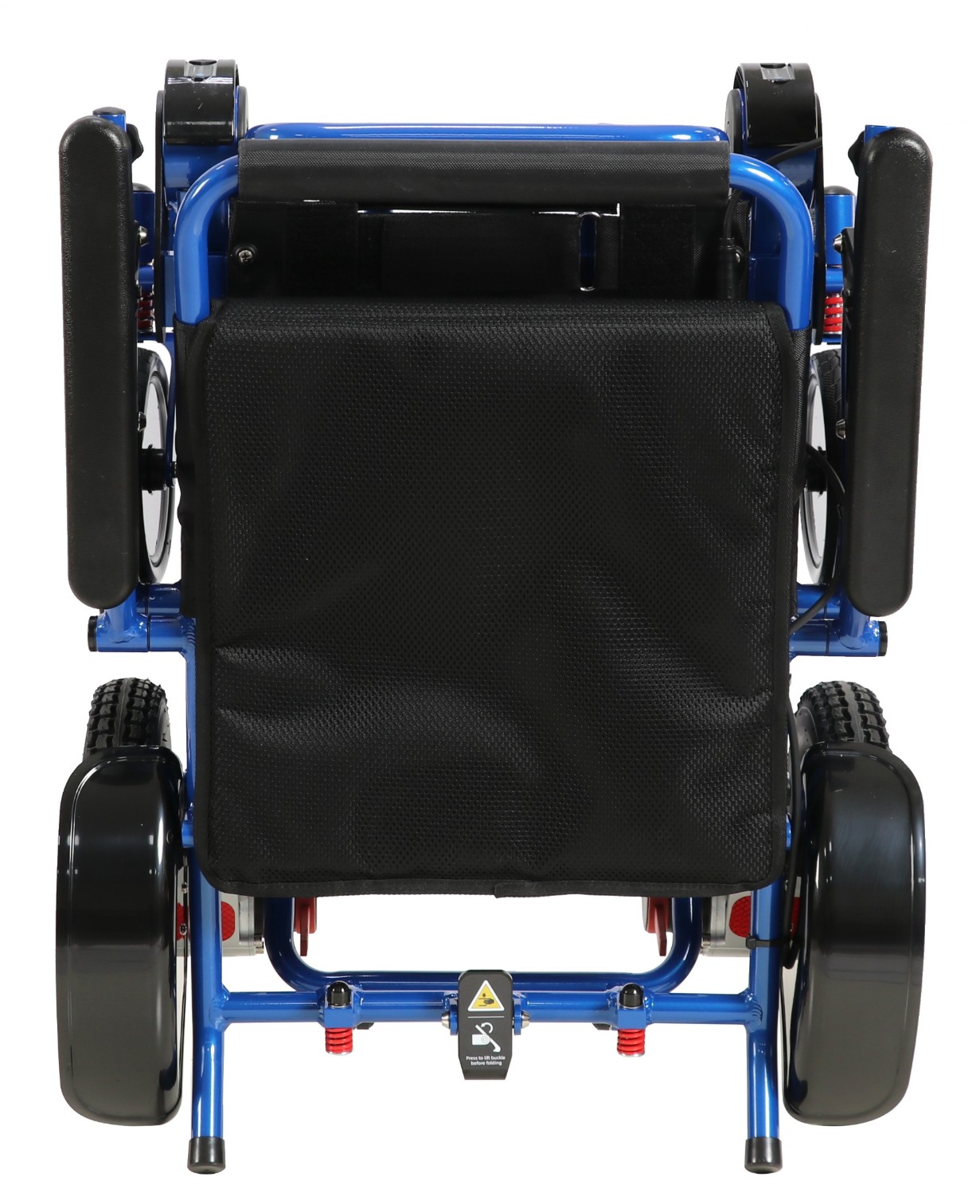

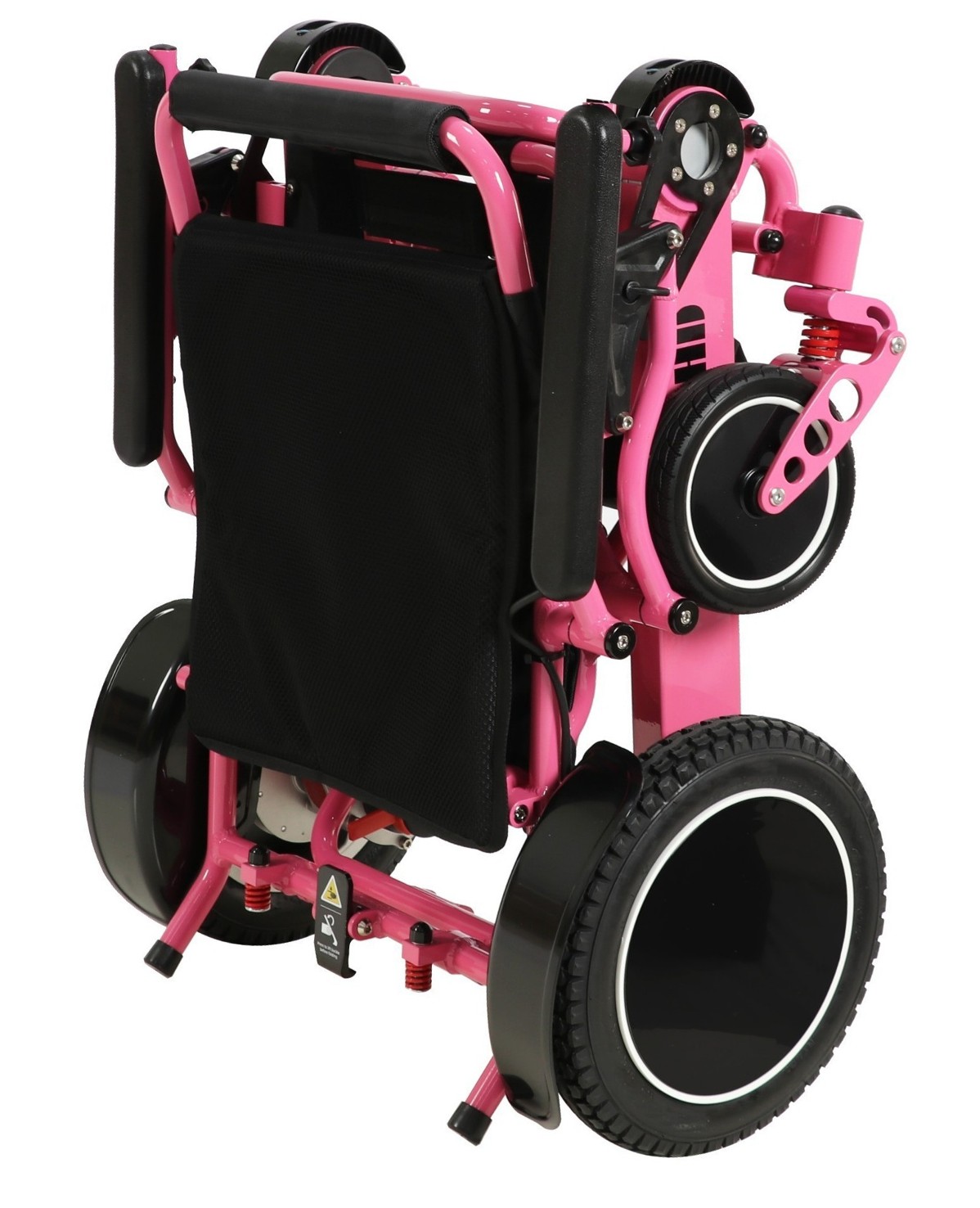

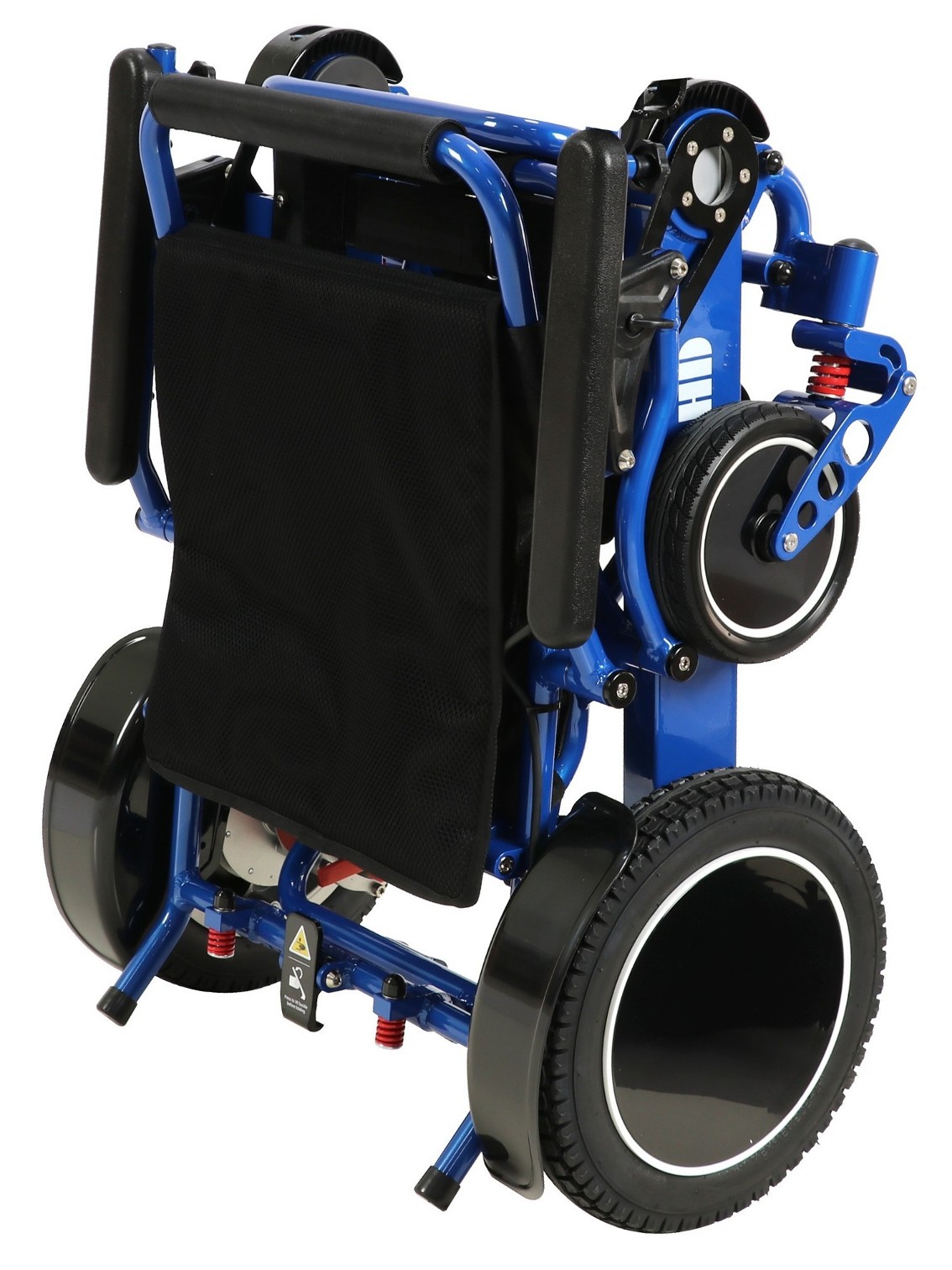

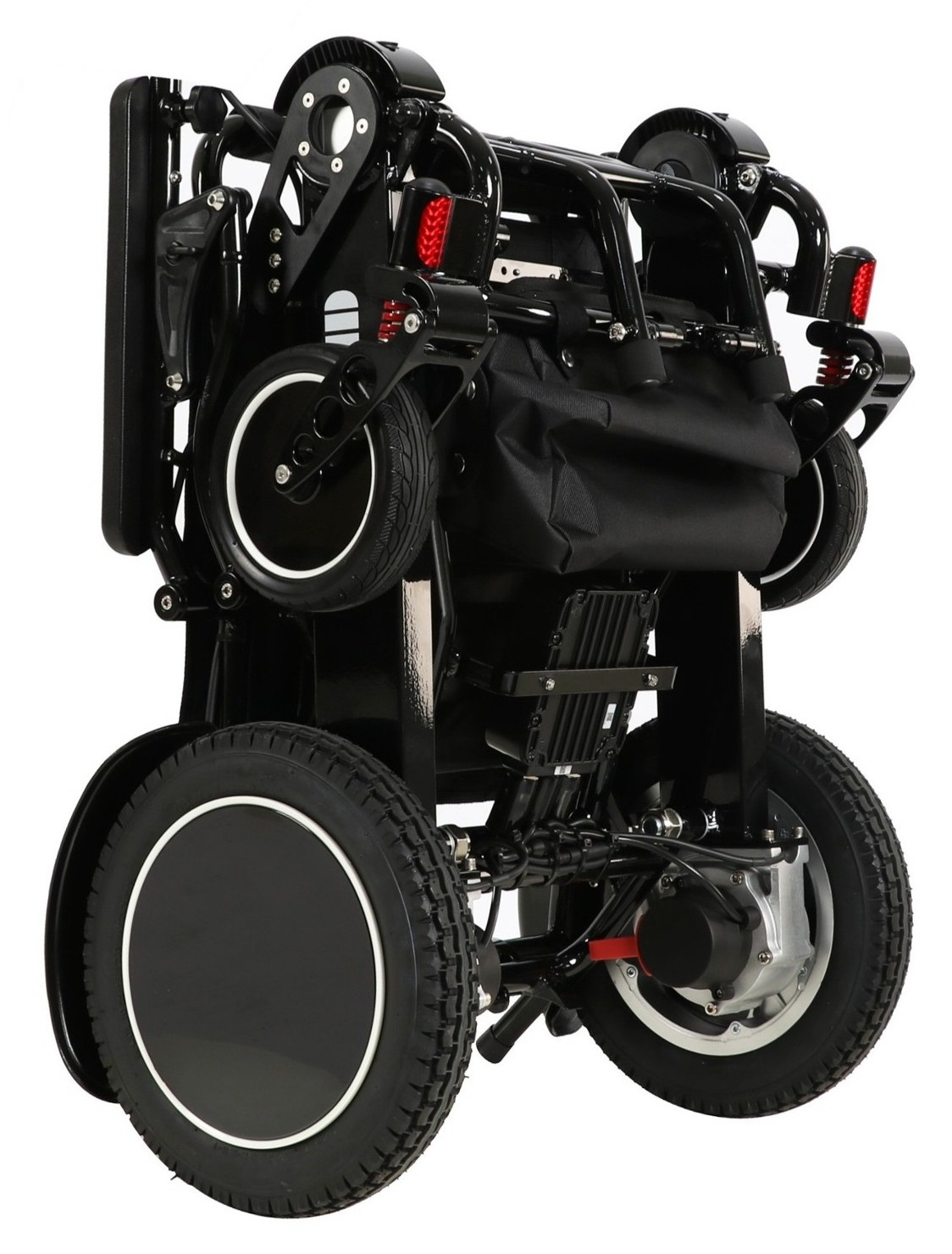

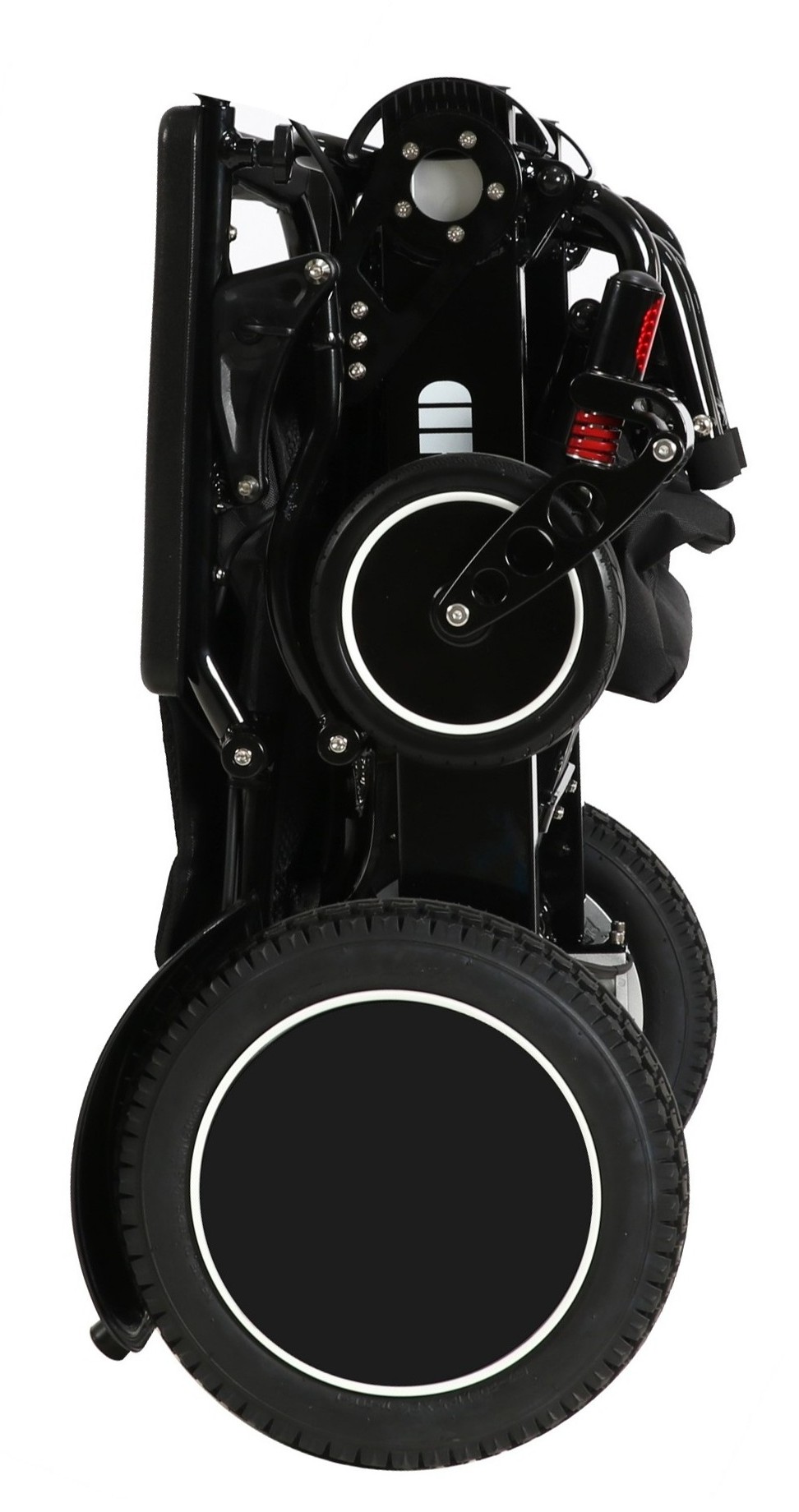

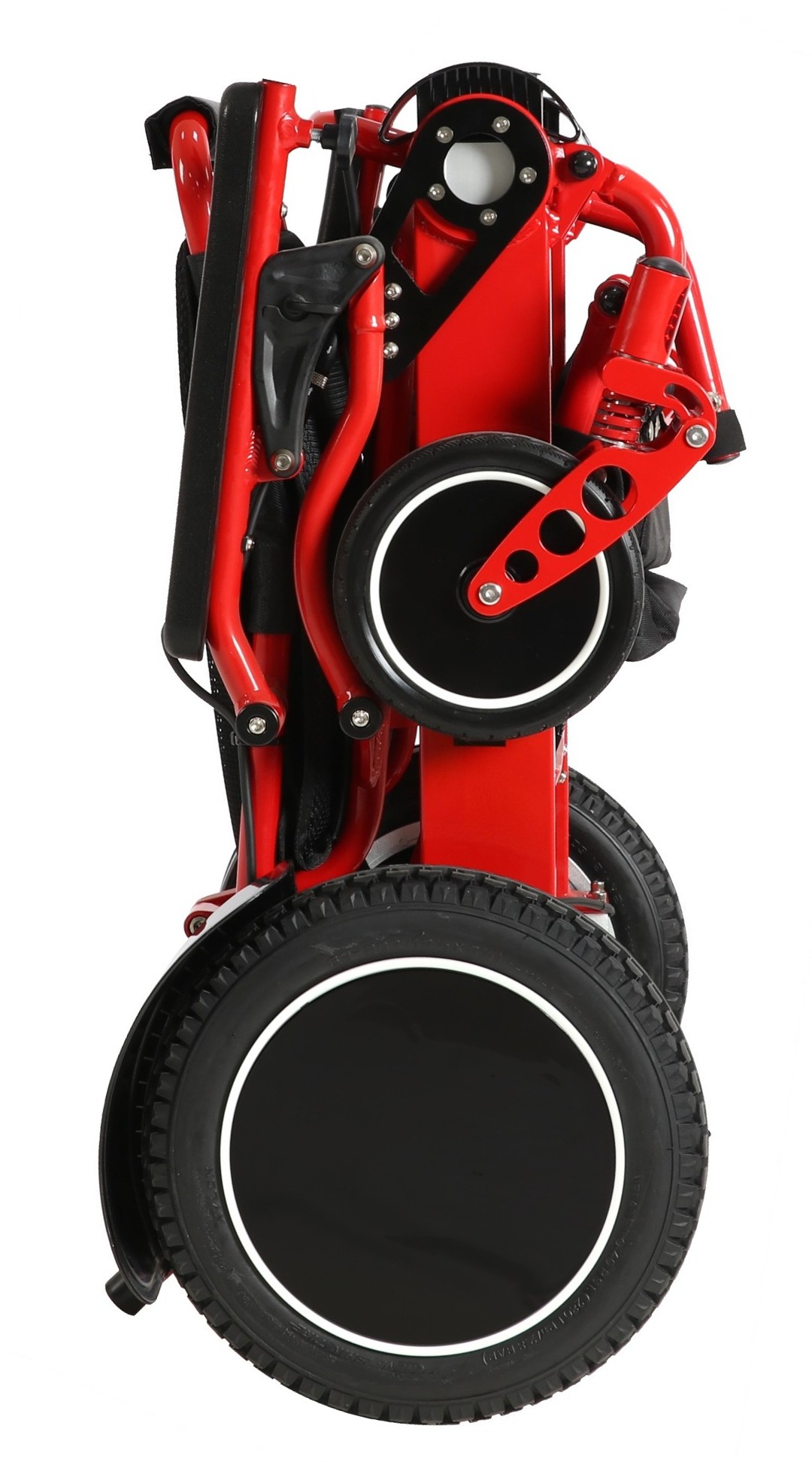

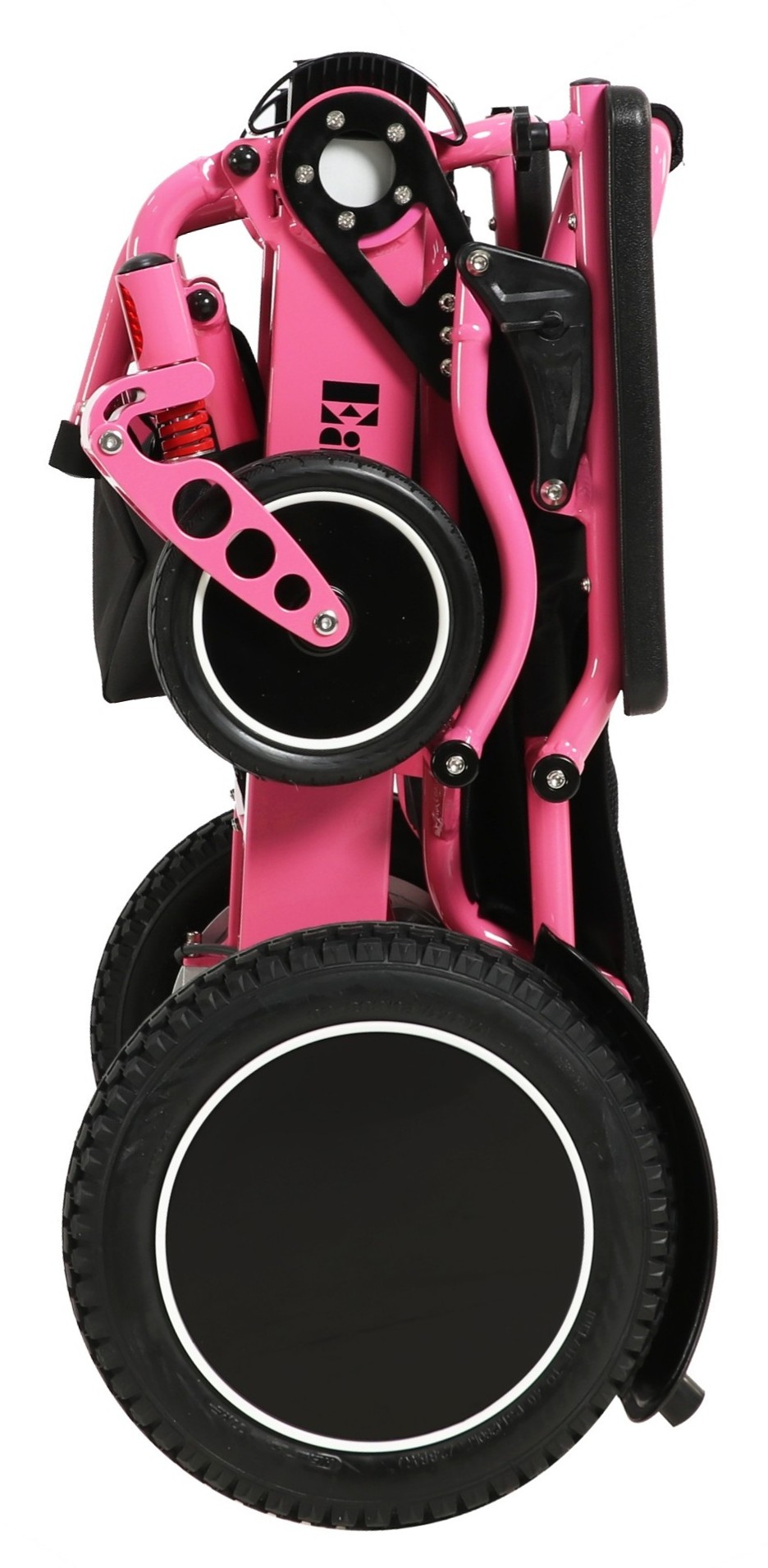

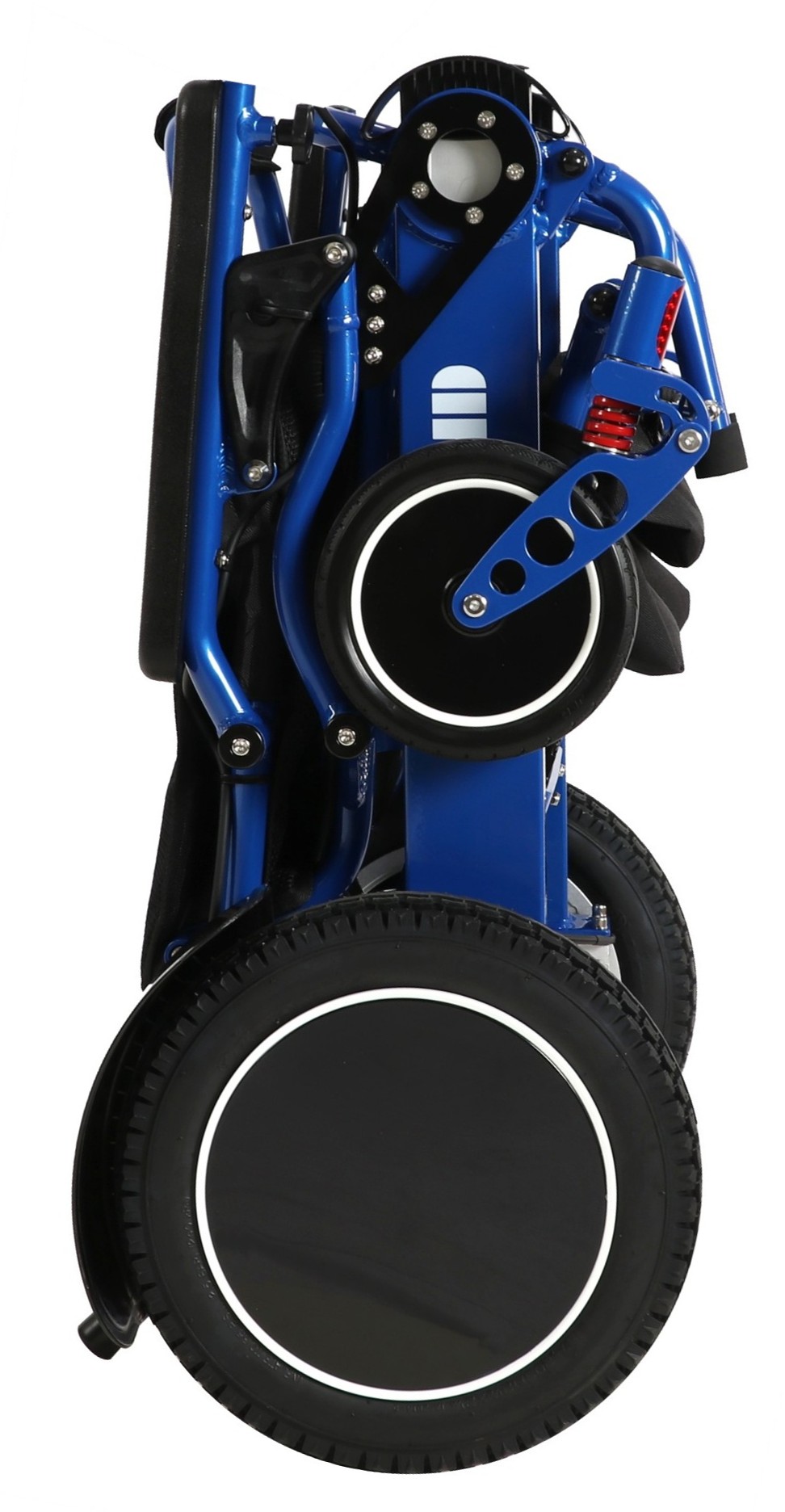

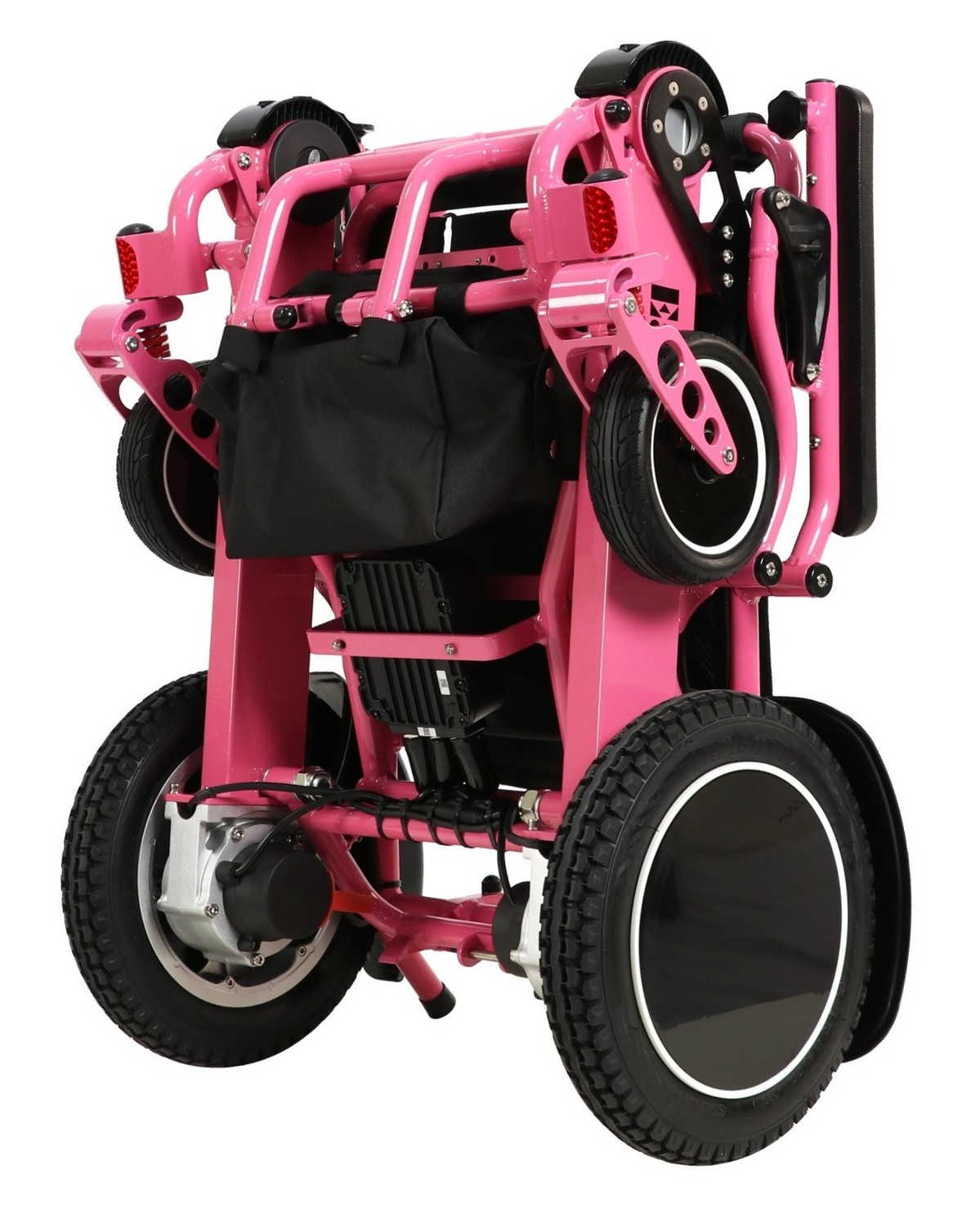

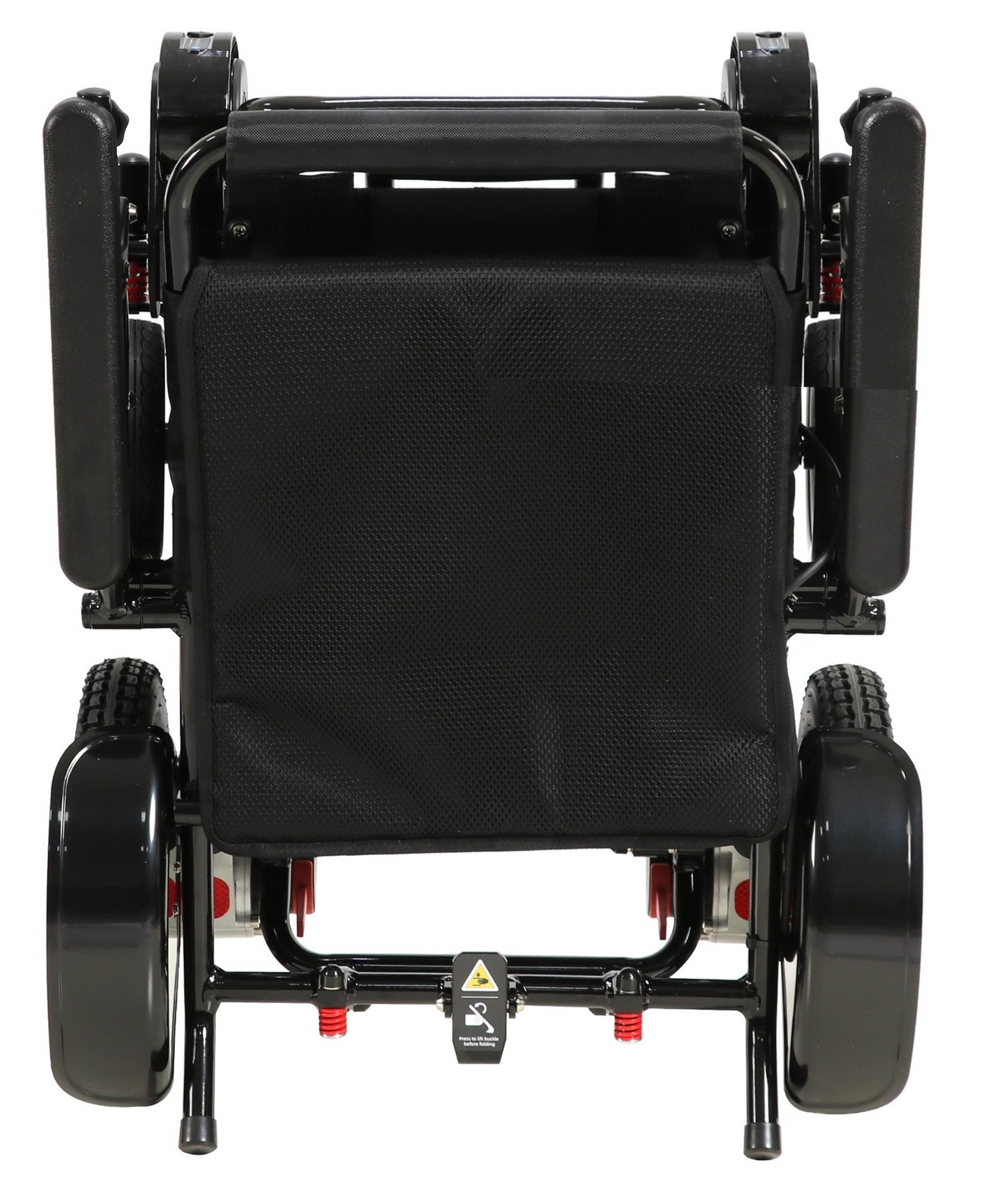

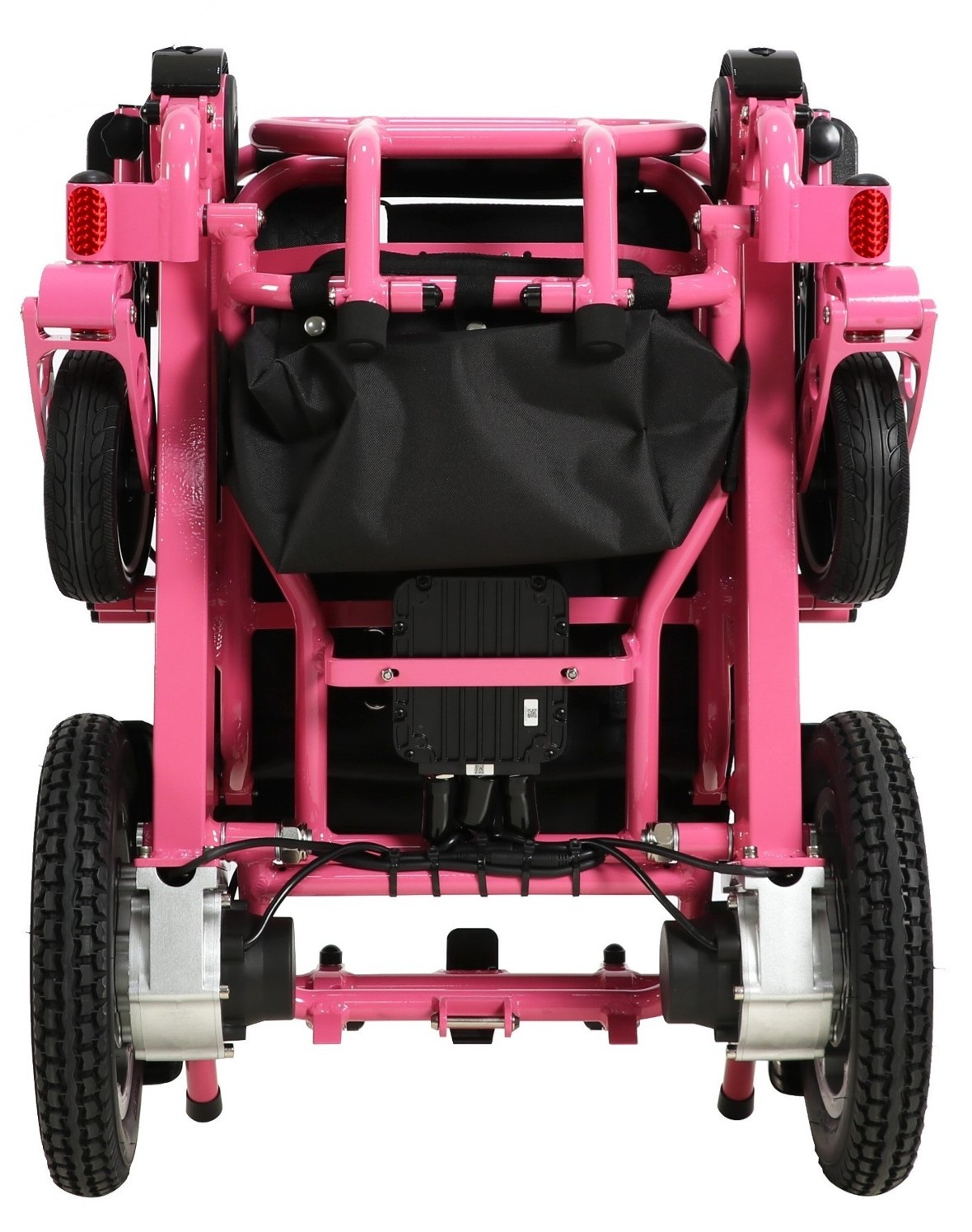

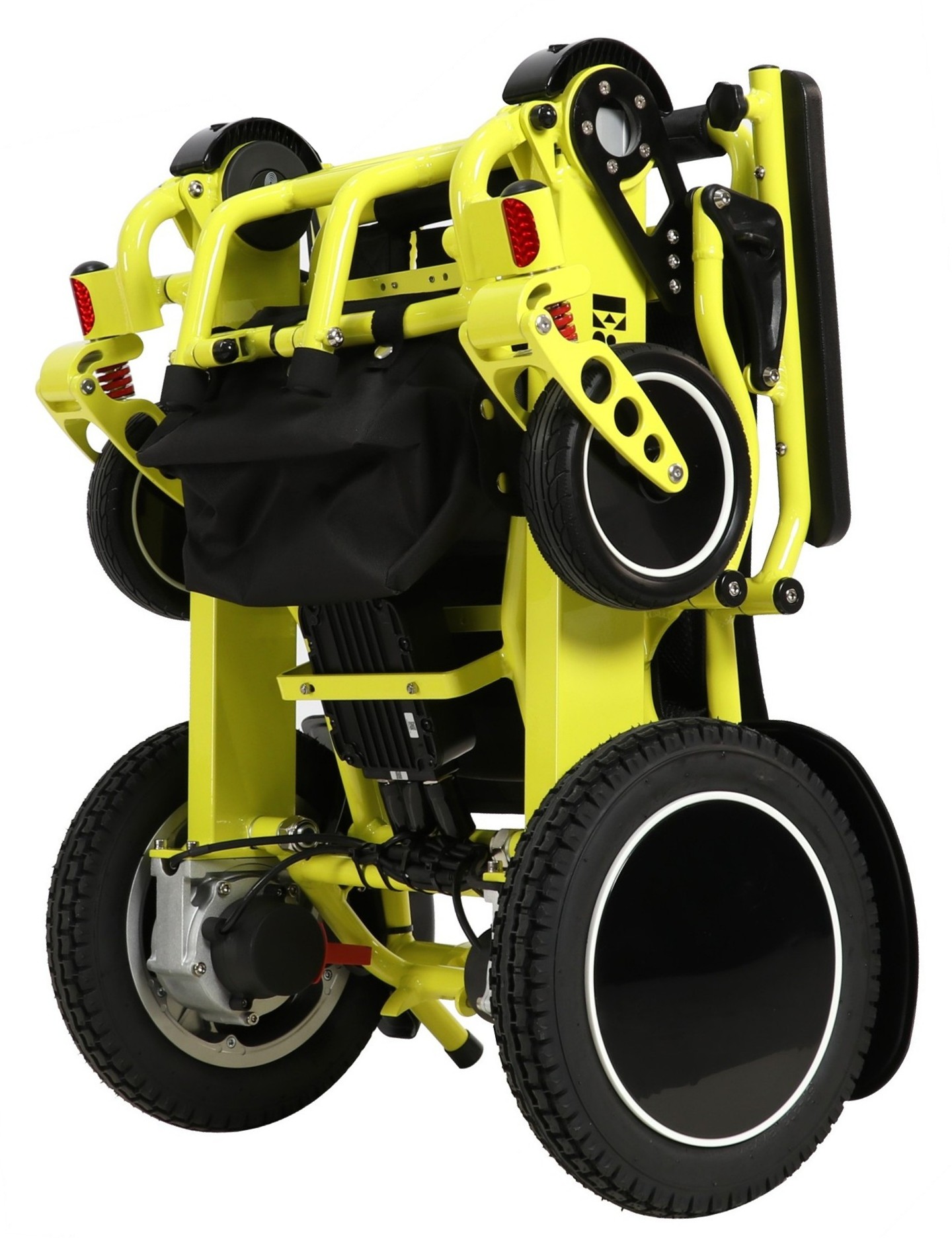

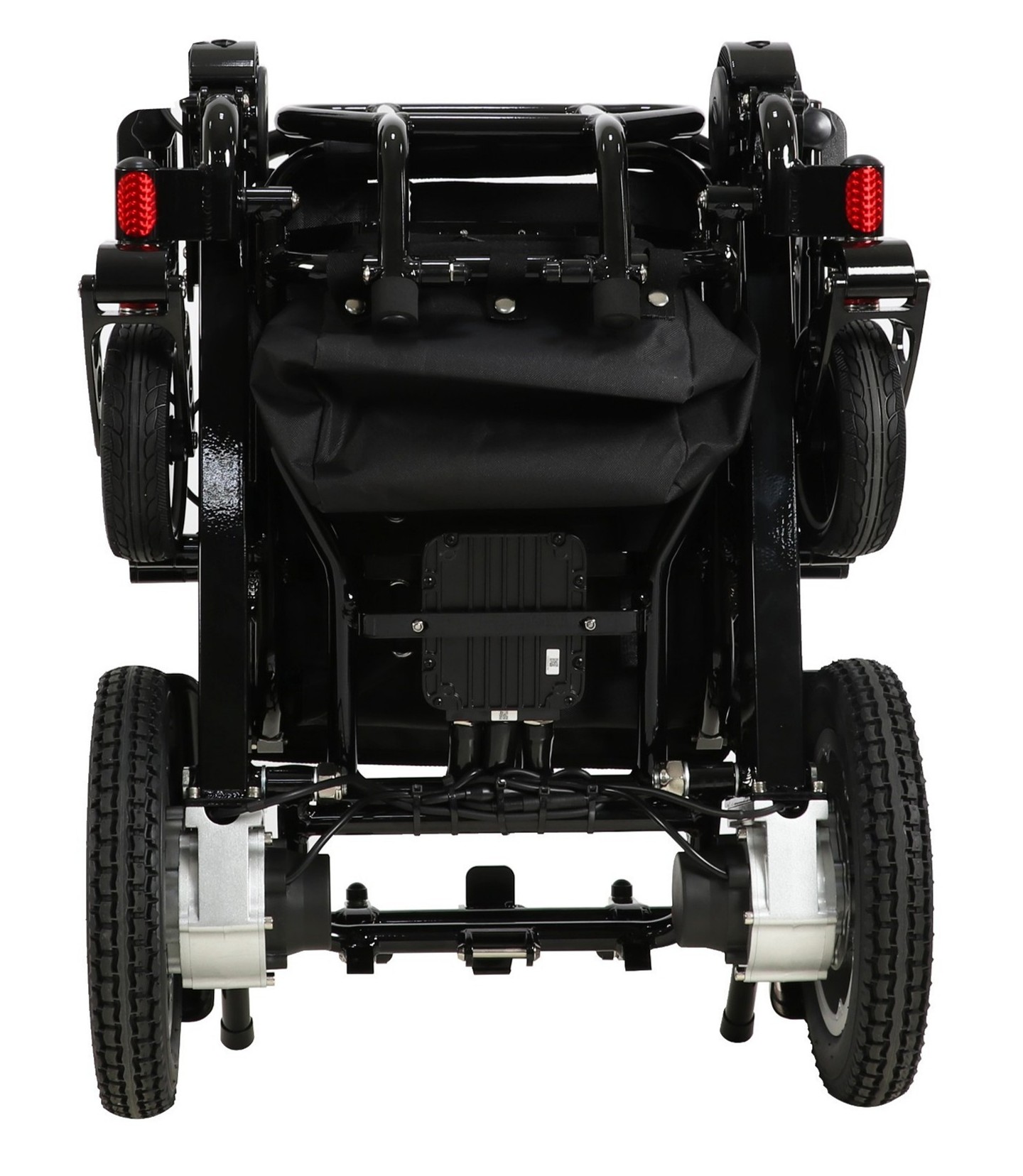

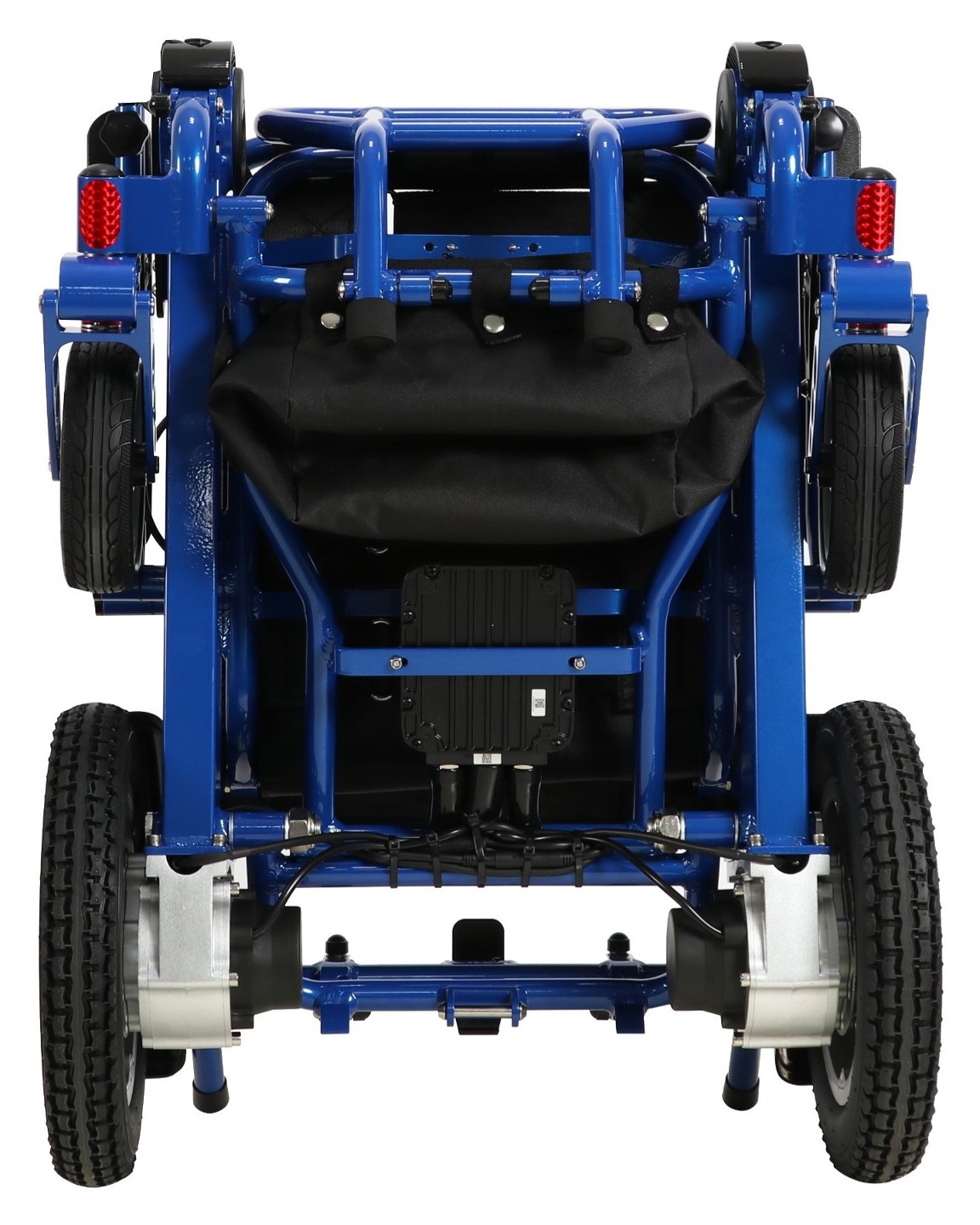

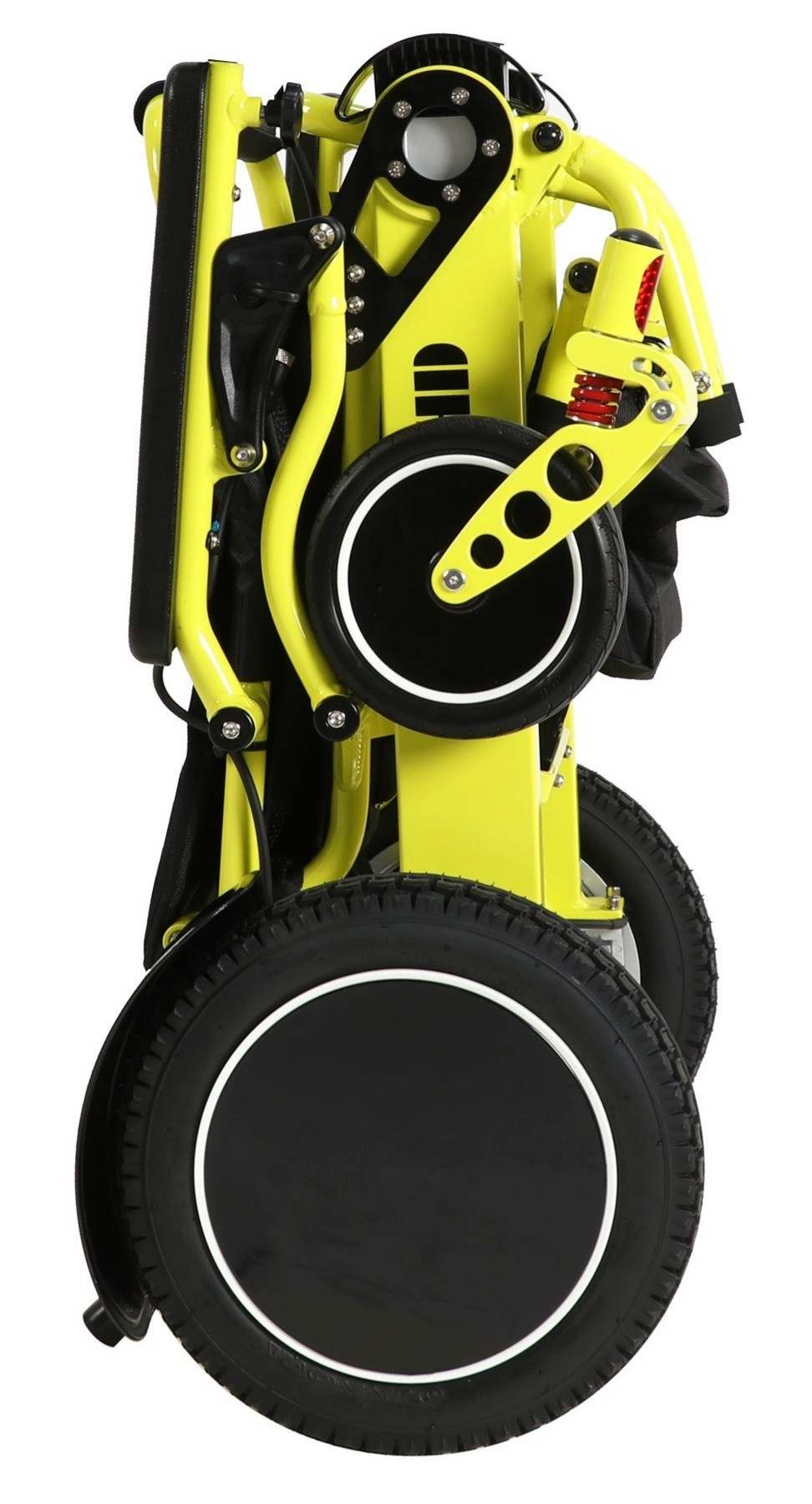

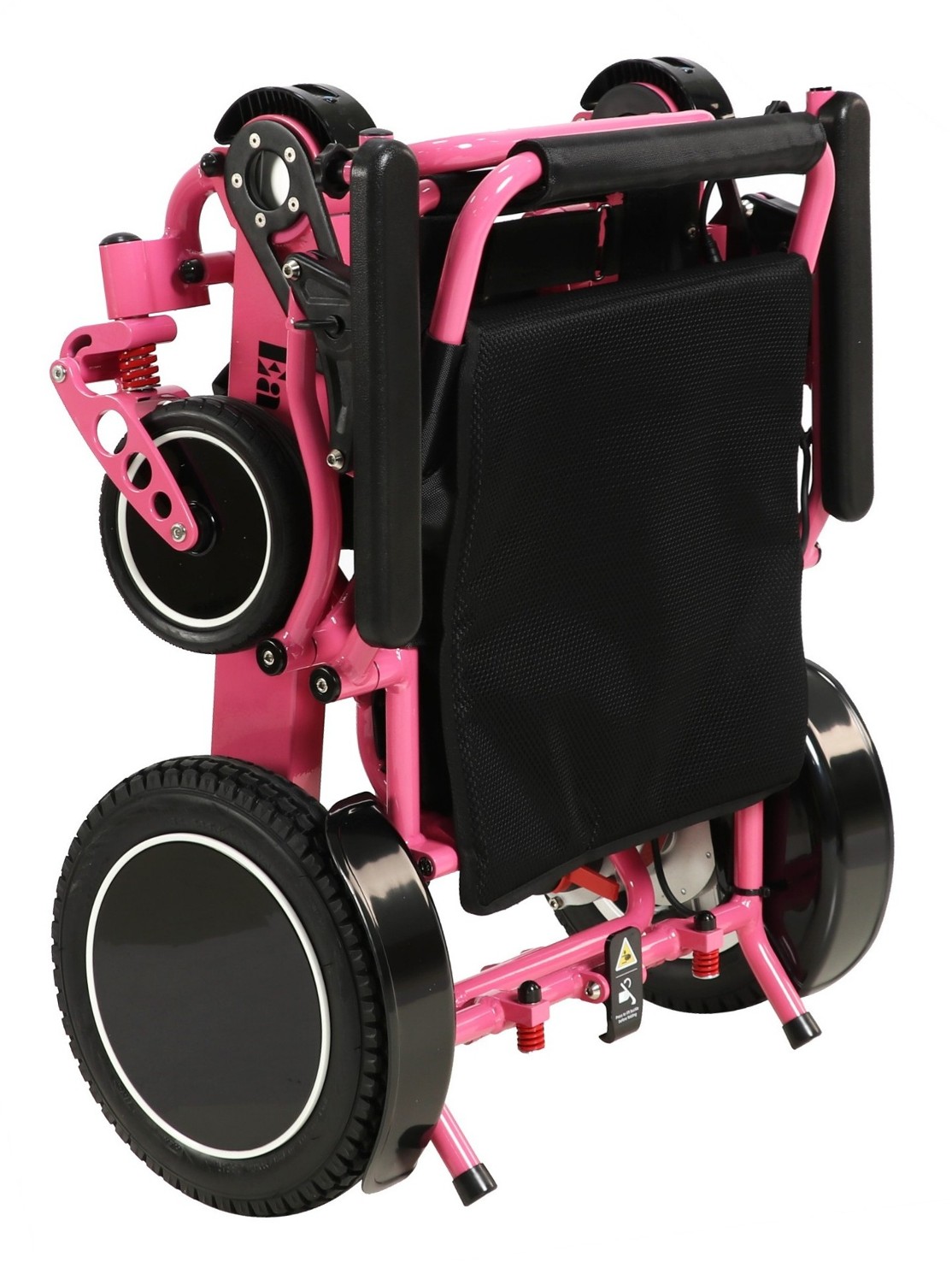

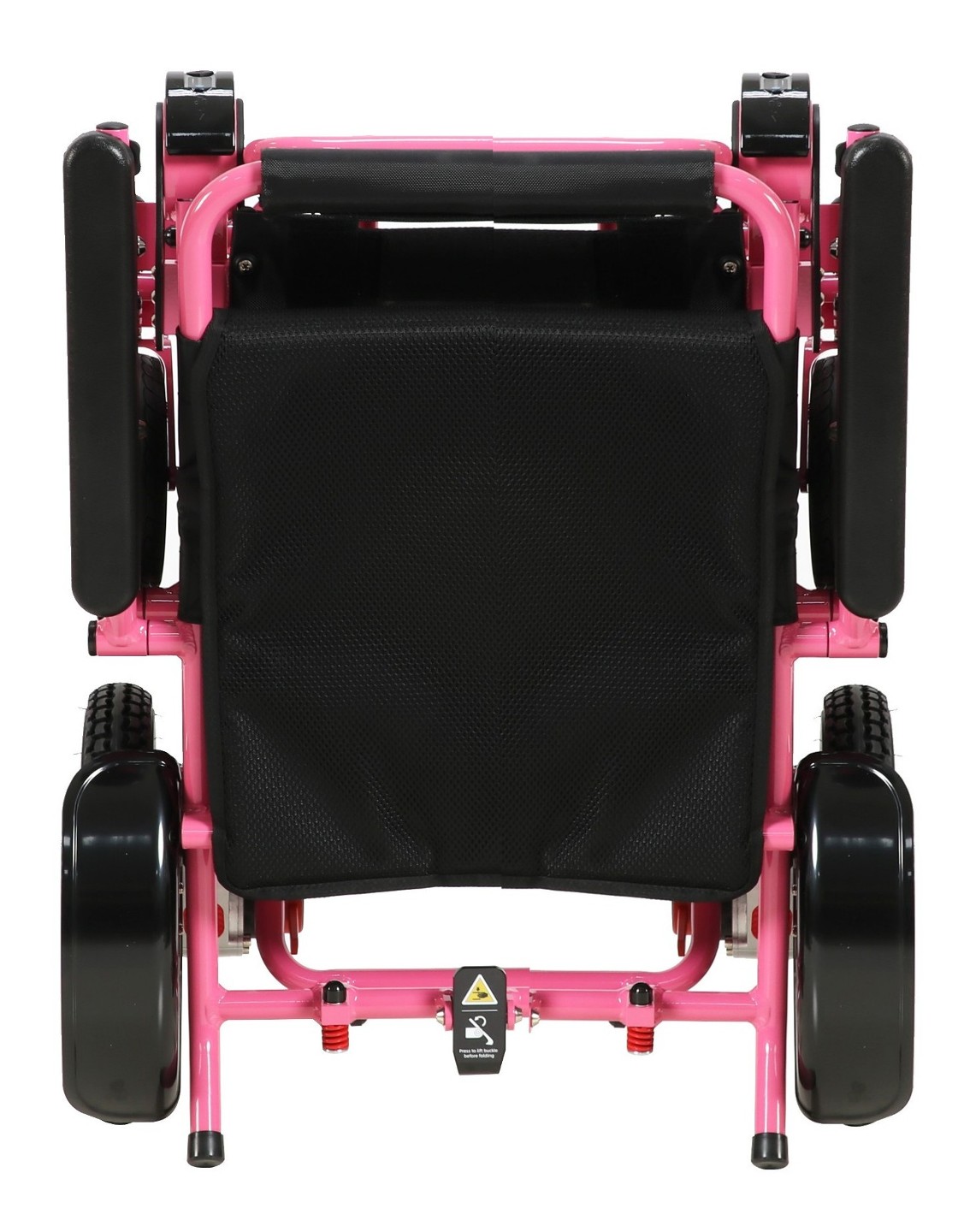

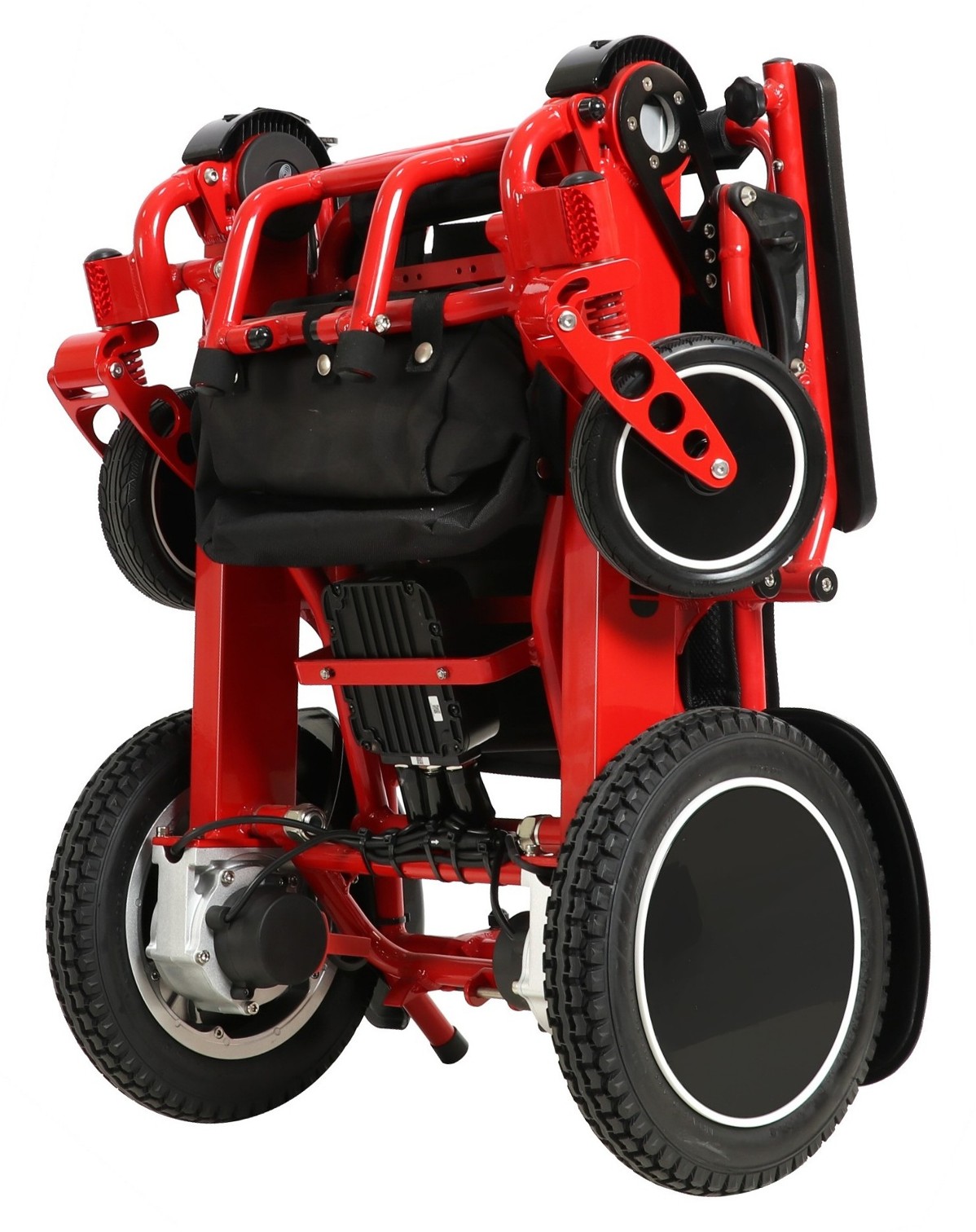

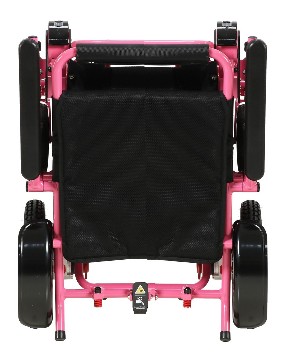

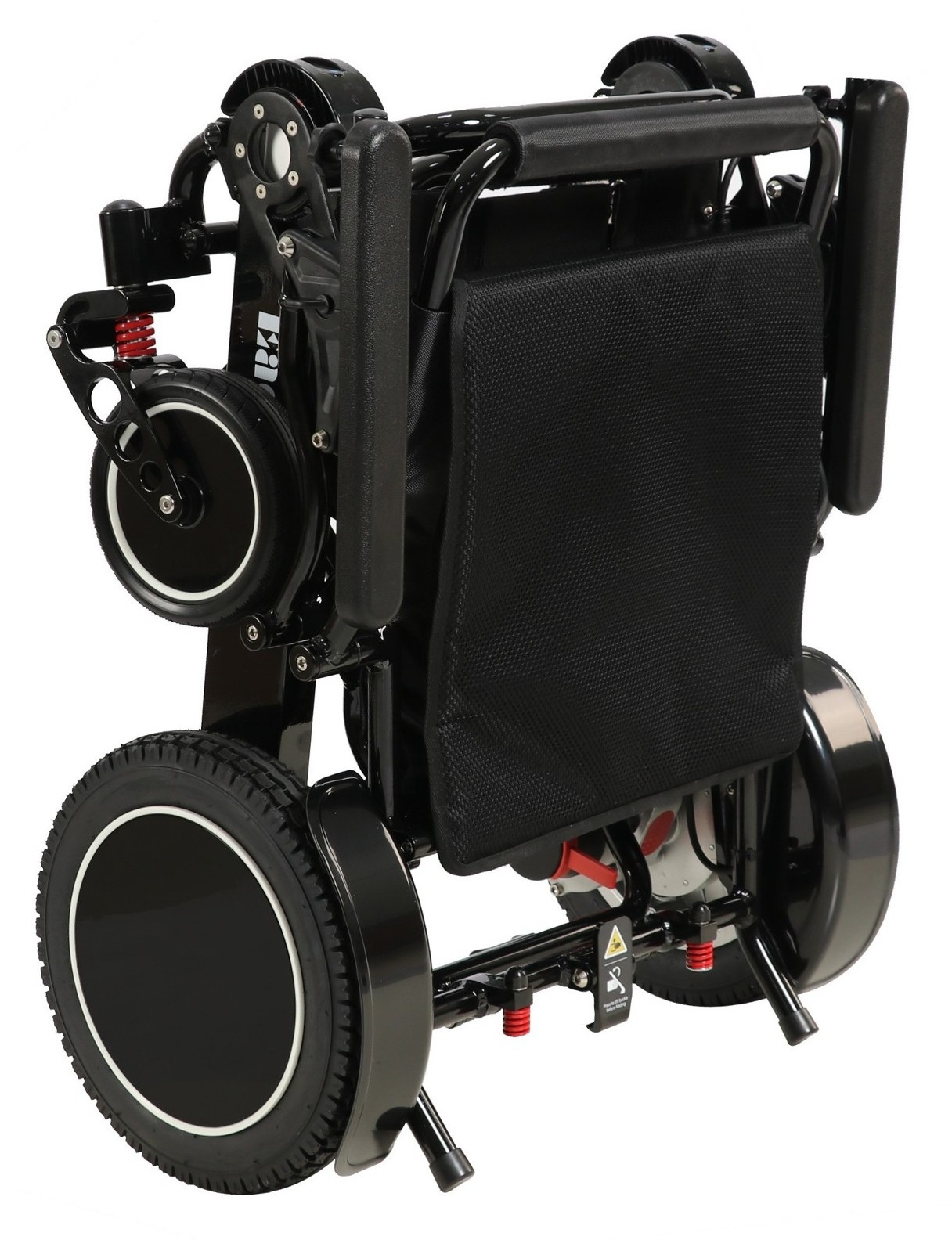

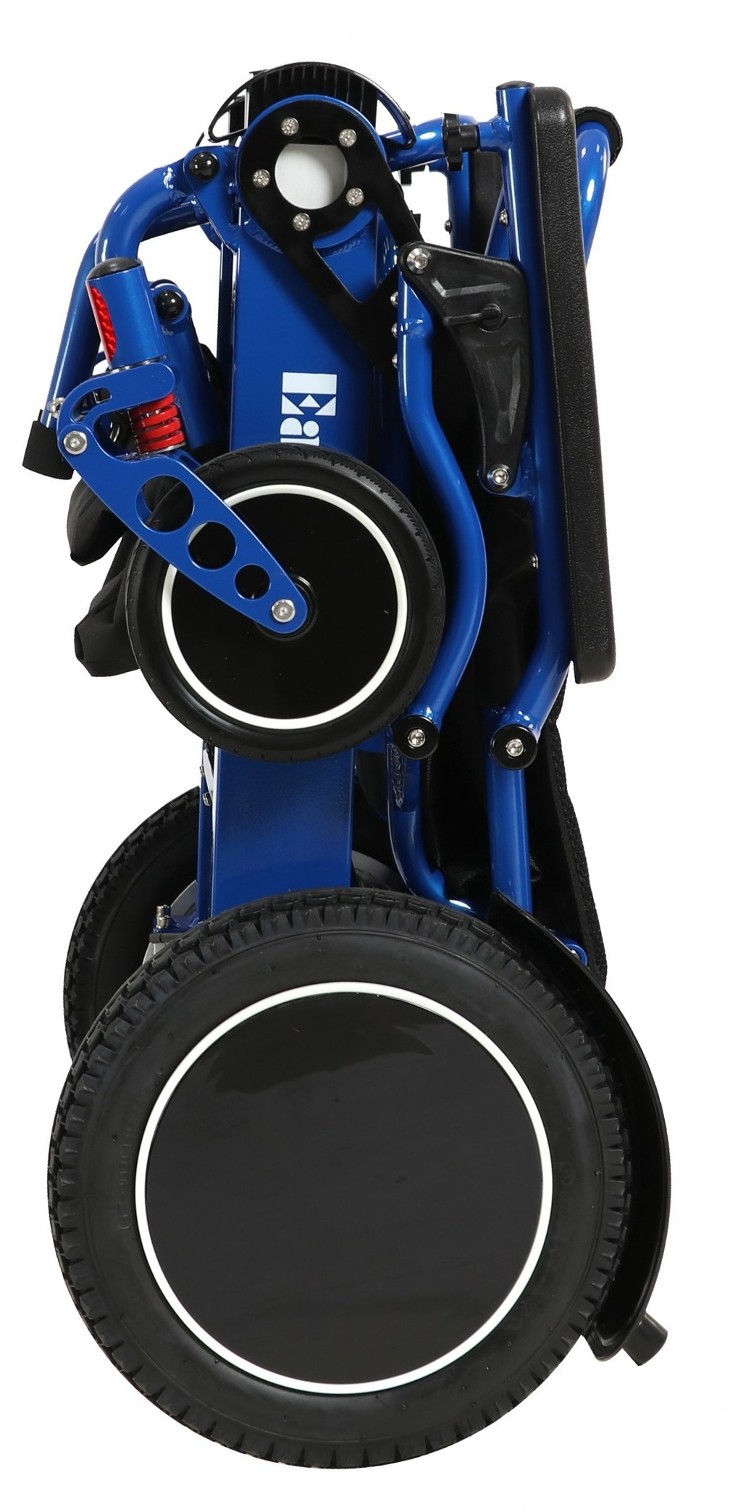

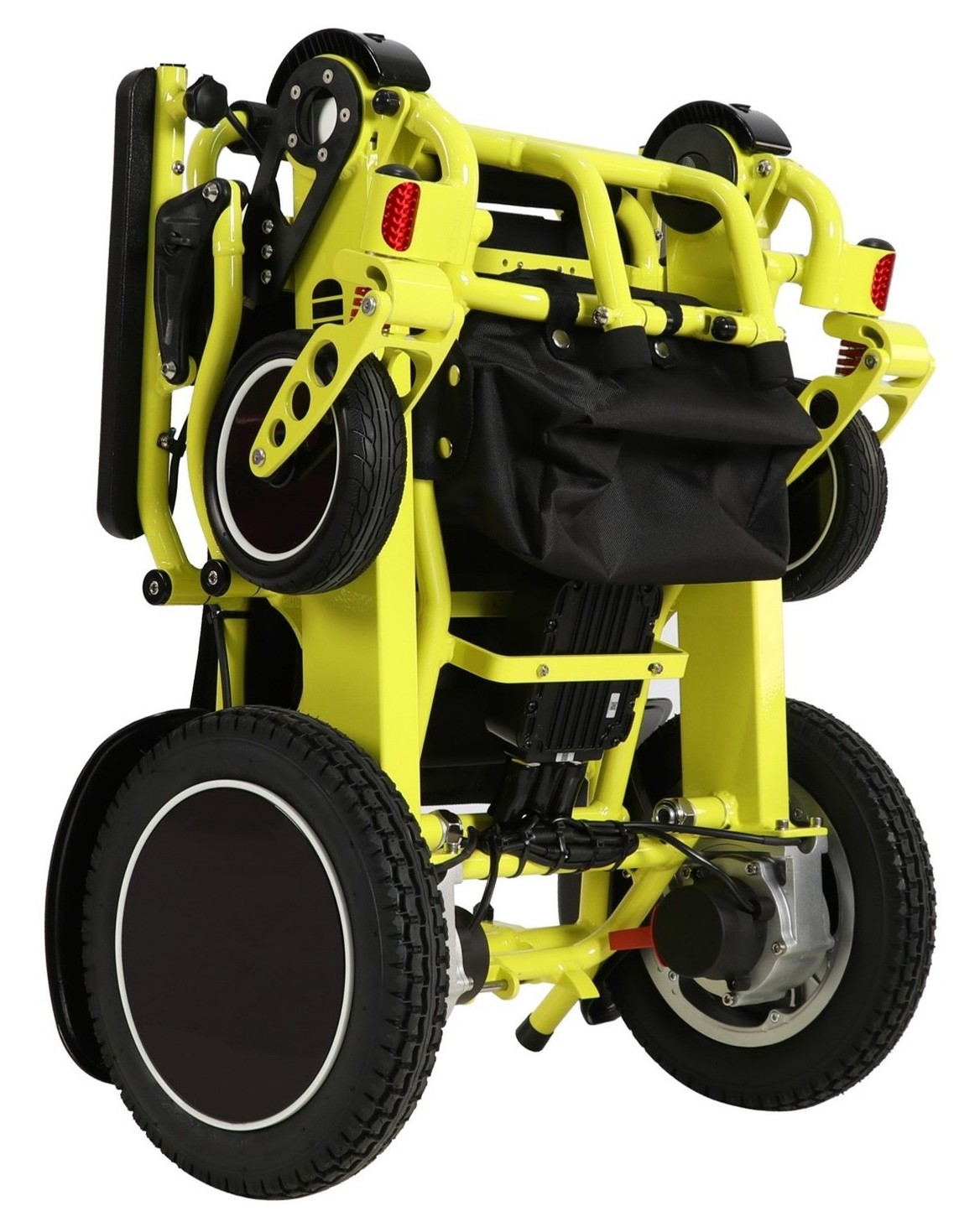

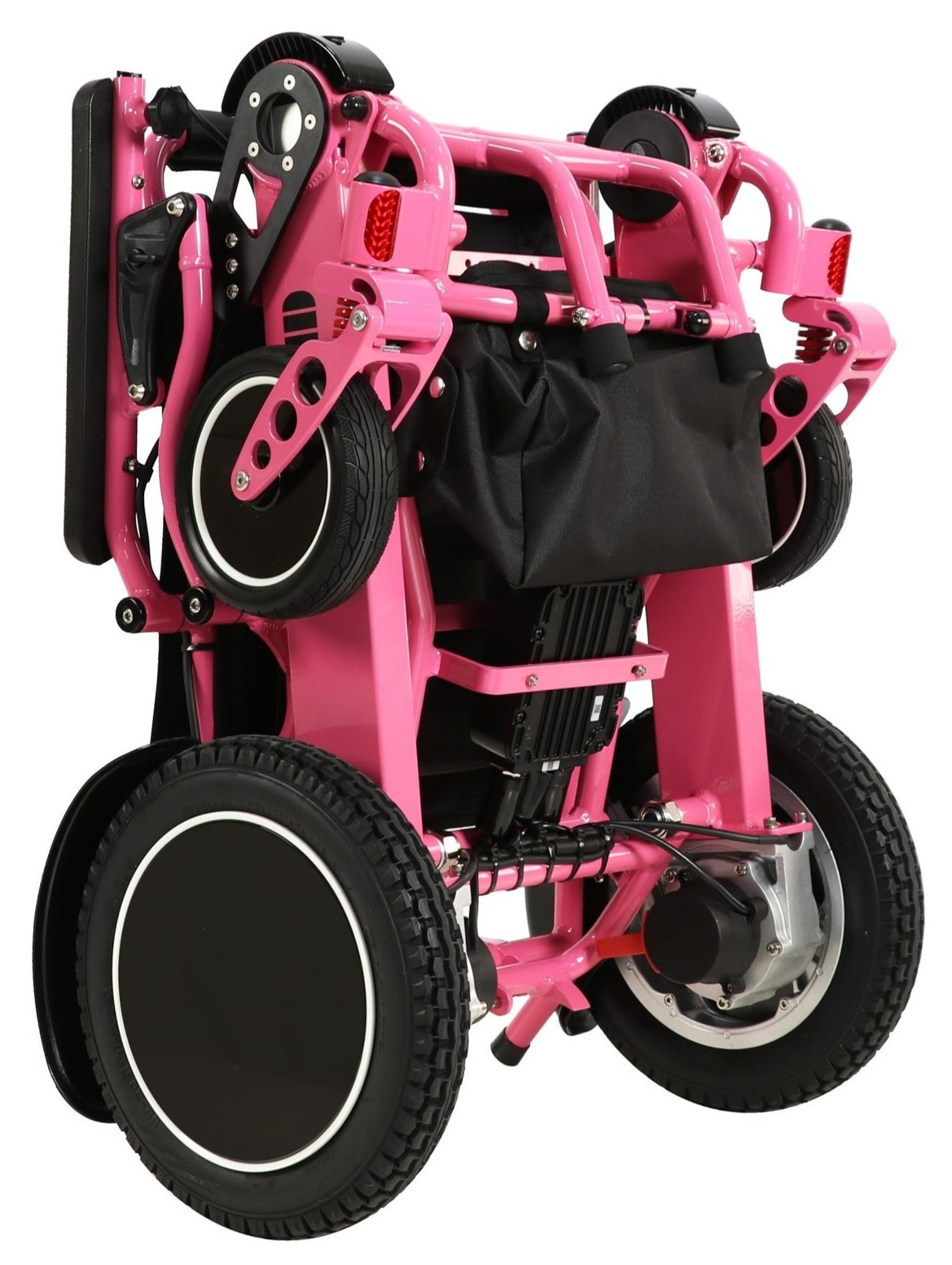

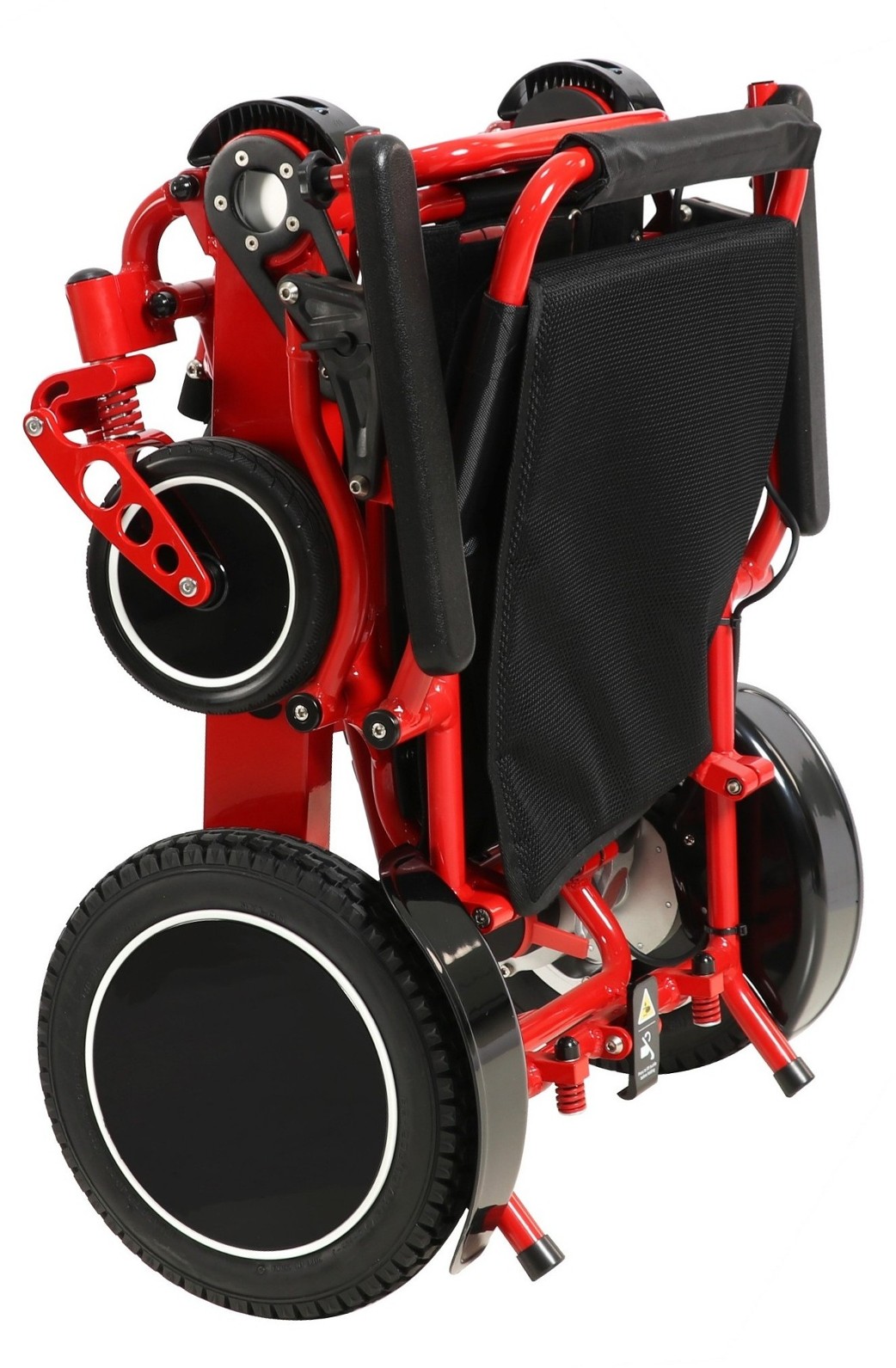

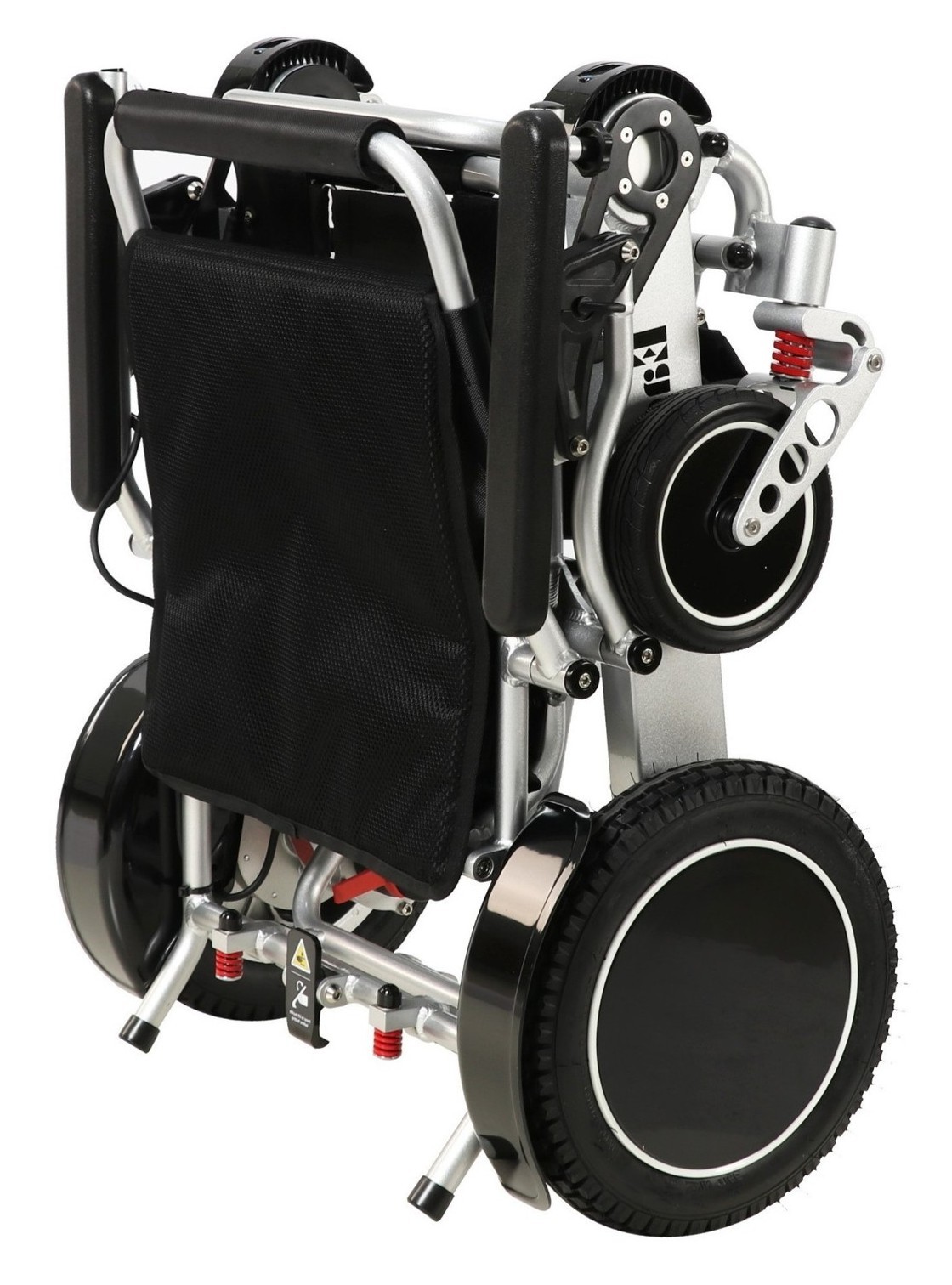

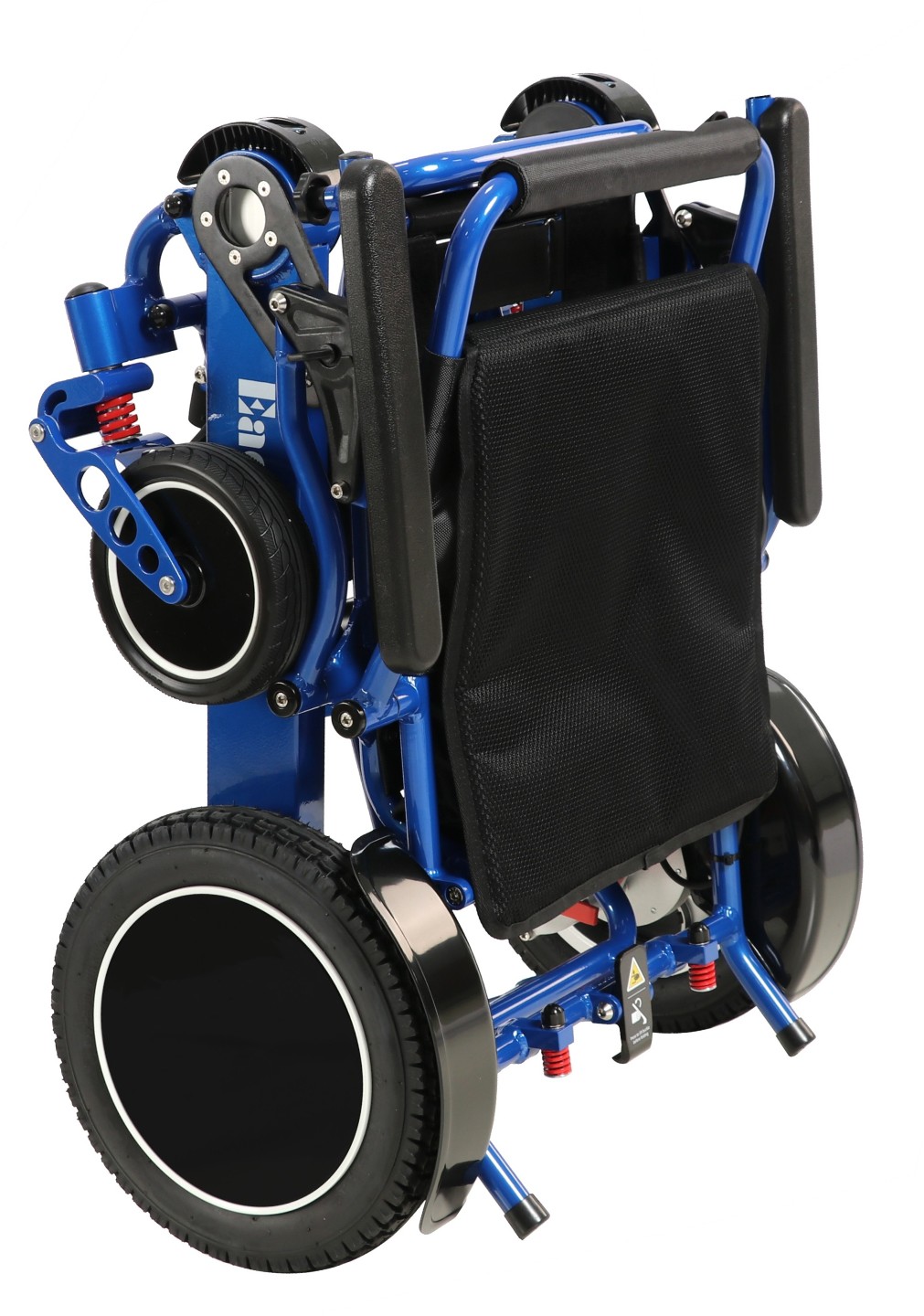

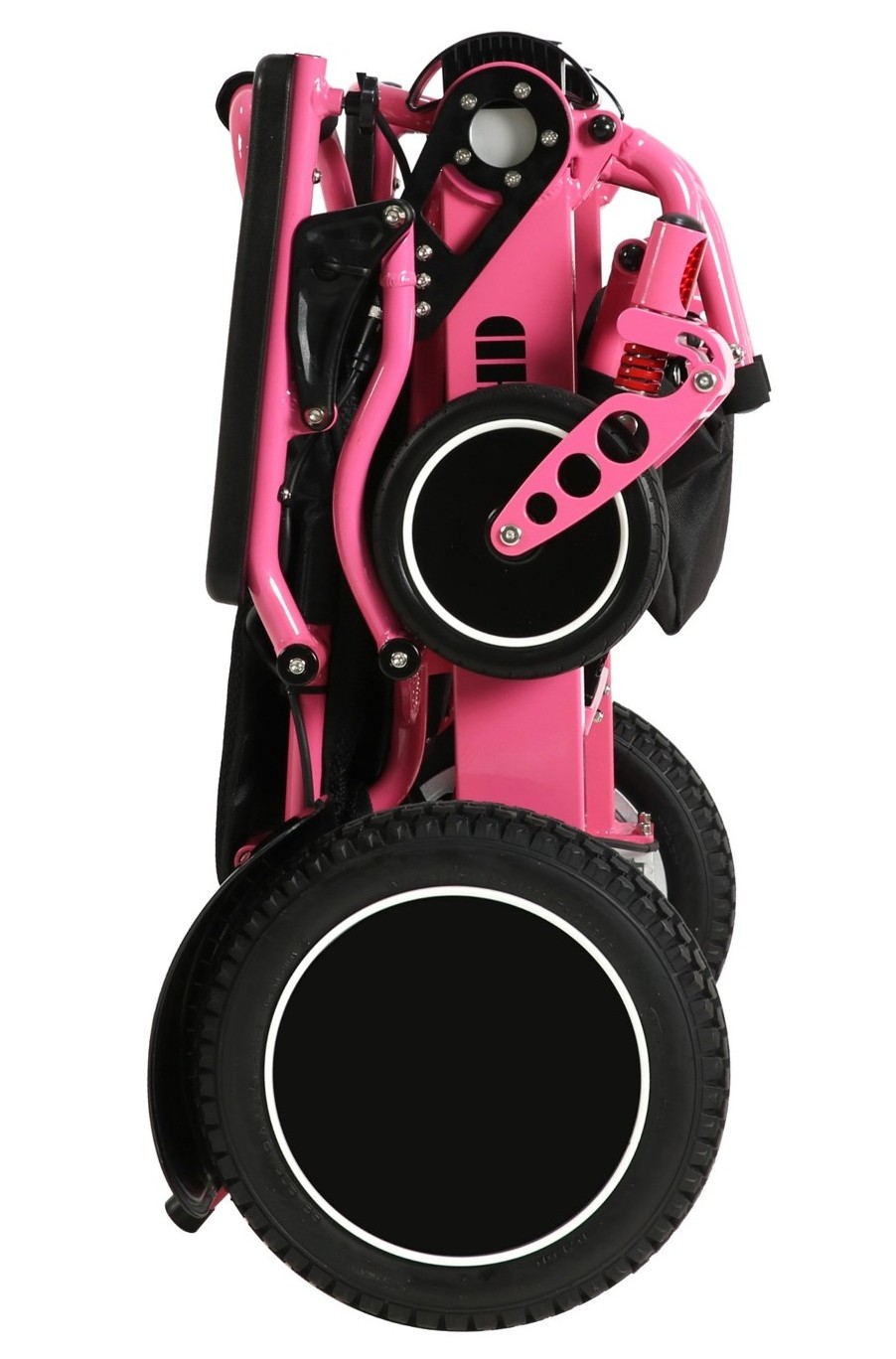

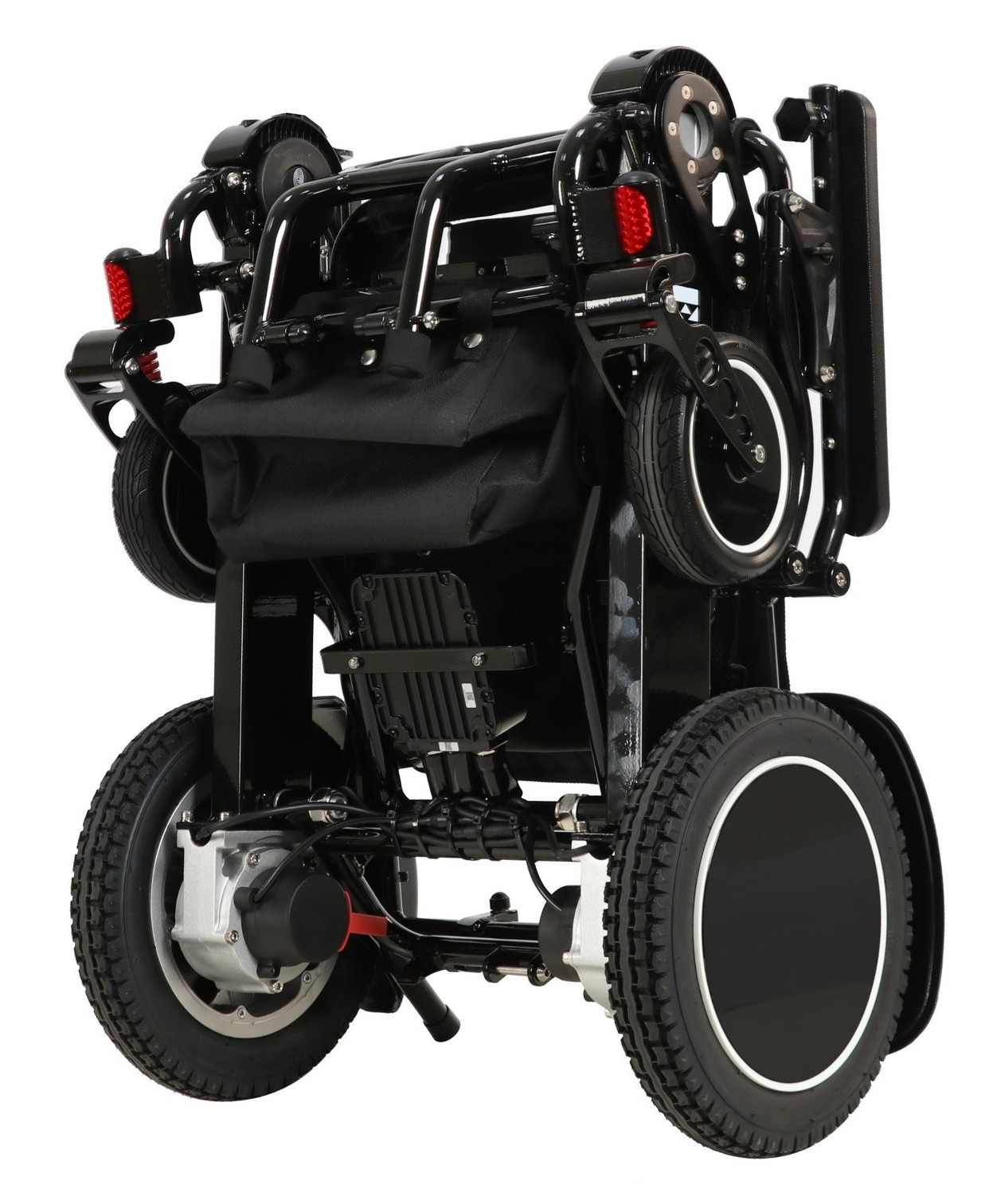

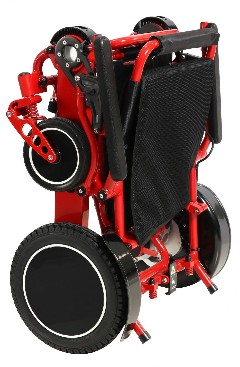

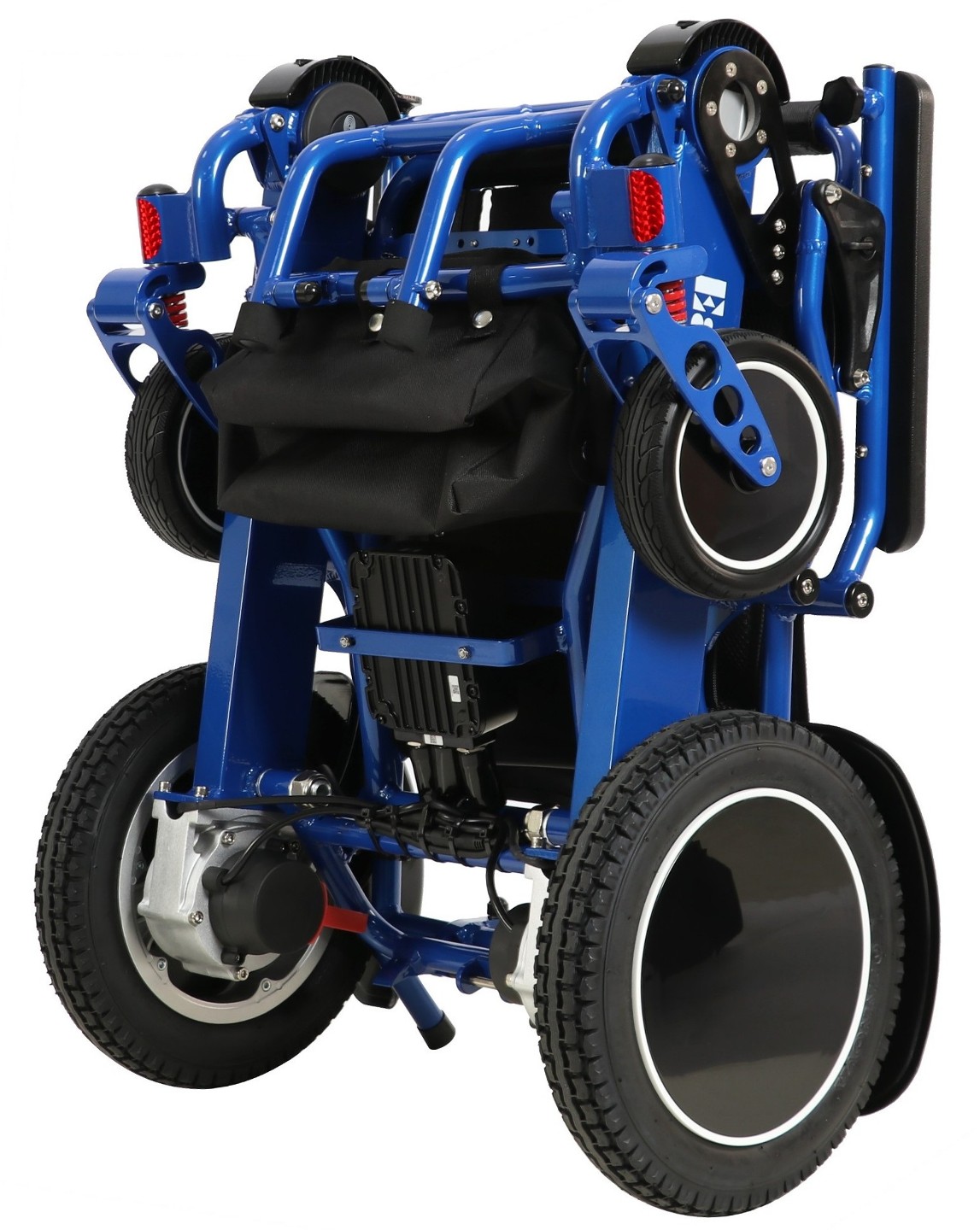

The Eagle HD Folds Into A Compact Area That Is Only (13" x 31" x 24") And Will Fit In The Trunk Of Most Any Car. Even A Small Compact Car Will Accommodate The Eagle HD Folding Power Wheelchair.





The Eagle Hd Only Weighs 50 lbs And Can Easily Carry Up To 400 lbs.





Performance, Power & Strength.

The Award Winning Eagle HD Is One Of Americas Favorite Power Wheelchairs Due To Its Ability To Easily Fold With Almost No Effort Into A Small Compact Compartment.
The Eagle HD Unique Design Makes Use Of The Hollow Space In The Aluminum Frame For The The Batteries On Both Sides. This Genius Engineering Design Saves Space And Weight Making Life Even Easier For You.
The Dual Lithium Batteries Provide Lots Of Power For A Longer Time And They Can Be Fully Recharged and 30 Minutes. Most Power Wheelchairs Take Eight Hours To Recharge.
The Eagle HD Joystick Controller Give You Greater Control Over Steering And Speed.





Specification Metric Imperial

Model

D09

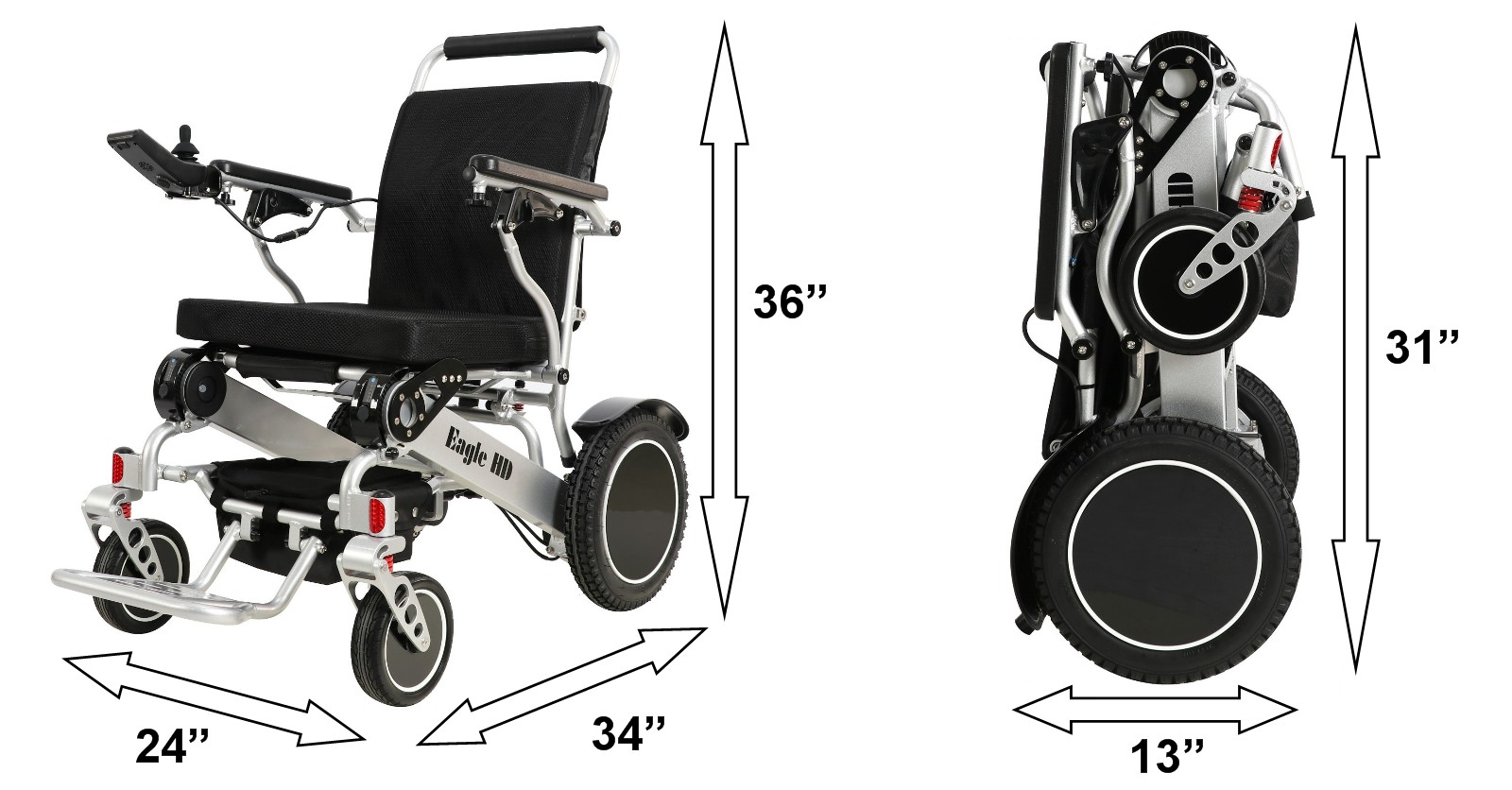

Unfolded Size 863 * 609 * 914 mm (L*W*H) 34" * 24" * 36" (L*W*H)

Folded Size

584 * 330 * 787 mm (L*W*H)

23" * 13" * 31" (L*W*H)

Weight Capacity

180 kg

400 Lbs
Seat


Width 482mm 19" Inch
Depth 421mm 17" Inch
Height 457mm 18" Inch
Back height 400mm 15.75" Inch

Motor





Type

brushless DC motor



Rated Power

250 W*2pcs



Input Power

DC 24V



Brake System

intelligent electromagnetic brake



Battery





Type

lithium battery



Capacity

6 Ah*2pcs



Output Voltage

DC 24V



PCS

Standard with two



Controller





Type/Plug Type

assist type/European standard, 2 core



Input Power

AC 100-220 V, 50-60Hz

International (Use Anywhere In The World)

Output Voltage/Current

DC 24V, 2A



Front Wheel





Front Casters

(180 mm x 45 mm)

(7" 1.77")

Type

solid tire



Material

PU



PCS

2 PCS



Rear Wheel





Outer Diameter/Tire Width

(320 mm x 57 mm)

(12.5" 2.25")

Type

Solid tire



Material

PU



Number

2 PCS



Weight





Without Battery

23.5 kg

50 Pounds

With two Batteries

26.5kg

58 Pounds

Maximum Grade

12

14 Miles

Driving Range

24km/ two batteries

28 Miles

Max Speed

6 km/h

(3.75 mph)

Turning Radius

835 mm

32"

Highest Obstacle Capability

40 mm

(1.57")

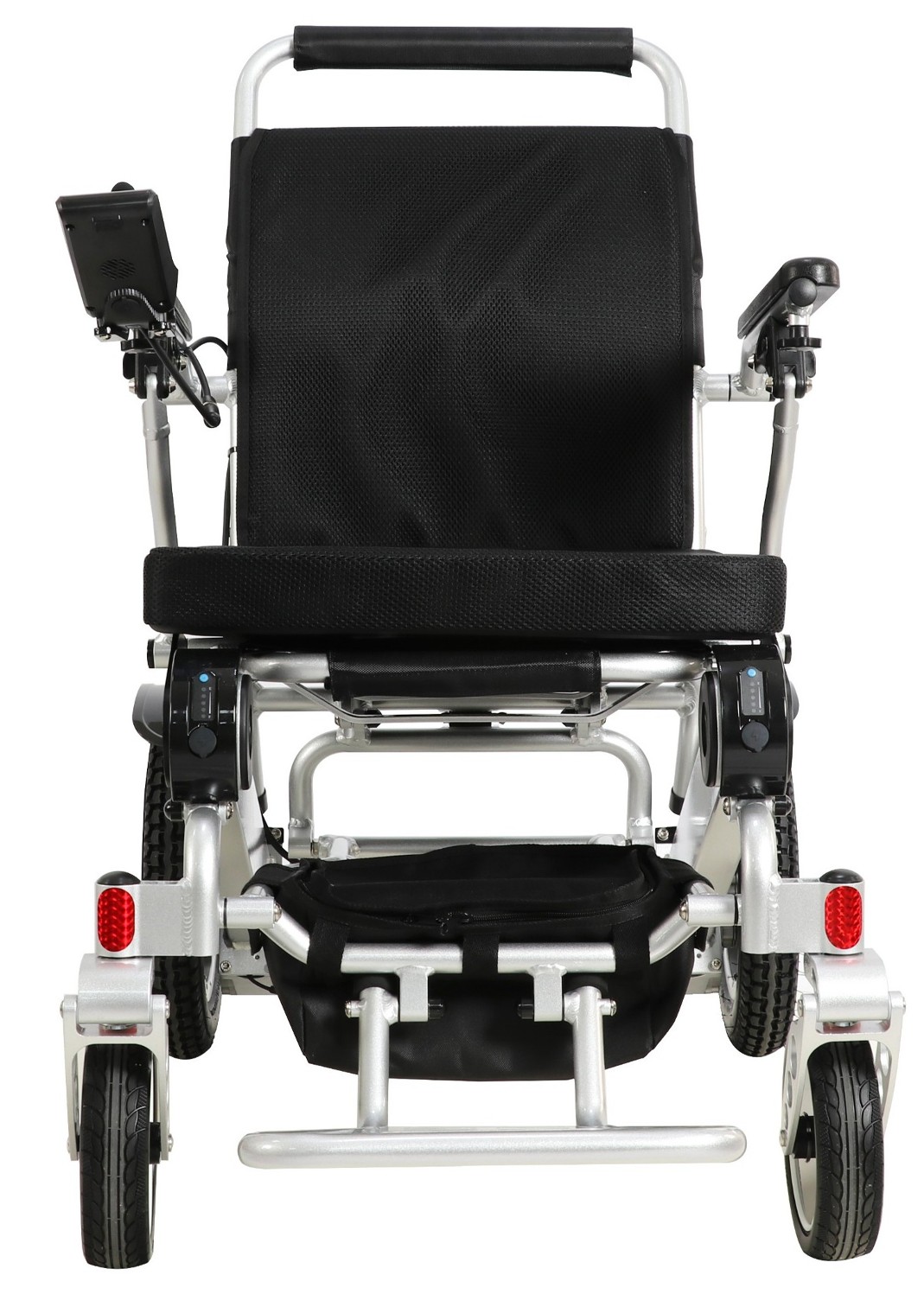

SILVERADO SILVER                                        (Click Image Below To Enlarge)

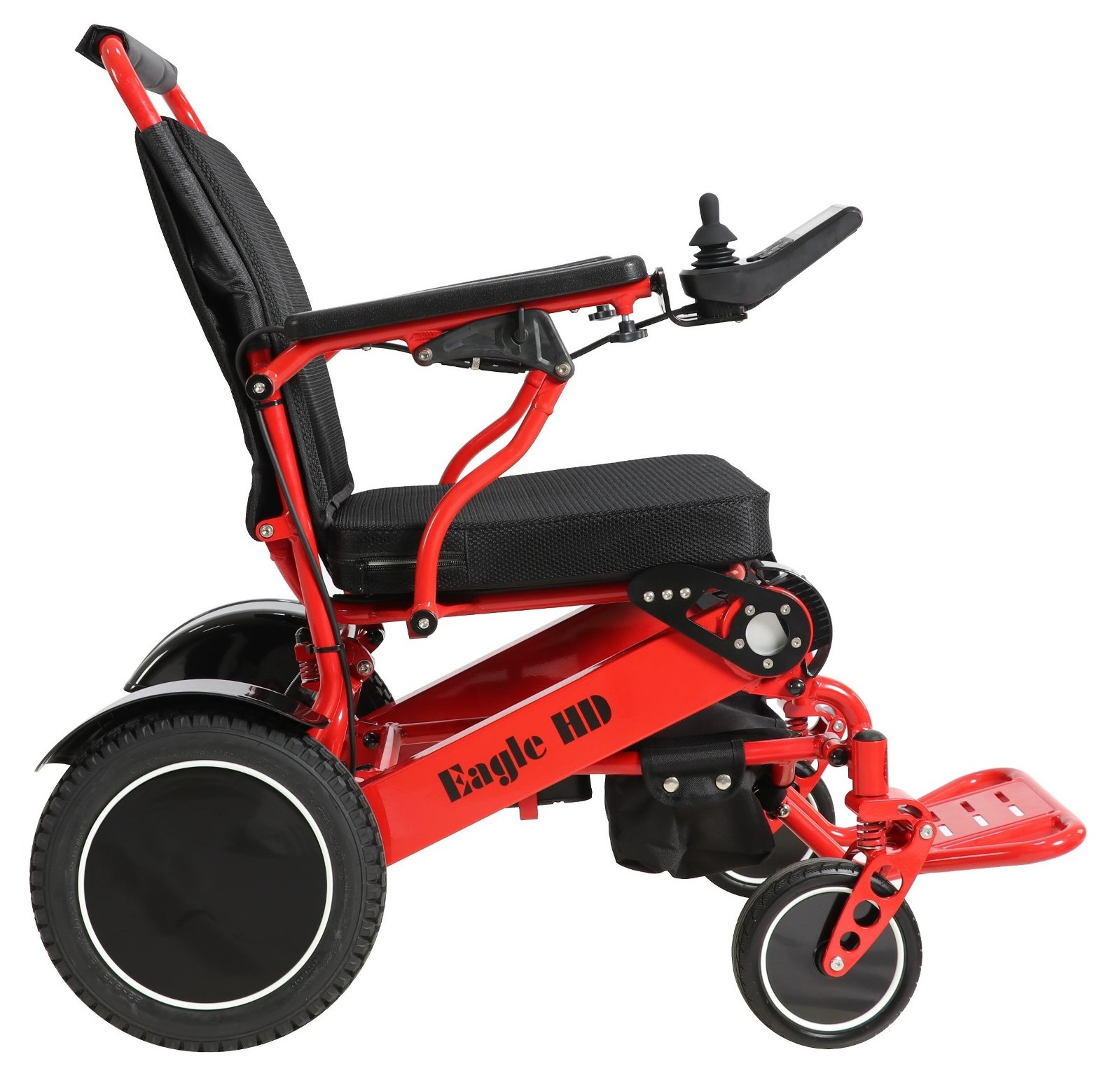

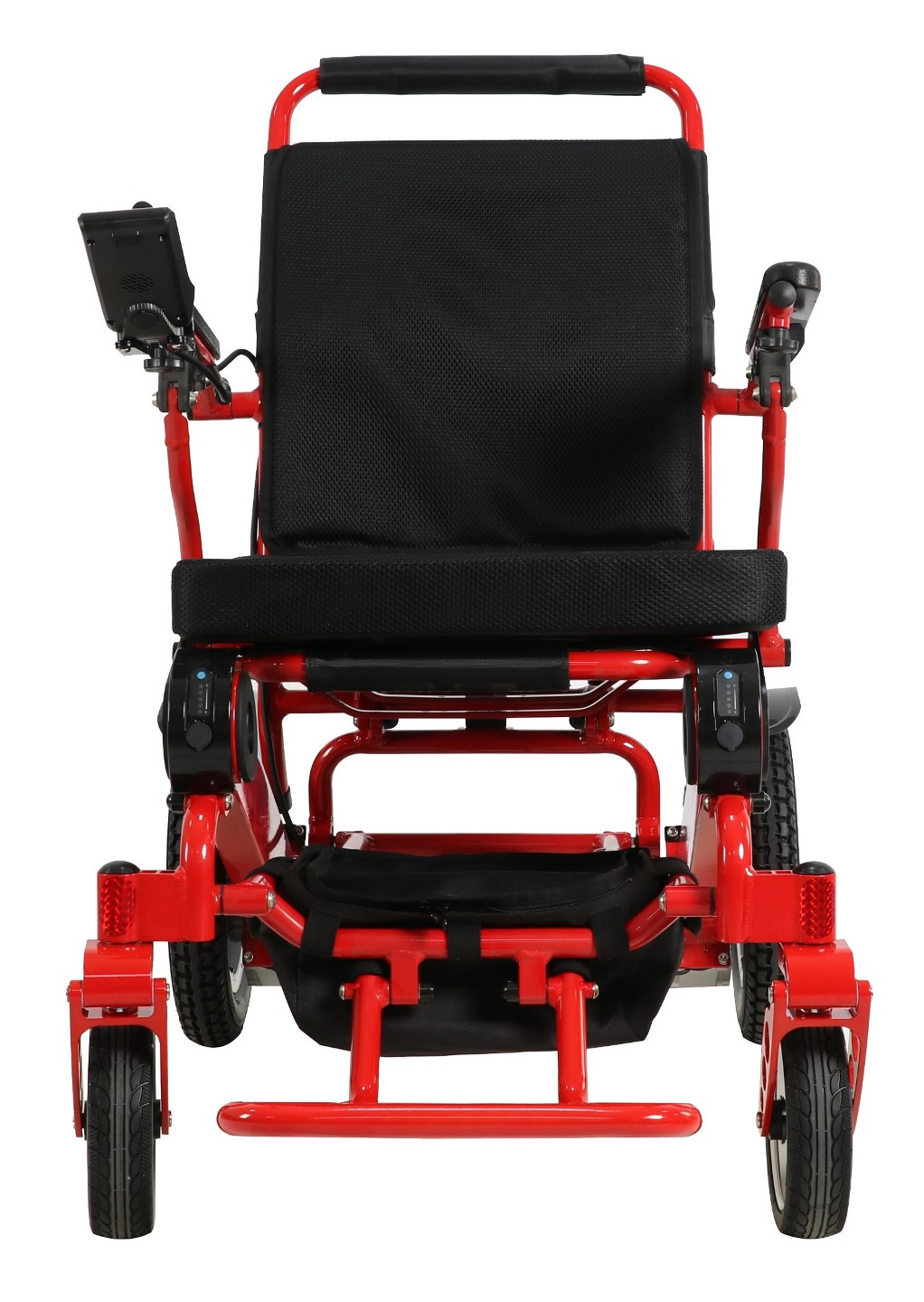

INFERNO RED

CARIBBEAN BLUE

NEON GREEN

MUSTANG ORANGE

HOT MAGENTA PINK







One Full Year In Home Service Limited Warranty.

Your new wheelchair comes with a full One Year In Home Service Warranty. Stop worrying about who would repair your wheelchair or how you would get your wheelchair to them. This warranty has you covered! We will send a trained professional repair technician directly to your home in the event your wheelchair should need repair. We cover the entire United States. The map below indicates the location of our service affiliates.

Personalize your new wheelchair. Its Free & Easy, Simply select letter of font style below you like and enter it in the order form along with the name or text you would like to use to personalize your new wheelchair.

A



B


C   D

E   F

G   H

I   J

  We include a Oxygen Tank Holder Free with the purchase of this wheelchair. This Oxygen Tank Holder will hold most any size tank. The chart shown on the left indicates with a red arrow all tank sizes this tank holder will accommodate. Also included free are all items listed below.
