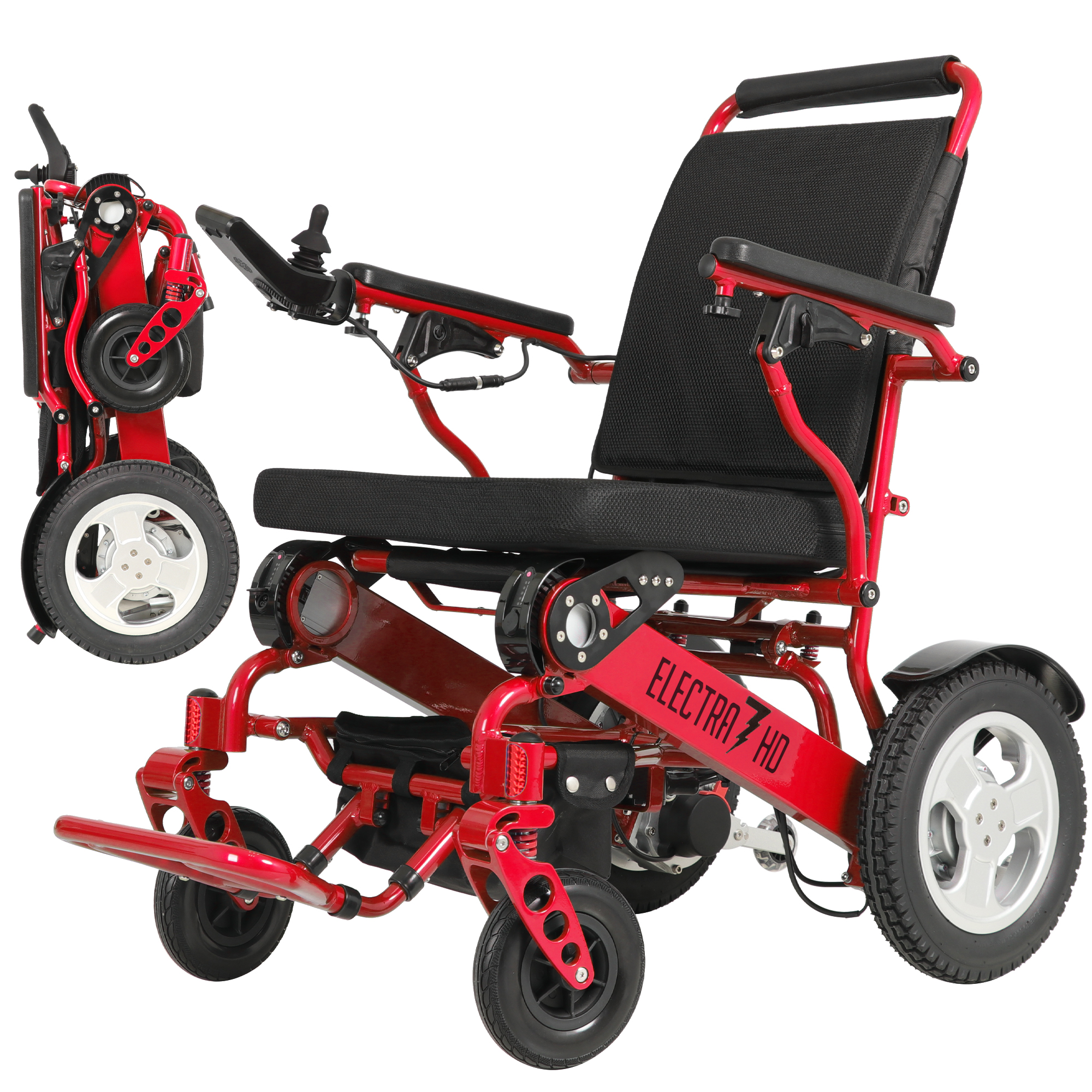

The Electra 7 HD -
Wide bariatric portable power wheelchair with a weight
capacity of 400 lbs only weighing 50 lbs. The The Electra 7 HD
- Wide has large 12 inch rear tires providing a smooth ride
with lots of traction to allow you to travel through most
any terrain. The The Electra 7 HD - Wide also has a 21 Inch
Wide Seat providing plenty of room for those that need it.
Lets not forget about the The Electra 7 HD "two" high
powered 250 watt motors providing lots of power even when
going up hills and inclines. The The Electra 7 HD - Wide
also comes standard with two battery packs giving users that
added range to go long distances without the concern of a
dead battery. |
| The The Electra 7 HD -
Wide is made of a high strength aircraft quality aluminum
alloy that provides high strength yet is extremely light
weight allowing the The Electra 7 HD - Wide to provide a
weight capacity of 400 lbs while only weighing 50 lbs
without the batteries.
 |
 |
 |
Power, Strength and
Portability.
Easily move the
joystick from left to right and back again in seconds for
right handed and left handed users. |
| Two 24 Volt Lithium
Battery Packs provide lots of long distance power and the
piece of mind you need. The Electra 7 also has two 250 watt
motors provides you with all the power you could possibly
need even on hills and inclines. Also the The Electra 7 HD -
Wide has a freewheel or neutral option allowing it to be
used as a manual chair so a caregivers can opted to push it
manually.
|
 |
| |
|
|
| |
|
Specification |
Metric |
Imperial |
|
Model |
Electra 7 HD Wide |
|
|
Unfolded Size |
863
* 609 * 914 mm (L*W*H) |
34"
* 24" * 36" (L*W*H) |
|
Folded Size |
584 * 330 * 787 mm (L*W*H) |
23"
* 13" * 31" (L*W*H) |
|
Weight Capacity |
180 kg |
400 Lbs |
Seat
|
|
|
|
Width |
533mm |
21" Inch |
|
Depth |
421mm |
17" Inch |
|
Height |
457mm |
18" Inch |
|
Back height |
400mm |
15.75" Inch |
|
Motor |
|
|
|
Type |
brushless DC
motor |
|
|
Rated Power |
250 W*2pcs |
|
|
Input Power |
DC
24V |
|
|
Brake System |
intelligent
electromagnetic
brake |
|
|
Battery |
|
|
|
Type |
lithium battery |
|
|
Capacity |
6
Ah*2pcs
/ 144 Watt Hr |
|
|
Output Voltage |
DC
24V |
|
|
PCS |
Standard with two |
|
|
Controller |
|
|
|
Type/Plug Type |
assist type/European
standard, 2 core |
|
|
Input Power |
AC
100-220
V,
50-60Hz |
International
(Use Anywhere In The World) |
|
Output Voltage/Current |
DC
24V,
2A |
|
|
Front
Wheel |
|
|
|
Front Casters |
(180 mm x 45 mm) |
(7" × 1.77") |
|
Type |
solid tire |
|
|
Material |
PU |
|
|
PCS |
2 PCS |
|
|
Rear Wheel |
|
|
|
Outer Diameter/Tire
Width |
(320 mm x 57 mm) |
(12.5" ×2.25") |
|
Type |
Solid
tire |
|
|
Material |
PU |
|
|
Number |
2 PCS |
|
|
Weight |
|
|
|
Without Battery |
23.5 kg |
50 Pounds |
|
With two Batteries |
26.5kg |
58 Pounds |
|
Maximum
Grade |
12° |
14 Miles |
|
Driving Range |
24km/ two batteries |
28 Miles |
|
Max Speed |
6 km/h |
(3.75
mph) |
|
Turning
Radius |
835
mm |
32" |
|
Highest
Obstacle Capability |
40
mm
|
(1.57") |
|
| |
Optional
- Samson (Hard Shell Case)
|
| The Samson is a Taylor
made (Hard Shell Case) specifically designed to provide the
perfect protection to the Eagle HD when traveling. Now you
no longer need to worry about whether the airlines will
damage your Eagle HD when traveling. The Samson (Hard Shell
Case) almost entirely eliminates the possibility of damage
to the Eagle HD.
Size: 36.5" X 26" X 17"
Weight: 24 LBS
Optional: $487.00
|
(Click Here To Enlarge) |
| |
|
  |
Optional
Head Rest
Rehab Quality Highly Adjustable Head Rest
Allows The Head Rest To Be Adjusted Perfectly To Any
Position Required. |
|
The Electra 7 HD Wide Power Wheelchair |
|
|
|
Electra 7 HD Wide Folding Power Wheelchair
|
|
 |
|
| |
|
Discover Your Mobility specializes
in foldable power wheelchairs and is home to the
Air Hawk folding power wheelchair that is the worlds lightest
portable foldable electric wheelchair in the world. Discover Your
Mobility is also credited for both the
Eagle Hd folding electric bar iatric power wheelchair it to is
the worlds lightest bar iatric battery powered power wheelchair in
the world. Lastly the 21 inch wide
Electra 7 foldable heavy duty battery powered electric wheelchair
weighing only 50 pounds with a weight capacity of 400 pounds.
Place A Review
|
|
|
