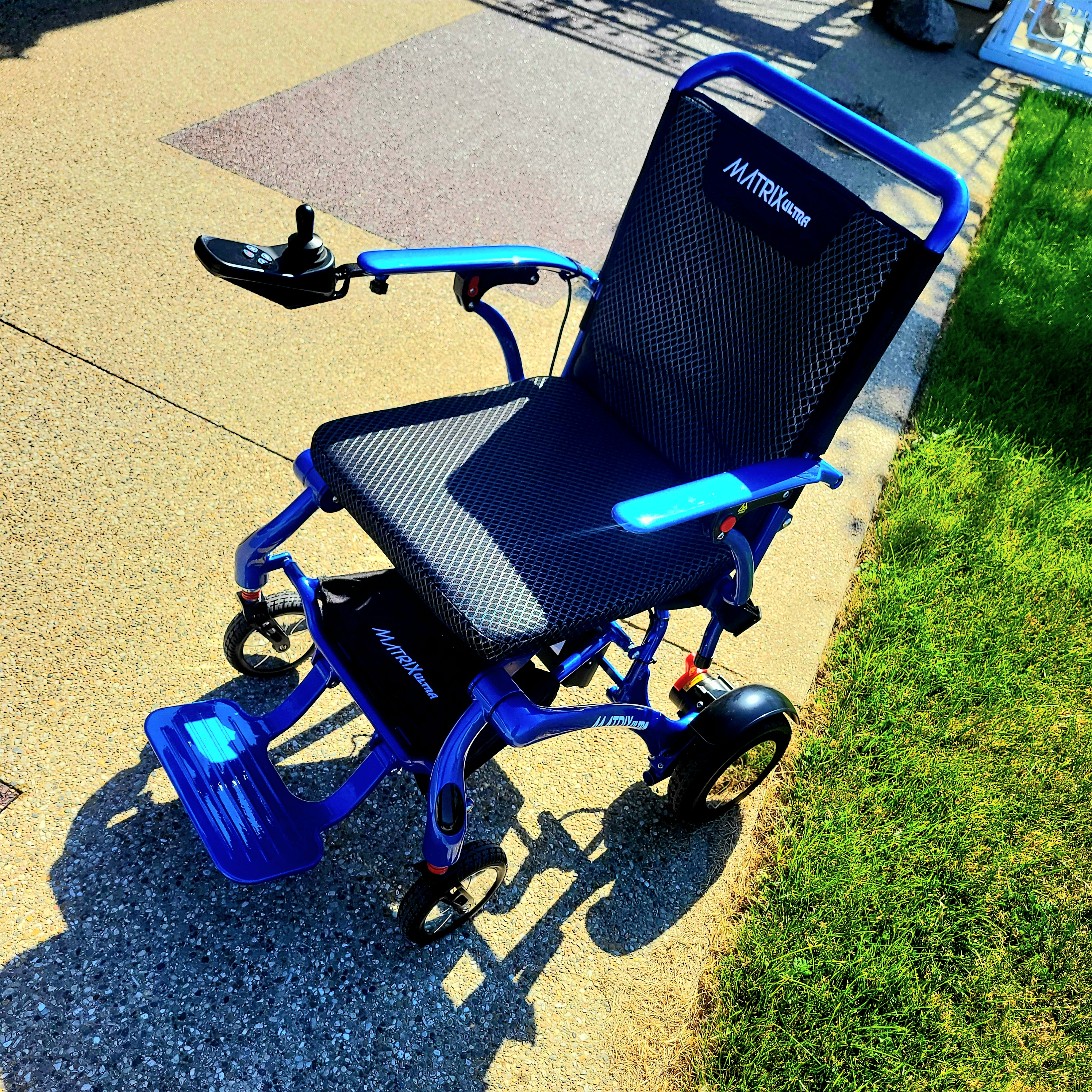

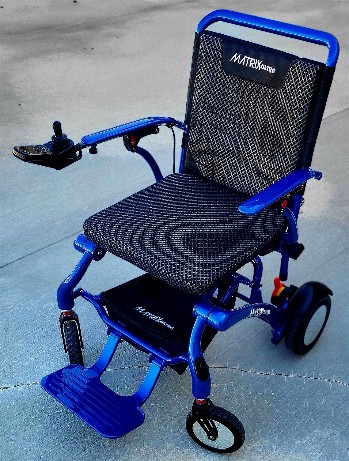

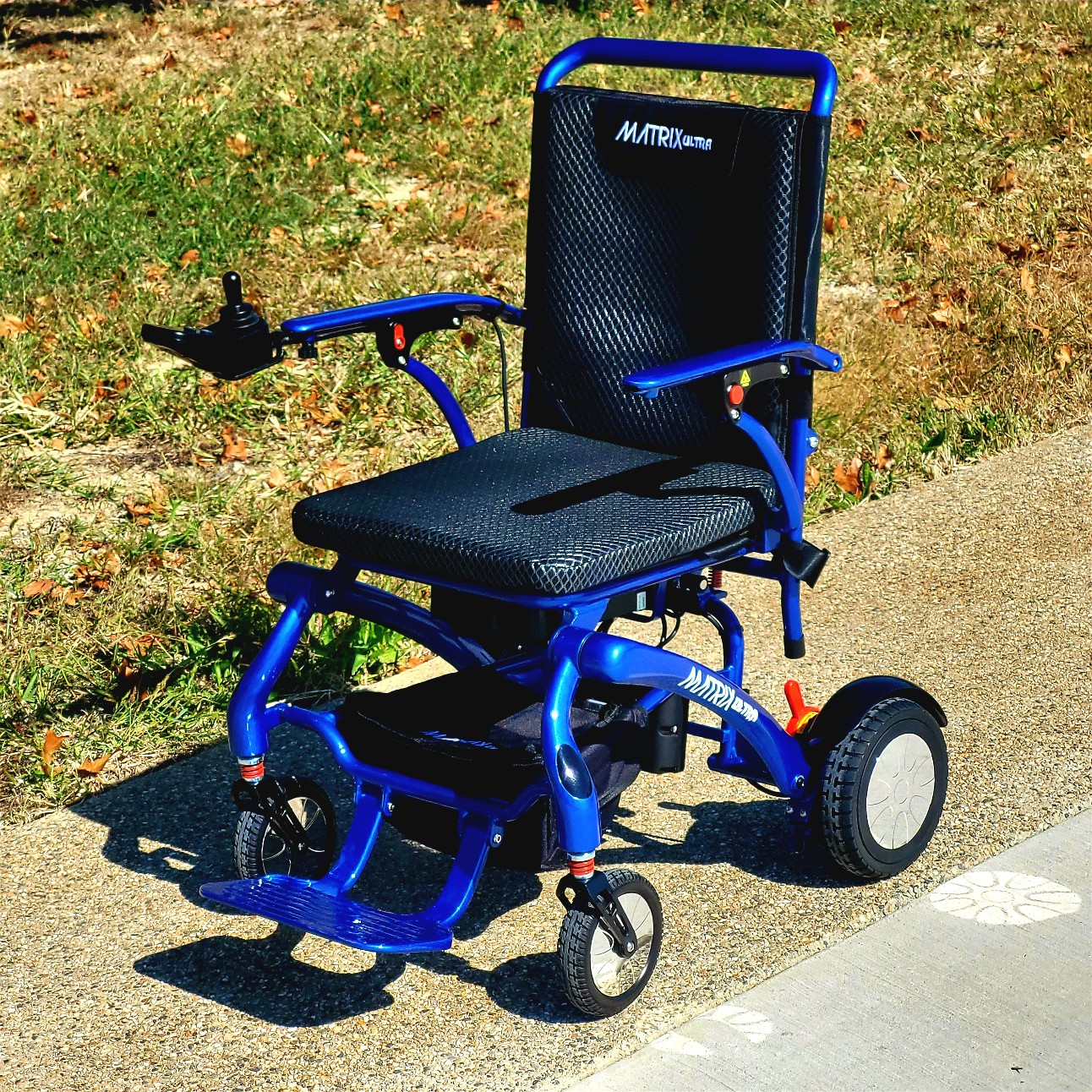

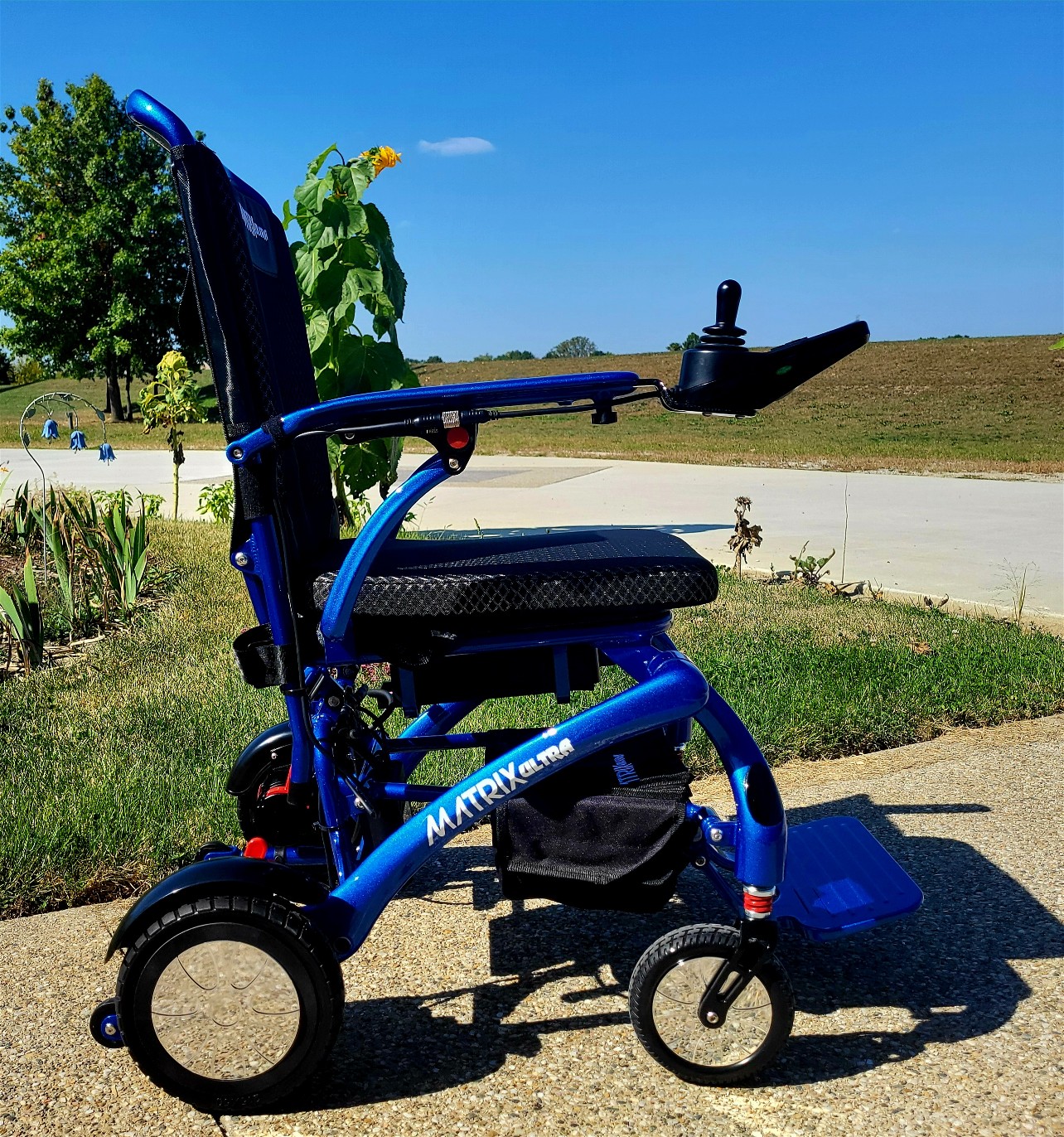

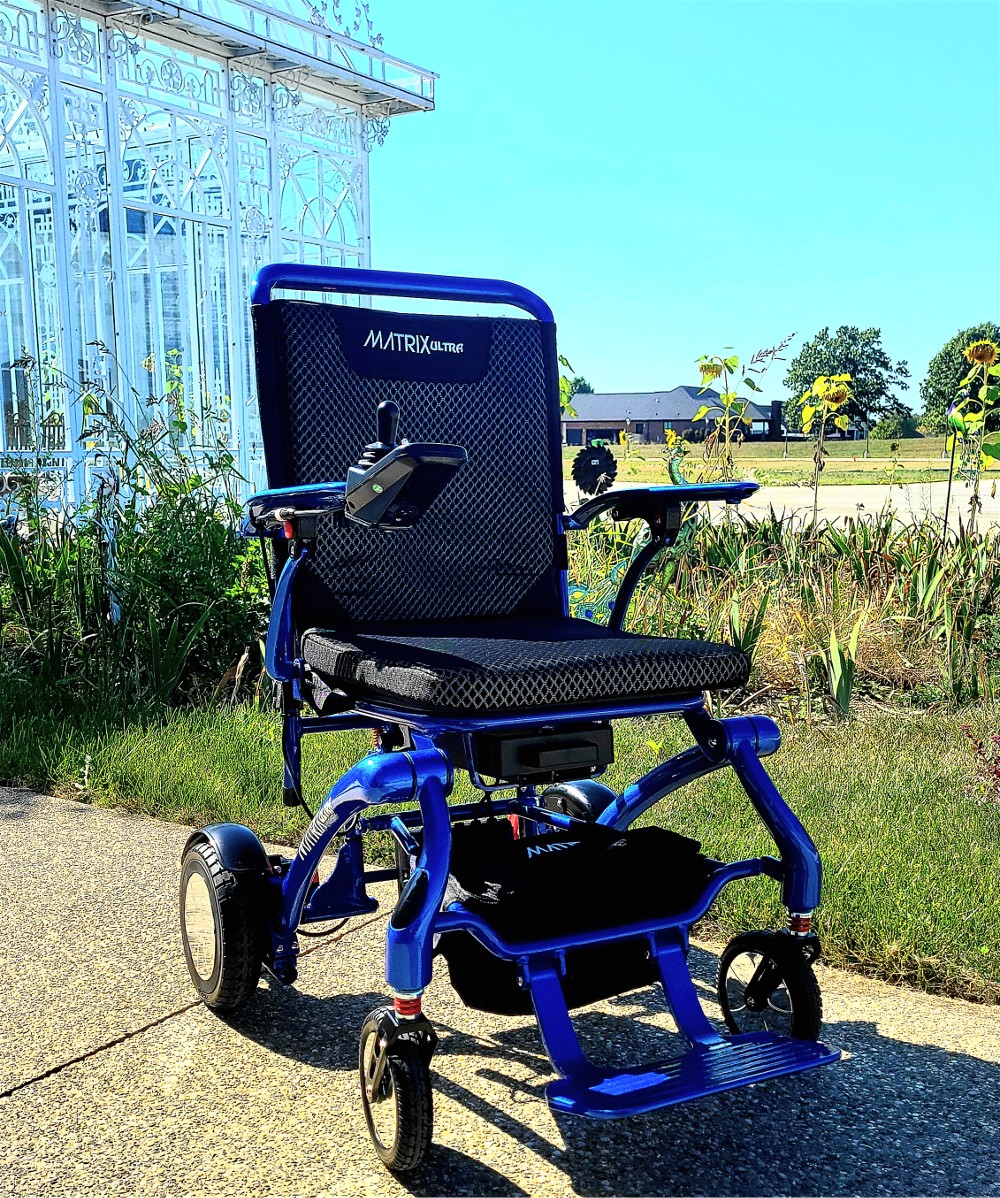

Matrix Carbon Fiber Wheelchair







(Click Any Photo To Enlarge)

The Matrix Is Easily The World's Lightest Power Wheelchair, Weighing Only 34 Pounds With A 19 Inch Wide Memory Foam Seat And A Weight Capacity Of 300 Pounds. The Matrix Is Made Out Of Carbon Fiber And It Is Five Times Stronger Then A Conventional Power Wheelchair Made Steel Weighing Up To Five Times As Much.



The Matrix Portable Power Wheelchair Also Easily Folds Into A Small Compartment With A Width Of Only 12.5 Inches Allowing It To Fit In The Trunk Of 'Any' Car And Can Be Taken On A Plane As Carry On Luggage.








Did You Know Carbon Fiber Is Five Times Stronger Then Steel & Five Times Lighter.



For Some Time Now Portable Power Wheelchairs And Portable Scooters Have Been Available Weighing From As Little As 73 Lbs To 198 Lbs. The World Has Never Seen A 34 Lbs Power Wheelchair Until Now. The Matrix Is Made Out Of Lightweight Strong Carbon Fiber.



The Engineers Were Determined To Design A Spacious Comfortable Power Chair That Would Fold Into A Very Compact Space And That Would Weight Almost Nothing. Their Success Allow Us To Introduce The Matrix Carbon Fiber Power Wheelchair.

(Click Any Photo To Enlarge)



Non Marking Flat Free Tires Means You Can Drive It On Any Surface Without The Concern Of Leaving Any Marks.



Both Front And Rear Wheels Of The Matrix Carbon Fiber Wheelchair Are Equipped With Non-Slip Grips. Additionally, The Quality Polyurethane, Nylon Mix Tires Are Forever Flat Free So You Don’t Have To Worry About Getting A Flat. Whether Your Indoors On A Plush Carpet, On A Wood Or Tile Floor. Or Outdoors On Grass, Gravel, Dirt Trail Or On A  Concrete Surface The Matrix Carbon Fiber Power Wheelchair Is Built To Take You Where You Want To Go.







(Click Any Photo To Enlarge)



Is There Any Assembly Required With The Matrix?


The Matrix Carbon Fiber Wheelchair  Comes Fully Assembled! All You Need To Do Is Open The Box,



The Batteries Already Have A Partial Charge So You Can Take It For a Spin As Soon As You Get It Out Of The Box, Simple as 1-2-3!







The Matrix Has Two 150W Motors Providing A Full 300W Of Power. Both Motors Are Brushless Electromagnetic Motors That Use The All New ATS (Advanced Torque System) For Delivering Maximum Power When Going Up Steep Inclines.


The Matrix Will Always Go The Speed That You Want Allowing Users To Easily And Smoothly Accelerate Or Move Slowly And Stop Right Away When Needed.



The High Torque Motors And Electromagnetic Braking System Means It Won’t “Run Away” While Going Down A Hill, Yet There Is Plenty Of Power For Going Up An Incline. The Motors And The Entire System Are Weather-Resistant.





Let’s Not Forget The Importance Of Comfort. The Matrix Carbon Fiber Wheelchair Has A Memory Foam Cushion On The Seat And Flexi-Foam Cushion On The Backrest. The Seat Cover Is Made From Wicking And Is Safe To Put In The Washer. It Is A Stain Resistant Quick-Dry Breathable Mesh Material. To Further Enhance The Comfort Of Your Matrix, The Seat Cushion Cover Has A Anti-Slip Surface Making You More Comfortable And Secure In The Seat. There Is Also A Fully Adjustable Seatbelt Built In That Can Easily Be Hidden Away When Not In Use.

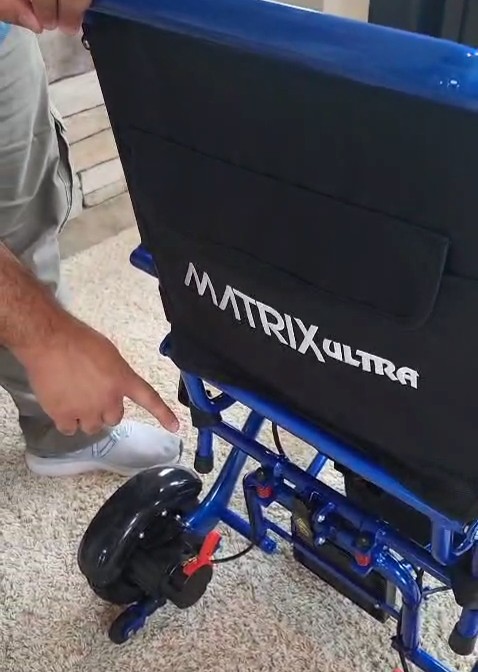

You May Notice The Red Leaver On The Inside Of Each Motor In The Picture To The Left. These Levers Allow You To Operate The Matrix Carbon Fiber As A Push Wheelchair (Freewheel Mode), Or Motorized Power Wheelchair With The Simple Flip Of A Leaver.

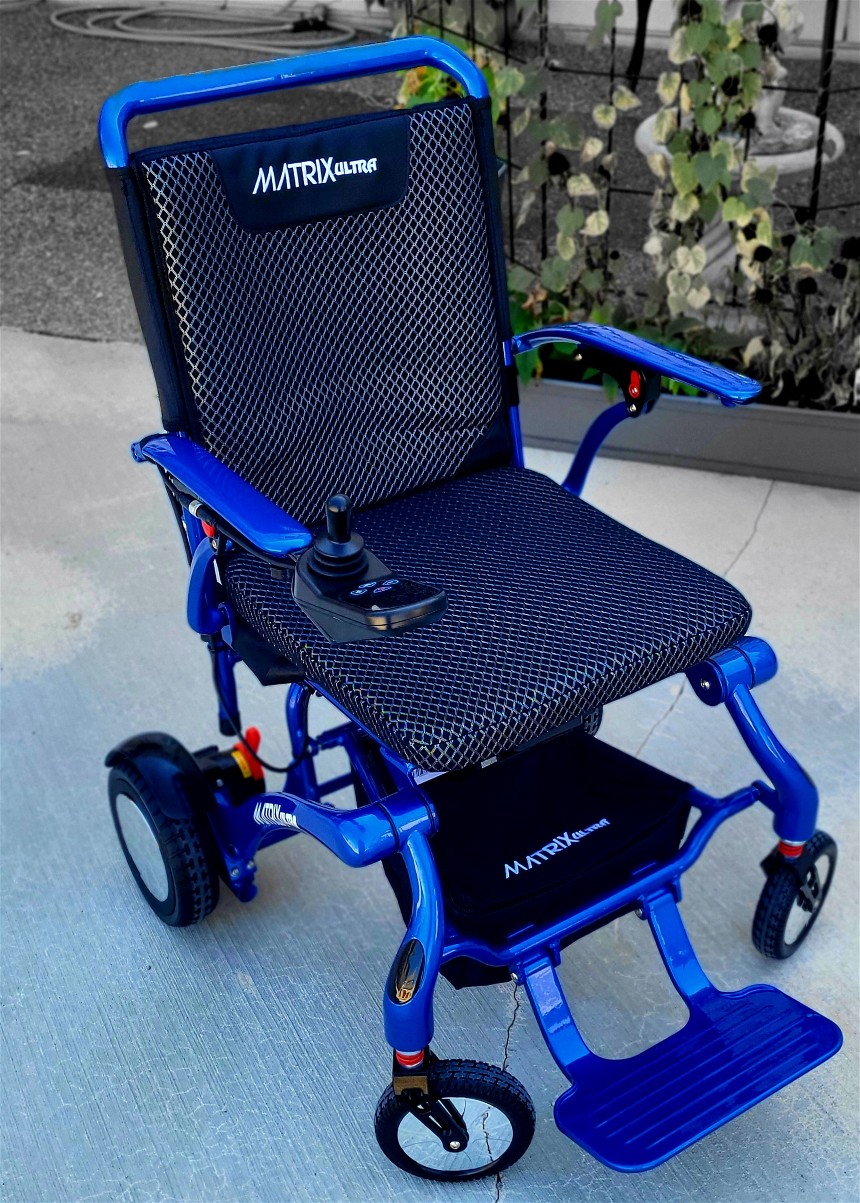

The Matrix Shown In The Color Silverado Silver Is Simply Stunning And Easy To Keep Clean. It Is Easy To See Why It Is The Most Popular Color Among Users. The Caribbean Blue Is The Next Most Popular Color However The Inferno Red, Perfectly Yellow, Jet Black & Rosy Pink are All Amazing Colors.

The Matrix Is Only 34 Lbs With A 300 Pound Capacity, 18 Inch Wide Memory Foam Seat, Fully Adjustable Anti Tip Wheels, With Reinforced Arm Rest, Meaning Users Can Place Their Entire Body Weight On The Arm Rest And The Arm Rest Will Support Them. All This And Is  Made Out of Carbon Fiber.

The Matrix Has Lots Of Room When Completely Unfolded. With A Seat Height Of 19.5 Inches, 18 Inch Wide Seat And Seat Depth Of 17 Inches Providing Users With Plenty Of Space And A High Level Of Comfort.



Arm Rest Fold Up Completely Out Of The Way For Easy Side Entry / Exit.

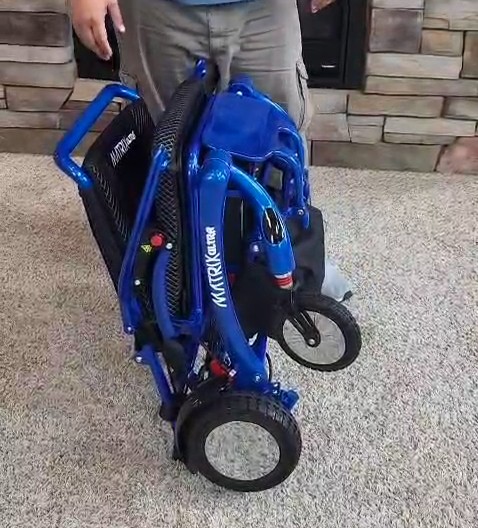

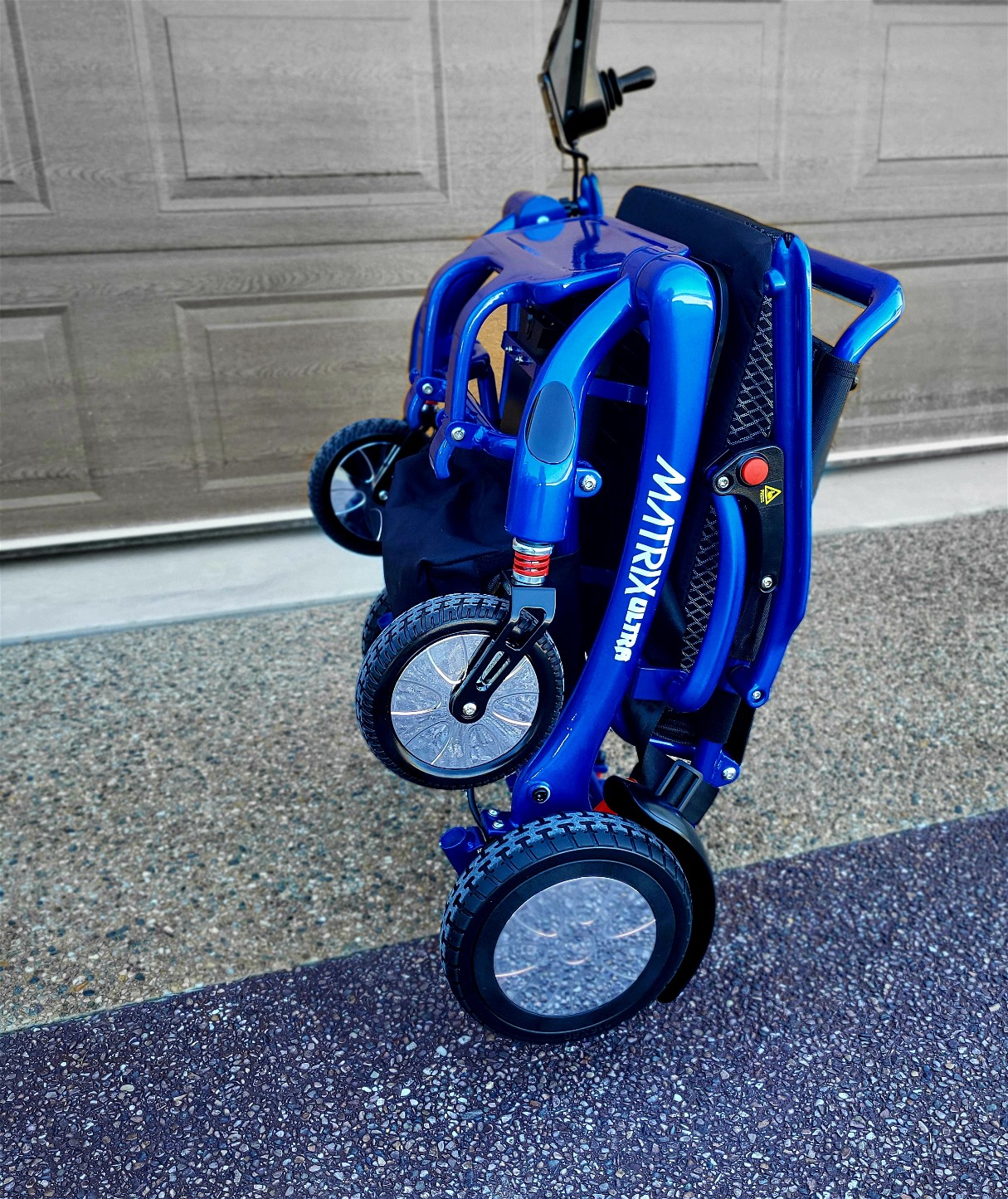

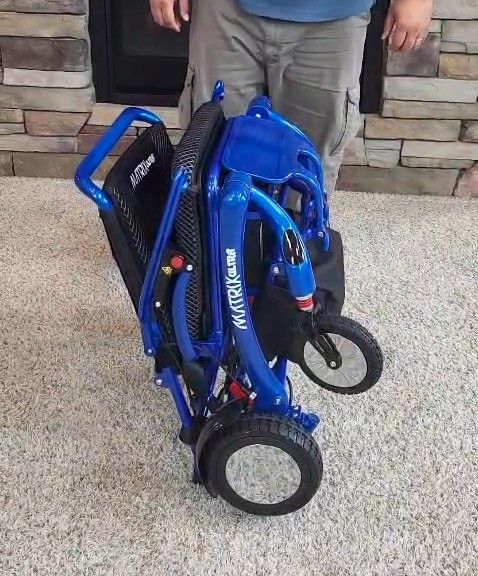

The Matrix Carbon Fiber Wheelchair Easily Folds Into A Small Compact Space That Will Fit In The Trunk Of Any Car And The Fact That It Only Weighs 34 Pounds Allows Taxi Drivers Or Uber Drivers To Treat It Just Like Luggage By Placing It In The Rear, Trunk or Hatch Of The Vehicle They Are Driving.





Airlines Know & Love The Matrix As It Is Both FDA & FAA Approved Allowing It To Be taken On Any Commercial Airline. The Matrix Folds Up So Compact It Can Be taken On As Carry On Luggage And Will Even Fit In The Overhead Compartment.

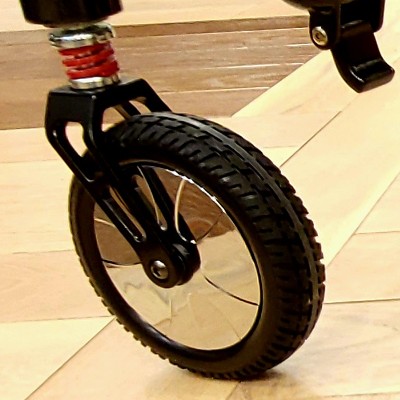

Both Front And Rear Suspension Provides A Smooth Ride On Both Hard As Well As Rough Surfaces.



The Front And Rear Suspension Also Makes The Matrix Safer As It Is Far More Stable When On Rough Surfaces.

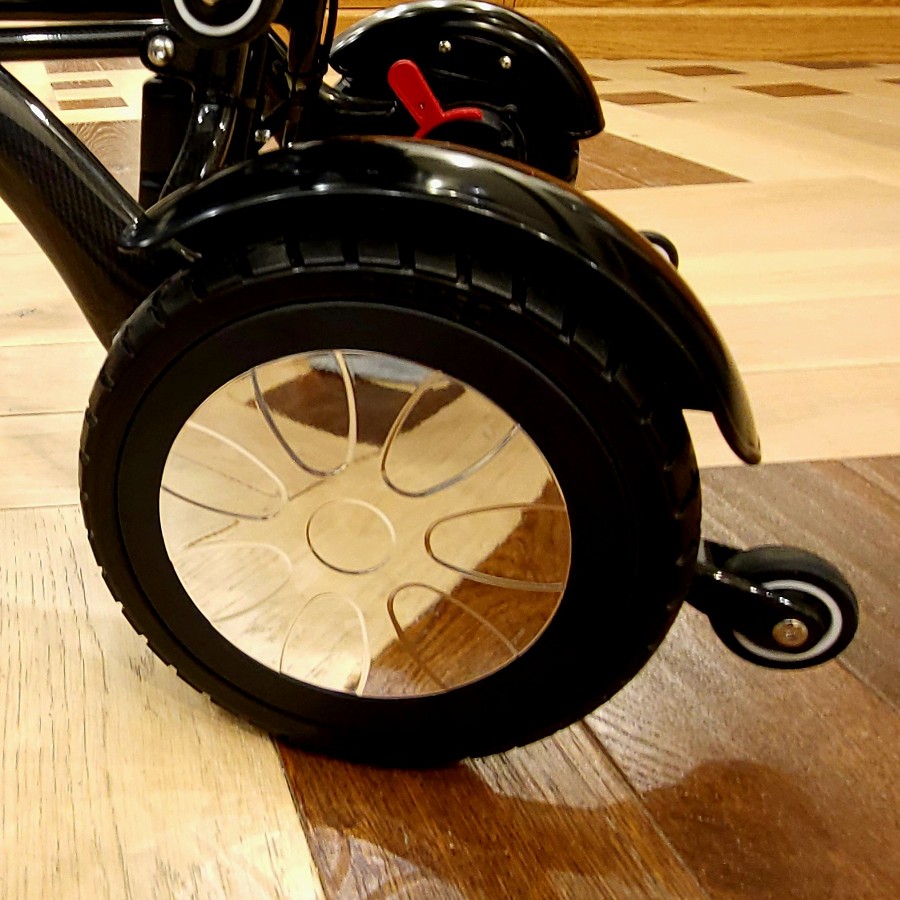

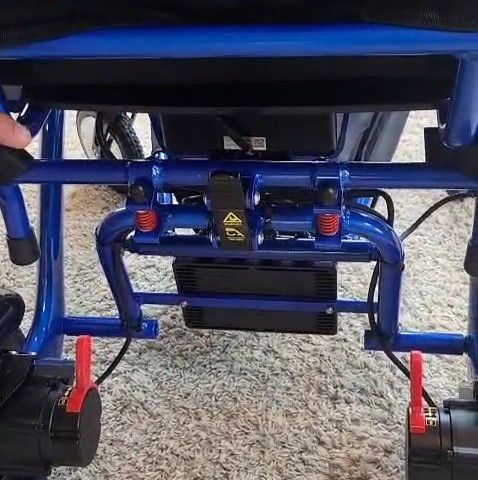

Rear Suspension Shown To The Left Is Yet One More Feature That Is Normally Unheard Of On A Lightweight Portable Power Wheelchair. The Front And Rear Suspension Makes Driving The Matrix A Pure Pleasure.

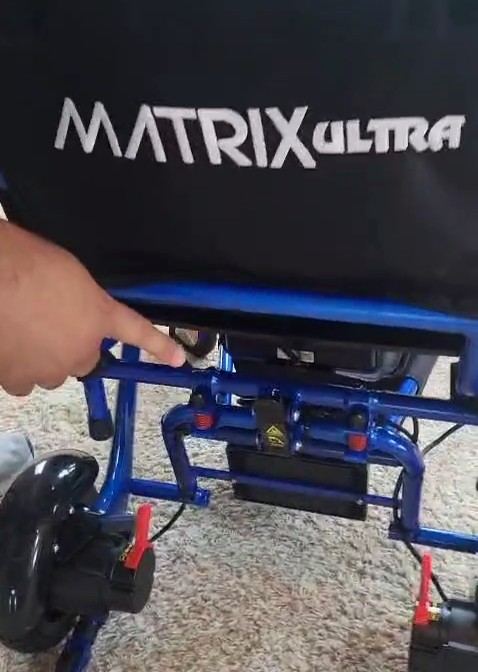

Easy One Touch Locking Mechanism That Allows Users To Easily Fold & Unfold The Matrix Carbon Fiber Power Wheelchair.






Highly Adjustable Anti Tip Wheels That Provide Yet Another Level Of Safety & Security.



Adjust The Anti Tip Wheels To Your Liking In And Out With No Need For Tools.

(Click Any Image To Enlarge)

Silverado Silver

Caribbean Blue

Rosy Pink

Inferno Red

Perfectly Yellow



The Matrix Is Powered By Two ATS (Advanced Torque System) 150-Watt Motors Providing Plenty Of Power – Even While On Inclines, Declines, As Well As Rougher Bumpy Surfaces. The Matrix Carbon Fiber Wheelchair Comes With A Extra Lithium-ion Battery Pack. The 2nd Battery Pack Is Included Free And Provides A Strong Piece Of Mind When Traveling Any Long Distances.



Note: Battery Can Be Charged On The Matrix Or Independently On Its Own When It Is Off The Matrix.









Now You Receive A Spare Extra Battery Pack With The Purchase Of Your New Matrix Carbon Fiber Power Wheelchair.



Having A Extra Battery Not Only Doubles The Distance You Can Travel. More Importantly It Give You A Sense Of Security Knowing Your Not Going To Be Stuck Somewhere With A Dead Battery!

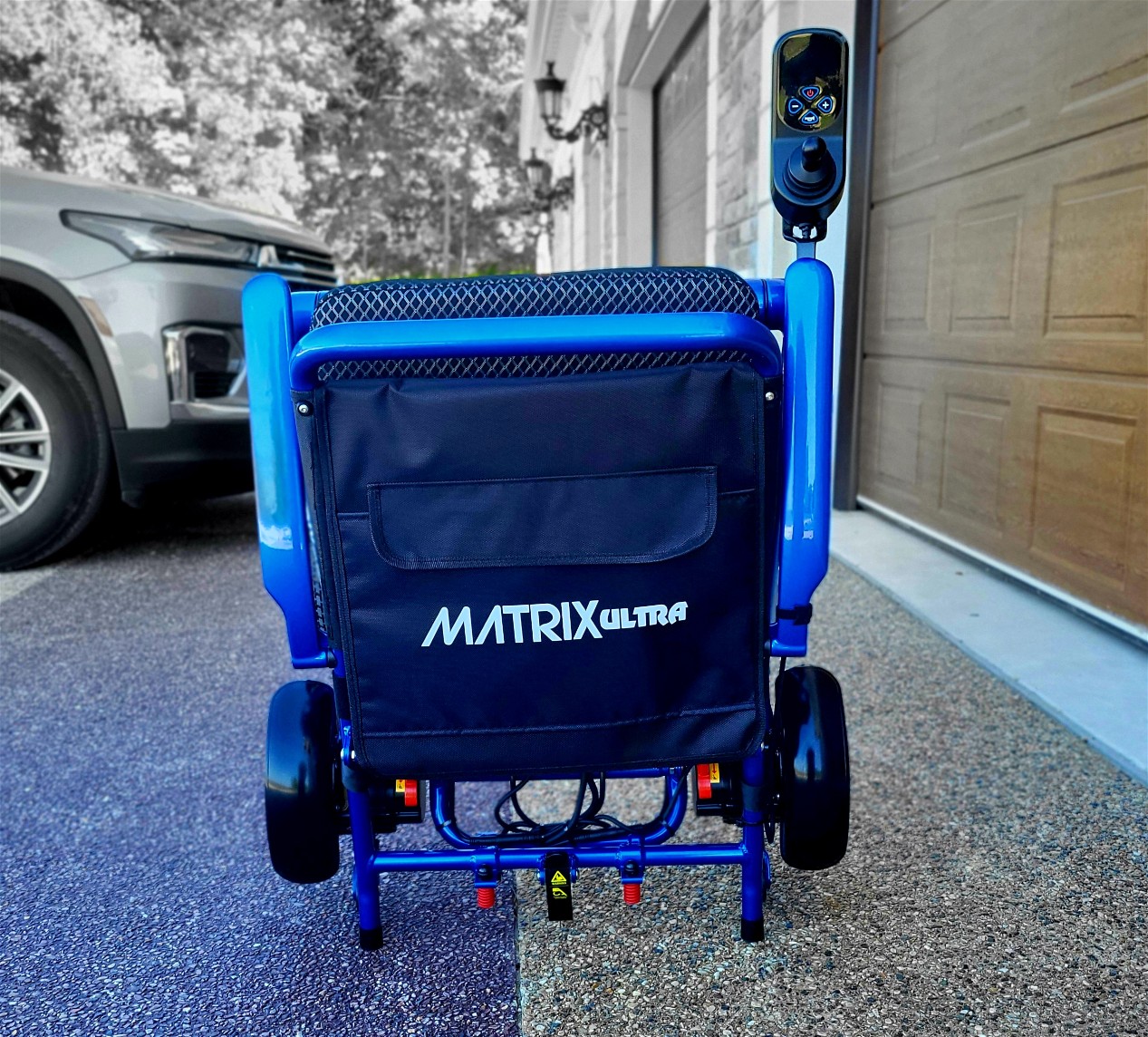

Reflectors Both Front And Back Make Operating The Matrix Much Safer Proving A Far Great Visibility For Vehicles To See You When Crossing The Road Or Navigating Through A Parking Lot.

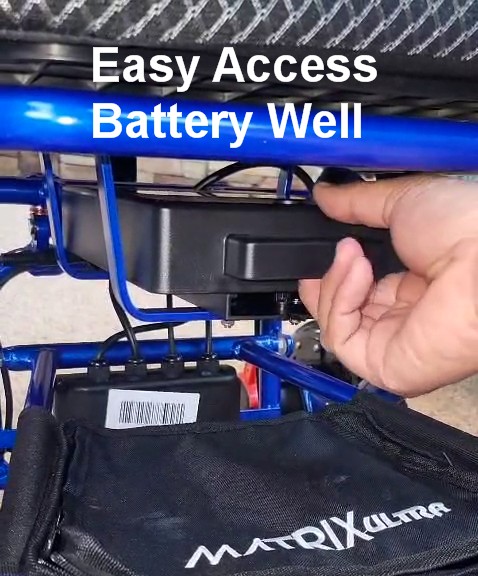

The Matrix Lithium-ion Battery Pack Gives Users The Option To Charge It While On The Matrix Or You May Charge The Battery Off The Matrix. It Snaps Off In A Few Seconds And Can Then Be Charged Directly.

The All New Matrix Carbon Fiber Wheelchair Performs Very Well In All Conditions Both Indoor Tight Spaces As Well As Outdoors On Hard Rough Surfaces.



The Matrix Carbon Fiber Motorized Wheelchair Has A Weight Capacity Of 300 Lbs And Amazingly Only Weighs 34 Lbs. Made Out Of Carbon Fiber, The Matrix is Lightweight, Strong, And Capable.







Top Speed Is Up To 5mph. On The Bottom Of The Joystick, You Will Find The Speed Controls, As Pictured Below. You Can Also Sound The Built-In Horn (Top Right), And Get An Immediate Indication Of The Battery Levels Too (Top Of Joystick).



Lightweight Portable Scooters Have Been Available For Some Time Now, Yet Their Are Many People That Do Not Have The Ability To Drive A Scooter As It Requires The Ability & Strength To Steer Similar To A Bicycle. The Matrix Carbon Fiber Power Wheelchair Utilizes A State Of The Art Joystick Controller That Allows A User To Navigate And Drive It Using Only One Finger.

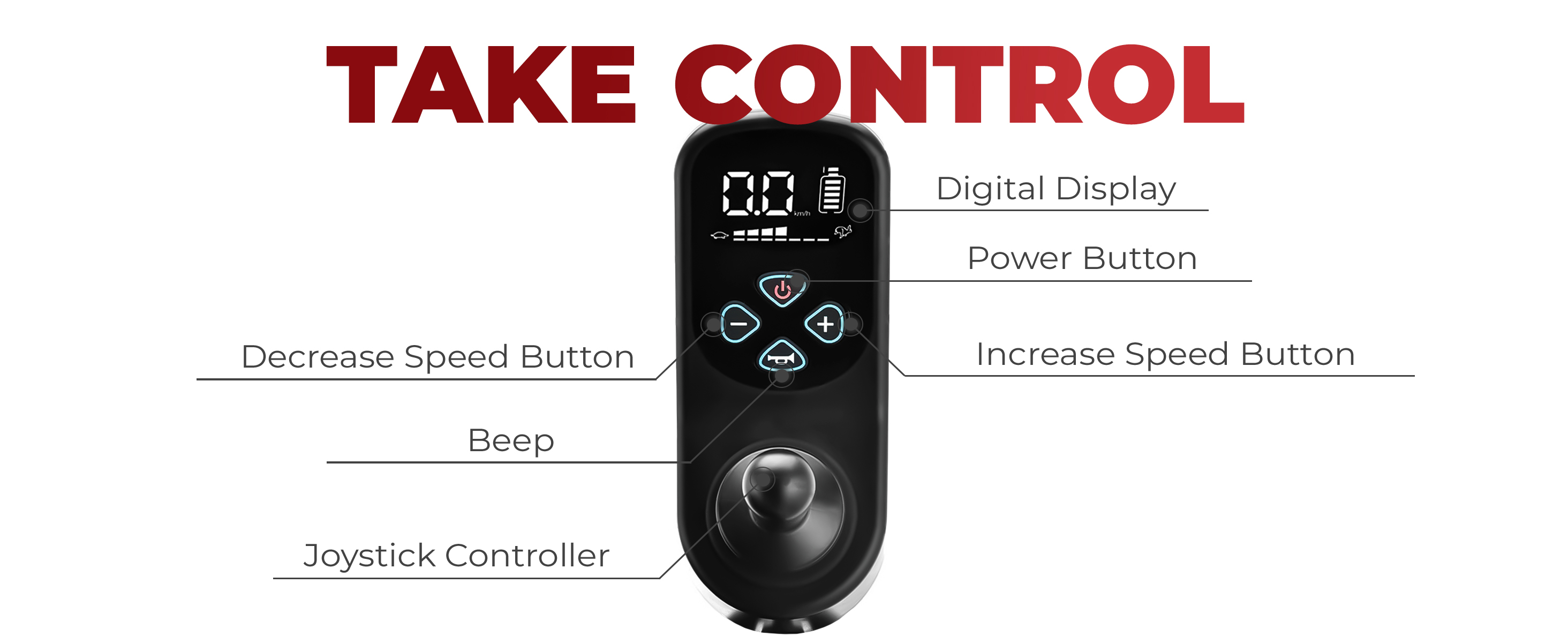

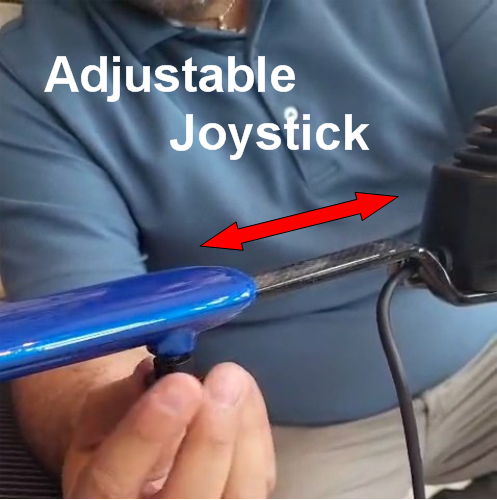

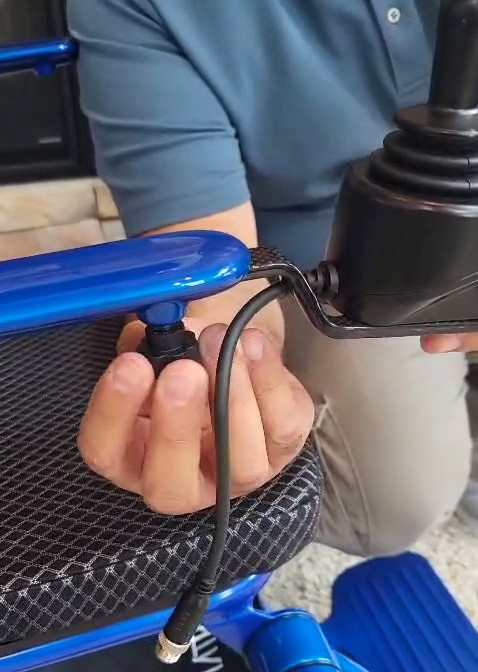

The Matrix Is Equipped With A Smooth Sense Soft Touch Joystick That Allows Users To Control And Navigate The Matrix With Ease And Precision.



The Joystick Has A Horn, Battery Gage Indicator As Well As A Digital Up & Down Speed Adjustment.



The Further You press the joystick knob, the more power the chair has and the faster it goes. By applying just a small bit of pressure to the joystick knob, you can go slowly and have perfect control.

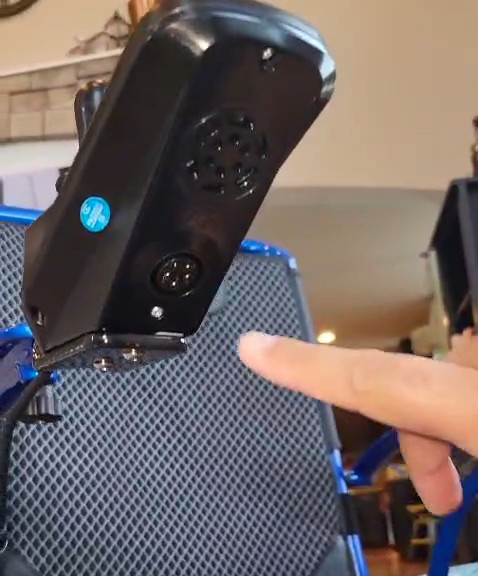

On The Front Of The Joystick You Will Find Both The Charging Port To Charge Your Matrix As Well As A USB Charging Port That Allows You To Charge Your Phone & Other Devices Directly From The Matrix Power Wheelchair.



(Click Any Image To Enlarge)













Optional Samson Hard Shell Case



The Samson is a Taylor made (Hard Shell Case) specifically designed to provide the perfect protection for the Matrix when traveling. Now you no longer need to worry about whether the airlines will damage your Eagle HD when traveling. The Samson (Hard Shell Case) almost entirely eliminates the possibility of damage to the Matrix.



Size: 36.5" X 26" X 17"

Weight: 47 LBS

Optional: $587.00









Lightweight Carbon Fiber Wheelchair



Specifications  -   Owners Manual   -   Referenced Videos



Matrix Specifications

Imperial

Metric

Total Weight 34 Pounds 15.42 Kilogram
Weight Capacity 300 Pounds 136 Kilogram
Seat Width 18" Inch 45 Centimeter
Seat Depth 17" Inch 53 Centimeter
Seat Height 19.5 Inch 49 Centimeter
Width Of Wheelchair (Unfolded) 23 Inch 58 Centimeter
Length Of Wheelchair (Unfolded) 35.5 90 Centimeter
Height Of Wheelchair (Unfolded) 34.5 87.5 Centimeter
Width Of Wheelchair (Folded) 23 Inch 58 Centimeter
Height Of Wheelchair (Folded) 29.5 Inches 75 Centimeter
Thickness Of Wheelchair (Folded) 12.5 Inches 32 Centimeter
Motor 300 Watt Brushless / 24v "  "
Battery 24v Lithium-ion 8 Ah (4 Lbs) No Plugs / Easy To Remove
Frame Carbon Fiber "  "
Foldable Arm Rest Arms Fold Up for Easy Side Entry-Exit Note: (Also Enter-Exit From Front.)
Front Tires 6 Inch / Flat Free (Non Marking) "  "
Rear Tires 8 Inch / Flat Free (Non Marking) "  "
Suspension Yes / Front & Rear Suspension "  "
Seat Cushion 2 Inch Memory Foam "  "
Seat Cushion Cover Nylon / Washable "  "
Charger 24v / 2amp / Lithium-ion / International "  "
Range (With Spare Battery) 24 Miles 38.62 Kilometers
Range (Using One Battery) 12 Miles 19.31 Kilometers
Turning Radius 23 Inches 58.42 Centimeter
Charging Time 1.5 Hours "  "
Airline Approved Yes Yes
Cruise Ship Approved Yes Yes
Charge Indicator Yes Yes
Variable Speed Settings Yes Yes
Top Speed 5 Mph 8.03 Kilometers
Horn Yes Yes
USB Charging Port Charge Your Phone & Other Built In Charging USB Port
Anti Tip Wheels Yes (Also Highly Adjustable) "  "
Controls Smooth Easy To Use Joystick "  "
Weather Resistant For Use Indoors & Outdoors "  "
Reverse Yes / Speed In Reverse Is 2 Mph Yes / Speed In Reverse Is 3.21 Km
Owners Manual Owners Manual PDF
Back Up Beeper Yes Can Easily Be Set To On Or Off
PDF Brochure Brochure PDF
FDA & FAA Approved Yes
Video Showing Outdoor Use View The Matrix In Action Outdoors Video
Video Showing Demonstrating Weight Demonstrating The Weight Video
Video Showing Turning Radius Experience The Turning Radius Video
Video Showing Water Resistance Water Resistance Video
Video Showing Features Folding And Features Video





                       Customer Survey





Limited In Home Service Warranty.

Your new Matrix Power Wheelchair comes with a full One Year In Home Service Warranty. As well as a 2nd year parts only warranty. Stop worrying about who would repair your new Matrix or how you would get your new Matrix to them. This warranty has you covered! We will send a trained professional repair technician directly to your home in the event your Matrix should need repair. We cover the entire United States. The map below indicates the location of our service affiliates.

Personalize your new Matrix wheelchair. Its Free & Easy, Simply select letter of font style below you like and enter it in the order form below along with the name or text you would like to use to personalize your new Matrix.

A



B


C   D

E   F

G   H

I   J



We include a Oxygen Tank Holder Free with the purchase of your new Matrix.



This Oxygen Tank Holder will hold most any size tank. The chart shown on the left indicates with a green arrow all tank sizes this tank holder will accommodate. Also included free are all items listed below.





Matrix Carbon Fiber Power Wheelchair
