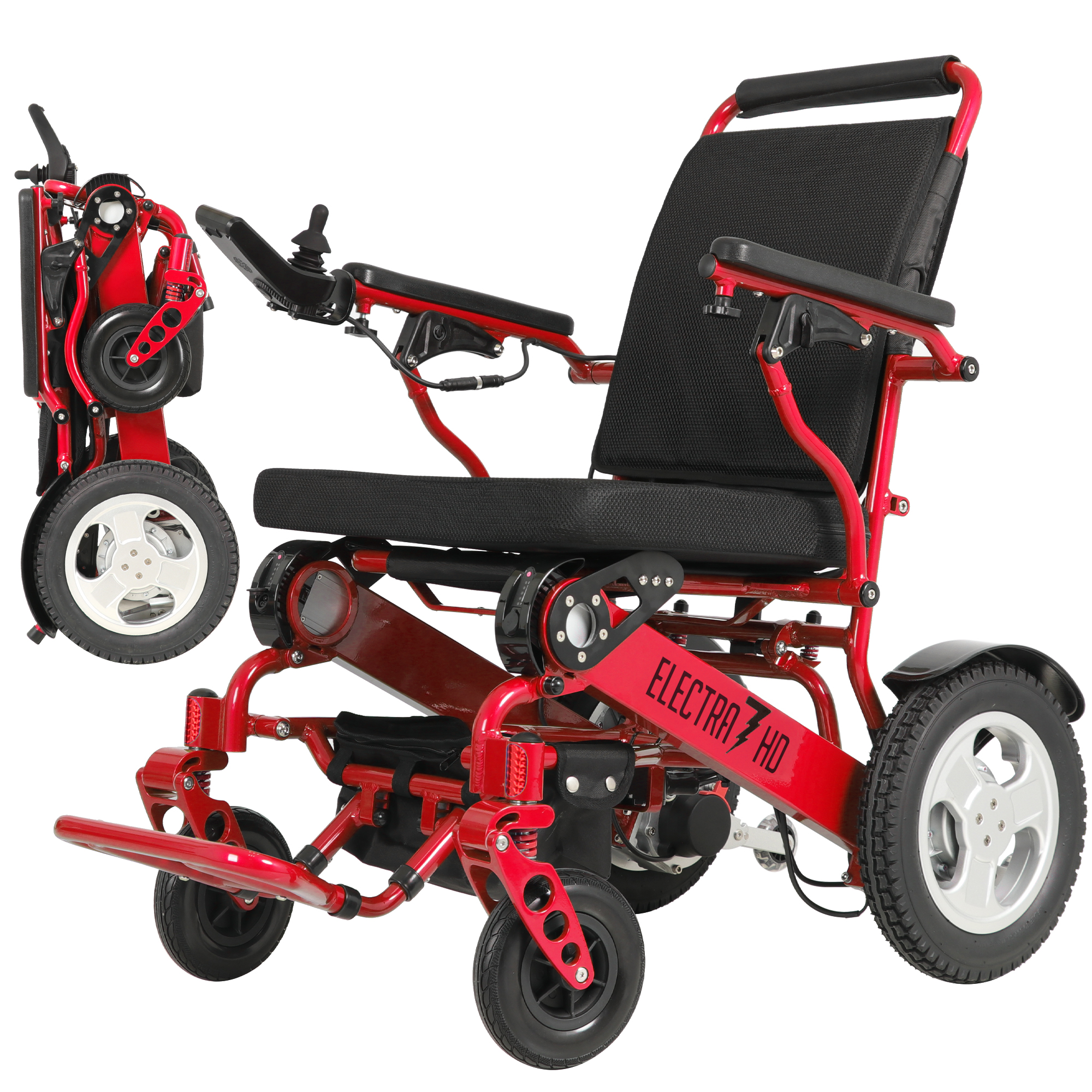

Electra 7 HD Wide Bariatric Foldable Wheelchair


Scroll To Bottom To View Price & Order Form.









The Electra 7 HD - Wide bariatric portable power wheelchair with a weight capacity of 400 lbs only weighing 50 lbs. The The Electra 7 HD - Wide has large 12 inch rear tires providing a smooth ride with lots of traction to allow you to travel through most any terrain. The The Electra 7 HD - Wide also has a 21 Inch Wide Seat providing plenty of room for those that need it. Lets not forget about the The Electra 7 HD "two" high powered 250 watt motors providing lots of power even when going up hills and inclines. The The Electra 7 HD - Wide also comes standard with two battery packs giving users that added range to go long distances without the concern of a dead battery.
The The Electra 7 HD - Wide is made of a high strength aircraft quality aluminum alloy that provides high strength yet is extremely light weight allowing the The Electra 7 HD - Wide to provide a weight capacity of 400 lbs while only weighing 50 lbs without the batteries.
Power, Strength and Portability.



Easily move the joystick from left to right and back again in seconds for right handed and left handed users.

Two 24 Volt Lithium Battery Packs provide lots of long distance power and the piece of mind you need. The Electra 7 also has two 250 watt motors provides you with all the power you could possibly need even on hills and inclines. Also the The Electra 7 HD - Wide has a freewheel or neutral option allowing it to be used as a manual chair so a caregivers can opted to push it manually.






BLACK




BLUE




PINK




RED





SILVER




YELLOW















Specification Metric Imperial

Model

Electra 7 HD Wide


Unfolded Size 863 * 609 * 914 mm (L*W*H) 34" * 24" * 36" (L*W*H)

Folded Size

584 * 330 * 787 mm (L*W*H)

23" * 13" * 31" (L*W*H)

Weight Capacity

180 kg

400 Lbs
Seat


Width 533mm 21" Inch
Depth 421mm 17" Inch
Height 457mm 18" Inch
Back height 400mm 15.75" Inch

Motor





Type

brushless DC motor



Rated Power

250 W*2pcs



Input Power

DC 24V



Brake System

intelligent electromagnetic brake



Battery





Type

lithium battery



Capacity

6 Ah*2pcs



Output Voltage

DC 24V



PCS

Standard with two



Controller





Type/Plug Type

assist type/European standard, 2 core



Input Power

AC 100-220 V, 50-60Hz

International (Use Anywhere In The World)

Output Voltage/Current

DC 24V, 2A



Front Wheel





Front Casters

(180 mm x 45 mm)

(7" 1.77")

Type

solid tire



Material

PU



PCS

2 PCS



Rear Wheel





Outer Diameter/Tire Width

(320 mm x 57 mm)

(12.5" 2.25")

Type

Solid tire



Material

PU



Number

2 PCS



Weight





Without Battery

23.5 kg

50 Pounds

With two Batteries

26.5kg

58 Pounds

Maximum Grade

12

14 Miles

Driving Range

24km/ two batteries

28 Miles

Max Speed

6 km/h

(3.75 mph)

Turning Radius

835 mm

32"

Highest Obstacle Capability

40 mm

(1.57")













Optional Head Rest


Rehab Quality Highly Adjustable Head Rest Allows The Head Rest To Be Adjusted Perfectly To Any Position Required.







One Full Year In Home Service Limited Warranty.

Your new wheelchair comes with a full One Year In Home Service Warranty. Stop worrying about who would repair your wheelchair or how you would get your wheelchair to them. This warranty has you covered! We will send a trained professional repair technician directly to your home in the event your wheelchair should need repair. We cover the entire United States. The map below indicates the location of our service affiliates.

Personalize your new wheelchair. Its Free & Easy, Simply select letter of font style below you like and enter it in the order form along with the name or text you would like to use to personalize your new wheelchair.

A



B


C   D

E   F

G   H

I   J

  We include a Oxygen Tank Holder Free with the purchase of this wheelchair. This Oxygen Tank Holder will hold most any size tank. The chart shown on the left indicates with a red arrow all tank sizes this tank holder will accommodate. Also included free are all items listed below.



  The Electra 7 HD Wide Power Wheelchair

The Electra 7 HD Wide Power Wheelchair
Qty: Price: $3287.

Please Select Color:
Silverado Silver
Inferno Red
Caribbean Blue
Jet Black
Perfectly Yellow
Rosey Pink  (Support Brest Cancer)


Extra Lithium Battery Pack:
No Thank You
Extra Lithium Battery Pack
Free

DX Halogen Head Light With Dual Pitch Horn:
No Thank You
DX Halogen Head Light With Dual Pitch Horn
Free

All Weather Protective Nylon Travel Cover With ID Window:
No Thank You.
All Weather Protective Nylon Travel Cover With ID Window
Free

Cup Holder:
No Thank You
Cup Holder
Free

Automotive Car Charger:
No Thank You
Automotive Car Charger
Free

International Household Charger:
No Thank You
International Household Charger
Free

Arm Bag:
No Thank You
Arm Bag
Free

Flat Free Tires:
No Thank You
Flat Free Tires
Free

Keep It New Touch Up Paint:
No Thank You.
Keep It New Touch Up Paint
Free

Flip Up Adjustable Arm Rest:
No Thank You.
Flip Up Adjustable Arm Rest
Free

Orange Safety Flag:
No Thank You
Orange Safety Flag
Free

Auto Open Umbrella With Mounting Bracket:
No Thank You
Auto Open Umbrella With Mounting Bracket
Free

Oxygen Tank Holder:
No Thank You
Oxygen Tank Holder
Free

Two Year Extended Limited Warranty:
No Thank You
Two Year Extended Limited Warranty
Free

Under Seat Basket:
No Thank You
Under Seat Basket
Free

Attendant Controller Bracket:
No Thank You.
Optional Attendant Controller $178.

Head Rest:
No Thank You.
Head Rest $138.

Select Shipping:
Standard Ground 3 To 5 Days
Free
Three Day Air $289.
Two Day Air $397.
Next Day Air $552.


(Optional) Personalize It Free By Entering Information Below, Otherwise Leave Blank.!

Enter Font Code: Enter The Name To Personalize It.:

Select Color Of Personalized Logo:










See Our Unconditional Guarantee

















Electra 7 HD Wide Folding Power Wheelchair
