4 Wheel Scooter



Fold Down Seat

Swivel Post Seat



High Performance 400 Lb Capacity 4 Wheel Scooter









Extreme Performance Combined With A Smooth Comfortable Ride Even On The Roughest Terrain That Will Take You Both Indoors And Outdoors (Most Any Outdoor Terrain, Steep Inclines, Mud, Snow. The High Performance 4 Wheel Scooter. (The Gladiator Will Take You There.)


Digital Speed Indicator
Left Turn Signal
Head Light
Right Turn Signal
Keyed Ignition
Wireless Remote Key Fob
Rabbit Button (For Top Speed Outdoors)
Head Light On / Off Button
Hazard Light On / Off Button
Left & Right Turn Signal Button
Horn Button
Hi/Lo Speed Button
Turtle Button (For Indoor Speed)
Forward/Reverse Throttle Leaver
Battery Charge Indicator


The Gladiator 4 Wheel Scooter equipped with a luxurious 18.5 Inch Wide Com-Fort-Fit seat with Memory Foam. The Com-Fort-Fit seat is standard, meaning you do not pay any more for this option. The robust flip up arm rest are heavy duty reinforced fully load bearing. This means a user can apply their entire body weight on the arm rest when getting in and out of the Gladiator.



This full size captain seat combined with a full suspension systems allows the Gladiator Off Road Electric Scooter to deliver its extremely comfortable ride and the stability to do easy stable transfers. The Gladiator Four Wheel Scooter comes standard with a fold down seat making it highly portable. Their is however a swivel seat option shown to the left that will then allow users to turn the seat side to side.



Portability & Performance


High Performance 4 Wheel Scooter Has Never Been Combined Into A Truly Portable Design Until Now. The Gladiator Is Both Highly Portable And High Performance All In One. The Gladiator is the perfect Off Road Electric Scooter scooter. With the heaviest part weighting only 62 lbs, it is the world's most Portable, Adjustable & Comfortable "FULL SIZE" High Performance scooter available. The Gladiator Four Wheel Scooter is only 24 Inches wide and has a very efficient high torque motor with a strong ability to climb even steep inclines, ramps and hills.



The Gladiator Portable 4 Wheel Scooter is equipped with contact less batteries that simply lift off and on the scooter without the need for plugs or wires making it even easier to transport.



High Performance Suspension



Fully adjustable ATV quality suspension front to back. All Four Springs & Shocks are easily adjusted to any users desired settings..



Full Automotive Quality Light Package



Research shows that mobility scooters with lights are far less likely to be involved in a accident than a mobility scooter without a light package.



Portability & Performance


The Gladiator 4 Wheel Scooter Was Built Tough With A Impact Resistant Front Bumper, Rack And Pinion Steering System, Heavy Duty Coil Spring Suspension (Front & Rear), Thick Heavy Duty Tires That Delivers A Smooth, Stable, Safe Ride Even at Top Speed Of 8.5 Miles A Hour. That's Right The Gladiator Four Wheel Scooter Flat Out Moves When Your Ready To.




  Locking Cargo Case



Keep all your personal item safe and sound under lock and key. With the standard lockable cargo case that is included with each and every Gladiator users now rest easy without the worry that their personal items could be stolen.


Personal USB Charging Port X 2



The Gladiator Four Wheel Scooter comes equipped with two USB Charging Ports. A 5v 1amp & a 5v 2.1amp.



Users can conveniently charge their Cell Phones, Tablets & other devices while driving the Gladiator.

  Foldable Cup Holder



Drink holder pre-installed on each and every Gladiator. (Folds Up When Not In Use.)


Anti Tip Wheels



The Gladiator Portable 4 Wheel Scooter is equipped with rear anti tip wheels proving a second level of security and stability against tipping. Users love knowing they have that piece of mind that if the Gladiator Four Wheel Scooter were to ever want to tip backwards on them that the Anti-Tip wheels are their to prevent them from tipping backwards.



  EZ Access Charging Port



Now it is easier then ever to charge your scooter. No need to reach into a difficult position to plug in your charger. The Gladiators Portable 4 Wheel Scooter charging port is in a super easy location to plug in the charger.


Fold Down Captain Seat



The engineers did a amazing job designing this full size captains seat with adjustable head rest.



The captains seat folds down into a compact space of only 4"



Made of a automotive quality breathable fo-leather material with memory foam the captains seat is extremely comfortable and easy to set in for several hours at a time.






Safety Features


When choosing a 4 Wheel Scooter safety should be a strong consideration. That is why the engineers that designed the Gladiator equipped it with a Full Light Package. Including right and left Turn Signals, Rear Tail Lights, Front Headlight, Front Running Lights and even Reveres Tail Lights.





  Optional Craftsmen Carrier



Although the Gladiator Four Wheel Scooter comes apart easily and it is highly portable some users prefer to transport their Gladiator using the Craftsmen Carrier.



In the event you order the Craftsmen Carrier at the same time you order your Gladiator you can benefit by getting the Craftsmen at 1/2 price. (Click Here) to learn more about the Craftsmen Carrier.









Easy  Snap In & Snap Out Battery Packs



Battery Packs easily lift up and can be taken off the Gladiator in just seconds.



Just as easy as the battery packs can be removed they can also be placed back in place in just seconds.

Large 13" knobby tires with polished aluminum mag wheels provide the Gladiator Four Wheel Scooter with excellent traction and a smooth ride.
  Optional Swivel Seat


The Gladiator 4 Wheel Scooter comes standard with a fold down seat that fold don into the floor board of the front section of the Gladiator.



Although most people prefer the standard fold down seat it does not swivel their fore their is a optional swivel seat available that then allows the seat to swivel. The only down side to the swivel seat is it has to be removed or lifted off the base of the scooter creating a additional piece users need to manage when you take the Gladiator apart.

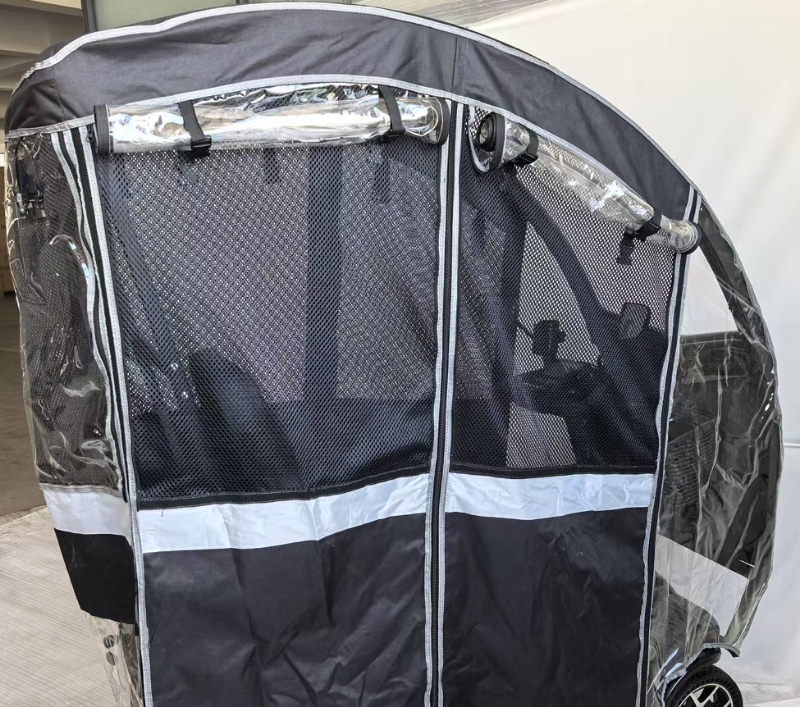

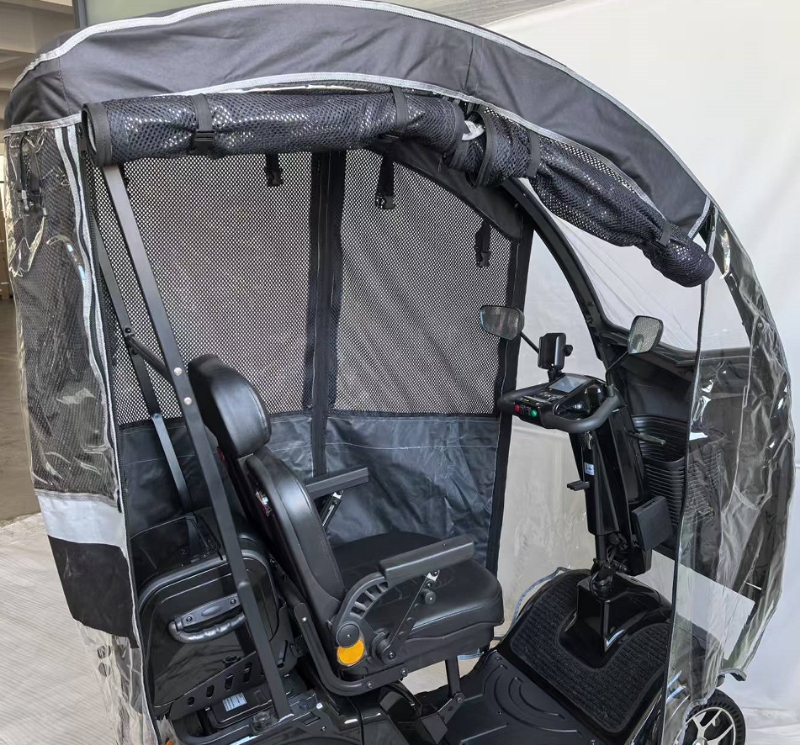

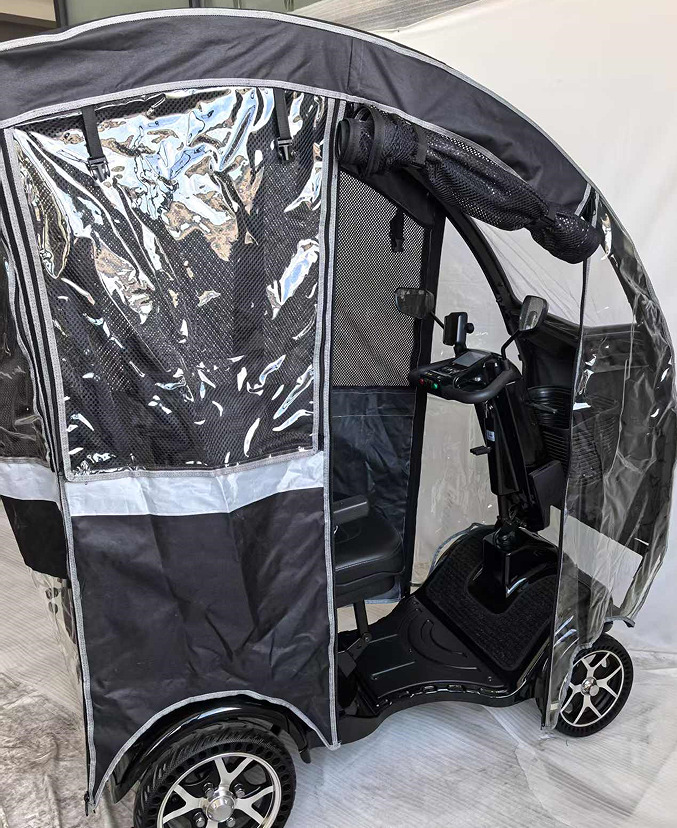

OPTIONAL SCOOTER COACH

The Patented Locking Scooter Coach is now available for the Gladiator 4 Wheel Scooter. The Scooter Coach is a water proof trailer that allows you ten times the capacity to bring things along with you that you would normally leave behind as ell as a piece of mind knowing your items are under lock and key.



The Scooter Coach not only can serve a safe locking cargo, it can also serve as a ice cooler to keep food and drinks cold as it is completely water tight and water proof with a weight capacity of 500 pounds.







The Off Board/Independent Charging Adaptor (Included Free) Allows You To Charge The Batteries Independently Of The Gladiator. Meaning For Example You Could Leave Your Gladiator Four Wheel Scooter In Your Vehicle And Simply Take Just The Batteries Inside And Charge Them Without Needing Them Attached To The Scooter To Do So.




  Transporting the Gladiator With A Vehicle Is Easy And Simple With Tow Choices To Choose Fro. Users Can Separate The Gladiator Into 4 Sections Allowing You To Place  It In Most Any Vehicle. Or Use The Craftsmen Carrier To Carry Your Gladiator On The Back Of Any Vehicle That Has A Class Three Hitch.

The Captain Seat With Memory Foam And Fully Adjustable As Well As Removable Head Rest Is Equipped With Fully Load Bearing Arm Rest.
  The Gladiator Has An Amazing Five Inch Ground Clearance, Meaning Users Sporting  The Gladiator Are Not Concerned About Ground Clearance No Matter Where  They Are Or Where They Are Going.

The Gladiator  Is A Long Distance / Long Range Highly Stable 4 Wheel Mobility Scooter With Full Front And Rear Automotive Quality Suspension That Can Even Be Adjusted To Individuals Desired Settings Making The Gladiator The Smoothest Riding Mobility Scooter Ever Made.
......... With The Suspension And Memory Foam Captain Seat Even The Most Sensitive individual's Can Go Back To Enjoying The Outdoors..
Take Your Gladiator To The Park, Nature Trails, Open Fields. The Gladiator Is Ready To Take You Anywhere You Want Any Time You Want. 9
The Gladiator Is Not Street Legal However A Great Number Of People Use It As Their Transportation To Go Grocery Shopping, Go To Doctor Appointments, Visit Friend & Family By Driving It Where Pedestrians Are Allowed To Walk Or Ride Their Bicycles.
The Craftsmen Carrier Is Offered To You At Half Price At The Time Of Purchasing Your Gladiator For Those That Would Prefer Not To Separate The Gladiator Into For Separate Pieces And Allows The Gladiator To Be Transported By Any Vehicle With  A Class Three Hitch.


Specification Metric Imperial

Model

Gladiator

Off Road Electric Scooter

Fully Assembled Un-Folded Size

1346 * 635 * 1168 mm (L*W*H)

53" * 25.5" * 46" (L*W*H)
Length With Front & Rear Basket 60"
Fully Assembled Folded Size 1346 * 635 * 660 mm (L*W*H) 53" * 25.5" * 26" (L*W*H)
Length With Front & Rear Basket 60"
Front Section 1016 * 614* 609 mm (L*W*H) 40" x 24.5 x 24" (L*W*H)
Rear Section 533 * 647 * 520 mm (L*W*H) 21" x 25.5" x 20.5" (L*W*H)

If Ordered Optional Swivel Seat (Folded) 457 * 584 * 101 mm (L*W*H) 18" x 23" x 4" (L*W*H)

Weight Capacity

181 kg

400 Lbs
Seat (Memory Foam)


Width 469 mm 18.5" Inch
Depth 431 mm 17" Inch
Height (From Ground) 609 mm 24" Inch
Height (From Floor Board) 431 mm 17" Inch
Back Height (From Seat) 424 mm 16.75" Inch

Motor





Type

BrushlesDMotor



Rated Power

750 W



Input Power

DC 24V



Brake System

Intelligent Electromagnetic Brake



Battery





Type

Lead Acid X 2



Capacity

12v x2 = 24v 26 Ah*2pcs



Output Voltage

DC 24V



PCS

Standard



Controller





Type/Plug Type

Assist Type/USA & European Standard



Input Power

AC 100-220 V, 70-120Hz

International (Use Anywhere In The World)

Output Voltage/Current

DC 24V5A



Front Wheel & Tire





Tire Height & Width

(2028 mm x 83 mm)

(9" 3.3")

Type

Pneumatic Tire

 Mag Aluminum

Material

PU



PCS

PCS



Rear Wheel & Tire





Tire Height & Width

(330 mm x 79 mm)

(13" 3.1")

Type

Pneumatic Tire



Material

PU



Number

PCS



Weight





Total Weight Without Battery

78 kg

173 Pounds

Total Weight With Battery

93 kg

207 Pounds
Front Section 35 kg 79 Pounds
Rear Section With Folding Seat 28 kg 62 Pounds
Locking Cargo Case: 4 kg 9 Pounds
Battery Pack: 17 lbs each x 2 = 34 lbs: 15 kg 34 Pounds
Optional Swivel Seat (Below)
Rear Section Without Folding Seat 20 kg 46 Pounds
Optional Removable Swivel Seat 12 kg 27 Pounds



Maximum Grade

28%



Driving Range

36km

22 Miles

Max Speed

12.8 km/h

(8 mph)

Turning Radius

1879 mm

74"

Highest Obstacle/Ground Clearance

152 mm

(6")
Owners Manual Gladiator User Manual









See More Videos Below

Smart Phone/Cell Phone Holder



The robust cell phone holder keeps your phone secure even when driving on bumpy rough terrain.



Many people are using GPS to help direct them to their location. This holder is perfect for those wishing to utilize a GPS program to provide guidance to their destination.


  Long distance high performance four wheel mobility scooter that many users use as their main mode of traveling.



No drivers license no worries the Gladiator travels long distance on a single charge at a speed of up to 9.5 mph and their is no drivers license required.



Users may only drive on side walk and trail like a pedestrian or bicycle would travel.

Large Wide Tires with Fully adjustable suspension provide a smooth ride and allow users to adjust the suspension according to their liking.






Optional Lithium-ion Battery Packs



The Gladiator 4 Wheel Scooter comes standard with lead acid batteries however their is a option to upgrade to lithium-ion batteries.



Lithium-ion batteries have several advantages over lead acid. For example



1) Lithium-ion batteries can be fully charged in two hours verses 8 hours for lead acid.



2) Lithium-ion batteries last 10 times longer before going bad and requiring replacement.



3) Lithium-ion batteries provide full power to the Gladiator during the full output of the batteries where as lead batteries can cause a scooter to become sluggish during the final 30% of use between charges with lead acid batteries.



4) Many people like that the Lithium-ion batteries a far lighter then lead acid batteries.


  The Gladiator 4 Wheel Scooter truly shines above all others when on rough terrain.



Equipped with automotive quality suspension that allows users to adjust firmness of both the front and back. The Gladiators Four Wheel Scooter is in a class of its own and handles rough terrain with ez.

The Foldable Design Of The The Gladiator Portable 4 Wheel Scooter Gives You A Portable Vehicle That Will Take You Anywhere You Want To Go Regardless Of The Weather Or The Terrain. Even Steep Hills And Inclines Are No Problem For The High Performance Gladiator. With Full Suspension, Large Tires And 18.5" Wide Memory Foam Seat With 19" Between The Arms The High Performance Gladiator Delivers An Amazingly Smooth Ride.




Click Any Image To Enlarge


  Length From Locking Cargo To Front Basket: 60"
Length Without Locking Cargo-Front Basket: 53"
Overall Width 25.5"
Height With Headrest: 46"
Front Section 40" x 24.5 x 24"
Back Section: 21" x 25.5" x 20.5"
Seat: 18" x 23" x 4"
Floor to seat height: 25.5"
Ground Clearance: 6"






Wireless Key Fob Remote



The Gladiator 4 Wheel Scooter comes standard with a keychain wireless remote start.



This wireless transmitter allows users to both turn on & off the Gladiator with no need for the keyed  ignition when using the wireless remote.

Keep It New Touch Up Paint



The Gladiator 4 Wheel Scooter Has A Durable High Quality Automotive Finish That Is Extremely Resistant To Scratches & Chips, However In The Event You Would Like The Ability To Touch Up Scratches If They Should Occur Over The Years We Have Made Touch Up Paint Available Free With Every Order.







Gladiator Portable 4 Wheel Scooter





Two Full Year In Home Service Limited Warranty.

Your new Gladiator 4 Wheel Scooter comes with a full One Year In Home Service Warranty. 2nd year is parts only. Stop worrying about who would repair your scooter or how you would get your scooter to them. This warranty has you covered! We will send a trained professional repair technician directly to your home in the event your scooter should need repair. We cover the entire United States. The map below indicates the location of our service affiliates.

Personalize your new Gladiator. Its Free & Easy, Simply select letter of font style below you like and enter it in the order form along with the name or text you would like to use to personalize your new Four Wheel Scooter.

A



B


C   D

E   F

G   H

I   J

  We include a Oxygen Tank Holder Free with the purchase of this scooter. This Oxygen Tank Holder will hold most any size tank. The chart shown on the left indicates with a red arrow all tank sizes this tank holder will accommodate. Also included free are all items listed below.

Gladiator Portable 4 Wheel Scooter

Gladiator Portable 4 Wheel Scooter
Qty: Price: $2987.00


Please Select Color:
Silverado Silver
Caribbean Blue
Inferno Red
Jet
Black


Select Battery Option:
Standard High Performance Lead Acid
Upgrade To Lithium-ion Battery Packs
$489.


Cup Holder:
No Thank You
Cup Holder
Free


Cane Holder:
No Thank You
Cane Holder
Free


Arm Bag:
No Thank You
Arm Bag
Free


Automotive Car Charger:
No Thank You
Automotive Car Charger
Free


Household Charger:
No Thank You
Household Charger
Free


Locking Cargo Case:
No Thank You
Locking Cargo Case
Free


Orange Safety Flag:
No Thank You
Orange Safety Flag
Free


Collapsible Umbrella With Mounting Bracket:
No Thank You
Collapsible Umbrella With Mounting Bracket
Free


Oxygen Tank Holder:
No Thank You
Oxygen Tank Holder
Free


Front Basket:
No Thank You.
Front Basket
Free


Heavy Duty Nylon Cover:
No Thank You
Heavy Duty Nylon Cover
Free


2 Rear View Mirrors:
No Thank You
2 Rear View Mirrors
Free


Scooter Coach:
No Thank You.
Patented Scooter Coach
$287.


Cell Phone Holder:
No Thank You
Cell Phone Holder
Free


Off Board Independent Charger:
No Thank You
Off Board Independent Charger
Free


Keep It New Touch Up Paint:
No Thank You.
Keep It New Touch Up Paint
Free

Independent Charging Adaptor:
No Thank You
Independent Charging Adaptor
Free

Optional Swivel Captain Seat With Head Rest:
Standard Fold Down Captain Seat With Head Rest No Charge
Optional Swivel Captain Seat With Head Rest
$389.


Craftsmen Carrier XL:
No Thank You
Receive The Craftsmen Carrier
50% Off $494.5


Extended 3rd Year Warranty Parts Only:
No Thank You
Extended 3rd Year Warranty Parts Only
$270.


Select Shipping:
Standard Ground 3 To 5 Days
Free
Express Freight Not Available


(Optional) Personalize It By Entering Information Below

.....Otherwise Leave Blank.!

Enter Font Code Select From Above:



Enter The Name To Personalize It.:

Select Color Of Personalized Logo:

















See Our Unconditional Guarantee
