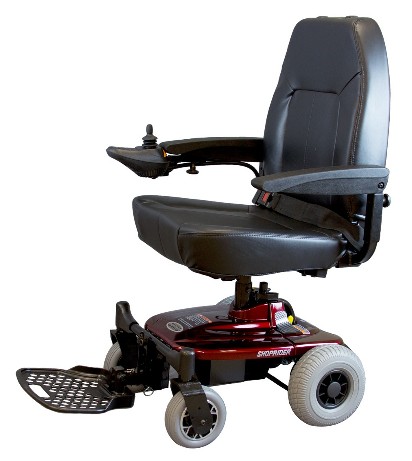

ShopRider Jimmie Portable Power Wheelchair





Shoprider® introduces another first in portable powered mobility with its extremely lightweight, portable, user-friendly Jimmie™ power chair. The Shoprider® Jimmie™ features the latest in wireless take-apart technology, electronics and high efficiency in-line motors. All these advanced features plus many more adjustability features are stylishly packaged into a comfortable power chair designed to move with your active lifestyle today. The Jimmie™ is Travel-Friendly too with One-Touch effortless disassembly and transportability.

• Rear wheel drive
• Extra light, 106.1 lbs only (incl. Batteries)
• Easily assembles with connectorless technology

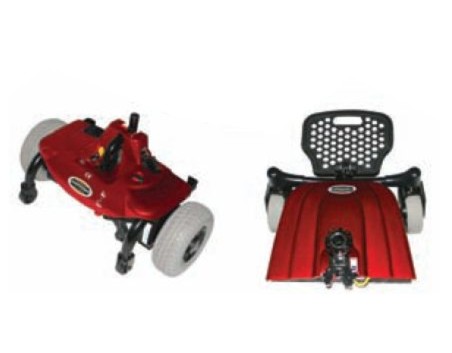

• Easy to dismantle in to three major parts:
• Seat w/Controller: 24.7 lbs
• Front chassis w/Batteries: 35.4 lbs
• Rear Chassis w/Drive train: 29.9 lbs
• Adjustable seat height, padded full function, armrest (width, height, angle adjustable)
• Removable fold up footrest with full function (height, length, angle adjustable)
• Maximum and Minimum seat height is measured from floor to top of seat cushion
• Controller type subject to change without notice




DOWNLOADS



Owners Manual



Cut Sheet



OVERALL DIMENSIONS
Base Length 35"
Base Width 22.5"
Height 34.5"
Ground Clearance 2"
WEIGHTS
User Weight Capacity 250 lbs
Total Weight (w/ Bat's & Seat) 106.1 lbs
Weight of Heaviest Part n/a
Battery Pack Weight 19.3 lbs
TIRES/ CASTORS
Front castor Assy 6"
Rear castor Assy 9"
BATTERIES
BAT-U1 Module Capacity 12v12Ah x2
CHARGER
Charger-Off Board 2 amp
MOTOR POWER OUTPUT
Horsepower .45 x2**
DRIVING SPECS
Turning Radius 15.5"
Range up to 10 miles
Maximum Speed 3.75 mph
Maximum Climbing Angle 10% / 6°

All specifications are subject to change without notice.
Shoprider Mobility Products, Inc® reserves the rights of any changes to the unit:
1) Include the anti-tip wheel or rear castor.
2) Driver Weight may exceed weight of the unit; speed must be reduced when turning.
3) The actual driving range varies with the factors shown below:
a) The weight of user.
b) Ground surface and terrain.
c) Battery capacity and conditions.
d) Type of charger.
e) Ambient Temperature.
f) The way and/or method of driving.
g) If the battery and mechanical moving parts are fully broken in.





One Full Year In Home Service Limited Warranty.

Your new wheelchair comes with a full One Year In Home Service Warranty. Stop worrying about who would repair your wheelchair or how you would get your wheelchair to them. This warranty has you covered! We will send a trained professional repair technician directly to your home in the event your wheelchair should need repair. We cover the entire United States. The map below indicates the location of our service affiliates.

Personalize your new wheelchair. Its Free & Easy, Simply select letter of font style below you like and enter it in the order form along with the name or text you would like to use to personalize your new wheelchair.

A



B


C   D

E   F

G   H

I   J

  We include a Oxygen Tank Holder Free with the purchase of this wheelchair. This Oxygen Tank Holder will hold most any size tank. The chart shown on the left indicates with a red arrow all tank sizes this tank holder will accommodate. Also included free are all items listed below.





Shoprider Jimmie - Power Wheelchair - FREE SHIPPING





Shoprider Jimmie Power Wheelchair


Qty: Price: $1399.



Base Scooter:
UL8WPBS Jimmie Burgundy Red w/ Captain Seat


Battery:
12v12Ah Battery -
FREE


Seats (W"xD"xH"):
SV18171/219G 18in Grey Vinyl Deluxe Captain Seat - INCLUDED


Foot Rest:
2329-00100-11 Full Function Foot Plate - INCLUDED
ELRUL-R(K) Elevating Leg rest Kit in Red - Add $335
ELRUL-B(K) Elevating Leg Rest Kit in Black - Add $335


Joystick Mount:
Right Mount
Left Mount


Charger:
109201-88800-A3 2 amp Charger Off-Board - INCLUDED


Car Charger:
No Thank You
Car Charger -
FREE


International Charger:
No Thank You
International Charger -
FREE


Armrest Bag:
No Thank You
Armrest Bag -
FREE


Collapsible Umbrella With Mounting Bracket:
No Thank You.
Collapsible Umbrella With Bracket
FREE

Oxygen Tank Holder:
No Thank You.
Oxygen Tank Holder
FREE

Cup Holder:
No Thank You.
Cup Holder
FREE

Cane Holder:
No Thank You
Cane Holder -
FREE


Safety Flag:
No Thank You
Safety Flag -
FREE


All Weather Nylon Cover:
No Thank You
All Weather Nylon Cover -
FREE


Select Shipping:
Standard Ground 3 to 5 days -
FREE
Express Shipping - Not Available


(Optional) Personalize It Free By Entering Information Below, Otherwise Leave Blank.!

Enter Font Code: Enter The Name To Personalize It.:

Select Color Of Personalized Logo:






See Our Unconditional Guarantee
