EasyTrack Portable Tracking System









TRACK LIFT IN A KIT!






1

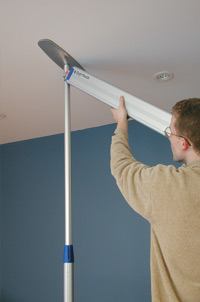

CLICK the pieces together and slide the post up to the ceiling
  2
TWIST the post to tighten it into place.
  3
LOCK the rail onto one post









4
EXTEND and lock the rail onto the other post.





  5
FINISH by placing the protective strips and end caps on the posts.





  6
NO TOOLS required
NO CONTRACTORS required
FITS MOST STANDARD
CEILINGS in your home



2 POST EASYTRACK INCLUDES:



Extendable rail with trolley, 2 standard posts, 2 top plates, 2 foot plates, rail caps and finishing strips   Non-slip neoprene surface on both the foot plate and top plate ensure posts stay in place.


EASYTRACK 3 POST SYSTEM





Need more room to transfer? Try our unique 3 post system. Pivoting rail moves from side to side.

Attach the 3 post Easytrack System to a wall instead of a post for more flexibility.



EASYTRACK 4 POST SYSTEM




Get full room coverage with our 4 post system. The center rail moves back and forth allowing you to cover the entire area between the posts.



SPECIFICATIONS
Product Code 9220010 9330010 9440030
Weight Capacity 200 Kg (440 lbs.) 200 Kg (400 lbs.) 200 Kg (440lbs.)
Ceiling height range 2130-2745 mm
(84" - 108")
2130-2745 mm
(84" - 108")
2130-2745 mm
(84" - 108")
Rail length range 1900-3160 mm
(74" - 124.5")
1900-3160 mm
(74" - 124.5")
3000 mm
(118")
Rail weight (each) 12 Kg (26.4 lbs.) 12 Kg (26.4 lbs.) 9 Kg (20 lbs.)
Post weight (each) 4 Kg (8.8 lbs.) 4 Kg (8.8 lbs.) 4 Kg (8.8 lbs.)
Total product weight 20 Kg (44 lbs.) 42.5 Kg
(93.5 lbs.)
57 Kg (125 lbs.)
Box dimensions 80 x 345 x 1850mm
(32" x 13.5" x 73") (1 box)
80 x 345 x 1850mm
(32" x 13.5" x 73") (2 box)
80 x 345 x 1850mm
(32" x 13.5" x 73") (3 box)



DOWNLOADS

Specifications







BHM Medical EasyTrack Portable Tracking System




The Portable Voyager is a great solution to many problems.
1st
You may have several track throughout the home and simply move the lift from track to track.
2nd When traveling this 14 pound device used with a portable track system is a pretty attractive solution to the alternatives.



Portable Voyager Ceiling Lift


Qty: Price: $3187.


The Easy Track 2 post
System.


The simplest portable track system ever created. Take
with you on your next flight or trip. Can be taken on a plain and setup in a hotel room without concern of causing any damage.



Easy Track Two Post System


Qty: Price: $1811.



The Easy Track 3 Post
System.


The Three Post Easy Track portable track system offers
a range of direction of the
track that the lift rides on.
By sliding adjusting between two of the three post you
can achieve the angle you desire.



Easy Track Three Post System $3562.


Qty: Price: $3562.


The Easy Track 4 post
System.


The Four Post Easy Track portable track system offers
the greatest range of direction that can be offered with a portable track system. By sliding adjusting between two of the four post you can achieve the position you desire.
4 Post Easy Track Manual


Easy Track Four Post System


Qty: Price: $4395.


The 3 Post With Bath Bracket.

The Three Post with bath bracket is a flexible solution for getting someone in and out of the tub.
3 Post With Bath Bracket Manual


Easy Track Three Post With bath bracket


Qty: Price: $3795.


The 2 Post With Bath Bracket.

The Two Post With Bath Bracket is a flexible solution for getting someone in and out of the tub.
2 Post & Bath Bracket Manual


Easy Track Two Post With Bath Bracket


Qty: Price: $1995.


One Post With Wall
Bracket.


The One Post With Wall
Bracket allows one end of
the rail to mount to a wall
and the other side to be supported by a post.


Easy Track One Post And Wall Bracket


Qty: Price: $1895.


Two Post With Wall
Bracket.


The Two post with wall bracket allows one end of the rail to mount to a wall and the other side to be supported by a two post
giving you a full range of adjustment between them.


Easy Track Two Post And Wall Bracket


Qty: Price: $2995.


Two Two Rail Three With Wall Bracket System.

The Two post with wall
bracket allows one end of
the rail to mount to a wall
and the other side to be supported by a two post
giving you a full range of adjustment between them.


Easy Track Two Rail Three Wall Bracket


Qty: Price: $3495.


Three Rail Four Wall Bracket System.

The Three Rail Four Wall System gives you a full range of adjustment for the lift rail. This system can be used with
a X - Y Trolley System that would offer the user complete unlimited range of motion
within this space.


Easy Track Three Rail Four Wall Bracket


Qty: Price: $4495.


Single Rail Two Wall Bracket System.

The Single Rail Two Wall System supports a single rail from one wall to the next. You do have the flexibility of running the rail on a angle up to 30 degrees.


Easy Track Single Rail Two Wall Bracket


Qty: Price: $2589.
