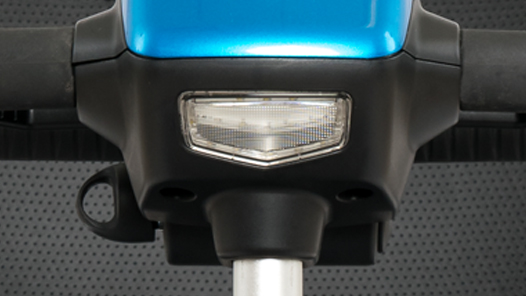

Front LED Headlight
Offers optimal pathway
illumination.

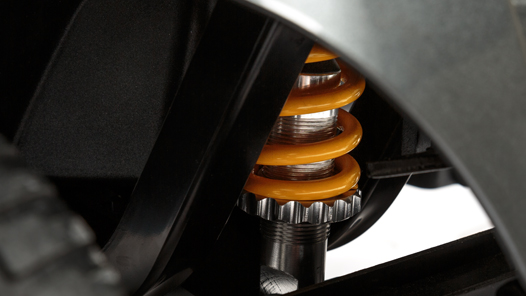

CTS Suspension
Ensures a smooth and comfortable
ride over varied terrain.

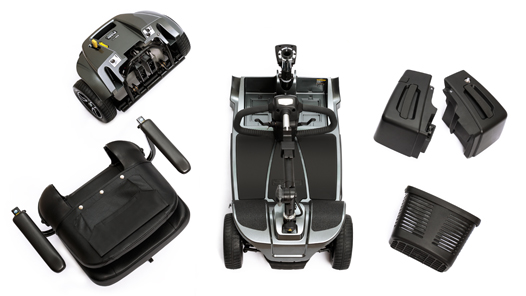

Feather Touch Disassembly
Permits simple frame separation
with only one hand.

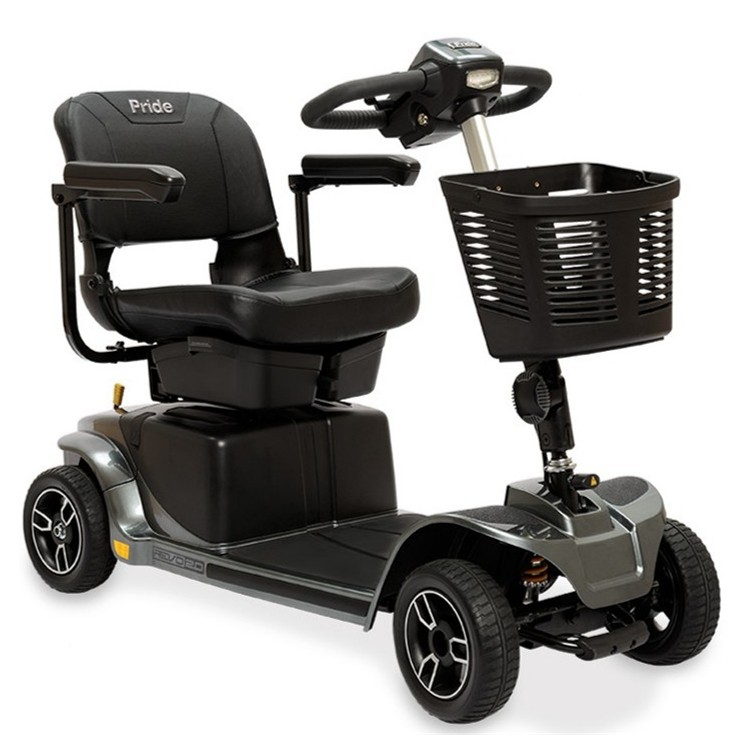

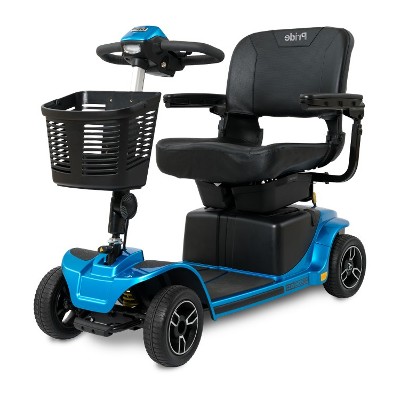

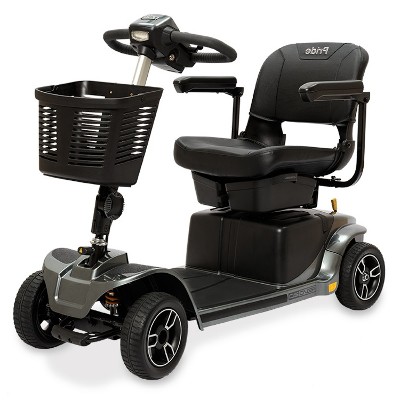

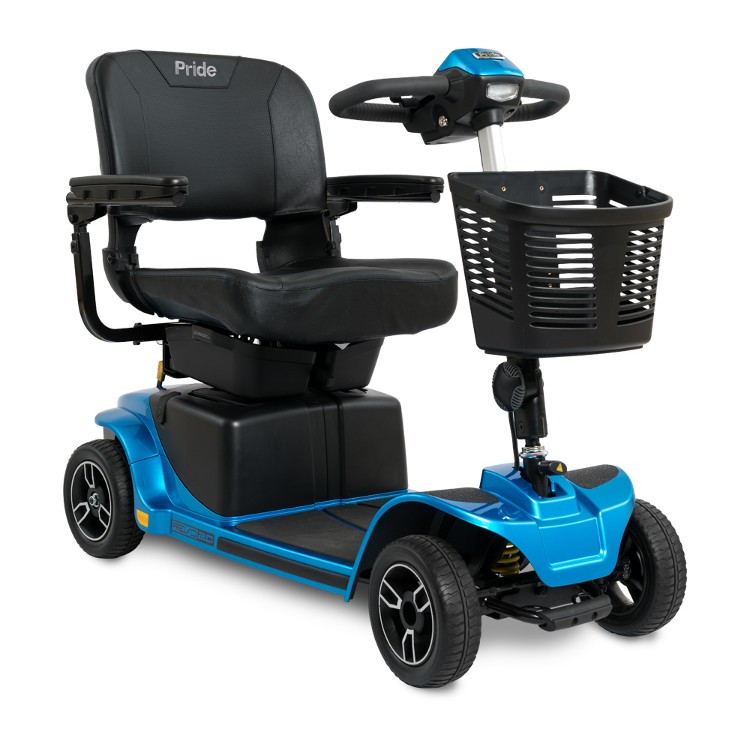

Revo™ 2.0 4-Wheel Specification
Model |
Revo 2.0 4-Wheel |
Weight Capacity |
375 lbs. |
Front Tire |
3"x9" |
Rear Tires |
3"x9" |
Maximum Speed |
Up to 5 mph |
Ground Clearance |
1.25" at transaxle |
Turning Radius |
52" |
Length/Width |
47"/21" |
Seating |
20"w/18"d |
Seat-to-Ground |
21-23.5" |
Weight (w/o Batteries)3 |
131 lbs. |
Seat-to-Deck |
18" |
Battery Weight4 |
25 lbs. each |
Battery Requirements |
(2) U1 Batteries |
Per Charge Range1,2
(Max.) |
Up to 13 miles |
Battery Charger |
3.5 amp |
Suspension |
Front and rear |
Weight of Heaviest Piece3,5 |
57 lbs. (front section) |
Warranty |
Lifetime limited on frame;
2-Year limited on Electronics;
2-Year limited on Drivetrain |
Warranty |
Warranty_Insert.pdf |
Bruchure |
Revo2_SS_12-22-17_HR.PDF |
Your Pride product has undergone thorough product testing to
ensure safety, durability and performance.
Our power chairs, scooters and lift chairs are Food & Drug
Administration (FDA) approved medical products that require
specific testing prior to release for public use.
The testing requirements accepted by the FDA were developed by
the American National Standards Institute/Rehabilitation
Engineering & Assistive Technology Society of North America
(ANSI/RESNA).
The tests are conducted in accordance with the requirements of
the ANSI/RESNA Test Standards and complement an additional
stringent testing regiment developed by Pride's Research &
Development Team.
All products have passed, and in many cases, exceeded test
criteria set forth, assuring the high level of quality
synonymous with Pride.
