Front LED Headlight
Offers optimal pathway
illumination.
CTS Suspension
Ensures a smooth and comfortable
ride over varied terrain.

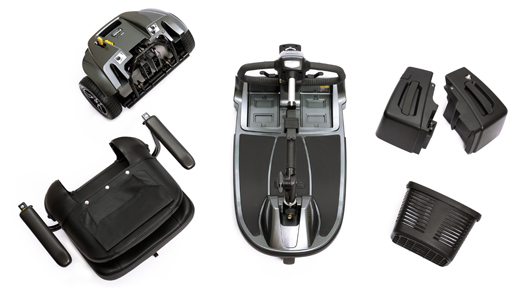

Feather Touch Disassembly
Permits simple frame separation
with only one hand.
|

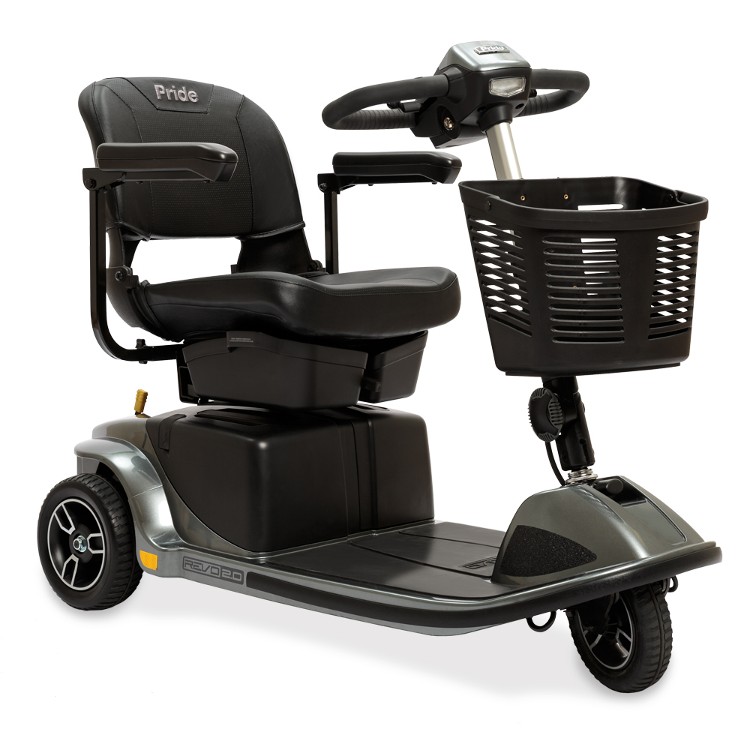

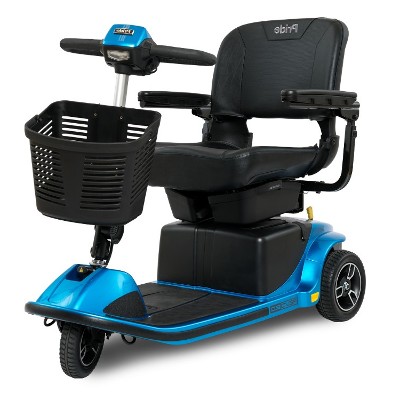

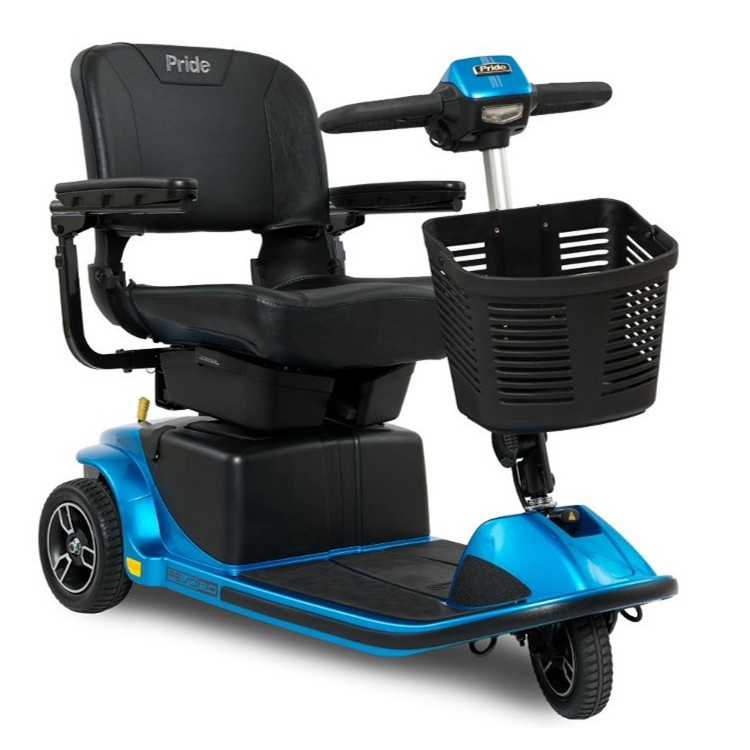

Model |
Revo 2.0 3-Wheel |
|
Weight Capacity |
375 lbs. |
|
Front Tire |
3"x8" |
|
Rear Tires |
3"x9" |
|
Maximum Speed |
Up to 5 mph |
|
Ground Clearance |
1.25" at transaxle |
|
Turning Radius |
40" |
|
Length/Width |
46" | 21" |
|
Seating |
20"wide X 18"deep |
|
Seat To Ground |
21 - 23.5" |
|
Weight (w/o Batteries) |
120 lbs. |
|
Seat-to-Deck |
18" |
|
Battery Weight4 |
25 lbs. each |
|
Battery Requirements |
(2) U1 Batteries |
|
Range |
Up to 12 miles |
|
Battery Charger |
24 v | 3.5 amp |
|
Suspension |
Front and rear |
|
Weight of Heaviest Piece |
48 lbs. (rear section) |
|
Warranty |
Lifetime limited on frame;
2-Year limited on Electronics;
2-Year limited on Drivetrain |
|
Warranty Detail |
Warranty_insert.pdf |
|
Brochure |
Revo2_SS_12-22-17_HR.PDF |
 |
The Craftsmen (2) In (1)
550 XL Carrier's loading ramp is 33" wide by 64" long
providing a gradual slope for easy loading of your
scooter or wheelchair. A solid position handle on the
ramp allows for easy folding and unfolding and tie
down straps are included with rubber coated hooks
which can be hooked onto any of the 10 tie down holes
featured on the 4 1/4" tall ramp sides. The ramp is
easily attached even after the carrier has been
attached to the vehicle making the installation very
easy. The rear of the carrier has 2 reflectors for
greater visibility at night. |
| |
|
Testing Standards
Pride FDA Class II Medical Devices are designed to aid
individuals with mobility impairments
Meeting and Exceeding High Standards for your Peace of Mind.
Your Pride product has undergone thorough product testing to
ensure safety, durability and performance.
Our power chairs, scooters and lift chairs are Food & Drug
Administration (FDA) approved medical products that require
specific testing prior to release for public use.
The testing requirements accepted by the FDA were developed
by the American National Standards Institute/Rehabilitation
Engineering & Assistive Technology Society of North America
(ANSI/RESNA).
The tests are conducted in accordance with the requirements
of the ANSI/RESNA Test Standards and complement an
additional stringent testing regiment developed by Pride's
Research & Development Team.
All products have passed, and in many cases, exceeded test
criteria set forth, assuring the high level of quality
synonymous with Pride.
Some of the items our testing criteria include are:
Product Stability & Brakes Effectiveness Tests
Fatigue & Impact Strength Verification Tests
Overall Product Performance Verification
Dimensional Requirement Compliance
Product Durability & Reliability Testing
Material Protective Coating Testing Verification
Misuse and Abuse Testing
Ergonomic Verification
Environmental Testing for Adverse Weather Operation
Conditions
Electronic Systems Performance and Durability
Chemical and Bio-Contamination Analysis Testing for Toxicity
Verification
Cal 117 Flammability Test Compliance for Seating Foam and
Fabric Components
UL94VO Flammability Testing for Compliance of Plastic
Components
Electromagnetic Compatibility (EMC)
