VH-LG Mini RO Lawn and Garden Mini Carrier with Ramp Option

PRODUCT INFORMATION

Features

What's Included

Specifications

• Fits any class III or IV hitch
• Powder coat finish
• The distance between the rails and bumper are adjustable.
• Reversible Rails
• 60 in. center folding ramps
• Ramps easily fold into an upright position with spring tension
• Ramp folds up when not in use

• Anti-tilt lock bracket

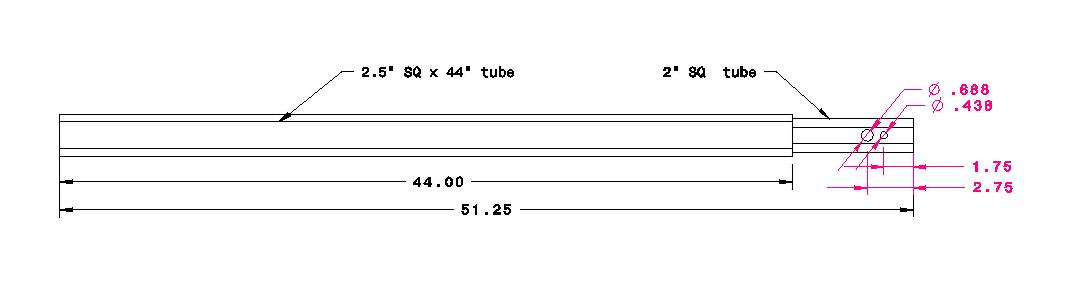

• 44 in. main tube
• 2 Wheel stops
• 2 Carrier rails
• 2 Center folding ramps
• 2 spring brackets
• 2 Hinge brackets
• 2 Hinge pins
• 4 Springs

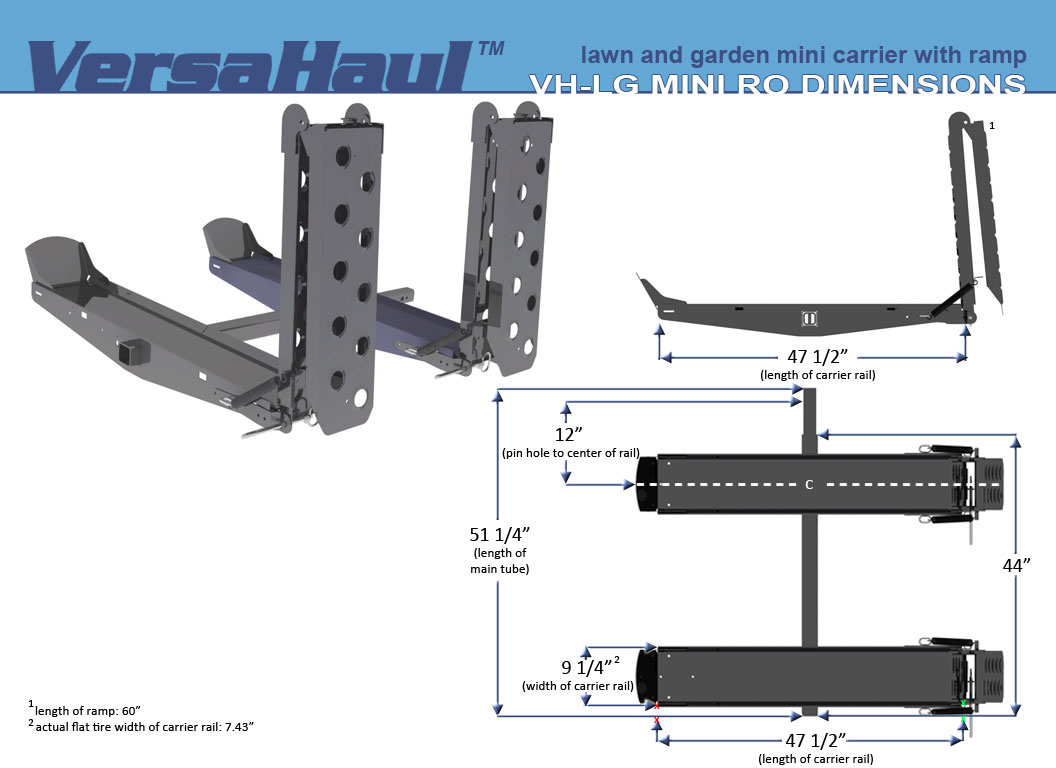

• Dimensions
• Model Number: VH-LG Mini RO
• Description: Lawn and Garden Mini Carrier with Ramp
• Approx. Shipping Wt.: 174 lbs.
• Carrying Capacity Unit: 700 lbs.
• Length of carrier rails: 47.5 in.
• Width of carrier rails: 9.25 in.
• Length of ramps: 60 in.
• VH-LG Mini Instruction Booklet
• VH-LG Mini RK Instruction Booklet

LIMITATIONS

Carrier

Hitch

Vehicle

• The VH-90 carrier is designed to safely carry 700 lbs.

• Most Class III hitches are rated for 500 lbs.
• Most Class IV hitches are rated for 1000 lbs.

• Your hauling weight may be limited by your vehicle's capacity to carry a load.

• Click here to find the Carrying Capacity of your vehicle.

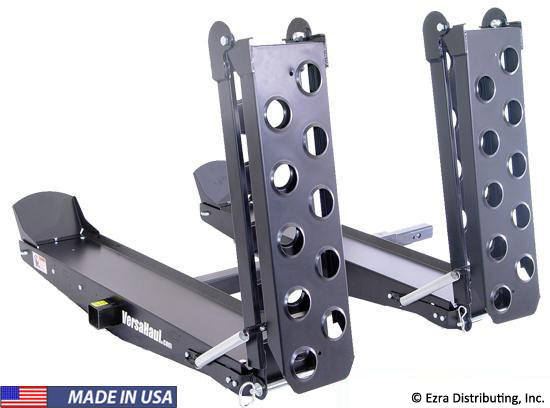

PICTURES

Click on the item to see a larger picture.

Protected by US Patents: US D523,389 S, 20070052206

Versa Haul VH-LG Mini RO Lawn & Garden Mini Carrier w/ Ramp Option
