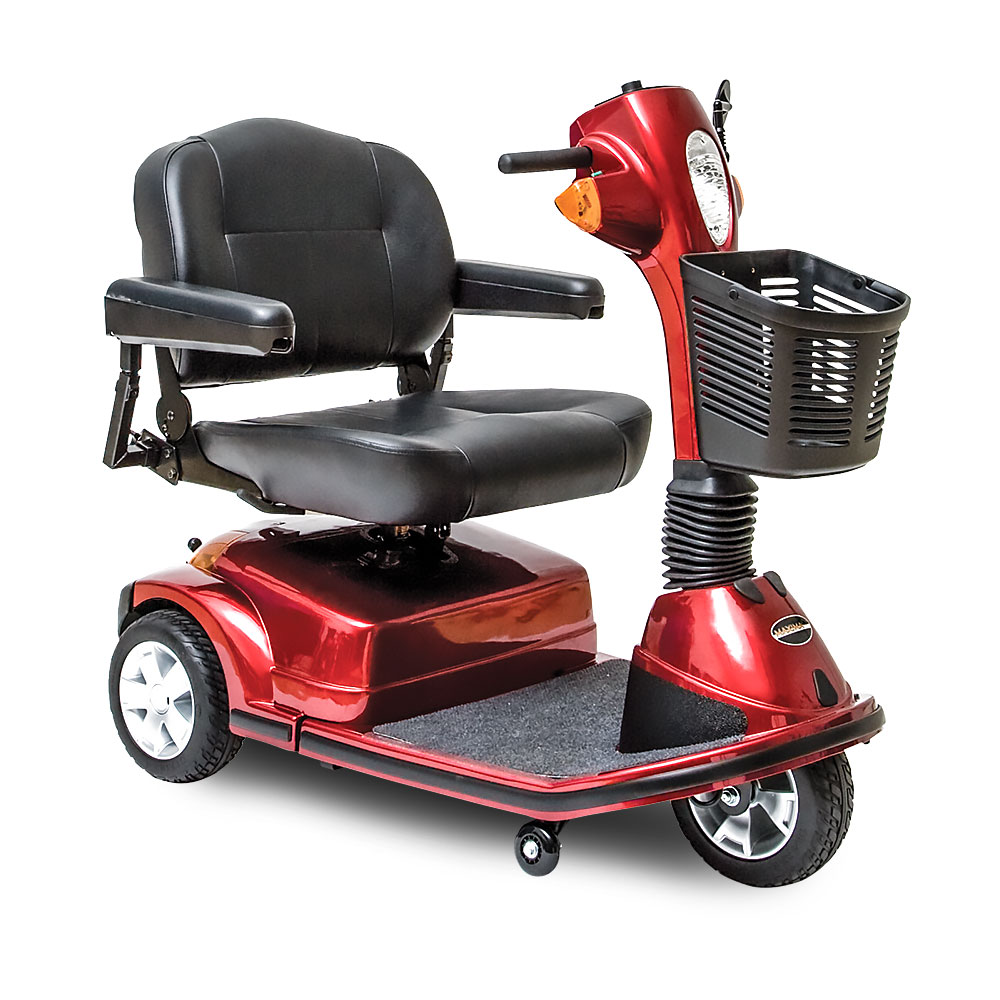

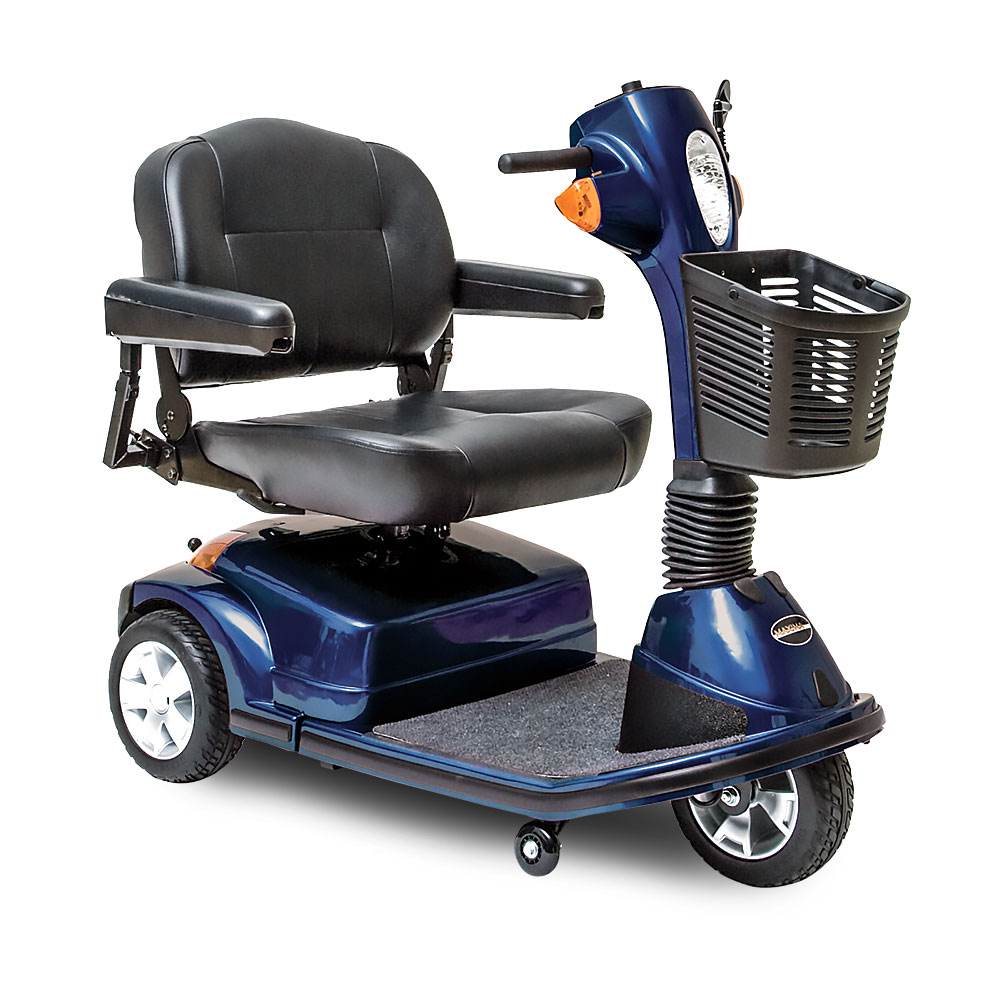

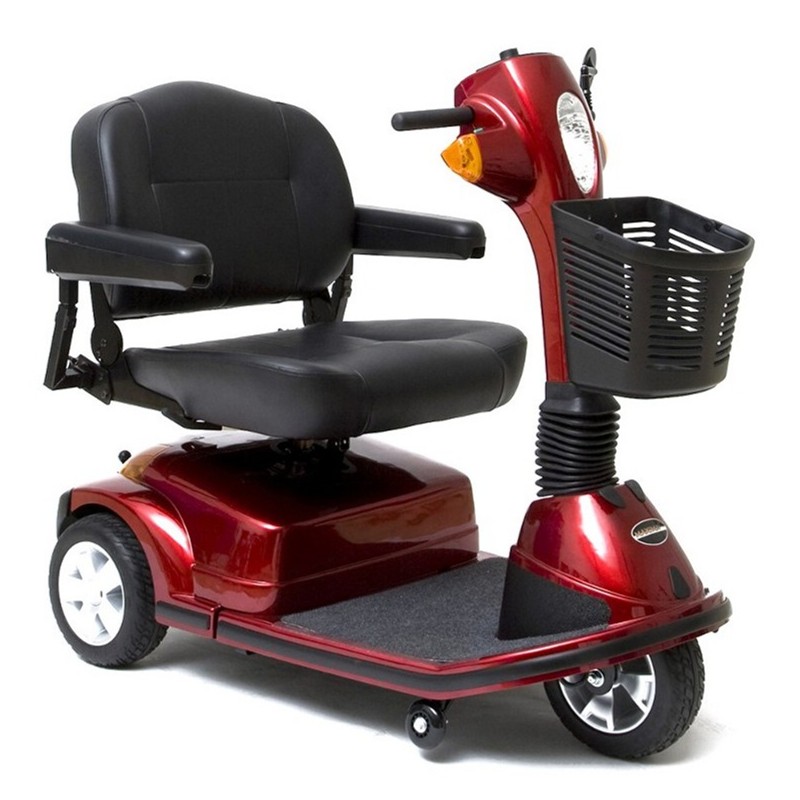

Pride Maxima 3 Wheel Scooter
|
FDA Class II Medical Device
Overview of the Maxima 3-Wheel
The Pride Mobility Maxima 3-wheel mobility scooter
is outfitted with front anti tip wheels making it as safe as
a four wheel with the ability to turn like a 3 wheel. The
Maxima 3 is bringing
outstanding performance and elegant styling together with
rugged construction for a weight capacity of 500 pounds. The
Maxima features upgraded electronics and an ultra heavy-duty drive train for added power. The seat provides a high level
of comfort and black flat-free non-marking tires are
standard along with a heavy duty front basket. The Maxima
comes standard with features like an easily adjustable
tiller, front headlight, durable one-piece frame
construction, front anti-tip wheels and whisper-quiet drive
train. |
Maxima

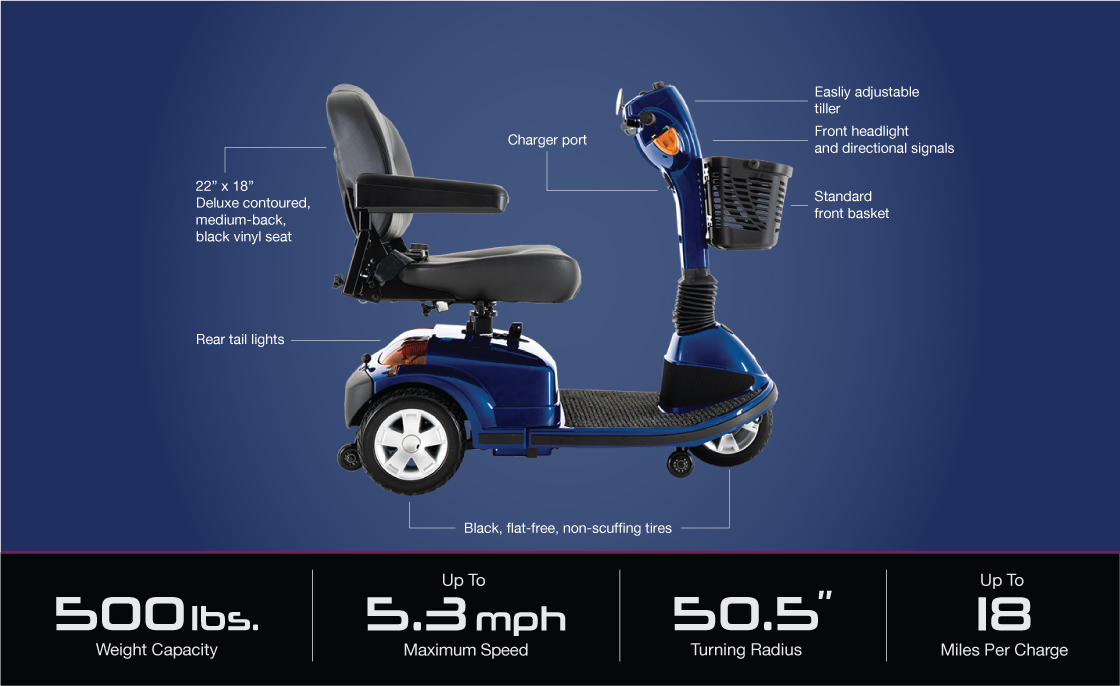

3-Wheel Features:
500 lbs. weight capacity
Up to 5.3 mph maximum speed
50.5" turning radius
Up to 18 miles per charge
22" x 18" Deluxe contoured, medium-back, black vinyl seat
5-amp, off-board battery charger
Black, flat-free, non-scuffing tires
Easily adjustable tiller
Standard front basket
Ultra heavy-duty drive-train with 110-amp controller
Durable and stylish rear polyurethane bumper
Easily accessible tie down points (for transport of
unoccupied scooter)
User-friendly console
K0802 - Group 1 Very Heavy Duty. |
|
|
Made in the U.S.A.
Whisper Quiet Ultra Heavy Duty Drive Train
Turning radius of 52"
Maximum speed of 5.25 MPH
Top Speed: 5.25 mph
Drive Range: 18. miles
Heaviest Piece: 76 lbs.
Weight capacity: 500 lbs.
Weight: 251 lbs.
Durable one piece frame
Solid Flat Free Tires |
The Maxima
Scooter features an ultra heavy duty drive-train and a
large, deep seat to deliver maximum performance ever
produced. |
|
|

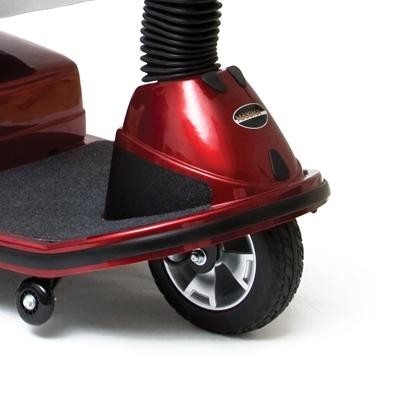

The Pride Maxima 3
Wheel version has "FRONT" Anti Tip wheels allowing for the
freedom and maneuverability of a three wheel scooter yet
giving you the stability of a four wheel scooter. No other
scooter offers a weight capacity of 500 lbs with the
flexibility of three wheel design and the stability of a
four wheel scooter. |

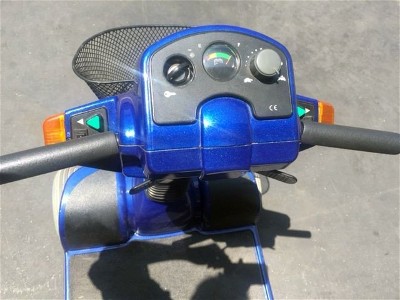

Deluxe controls all
at your finger tips. A keyed ignition, battery life
indicator, speed dial adjustment, turn signals, horn and
feather touch forward and reverse leavers. |
|
|
|
Heavy duty performance at an exceptional value.
Engineered with the bariatric market in mind, the Maxima
features a weight capacity of 500 lbs., a max speed up to 5.25
mph, adjustable tiller and an ergonomically enhanced design.
-
500 lb. weight capacity
-
Black, flat-free, non-marking tires
-
Standard front basket
-
Ultra heavy-duty drivetrain with 110 amp controller
-
Maximum speed up to 5.25 mph
-
Redesigned seat for improved comfort
-
Easily adjustable tiller
-
Durable and stylish rear polyurethane bumper
-
Easily accessible tie down points (for transport of unoccupied
scooter)
-
User-friendly console
Model |
Maxima 3 Wheel |
Maxima 4 Wheel |
Model Number |
SC900 |
SC940 |
Front Tires |
3" x 10" Solid |
3" x 10" Solid |
Rear Tires |
4" x 10" Solid |
4" x 10" Solid |
Maximum Speed* |
Up to 5.25 MPH |
Up to 5.25 MPH |
Ground Clearance |
4.25" at mid frame |
3.25" at mid frame |
Turning Radius** |
50.38" |
54" |
Overall Length** |
46" |
46.9" |
Overall Width of Base** |
25.5" |
25.5" |
Seat-to-Ground Height Range |
22.5"-24.5" |
22.5"-24.5" |
Seat Type |
Deluxe Contoured Medium-back (22"x18") |
Deluxe Contoured Medium-back (22"x18") |
Weight** |
171 lbs. |
176 lbs. |
Seat-to-Deck Height Range |
16"-18" |
16"-18" |
Battery Weight |
38 lbs. ea. (NF-22 or 55AH), 24.5 lbs. ea. (U-1) |
38 lbs. ea. (NF-22 or 55AH) |
Battery Requirements |
(2) NF-22, (2) U-1 (power elevating seat) |
(2) NF-22 |
Maximum Range Per Charge* |
Up to 18 miles, U-1 (power elevating seat) up to 9.6 miles |
Up to 16 miles |
Battery Charger |
Off-board, 5A |
Off-board, 5A |
Suspension |
Rear |
Front & Rear |
Maximum Weight Capacity |
500 lbs. |
500 lbs. |
Standard Body Colors |
Candy Apple Red, Viper Blue |
Candy Apple Red, Viper Blue |
Weight of Heaviest Piece** |
76 lbs. (Rear section) |
76 lbs. (Rear section) |
Medicare Code Coverage |
K0802 - Group 1 Very Heavy Duty |
K0808 - Group 2 Very Heavy Duty |
Warranty |
Lifetime limited on frame;
2-Year limited on Electronics;
2-Year limited on Drivetrain |
Lifetime limited on frame;
2-Year limited on Electronics;
2-Year limited on Drivetrain |
Owners Manual |
Manual |
|
Specs & Promo |
Pride Maxima |
|
Video |
Watch The
Maxima In Action |
|
Meeting and Exceeding High Standards for your Peace of Mind.
Pride FDA Class II Medical Devices are designed to aid
individuals with mobility impairments.
Your Pride product has undergone thorough product testing to
ensure safety, durability and performance.
Our power chairs, scooters and lift chairs are Food & Drug
Administration (FDA) approved medical products that require
specific testing prior to release for public use.
The testing requirements accepted by the FDA were developed by
the American National Standards Institute/Rehabilitation
Engineering & Assistive Technology Society of North America
(ANSI/RESNA).
The tests are conducted in accordance with the requirements of
the ANSI/RESNA Test Standards and complement an additional
stringent testing regiment developed by Pride's Research &
Development Team.
All products have passed, and in many cases, exceeded test
criteria set forth, assuring the high level of quality
synonymous with Pride.
Some of the items our testing criteria include are:
- Product Stability & Brakes
Effectiveness Tests
- Fatigue & Impact Strength
Verification Tests
- Overall Product
Performance Verification
- Dimensional Requirement
Compliance
- Product Durability &
Reliability Testing
- Material Protective
Coating Testing Verification
- Misuse and Abuse Testing
- Ergonomic Verification
- Environmental Testing for
Adverse Weather Operation Conditions
- Electronic Systems
Performance and Durability
- Chemical and
Bio-Contamination Analysis Testing for Toxicity Verification
- Cal 117 Flammability Test
Compliance for Seating Foam and Fabric Components
- UL94VO Flammability
Testing for Compliance of Plastic Components
- Electromagnetic
Compatibility (EMC)
Pride Maxima 3 Wheel Scooter |
|
|
