Transport 4M Scooter |
|
 |
| |
|
 |
|

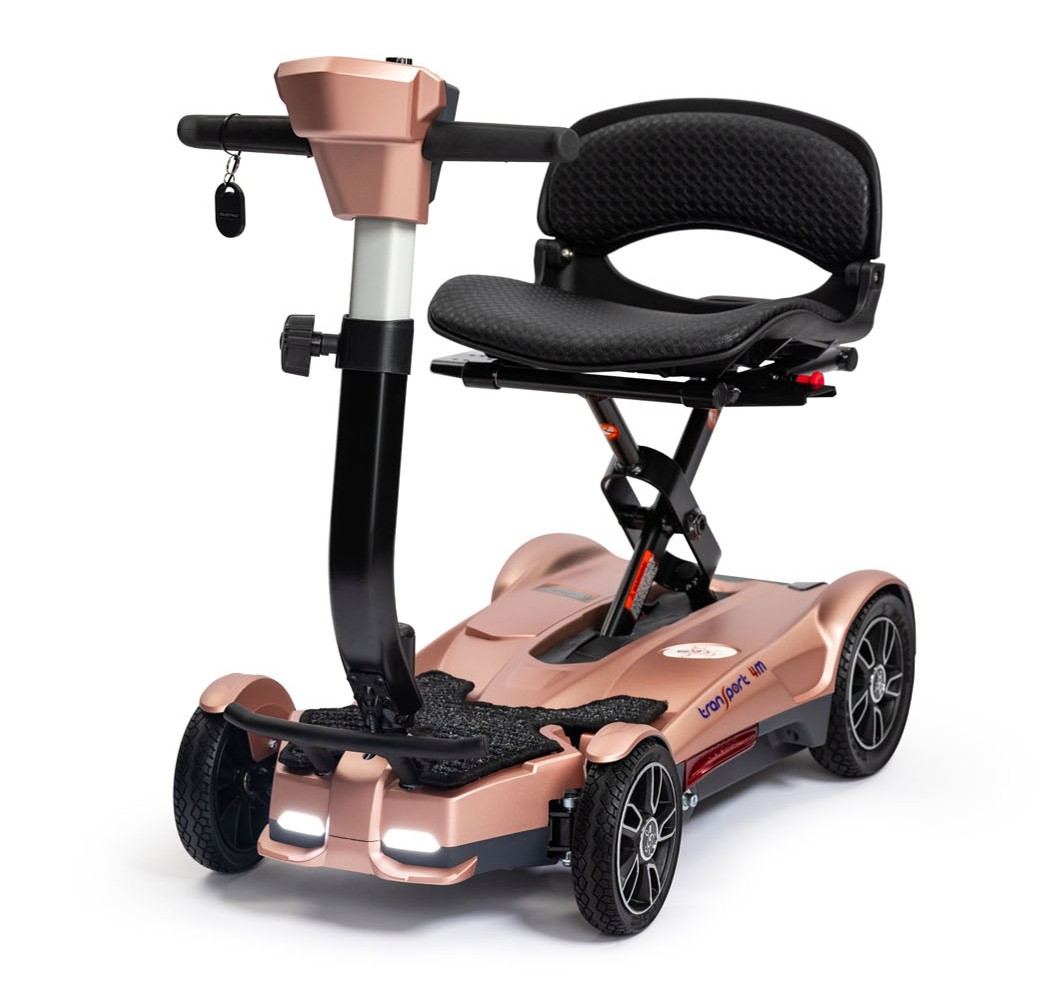

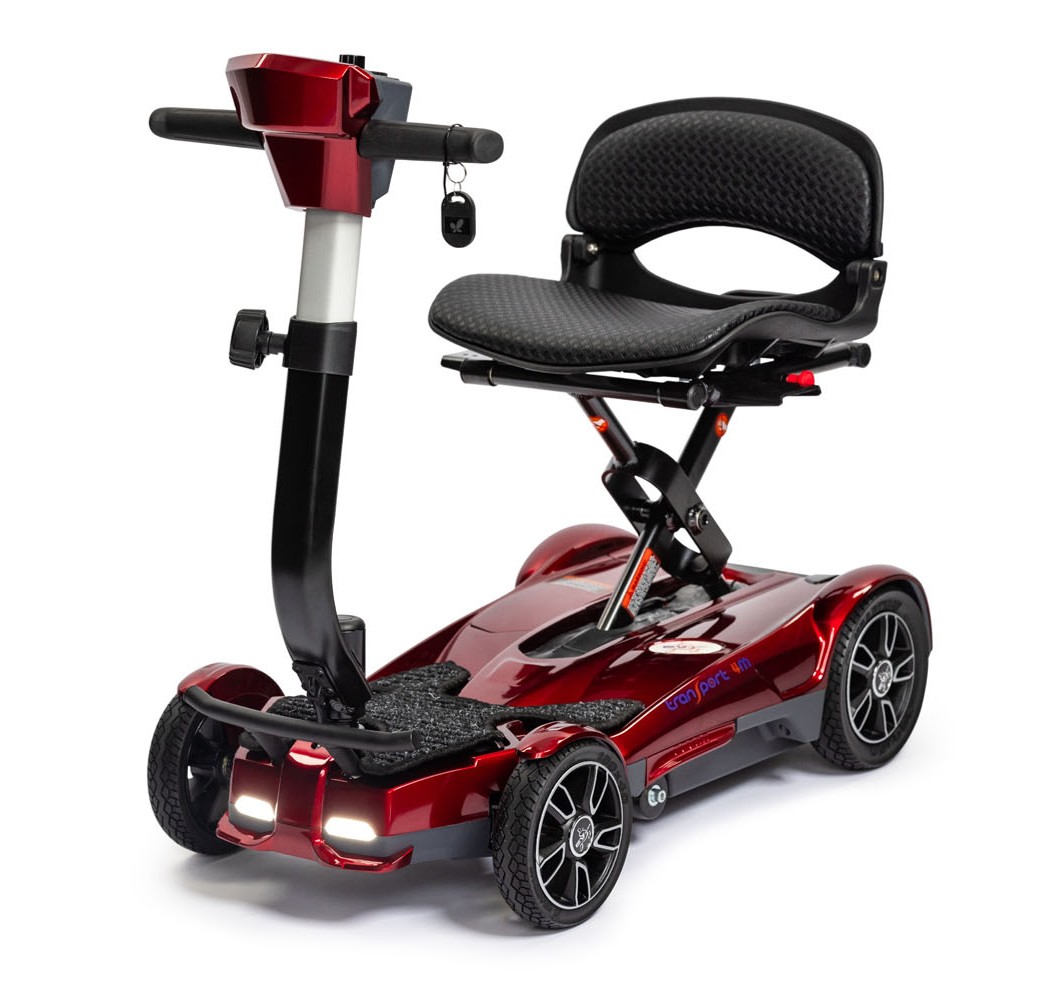

The Transport 4M is a
compact and sturdy four-wheel mobility scooter,
designed for both stability and convenience. Featuring
a sleek design with two-tone rims, it offers a smooth,
safe ride thanks to its front steering sensor that
reduces speed during turns. |
|
| |
|
|
|

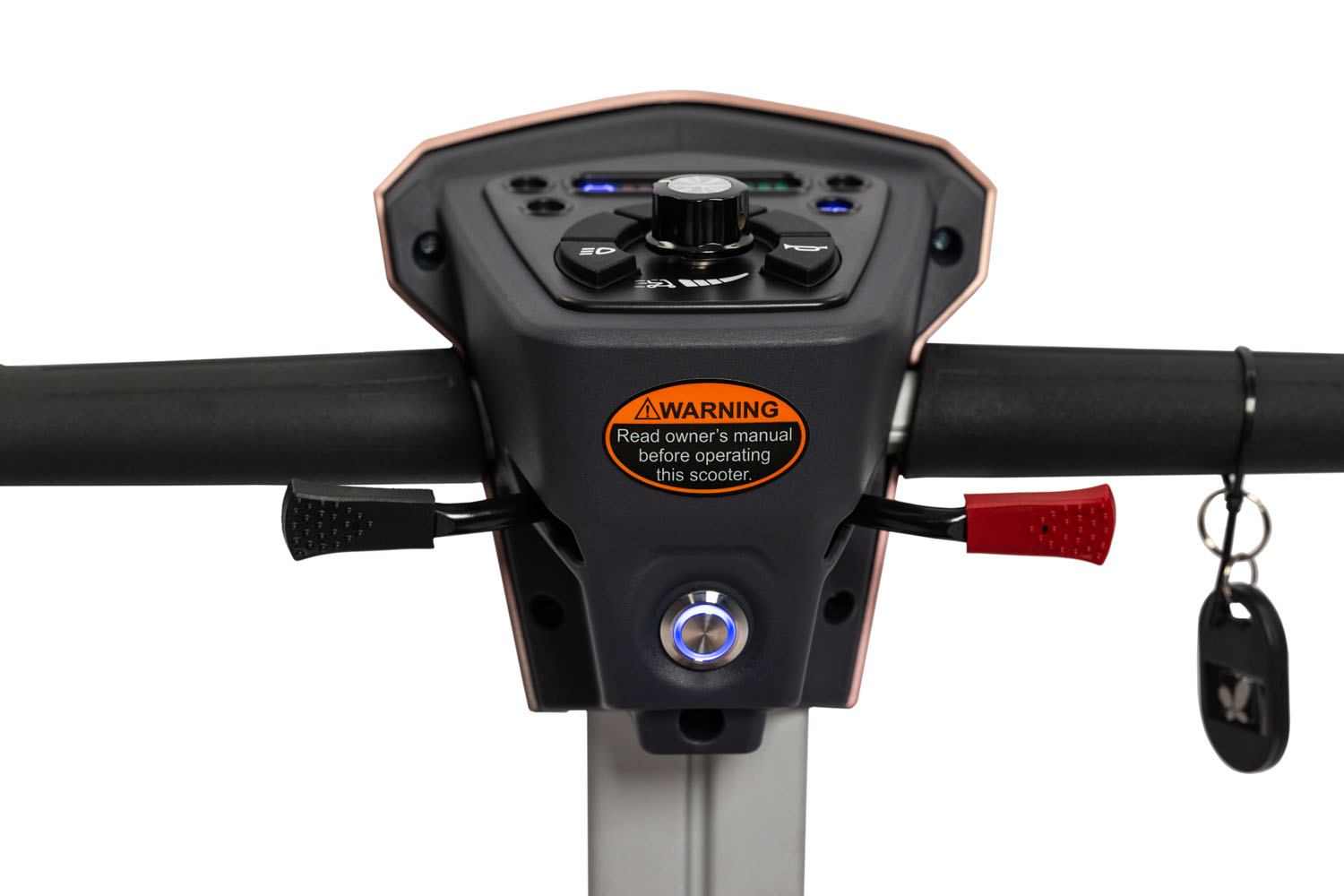

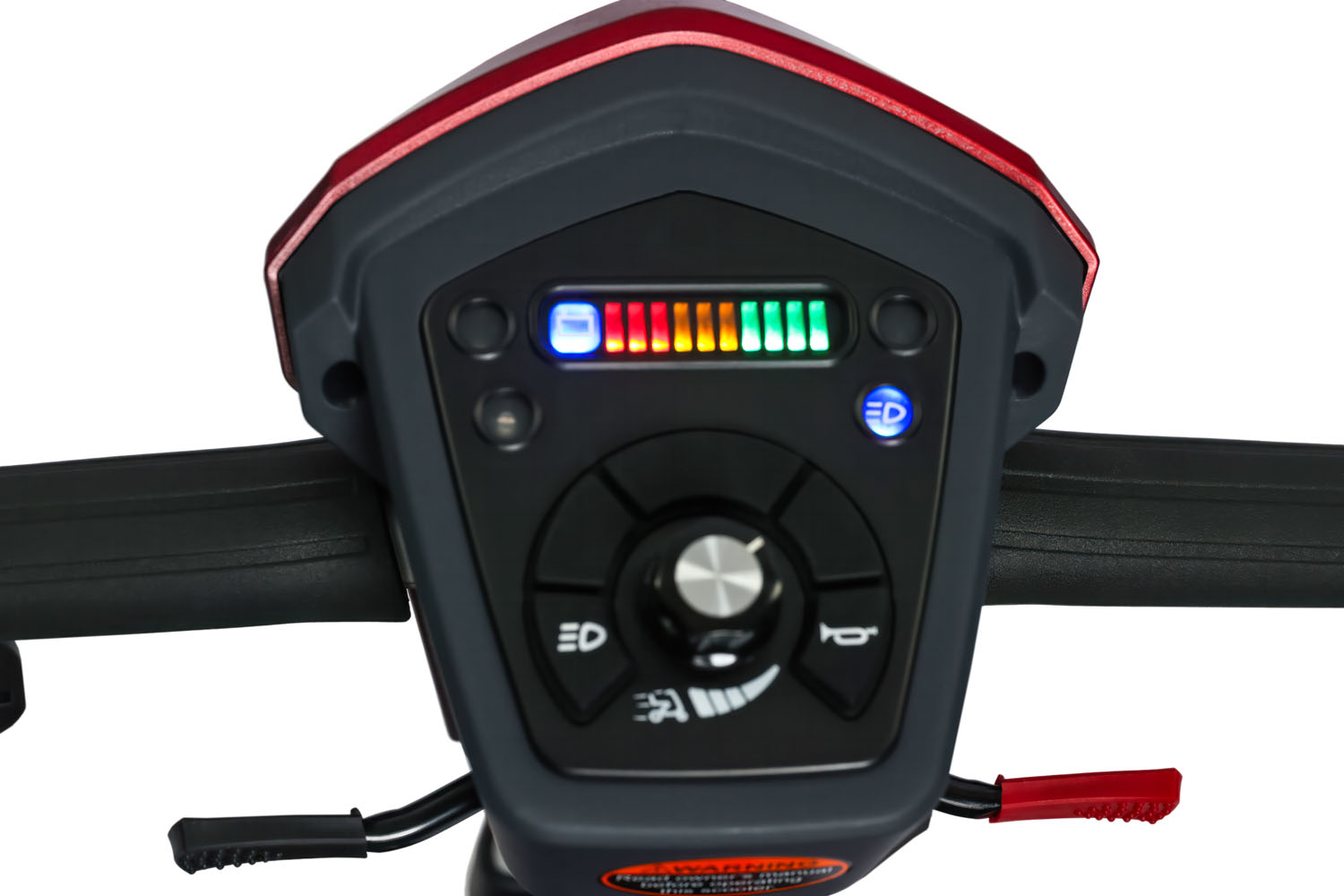

The scooter is equipped
with automatic LED lights, an electronic key, and a
digital display for ease of use. Its adjustable tiller and
optional armrests provide customizable comfort, while its
airline-approved lithium battery offers portability.
Folding in seconds, this scooter weighs 55 lbs and
supports up to 250 lbs, making it perfect for travel and
daily use. |
 |
 |
| |
|
|
The scooter is equipped
with automatic LED lights, an electronic key, and a
digital display for ease of use. Its adjustable tiller and
optional armrests provide customizable comfort, while its
airline-approved lithium battery offers portability.
Folding in seconds, this scooter weighs 55 lbs and
supports up to 250 lbs, making it perfect for travel and
daily use. |
 |
 |
| |
The EV Rider Transport
4M is a lightweight, manually folding mobility scooter
designed for travelers and everyday users seeking
portability, stability, and ease of use. With its
compact design and airline-approved battery, it's
ideal for navigating airports, cruise ships, shopping
centers, and more. |
|
| |
|
|
|
| Key Features &
Specifications
Folding Mechanism: Manual fold in secondsno tools
required.
Weight: 55 lbs with battery; 51.8 lbs without battery.
Battery: 24V 10.05Ah lithium-ion (airline-approved).& a
range: Up to 6.8 miles per charge. |
 |
|
 |
|

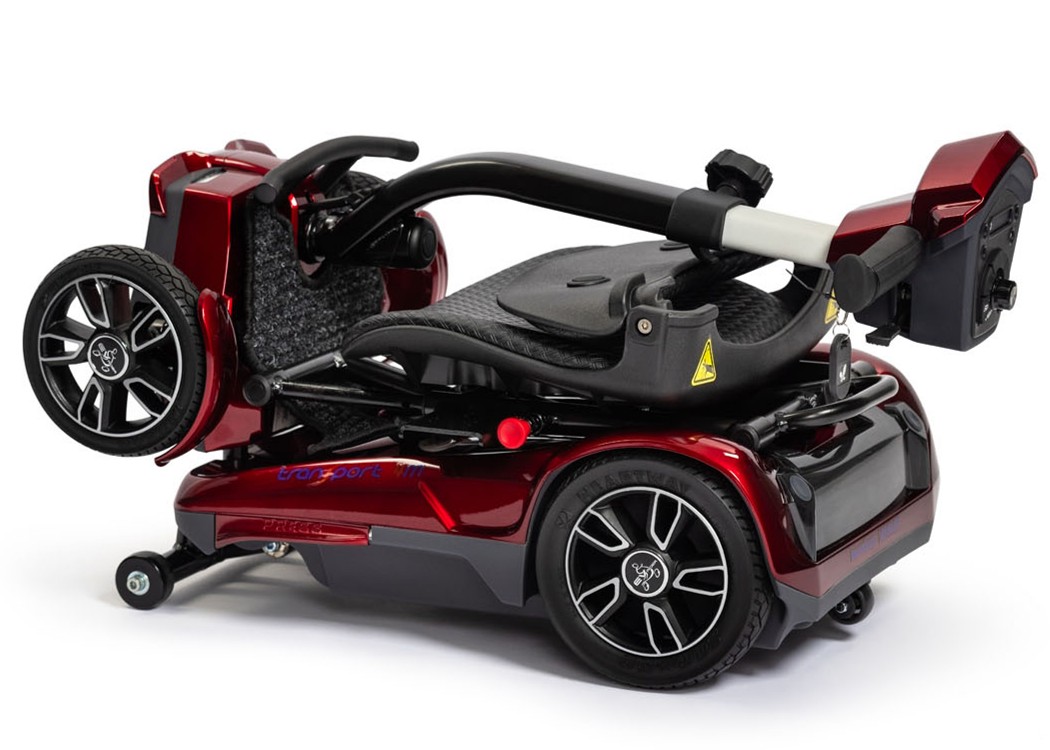

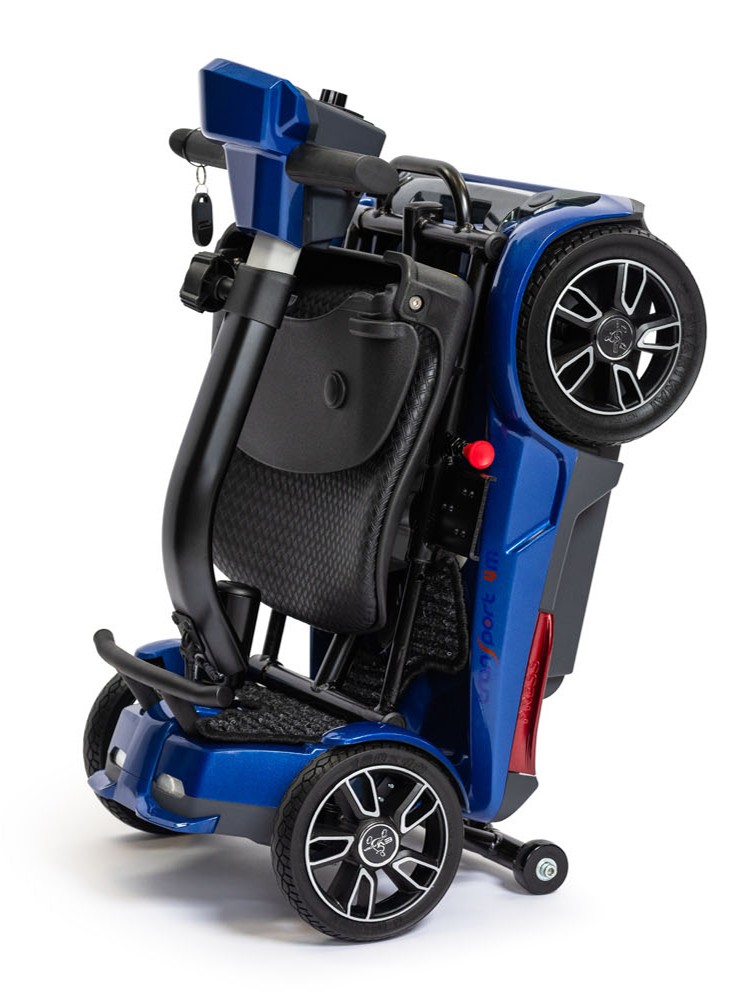

Easily Folds In Just Seconds..
Top Speed: Up to 3.7
mph.
Motor: 180W 24V
DC.
Weight Capacity:
250 lbs.
Turning Radius: 39.3 inches. Ground Clearance: 1.4
inches. Seat Dimensions: 15" W x 12" D x 9" H.
Adjustable Tiller: Height ranges from 28" to 33.5".
Tires: Solid polyurethane; front 6.5", rear 7.5".
Braking System: Electromagnetic.Charging Time:
Approximately 46 hours. The Transport 4M is offered
in four stylish colors:

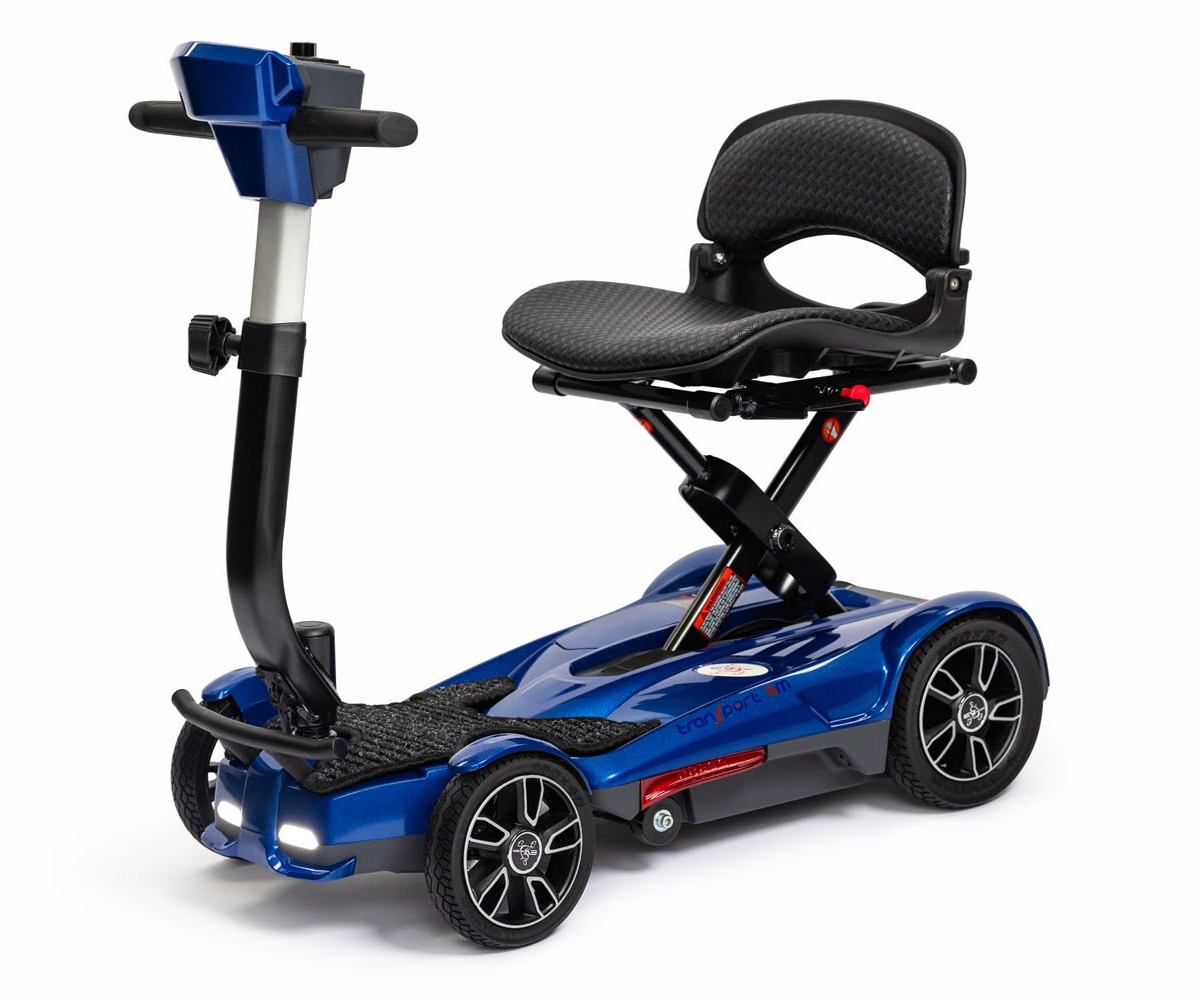

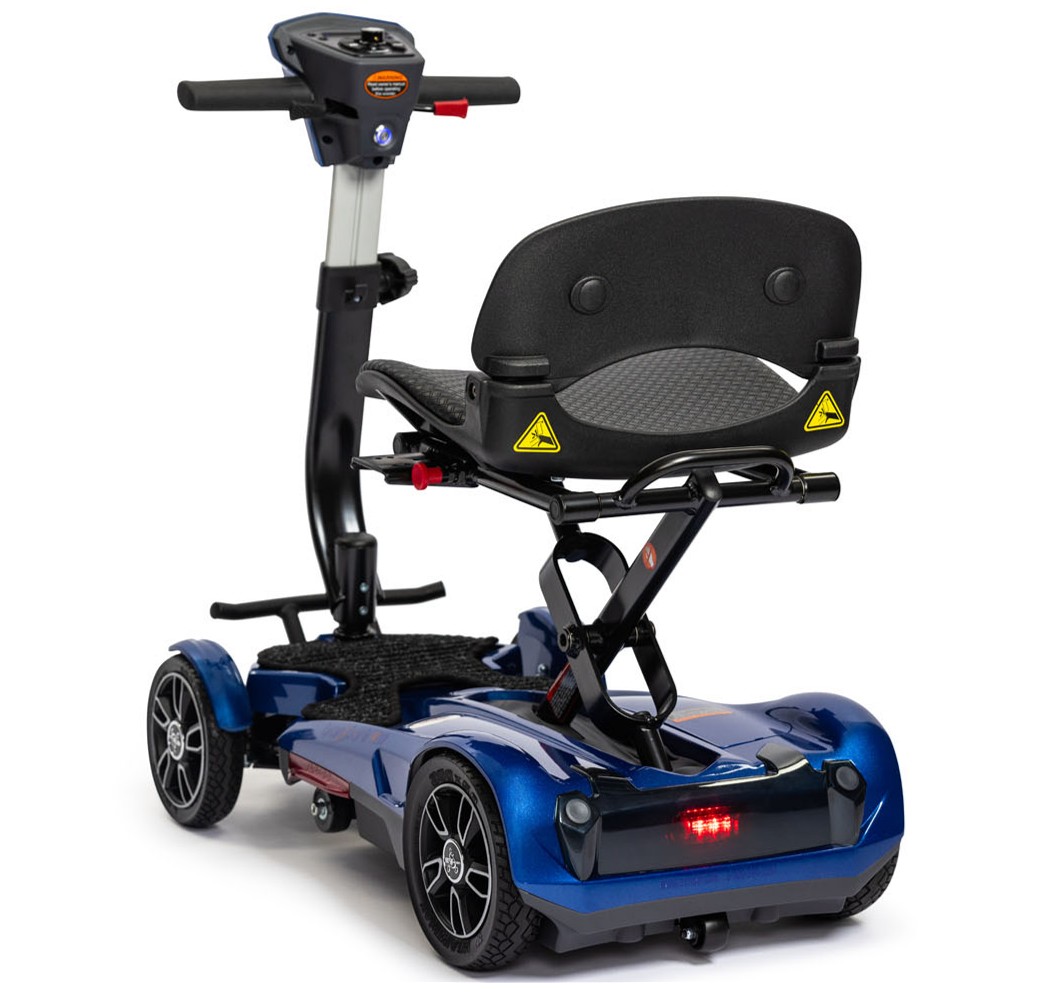

Blue
Silver
Rose Gold

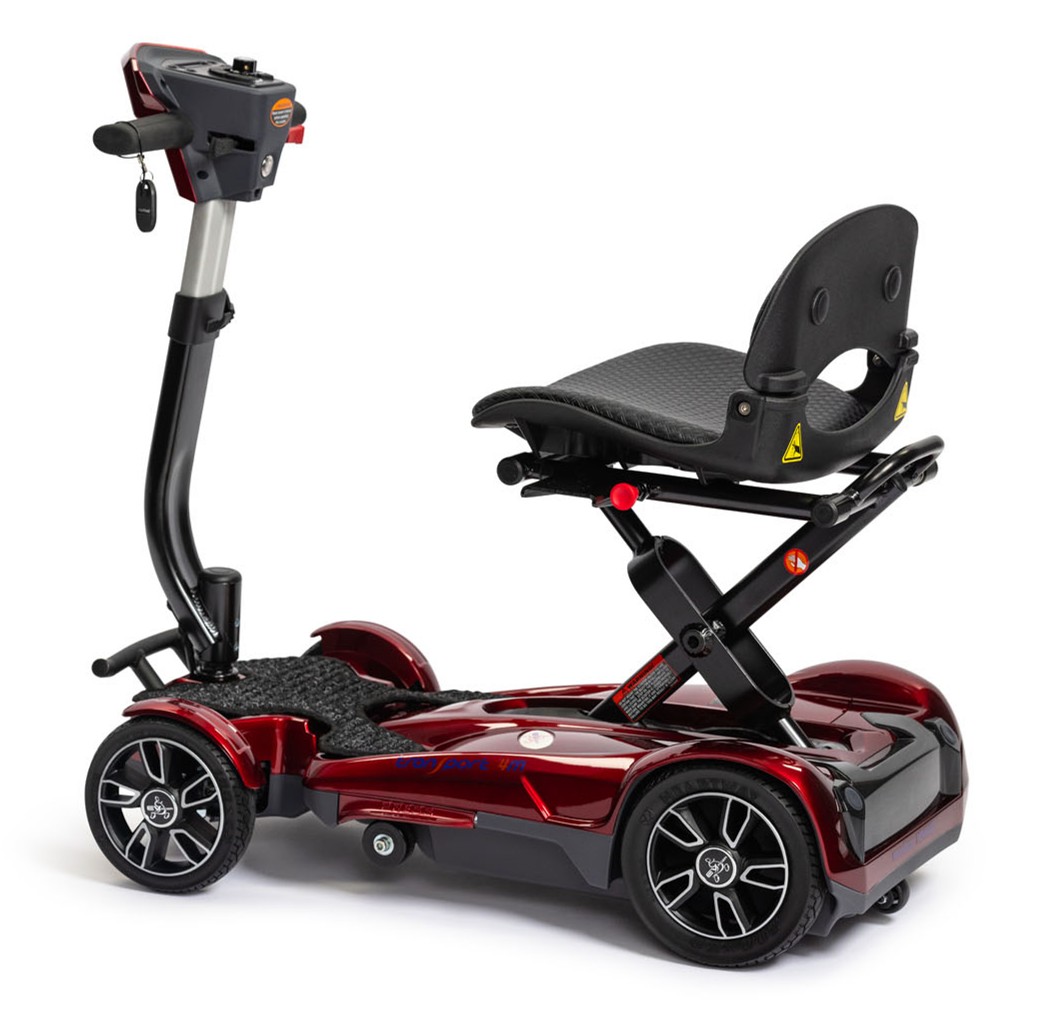

Red
|
|
| |
|
|
 |
 |
|
EV Rider Transport
4M Manual Folding Mobility Scooter. EV Rider TRANSPORT
4M Four Wheel Manual Folding Electric Mobility Scooter
Transport 4M stands out. |
|
| |
|
|
|
EV Rider Transport 4M,
highlighting its features, performance, and who its
best suited for EV Rider Transport 4M The EV Rider
Transport 4M is a lightweight, compact, and
travel-friendly 4-wheel mobility scooter. It's
designed for individuals who need mobility assistance
but also want the freedom to travel easily by cars,
planes, or cruise ships. |
|
| |
|
|
 |
 |
 |
|
Folded Dimensions: 30" x 16.3" x 17.7" (76 x 41.4 x 45
cm)
Weight with Battery: 55 lbs (25 kg)
Weight without Battery: 51.8 lbs (23.5 kg) Seat
Seat Dimensions (W x D x H): 15" x 12" x 9" (38 x 30.5
x 23 cm) Seat Height (Cushion to Deck): 15" (38 cm)
Seat Height (Cushion to Floor): 19.7" (50 cm) |
|
| |
|
|
|

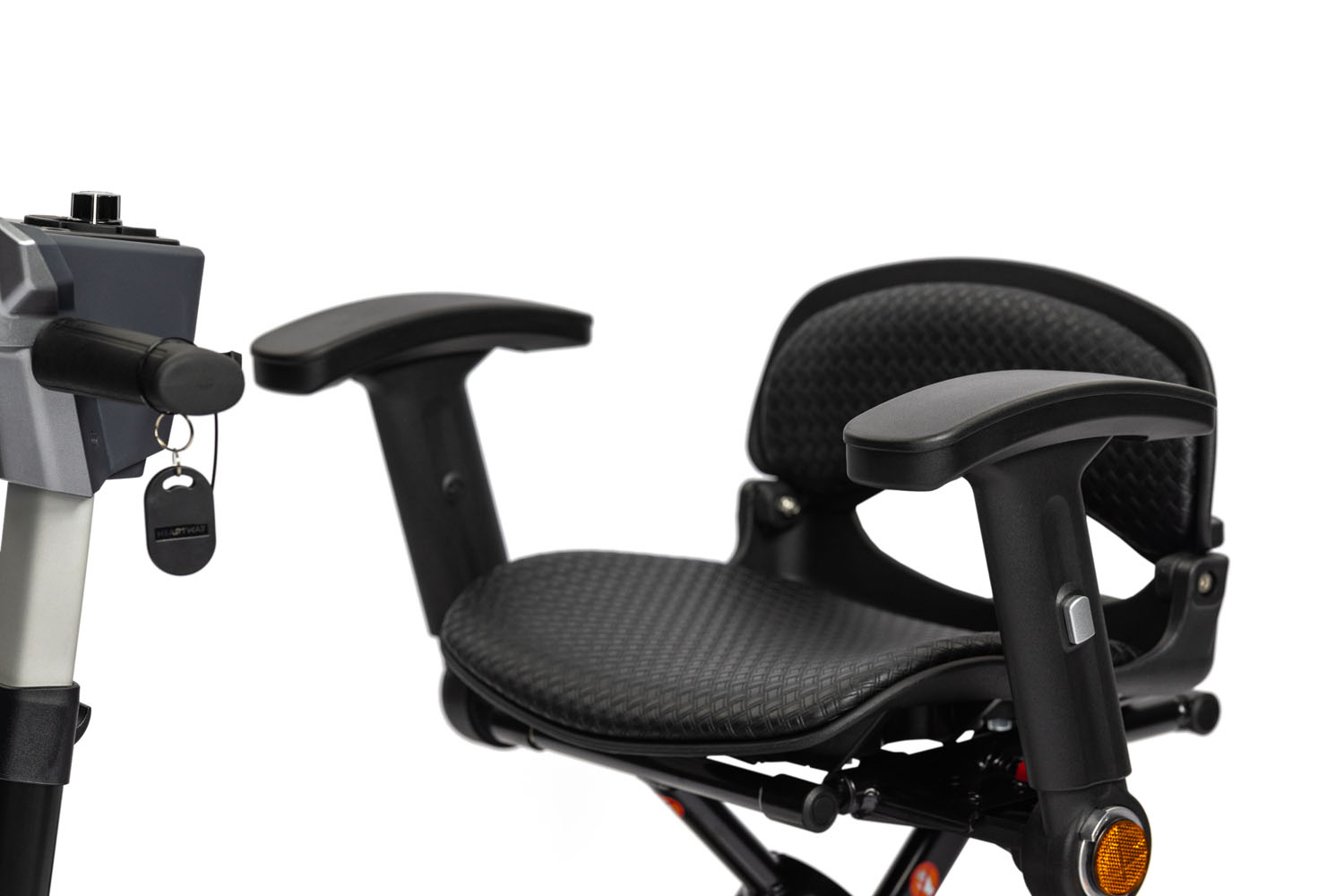

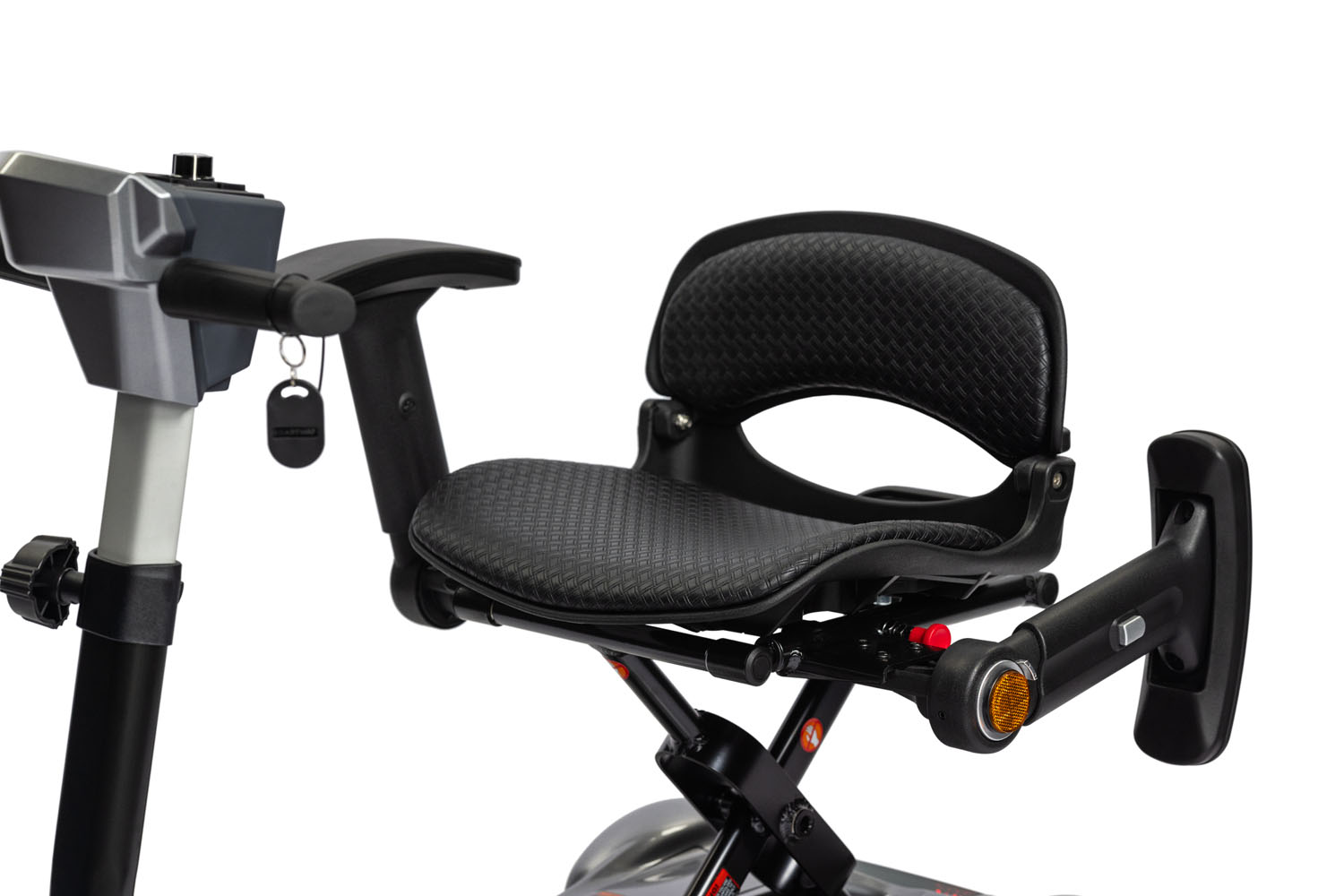

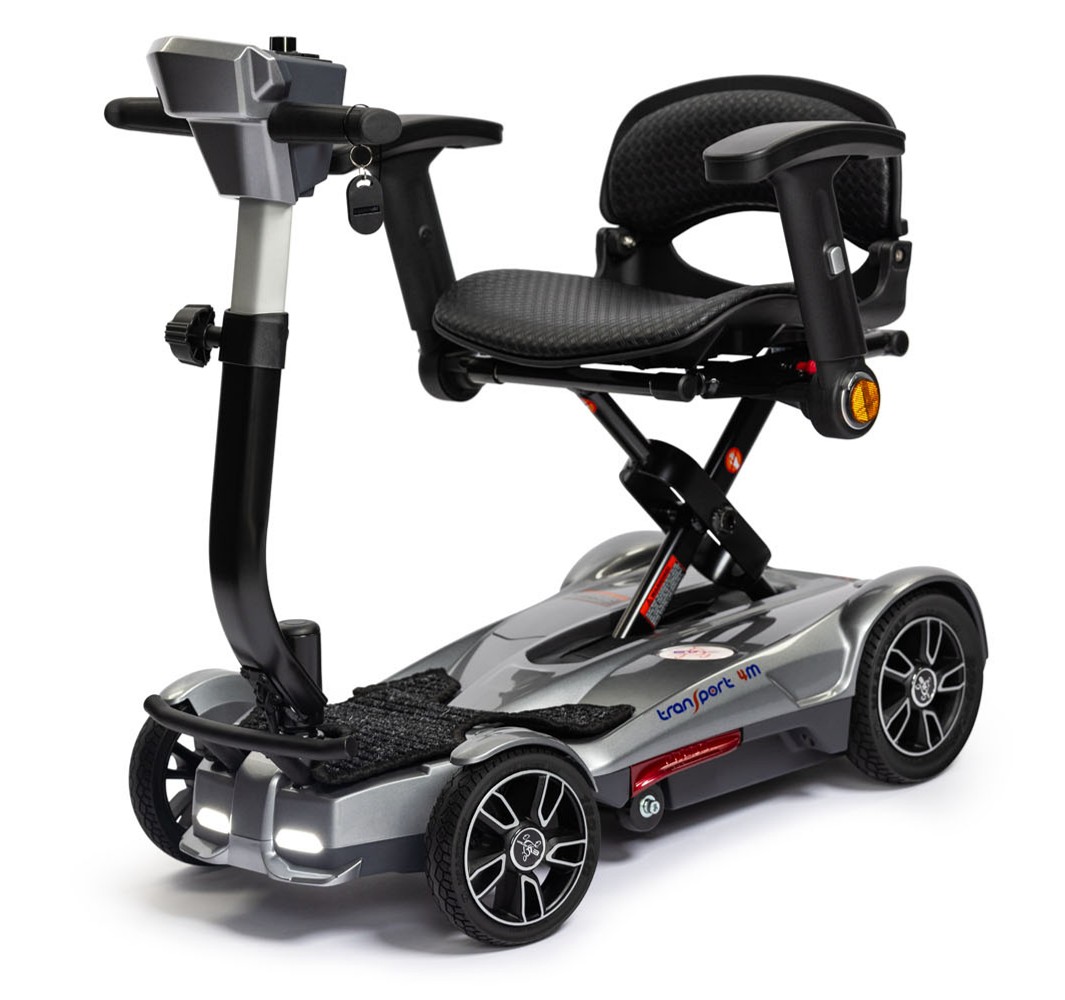

Foldable Arm Rest Make
It Easy To Get On & Off The EV Rider Transport 4M.
Its compact size and
lightweight design ensure it fits comfortably in most
vehicle trunks. |
|
| |
|
|
 |
| |
|
| |
|
Overall Length |
33.5in / 85cm |
|
Overall Width |
23 in / 58.5cm |
|
Overall Height (at Maximum
Tiller Height) |
33.5in / 85cm |
|
Overall Height at Minimum
Tiller Height |
30 in / 76cm |
|
Legroom Floorboard Length x
Width |
17″ in / 43 cm |
|
Deck Height Floorboard to
Floor |
5.9″ in / 15 cm |
|
Ground Clearance |
1.4″ / 3.6 cm |
|
Turning Radius |
39.3 in / 100cm |
|
Weight with Std. |
55 lbs / 25kgs |
|
Weight without Batteries |
51.8 lbs / 23.5kgs |
|
Seat Type |
Folding Mobility Seat |
|
Seat Width & Depth & Height |
15″ W x 12″ D x 9″H / 38 cm x
30.5 cm x 23 cm |
|
|
Seat Cushion Thickness |
1″ in / 2.5 cm |
|
Seat Height Cushion to Deck |
15″ in / 38 cm |
|
Seat Height Cushion to Floor |
19.7″ in / 50 cm |
|
Tire Type |
Solid Tires |
|
Rim Type Rear |
Industrial Plastic |
|
Rim Type Front |
Industrial Plastic |
|
Outside Diameter Rear |
7.9″ / 20 cm |
|
Tire Width Rear |
2″ / 5 cm |
|
Outside Diameter Front |
7.08 in / 18cm |
|
Tire Width Front |
1.57 in / 4cm |
|
Battery Type & Power |
24V 10.05Ah Lithium Ion x1
(included) |
|
Brake System |
Electromagnetic |
|
| |
|
Climbing Angle Maximum
Recommended |
3° |
|
Charger Type |
Off Board Li-Ion Charger
2 Amp 24 VDC, input: 100/240 Vac |
|
Charging Time |
4 6 hrs |
|
Controller |
Dynamic R‐Series 50A |
|
*Driving Range |
6.8 miles (11km) |
|
Load Capacity |
250 lbs / 115 kg |
|
Motor & Drive Location |
180 watt 24 volt |
|
Max Speed |
4 Miles/Hr/ 6KM/H |
|
*Speed Maximum |
up to 3.7 mph |
|
Colors |
Blue, Silver, Rose Gold, Red |
|
Tiller Type |
T-Shape Type |
|
Throttle Control Type |
Pot Meter |
|
Anti-Tipper Wheels-Rear |
Rear Casters Standard |
|
