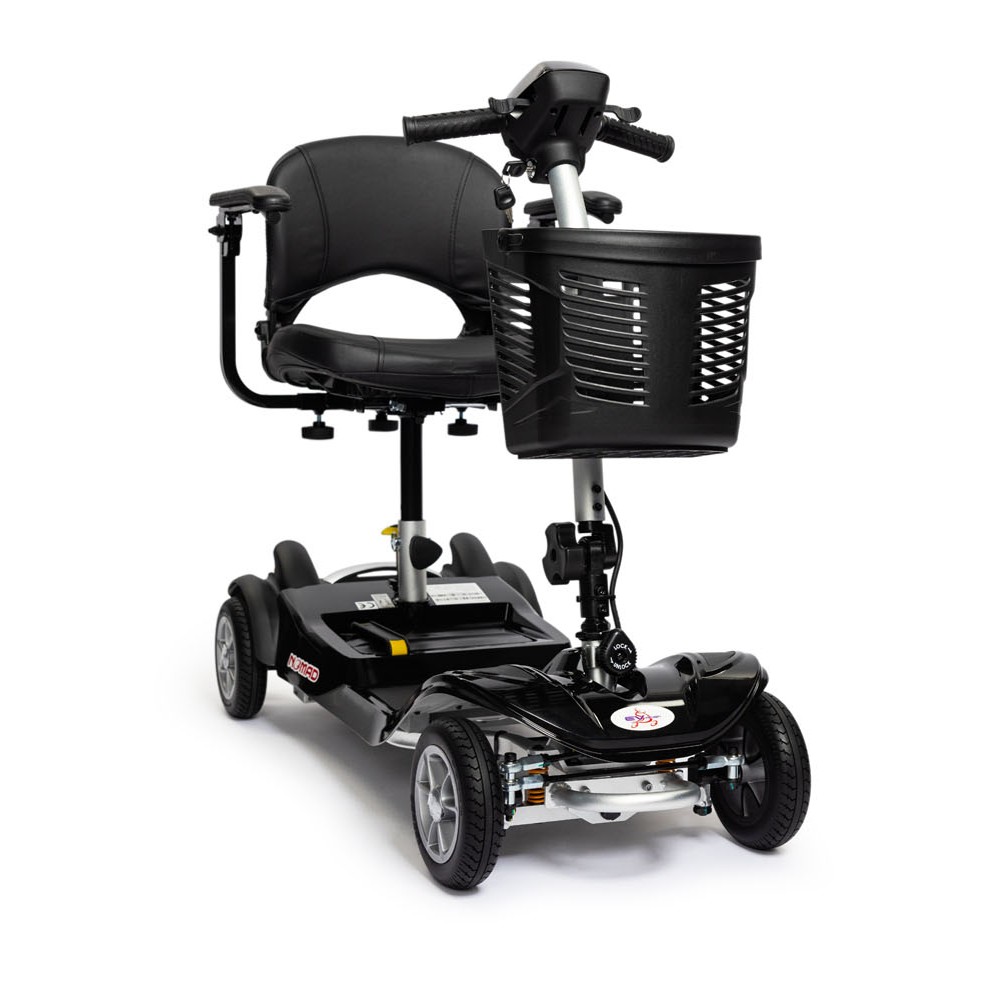

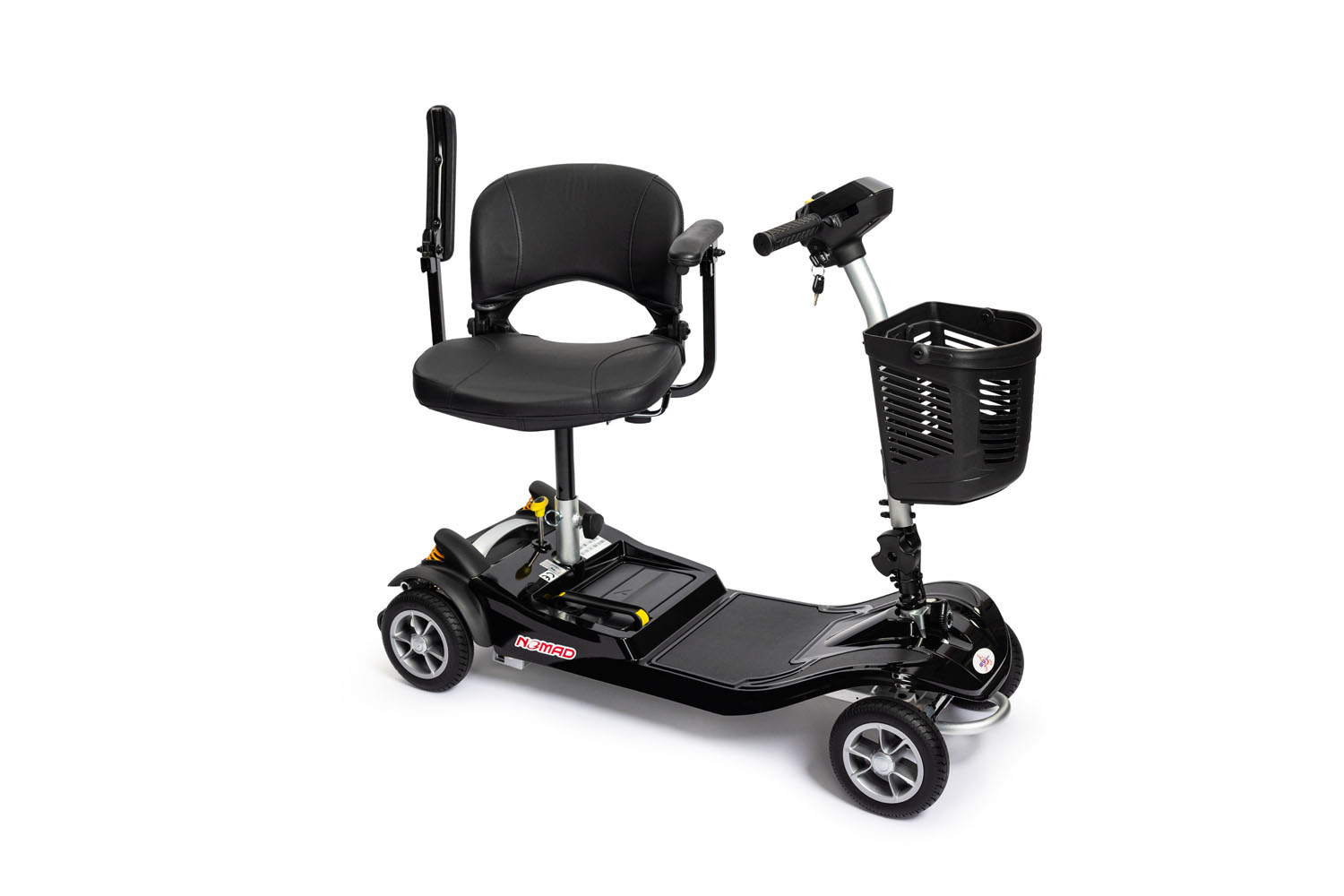

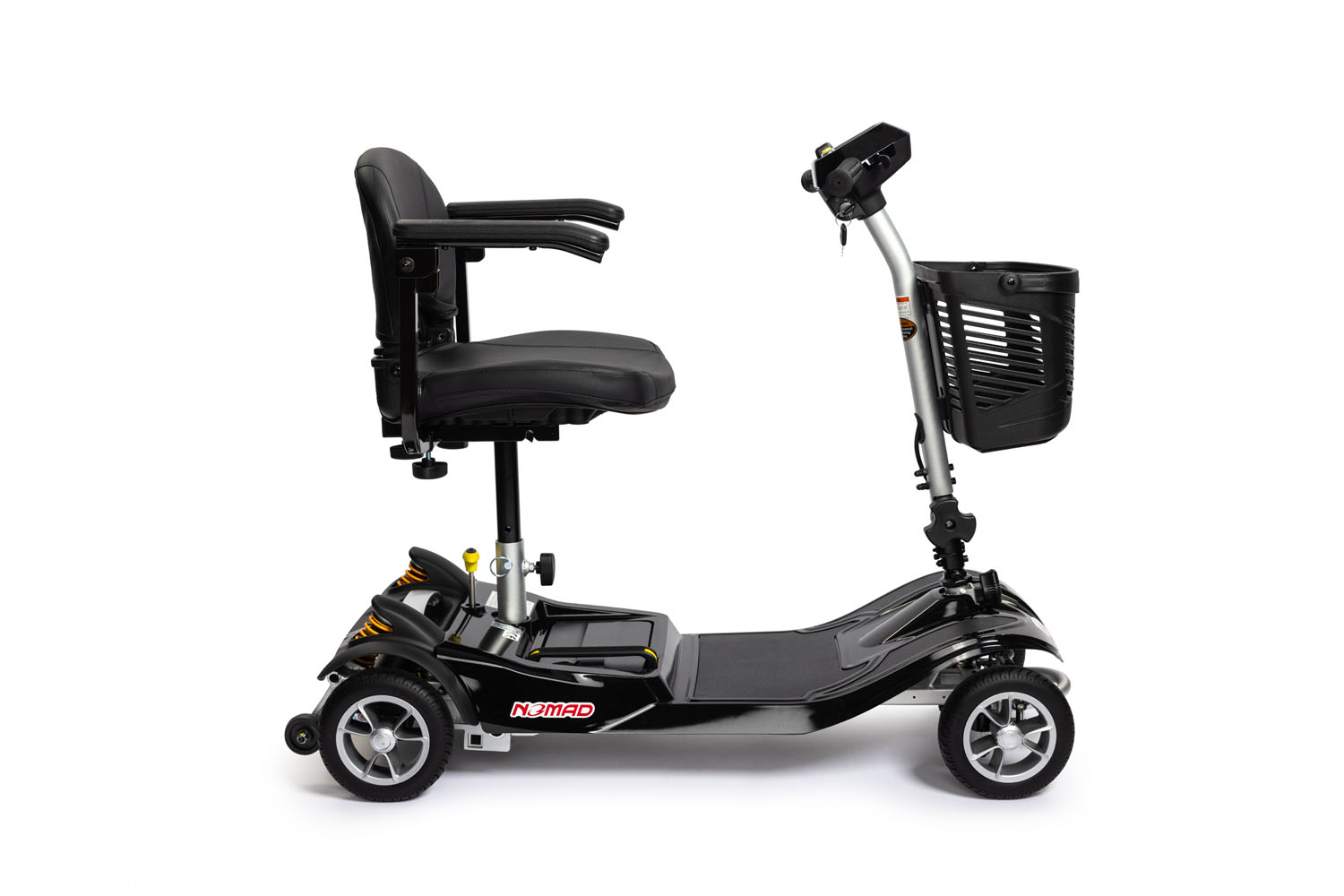

The NOMAD mobility
scooter offers a lightweight, compact design perfect
for ease of use and transportation. Made from durable
aircraft aluminum, its heaviest component weighs only
20 lbs. It features a powerful airline-approved
lithium battery with a 260 lb. weight capacity,
providing a range of 7-10 miles per charge.
The scooter is designed
for ultimate comfort with a padded seat, full
suspension, and adjustable armrests. It also boasts a
360° swivel seat for easy mounting and dismounting,
plus a tight 49″ turning radius for great
maneuverability. Ideal for travel, it disassembles
quickly for easy storage and transport.
The EV Rider Nomad 4-Wheel
Mobility Scooter is a lightweight, travel-friendly option
designed for individuals seeking independence and ease of
mobility. Here are some of its key benefits.
Airline & Cruise Approved:
Equipped with a lithium-ion battery that complies with
airline and cruise regulations, making it suitable for
travel.

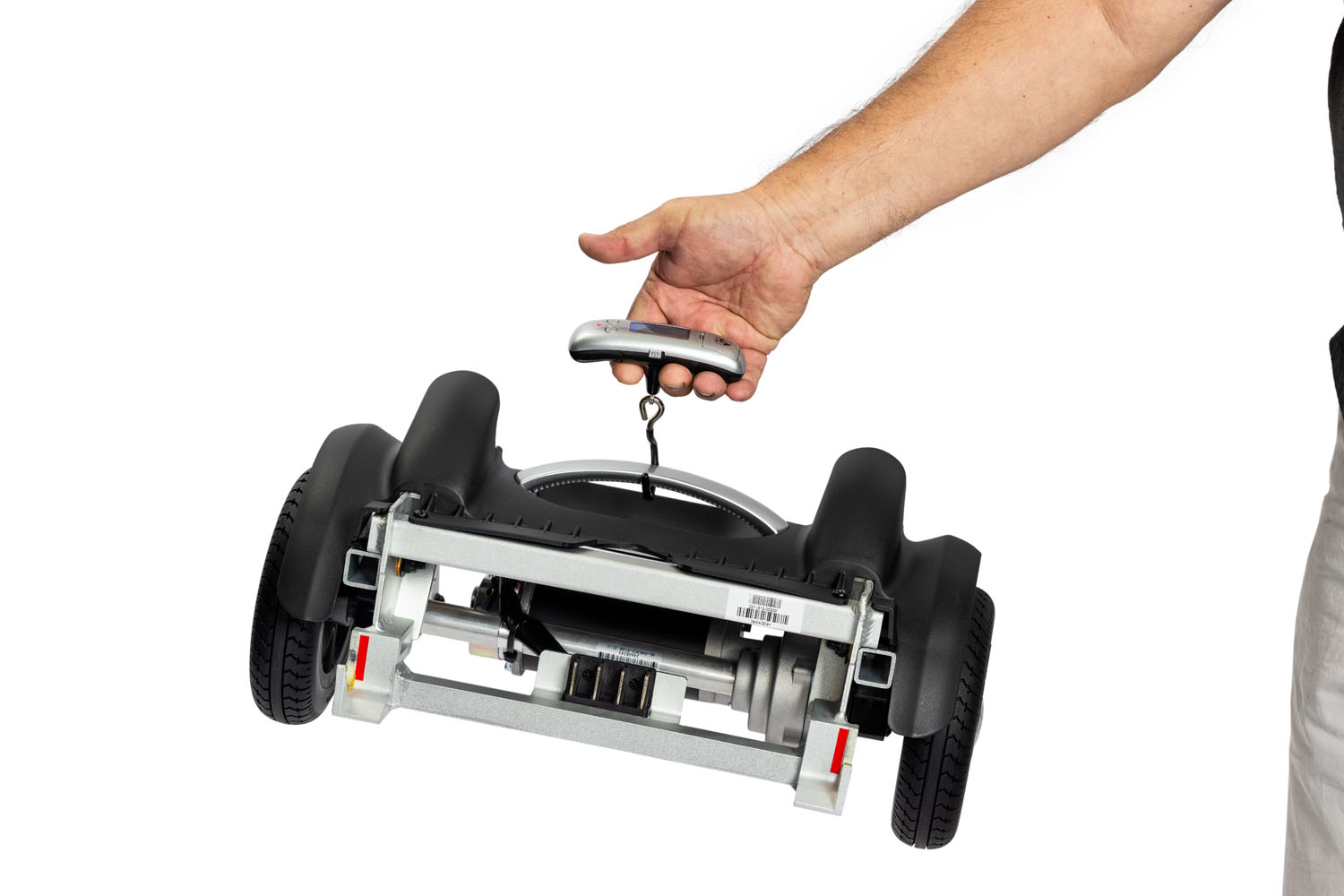

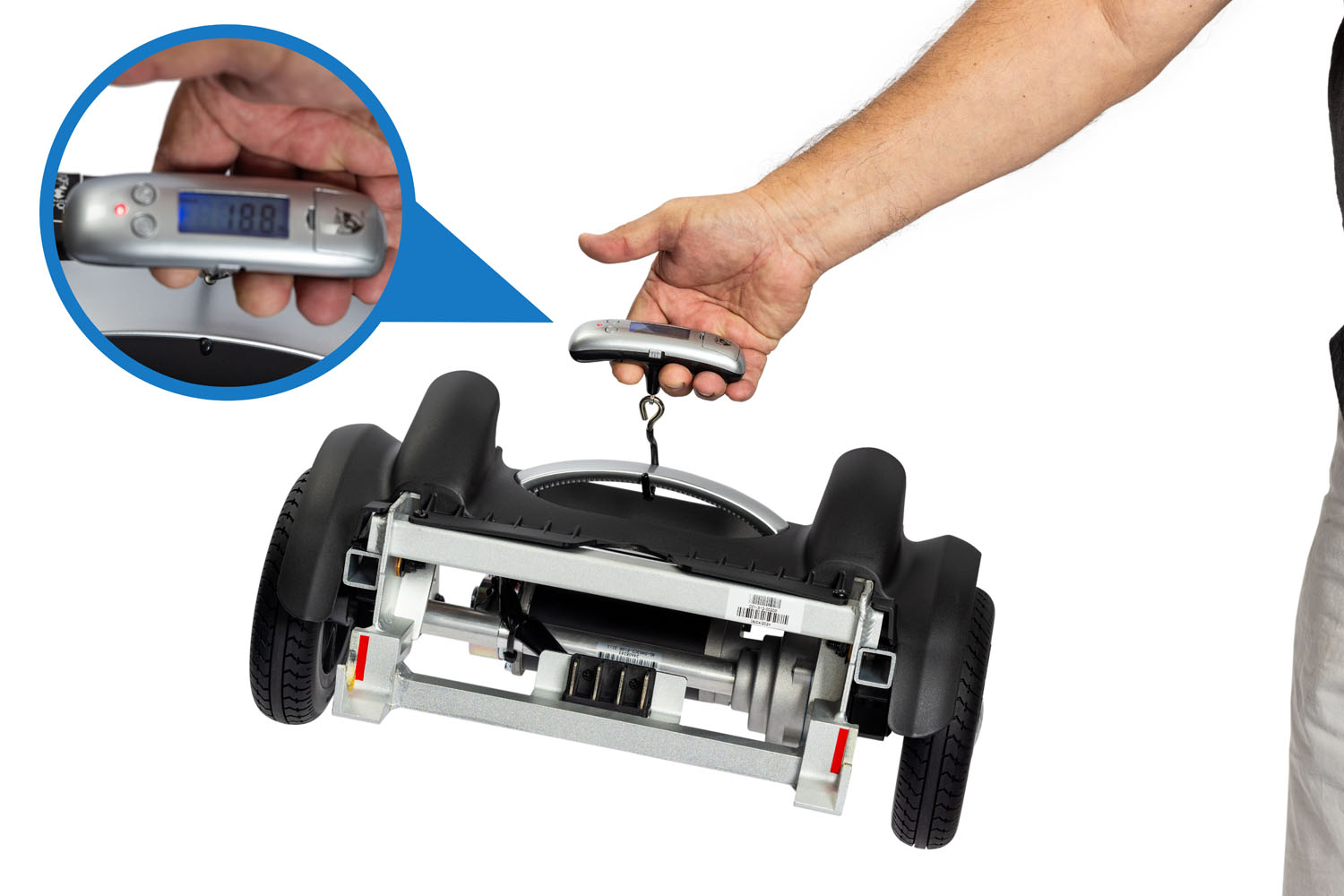

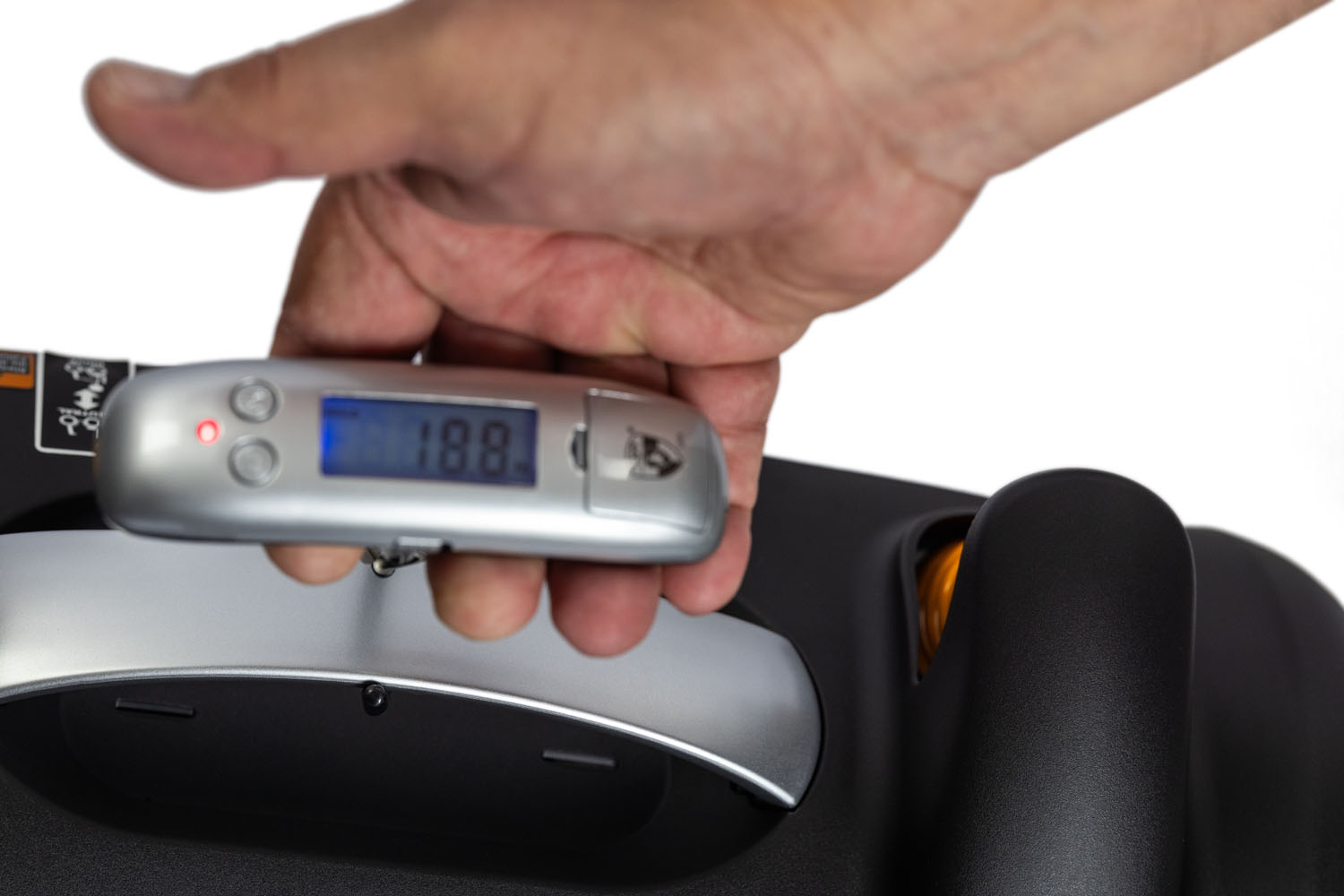

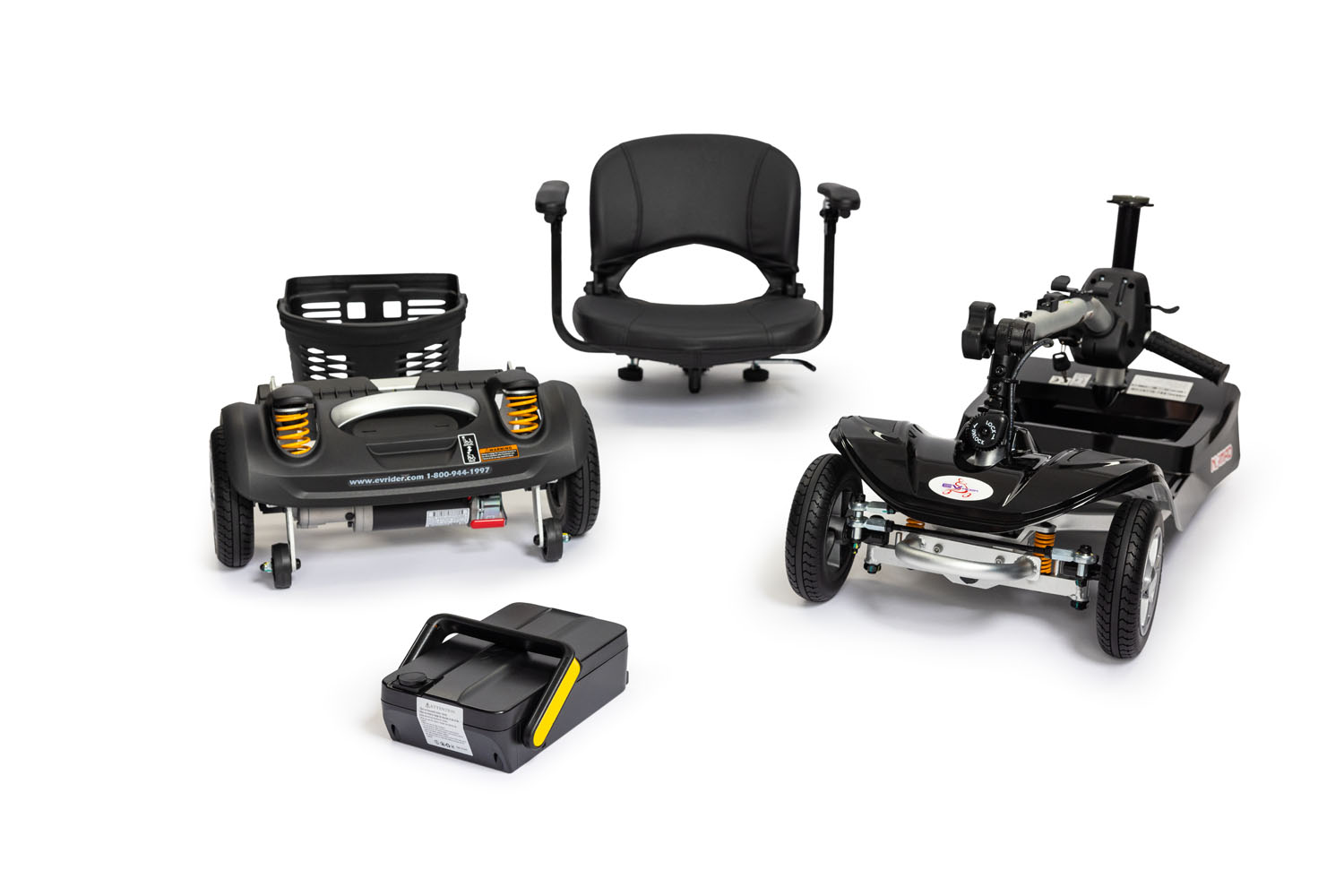

Quick Disassembly: The scooter can be easily disassembled
into four lightweight pieces, with the heaviest part
weighing just 20 lbs, facilitating effortless transport
and storage.
Compact Dimensions:
Measuring approximately 43" in length and 20" in width,
the Nomad navigates tight spaces with ease.
Lightweight Frame: Constructed from aircraft-grade
aluminum, the scooter's total weight is around 63.5 lbs,
enhancing portability.
Padded Seating: Features a
stadium-style padded seat with adjustable flip-up armrests
and a 360° swivel function for easy mounting and
dismounting.
Color Choices: Available in
black, blue, and silver, allowing users to select a style
that suits their preference.
Overall, the EV Rider Nomad is a versatile and
user-friendly mobility scooter, ideal for those seeking a
reliable companion for daily activities and travel.
For purchasing options, here are some retailers offering
the EV Rider Nomad.
Tight Turning Radius:
With a 49" turning radius, the Nomad is highly
maneuverable in confined spaces.
Safety Features: Includes automatic electromagnetic brakes
and rear anti-tipper wheels for enhanced stability and
safety.
Overall Length
1090mm – 43 in
Overall Width
500mm – 20 in
Overall Height (at Maximum
Tiller Height)
L 1090mmx W 500mm xH 910mm
(Unfolded) – 43 x 20 x 36 in
Overall Height – at Minimum
Tiller Height
L 1090mmx W 500mm xH 410mm
(Folded) – 43 x 20 x 16 in
Legroom – Floorboard Length x
Width
L 480mm x 340mm – 19 x 13 in
L 260mm x 340mm – 10 x 13 in
Deck Height – Floorboard to
Floor
80mm – 3 in
Ground Clearance
35mm(transaxle) – 1.5 in
Turning Radius
1225mm – 49 in
Weight with Std.
28.82 kg / 63.54 lb.
Weight without Batteries
26.84 kg / 59 lb.
Seat Type
Stadium Seat
Seat – Width & Depth & Height
W 425mm x D375mm x H310mm – 17
x 15 x 12 in
Seat – Cushion Thickness
50mm – 2 in
Seat Height – Cushion to Deck
400mm – 16 in
Seat Height – Cushion to Floor
480mm – 19 in
Tire Type
PU Tire
Rim Type Rear
Plastic
Rim Type Front
Plastic
Tire Type
Solid Tires
Outside Diameter Rear
7.5” – 7.5 in
Tire Width Rear
50 mm – 2 in
Outside Diameter Front
7.5” – 7.5 in
Tire Width Front
50 mm – 2 in
Battery Type & Power
10.3Ah Lithium ion battery
pack
Brake System
Automatic Electromagnetic
Brake
Climbing Angle – Maximum
Recommended
＜6°
Charger Type
2Ah
Charging Time
up to 5 hours
Controller
DYNAMIC 50A
*Driving Range
6.8 miles (11km)
Load Capacity
120KGS/264lbs
Motor & Drive Location
REAR SECTION
Max Speed
4 Miles/Hr/ 6KM/H
*Speed – Maximum
6.4kmh/4mph
Colors
BLUE/BLACK/SILVER
Tiller Type
KNUCKLE

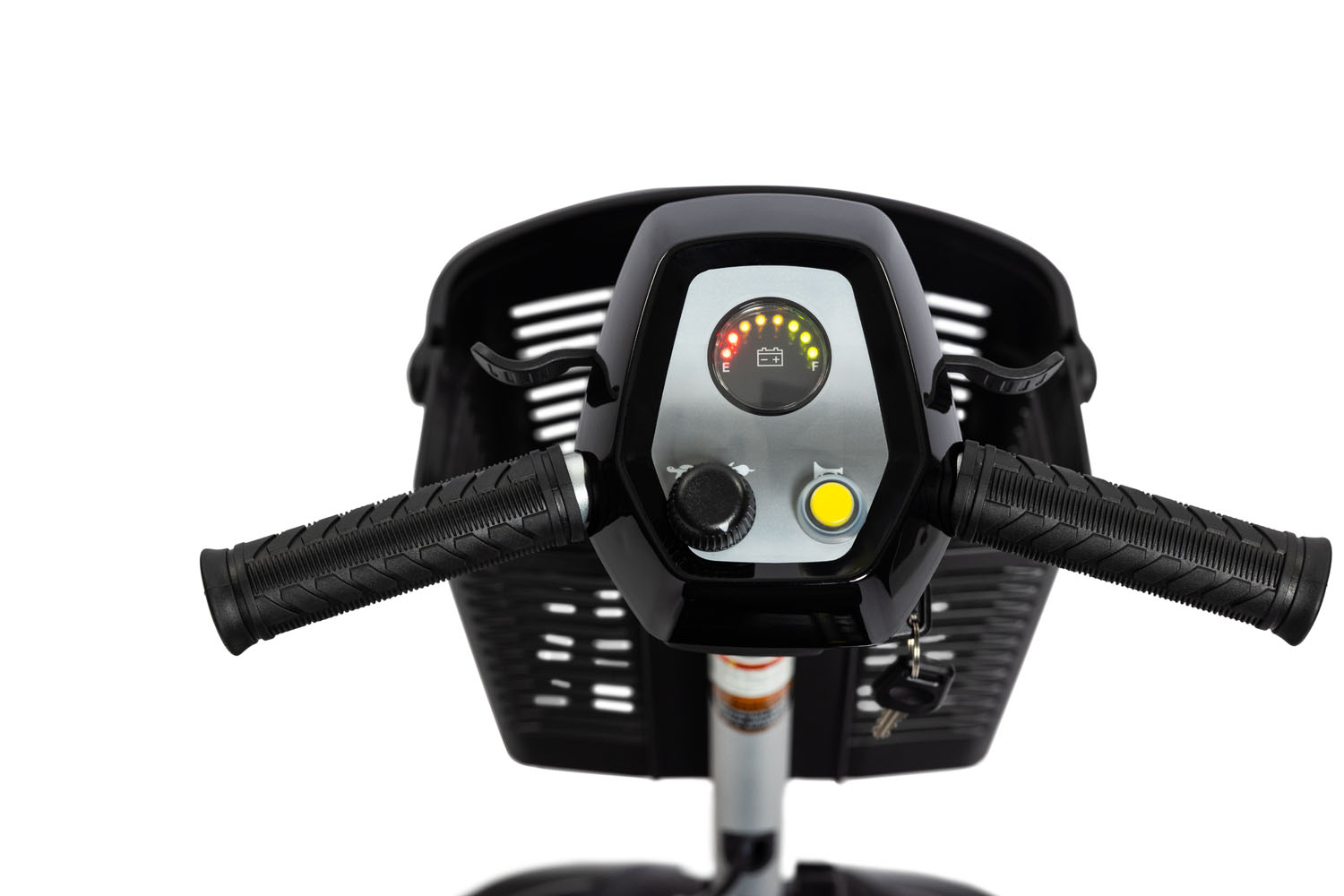

Throttle Control Type
WIG-WAG
Anti-Tipper Wheels-Rear
Two
The EV Rider Nomad 4 Wheel Mobility
Scooter
One Full
Year In Home Service Limited Warranty.
Your new
EV Rider Nomad Scooter comes
with a full One Year In Home Service Warranty. Stop worrying
about who would repair your scooter or how you would get
your scooter to them. This warranty has you covered! We will
send a trained professional repair technician directly to
your home in the event your scooter should need repair. We
cover the entire United States. The map below indicates the
location of our service affiliates.
Personalize your new
EV Rider Nomad EV Rider Nomad Scooter. Its
Free & Easy,
Simply select letter of font style below you like and enter
it in the order form along with the name or text you would
like to use to personalize your new scooter.
A
B
C
D
E
F
G
H
I
J
We include a Oxygen
Tank Holder Free with the purchase of this scooter. This
Oxygen Tank Holder will hold most any size tank. The chart
shown on the left indicates with a red arrow all tank sizes
this tank holder will accommodate. Also included free are
all items listed below.
