VH-55 RO Single Motorcycle Carrier with Ramp Option

Single Motorcycles Carrier with Ramp



PRODUCT INFORMATION

Features

What's Included

Specifications

  • Fits any class III or IV hitch
  • Powder coat finish
  • Easily stores away
  • Boxed for UPS shipping
  • Reversible Rails
  • Anti-tilt lock bracket
  • 24 in. main tube
  • Four retractable tie down bars
  • One 6.375 in. x 71.5 in. carrier track
  • One wheel stop
  • Two reflectors
  • One ramp
  • One snap pin
  • Dimensions
  • Model Number: VH-55
  • Description: Single motorcycle carrier with ramp
  • Approx. Shipping Wt.: 94 lbs.
  • Carrying Capacity: 500 lbs.
  • Length of carrier rail: 71.5 in.
  • Width of carrier rail: 6.375 in.
  • Pin to center of rail: 21.5 in.
  • Length of ramp: 60 in.
  • Width of ramp: 5.5 in.
  • VH-55 Instruction Booklet
  • VH-55 RK Instruction Booklet

LIMITATIONS

Carrier

Hitch

Vehicle

  • The VH-55 carrier is designed to safely carry 500 lbs.

  • The motorcycle ramp limits bikes to tires under 5.5 in.

  • Helix, Reflex, Majestic, Gold Wing, and Burgman scooters cannot be carried by a VH-55 due to their length. A VH-SPORT carrier is needed instead but further restrictions (weight/size) may apply. Calculator

  • Use the Minimum Ground Clearance Chart to determine the minimum ground clearance required to properly load your motorcycle or scooter onto a VH-55 or VH-55 DM carrier when using a VH-55 ramp.
  • Most Class III hitches are rated for 500 lbs.

  • Most Class IV hitches are rated for 1000 lbs.

  • Low Hitch: The VersaHaul main tube extends out of the hitch at the same level. Hitches low to the ground will not work properly.

  • Recessed Hitches will shorten the length of the carrier tube.

  • For Solutions see our Risers and Extenders on the accessories page.
  • Your hauling weight may be limited by your vehicle's capacity to carry a load.

  • Click here to find the Carrying Capacity of your vehicle.

Towing

  • The VH-55 has a Class III hitch on the end of the carrier. It is limited to light-duty applications.

  • The max towing weight, regardless of your vehicle, is 3000 lbs.

PICTURES

Click on the item to see a larger picture.


Protected by US Patents: US D554,041 S; 20070052206

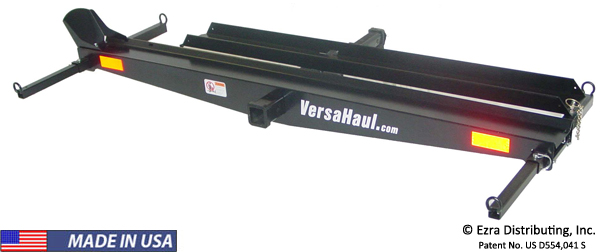

Versa Haul VH-55 RO Single Motorcycle Carrier with Ramp Option

Versahaul VH-55-RO Carrier

Qty: Price: $728.
