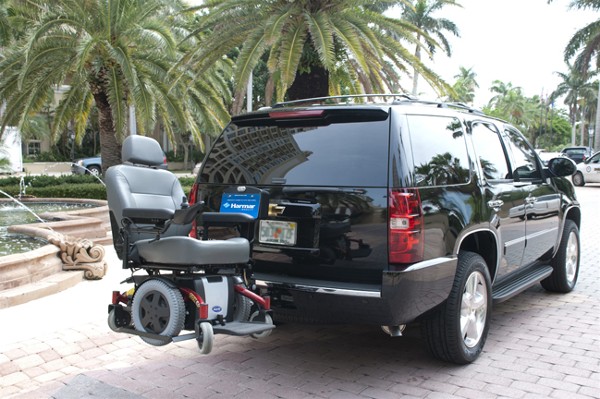

AL580 Next Generation Power Wheelchair Lift



Overview of the AL580 Next Generation Power Chair Lift

This fully automatic lift makes life simpler! This American-made outside platform lift features a padded arm that secures the wheelchair while in transit and includes a manual crank backup & license plate mount. Your power wheelchair does not require any modifications before placing it onto the lift and it also folds up automatically when not in use. There are no straps or tie-downs required to secure your chair to the lift. This product is designed to be used with Mid-wheel Power Chairs that have 10" drive wheels and vehicles that have a Class II or III Hitch. This lift has a low profile on the back your vehicle and does not take up much room and will not interfere with the rear view. This makes transportation of your power chair easy, safe and comfortable. This chair does not sacrifice any features despite being compact in size. This lift will work efficiently on a mid-wheel drive chair without making any adjustments to the chair and you can feel confident that your chair is securely attached to the vehicle (and no tie-downs or straps are needed!)

* Power Chair must have fold back arms

Features

Low profile design
Fully automated lift that folds down when not in use
Manual crank backup & license plate mount included
No wheelchair modifications necessary
No straps or tie-downs required
Use with vehicles with Grade II and III hitches

Specifications for the AL580 Next Generation Power Chair Lift

Type of Lift: Outside Lift
Operation: Power
Power Source: Battery
Hardwired
Recommended For: Power Wheelchairs
Lifting Capacity: 350 lbs.
Platform Size - Length: 27 in.
Platform Size - Width: 17 in.
Installed Product Weight: 83 lbs.
Works With Hitch Size: Class II Hitch
Class III Hitch
Hitch Height: 5 to 24"
Professional Install Available: Yes
Service Contract Available: No
Warranty: 3 Year Limited Warranty
Warranty - Transferable Warranty: Yes
Battery Pack Option: Yes





Lifting Capacity

350lbs

Platform Size

16.5" x 27"

Installed Weight

83lbs

Hitch Height (range)

5" - 24" (with appropriate hitch adapter installed)

Hitch Class

II or III

Warranty

3-Year Transferable

AL580 Brochure

AL580 Lift Manual

AL580 Specs

Use The Harmar Calculator To Determine The Best Lift For Your Application.



Harmar Mobility AL580 Next Generation Power Wheelchair Lift

Harmar AL-580 Wheelchair Lift

Make & Model Of Vehicle:

Make & Model Of Wheelchair:

Hitch:
Class II Hitch 1 1/4'' Inch Square
Class III Hitch 2' Inch Square

All Weather Vinyl Cover:
Small Power Wheelchair Cover $84.
Medium Power Wheelchair Cover $87.
Large Power Wheelchair Cover $89.
No Vinyl Weather Cover

Shipping:
Ground
FREE
UPS 2nd Day Air $154.
