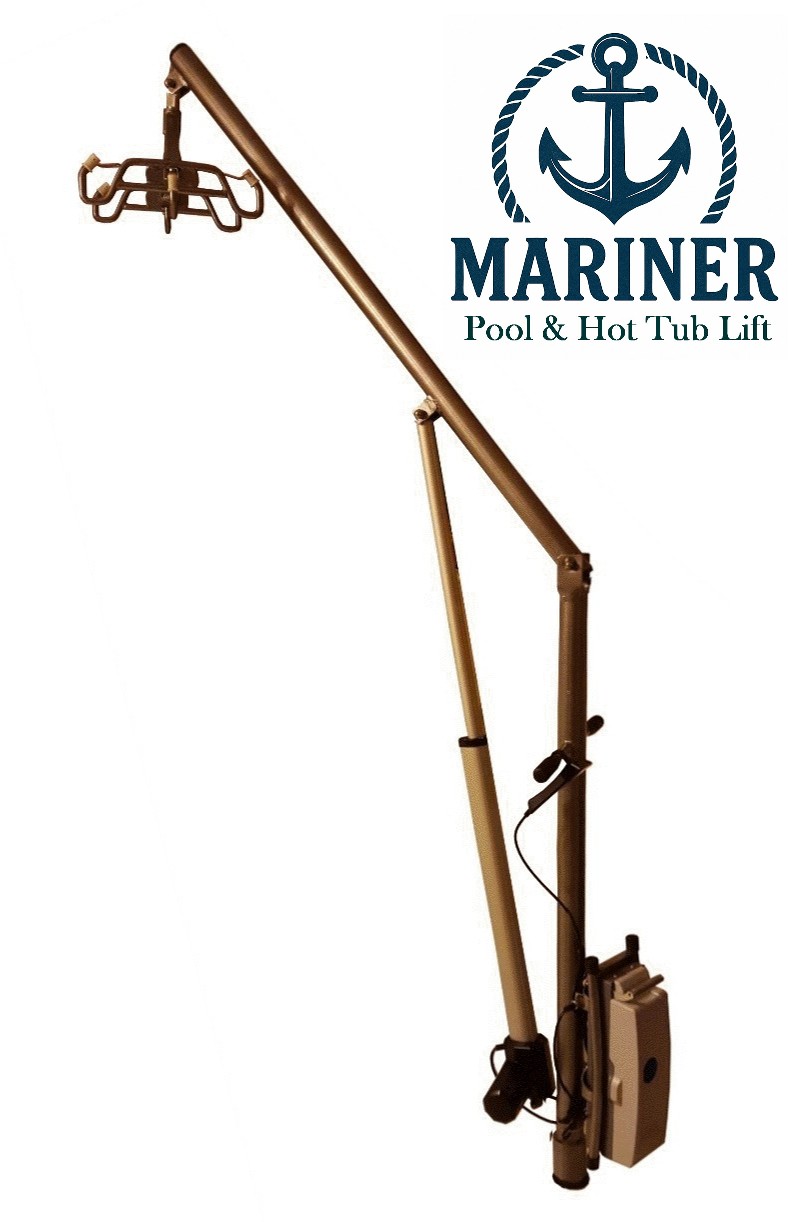

Mariner Electric
Power Pool Lift |
|
 |
|
 Patient
Pool Lift
The Mariner Semi Automatic Power Pool Lift Is The
Worlds Only Pool Lift With A Full Eight Feet Of Travel
Making It A Multi Applications Lift That Is Used For Above
Ground And In Ground Pools, Spas, Hot Tubs, Bath Tubs,
Boats And Many Other Applications Such As A Lift Transfer
From Wheelchair To Bed. The Mariner Is Made Of The Highest
Quality Stainless Steel At All Critical Points And
Galvanized Steel With A Poly-Bond Finish At All Non
Critical Points. Therefore The Mariner Will Never Rust Or
Corrode. Every Mariner Lift Is Tested At 350 Pounds. With
the Mariner Weighing Only 61 Pounds It Is Easily
Transported From Station To Station Or Anchor To Anchor.
For Example If You Had A Pool, A Spa And A Standard Bath
Tub You Could Install An Anchor At Each Location, Then
Move The Mariner From One Station To The Other. The
Mariner
Patient Pool Lift Is Made Of The Absolute Best Material
Available Providing The Customer With The Highest Quality
Product At The Lowest Prices Possible. One Concrete Anchor
Is Provide At No Charge With The Purchase Of The
Mariner And Is Normally All That Is Ever Needed For Basic
Installations. The Mariner Is Also Available In A
Fully Automatic Version. |
|
|
|
|
|
|
|
 |
|
The
Mariner Patient Pool Lift Works Great For The Following Applications.
1) In-ground Pool
2) Above Ground Pool
3) Half Sunk Pool
4) All Spas In-ground & Above Ground

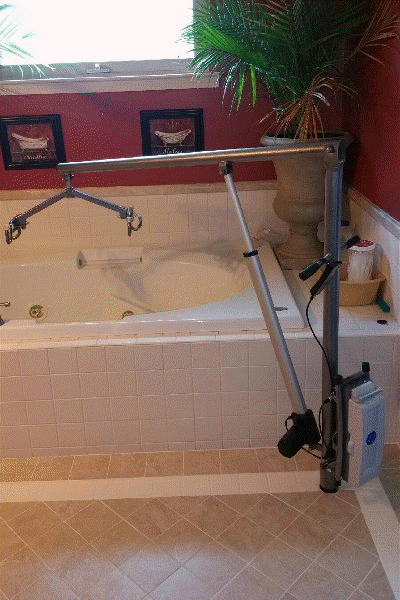

5) Bath Tubs In Home & Institutional
6) Hot Tubs & Jacuzzi's
7) Patient Boat Lift. Transfer From Dock To A Boat.
8) Patient Lift Used To Get A Person In And Out Of Bed.
* View photos below showing the
Mariner used in many different applications.
* The Mariner Comes With A Limited Life Time Guarantee.
* The Only Aquatic Lift With A Six Point Carry Bar & 24ah
Batteries That Will Make Over 100 Lifts Up & Down On A
Single Charge. |

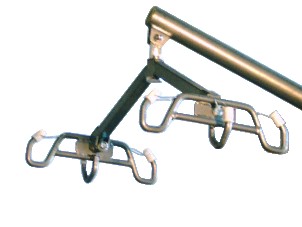

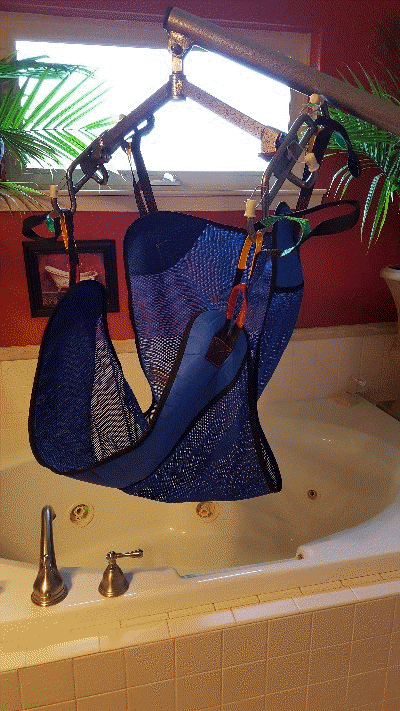

The Mariner Battery Power
Pool Lift comes standard with a 6 point carry bar verses a
two point carry bar found on all other lifts.
The 6 point carry bar not only gives you far greater
support it adds comfort for the person being transferred
as well as making it easier for the assistant transferring
them. |
 |
| |
|
|

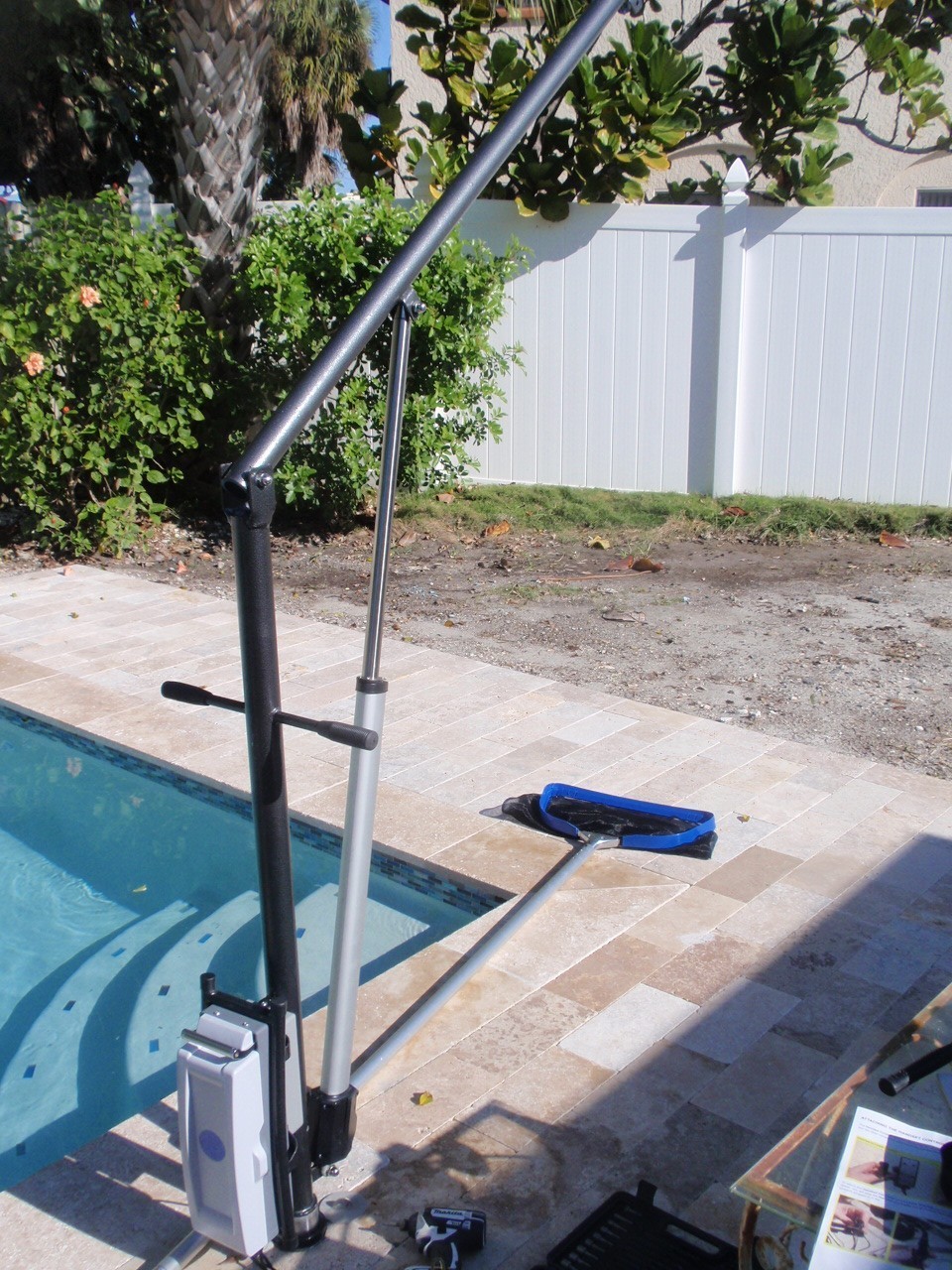

This installation utilizes the
concrete anchor that is included with the purchase of each
Mariner. We do offer a surface mount anchor sold separately
that is best for wooden decks. (see more information
below) |
 |
 |
|

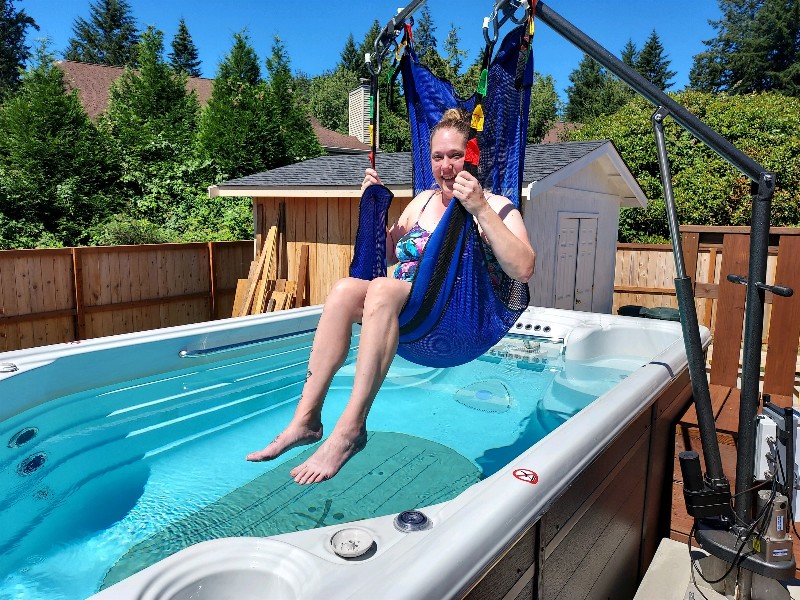

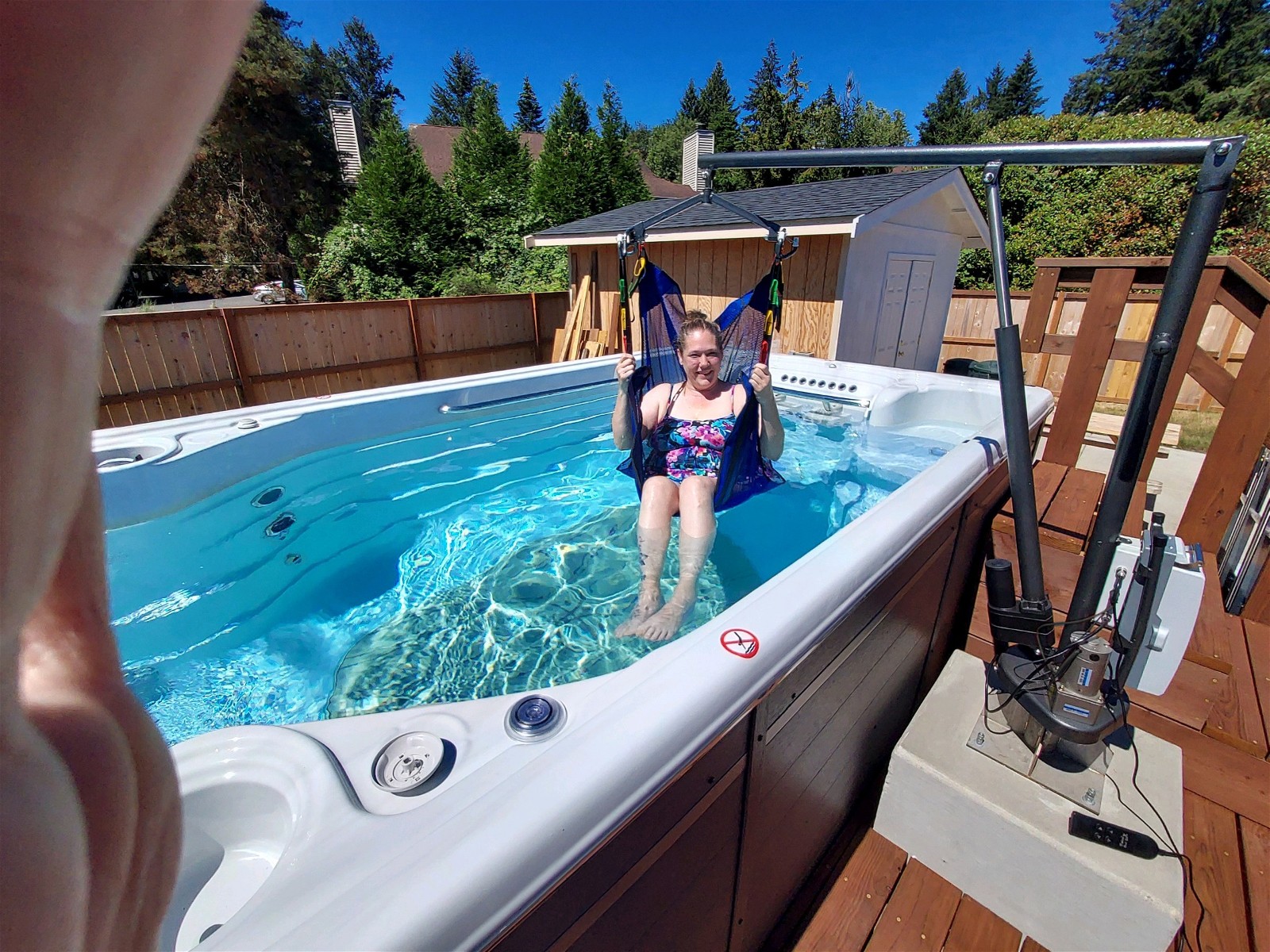

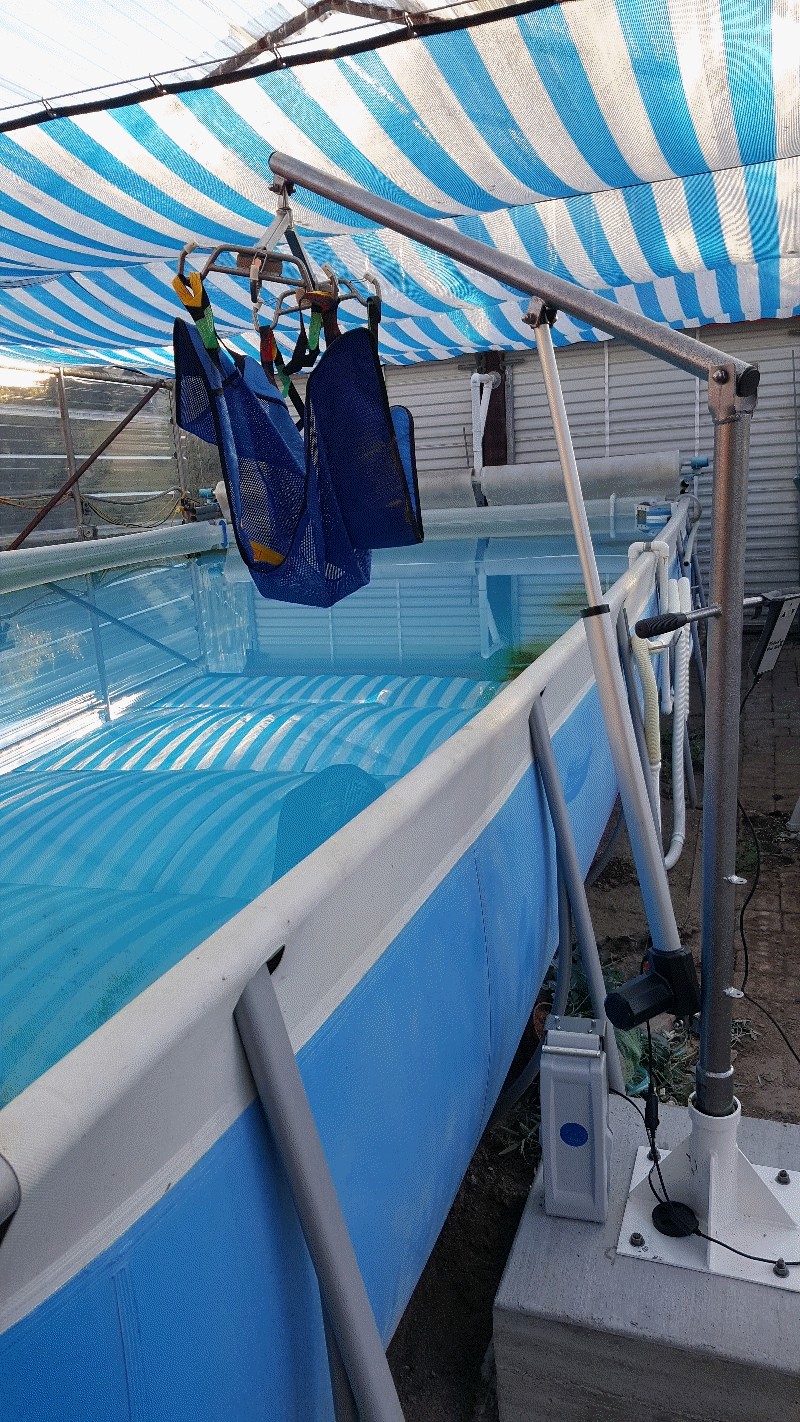

The Mariner is the only truly a
hybrid pool loft allowing it accommodate both a in ground
and above ground pool or Jacuzzi.
The hammock mesh sling
shown to the left is provided with the lift. Their is a
hard seat available as a optional upgrade. The
armrest fold down completely out of the way on both sides. |
| |
|
 |
| |
|
 |
|
The Mariner Power Pool Lift is
the perfect multi purpose patient lift. The Mariner can be used
indoors and outdoors. Also the Mariner will accommodate any application,
above ground or
in ground pools as well as above ground or in ground
Jacuzzi & spas.
Using the Mariner Patient Pool
Lift is even easier.

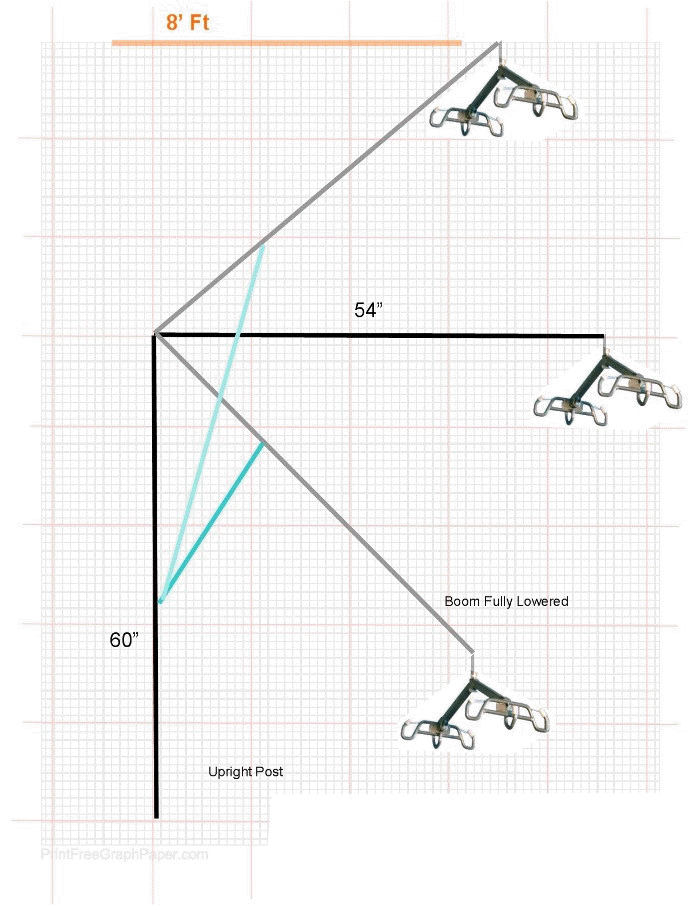

With the simple push of a button you can lower and raise
the lift with a travel of eight feet. This lowers and
raises the occupant into and out of the water. Each and
every Mariner is fully load tested while rotating 360 Degrees,
insuring that the Mariner will be easy to operate. The ease
of rotation is due to the Mariners unique anchor & sleeve
system that makes the Mariner nearly frictionless.
|
| |
|
|

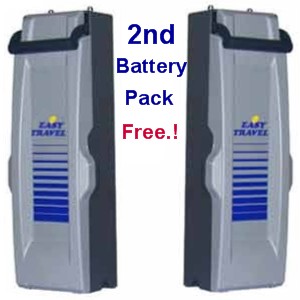

The Mariner comes standard with a
second battery
pack
FREE. Both are a
full 24ah. This allows you to be charging one battery
and using the other,
giving you piece of mind knowing that you will
always have power for your Mariner Power Lift. |
 |
 |
|

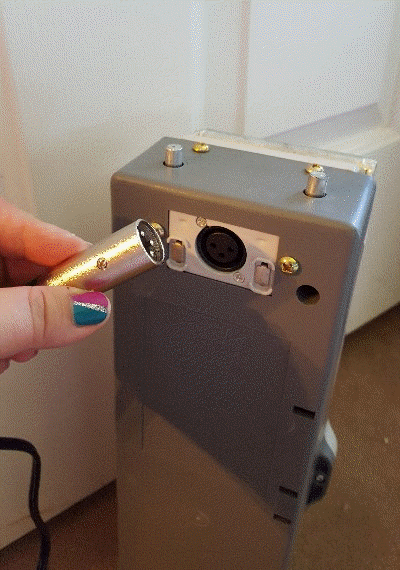

Charge the
batteries anywhere. With the Mariner Power Pool & Spa
Lift their is no need to use extension cords to supply
power to the location of the lift. The Mariner
batteries simply lift off and can be taken to any
location for charging. Just one of the Mariner
batteries will provide as many as one hundred lifts in and
out of a pool or spa on a single charge.
|
| |
|
| |
|
 |
| |
The Mariner comes standard with a
quick dry soft mesh sling, however the Mariner also offers
a Hard Shell Seat Option. This option is perfect for
people that can stand and pivot then sit into the seat
allowing the Mariner to lift them in & out of the pool.
This option is only recommended for pools, not Hot Tubs or
Spas. The soft mesh quick dry sling is used for people
with extremely low to no mobility at all for example a
quadriplegic. |
|
| |
|
|

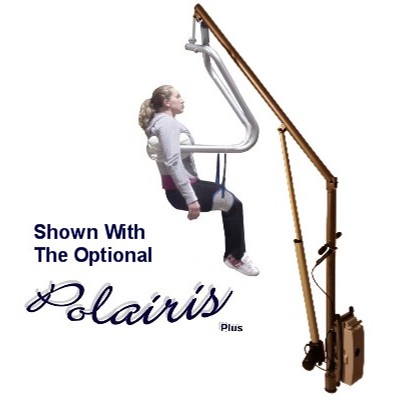

Optional Polairis Plus
The Polairis Plus is now available when ordering your
Mariner. The Polais is a unique ridged sling allowing a
person to be lifted in a seated position without a cloth
sling under them. Some people prefer this to a
conventional cloth sling. |
 |
 |

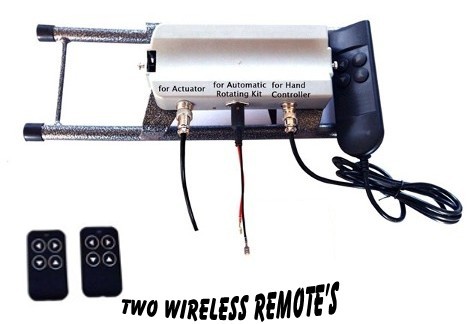

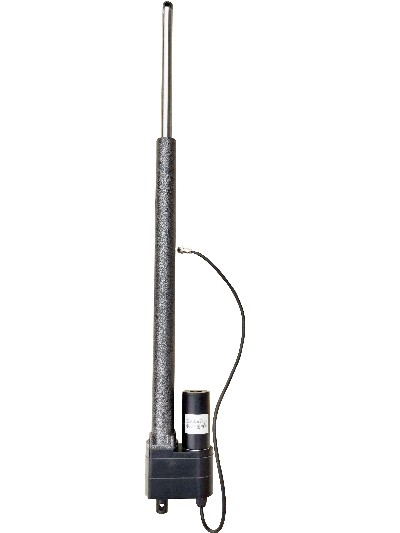

The All New High Performance Stainless Steel Actuator,
Providing Quicker Transfers And More Freedom With The Two
Waterproof Wireless Transmitters.
The New High Performance Actuator
Utilizes A Controller And Printed Circuit Board That
Incorporates Two New Wireless Keychain Remotes In Addition
To Its Standard Tethered Or Wired Remote.
In Addition The Mariner
Has The Ability Raise And Lower The Lift Manually. |
|
|
| |
 |
The Stainless Steel Concrete Anchor Is Designed With A
Nylon Wear Sleeve That Allows For A Smooth 360 Degree
Rotation. One Stainless Steel Concrete Anchor Is
Included
Free
And Is The Only Anchor Required To Install
And Use The Mariner Power Pool Lift.
Additional Anchors May Be Purchased Allowing You To Move
The Mariner From One Location To Another. For Example If
You Had Both A Pool And A Jacuzzi You Could Get A
Second Anchor And Move The Lift From Pool To Jacuzzi
Allowing You To Use One Lift For Both Your Pool And
Jacuzzi. |
|

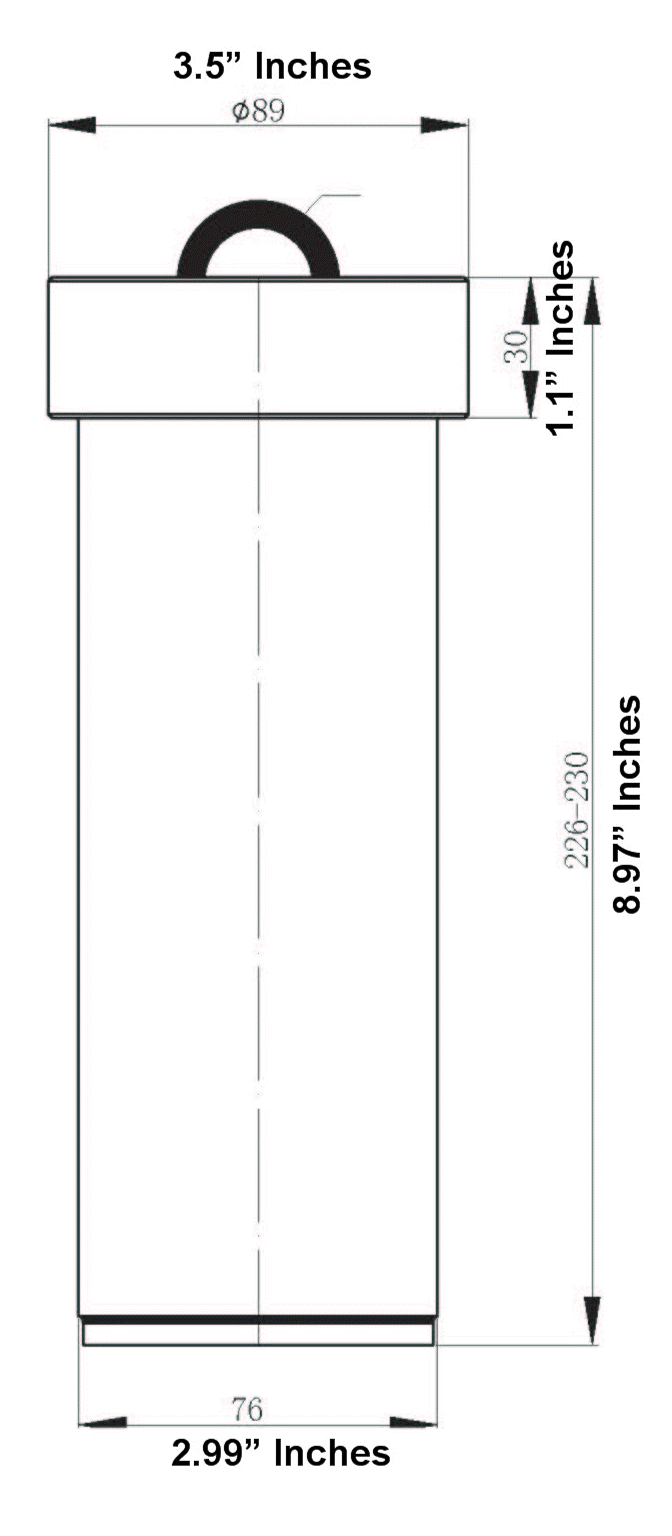

The Drawing To The Right Gives
You The Dimensions Of The Concrete Anchor. It Is (8.97
Inch Deep) (2.99 Inch's Wide At The Bottom) And (3.5
Inch's Wide At The Top.) It Is Recommended That This
Anchor Be Installed By Drilling A Whole In Existing
Concrete That Is 3.5 Inch's In Diameter And Filling Void
With Hydraulic Cement. |
 |
|
Product Weight: |
61 lbs. |
|
Shipping Dimensions (box 1): |
62"/ 17.75"/ 5.25" |
|
Ship Method (s): |
Ground, Next Day, 2 Day, 3 Day |
|
Product Weight Capacity: |
350 lbs. |
|
Mounting Style |
Cement-in Sleeve/Surface Mount |
|
Mast Height |
Cement-In Sleeve: 51 in.
Surface Mount: 61 in. |
|
Range of Boom |
Cement-In Sleeve: 86.25 in.
Surface Mount: 96 in |
|
Sling Seat Height |
74" Inches High To
Negative -34" Inches (Note:
Below deck with lanyards) |
|
Boom Length |
54 in. |
|
Finish |
Stainless Steel and
Extremely Durable With Epoxy Quality Finish. |
|
Battery |
24 Volt SLA / 24ah |
|
Made Of |
Stainless Steel & Galvanized Steel |
|
ADA Compliant |
The Mariner is not ADA compliant and not UL listed. |
|
Hard Shell Seat |
Top Of Boom To Bottom Of Seat 46" |
|
Manual |
Mariner
Owners Manual |
|
 |
The Mariner Patient Pool
Lift is extremely
easy to use. With the simple push of a button you
can lift a
person in or out of a Pool, Spa, Tub, Bed or even a Boat. |
|
|
 |
The
Mariner
Is The Worlds Only Pool Lift With A Travel Of Eight
Feet Allowing It To Be Used For Both An In Ground
Pool As Well As An Above Ground Pool. This Gives You
A Great Advantage, As You Can Now Use It For Any
Application And If You Do Have An In Ground Pool
As Well As An Above Ground Jacuzzi You Are Only
Buying One Lift. |
| |
|
|

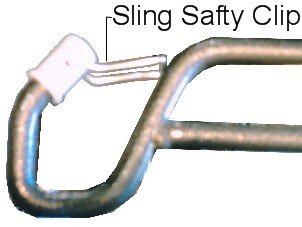

Looking for safety, The
Mariner
Patient Pool Lift has a one of a
kind safety clip not found on any other pool or
Jacuzzi lift. This clip insures that after draping
the nylon strap when attaching the sling to all 6
carry bar points that they will not slip off. Without this safety clip one or
more straps could potentially slip off prior
to lifting. If this happened and a loop did come
off prior to lifting a person could be hurt. This
safety clip insures that each and every 6 point
attachment will stay in place and not come loose
prior to lifting.
|
|
 |
| |
|
 |
| |
The
Mariner Power Lift Will Also Allow A Person
Access To Transfer From A Dock To A Boat. With Two Anchors You Can Easily Move Your
Mariner Power Lift From One Location To Another. |
|
| |
|
|
| |
|
|
|
|
|
The
Mariner Pool & Spa Lift |
|
|
|
Mariner
Patient Pool Lift
|
|
|
