Wheelchair vertical lifts
HBL300/HBL600

No fixing required

Corrosion-resistant

230 V connection

Infrared remote control comes as standard

With adjustable back and panels

Various finishes Platform design optional

Only 40 mm ride-on ramp height

Can travel straight or round corners

Features:

• Needs no pit
• Simple installation without fixing
• Low platform construction so the ride-on ramp is only 40 mm high
• Equipped with adjustable back and panels at the upper stop position
• Made of high-grade steel and aluminium
• Infrared remote control comes as standard (also optional cable remote control)
• Quiet operation
• Low weight
• Special sizes are possible

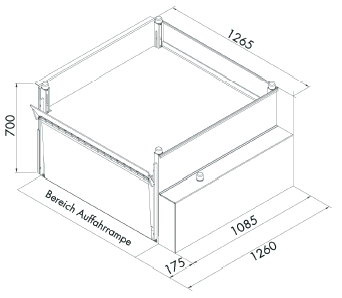

Technical data	Straight run	Run round corner
Overall width:	1050 mm	1295 mm
Overall length:	1505 mm	1260 mm
Platform width	800 mm	1000 mm
Platform length	1200 mm	1000 mm
Ride-on ramp length	120 mm	120 mm
	HBL300	HBL600
Lifting height:	Up to 300 mm	Up to 600 mm
Electrical connection:	230 V	230 V
Max. load:	200 kg	200 kg
Speed:	ca. 0,15 m/s	ca. 0,15 m/s



	Special sizes possible
