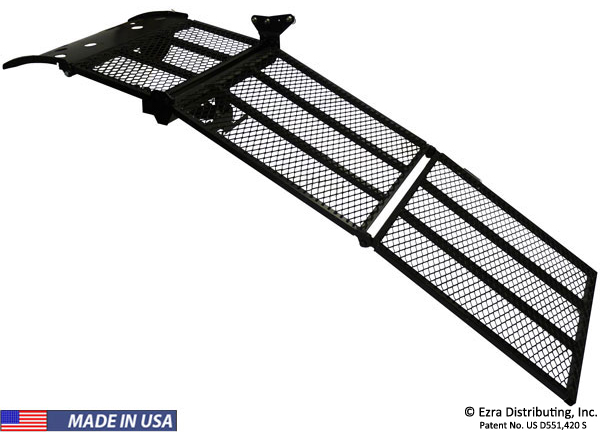

- 89 in. folding ramp
- Ramp easily lock into a folded upright position with
spring pull locks

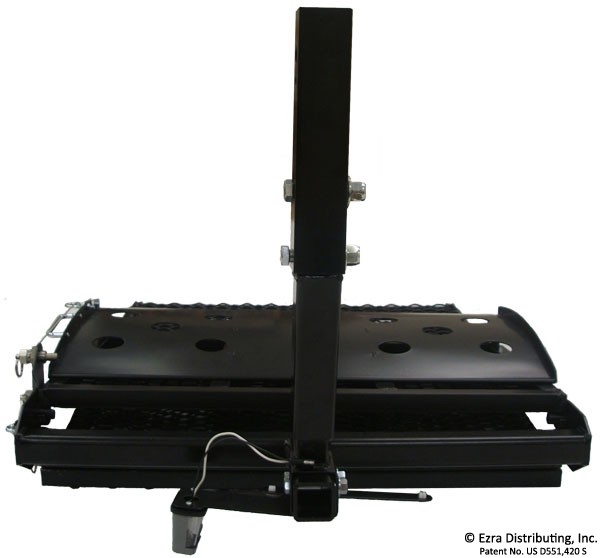

- Ramp folds into a vertical position when not in use
- Ramp can be removed
- Adjustable vertically and horizontally to fit wide
variety of vehicles
- Carrier comes standard with both class II and class
III hitch inserts.
- Tough powder coat finish
|
- Anti-tilt locking device
- Hitch-mounted folding safety ramp
- Ramp bracket
- Class II stinger (1-1/4 in)
- Class III stinger sleeve (2 in)
|
- Model Number:
VH-SR
- Description: Mobility Scooter Safety Ramp
- Approx. Shipping Wt.: 80 lbs.
- Max Load: 350 lbs.
- Length of lower ramp: 60" in.
- Length of upper ramp: 29.5" in.
- Width of ramp: 28" in.
- Height from hitch pin to upper ramp:15 in. - 18
in.
- Length from hitch pin to vertical support bar:
15 in. - 20 in.
-
VH-SR
Instruction Booklet
|
