VH-MS XL Mobility Scooter Carrier XL

>>> Free Shipping On All Scooter/Wheelchair Lifts <<<

Mobility Scooter Carrier XL

PRODUCT INFORMATION

Features

What's Included

Specifications

  • 61 in. center folding ramp
  • Ramp easily lock into a folded upright position with spring pull locks
  • Ramp folds into a flat position when not in use
  • Ramp can be removed
  • Carrier tilts up when not in use.
  • Carrier comes standard with a class III hitch insert.
  • 13 slots for tie down hooks
  • Tough powder coat finish
  • Tray has a 58.75 in. x 32.75 in. of carrying area
  • Anti-tilt locking device
  • Carrier tray
  • Center folding ramp
  • Ramp bracket
  • Class III stinger sleeve (2 in)
  • Safety lanyard





  • Dimensions
  • Model Number: VH-MS XL
  • Description: XL Mobility Scooter carrier
  • Approx. Shipping Wt.: 120 lbs.
  • Carrying Capacity Unit: 500 lbs.
  • Length of carrier tray (inner): 58.375 in.
  • Width of carrier tray (inner): 32.75 in.
  • Height of carrier tray: 4 in.
  • Pin hole to tray edge (folded): 4.25 in.
  • Length of ramp: 61 in.
  • Width of ramp: 32.5 in.
  • VH-MS XL Instruction Booklet

LIMITATIONS

Carrier

Hitch

Vehicle

  • The VH-MS XL carrier is designed to safely carry 500 lbs.

  • Use the Minimum Ground Clearance Chart to determine the minimum ground clearance required to properly load your mobility scooter onto a VH-MS or VH-MS XL carrier.
  • Most Class III hitches are rated for 500 lbs.

  • Most Class IV hitches are rated for 1000 lbs.

  • Low Hitch: The VersaHaul main tube extends out of the hitch at the same level. Hitches low to the ground will not work properly.

  • Recessed Hitches will prevent the carrier tray from folding vertically.

  • For Solutions see our Risers and Extenders on the accessories page.





  • Your hauling weight may be limited by your vehicle's capacity to carry a load.

  • Click here to find the Carrying Capacity of your vehicle.

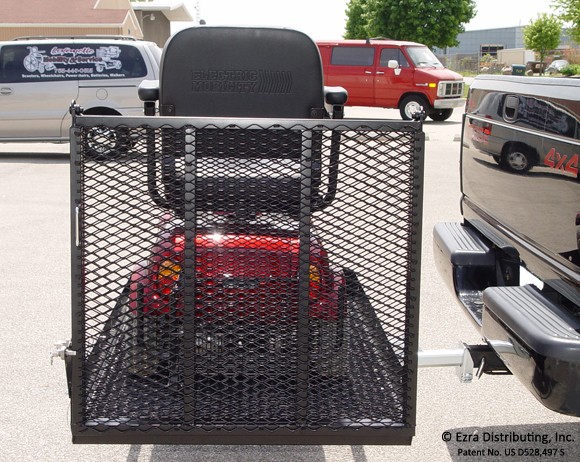

PICTURES

Click on the item to see a larger picture.

Mobility Scooter Carrier XL Mobility Scooter Carrier XL Mobility Scooter Carrier XL Mobility Scooter Carrier XL Mobility Scooter Carrier XL
Mobility Scooter Carrier XL Mobility Scooter Carrier XL Mobility Scooter Carrier XL Mobility Scooter Carrier XL Mobility Scooter Carrier XL
Mobility Scooter Carrier XL Mobility Scooter Carrier XL Mobility Scooter Carrier XL Mobility Scooter Carrier XL Mobility Scooter Carrier XL
Protected by US Patents: US D528,497 S, 20070052206 and Patent(s) Pending


Versa Haul VH-MS XL Mobility Scooter Carrier XL
FREE Shipping

Versahaul VH-MS-XL Carrier
Qty: Price: $806

Four Point Ratchet Tie Down System:
No Thank You.
Four Point Ratchet Tie Down System $34.88

Select Shipping:
Standard UPS Ground
FREE
Three Day Air $287.
