AL435 Axis III / 3-Axis Inside Lift

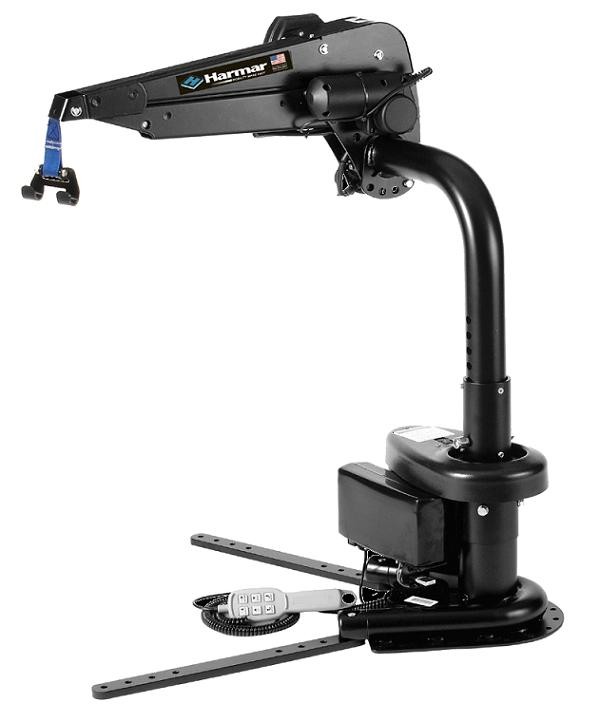

Harmar Mobility AL435 Axis III / 3-Axis Inside Lift

Overview of the AL435 Axis III

The Harmar AL435 Axis III vehicle lift is more versatile and flexible than any other inside lift on the market. It will fit in most vehicles including mini-vans, full sized vans, SUVs and pick-up trucks. The Axis III bolts into the floor of the trunk or cargo area and has an adjustable arm angle that folds for additional storage and with fully powered lifting, boom arm and rotation loading is effortless.

Capabilities

With an additional 12" reach the Axis III can be used on vehicles with liftgates and on larger vehicles. The 200º of rotation allows you to position your scooter or powerchair on the sidewalk next to your vehicle and the offset arm provides clearance around a vehicle opening.

What You Need to Know When Ordering

Units which bolt to floor or are wired to your vehicle’s battery can be challenging to install for those not mechanically inclined. Please note that if you have Stow and Go seating in your van or SUV, you may be required to purchase an adaptor kit for this lift.

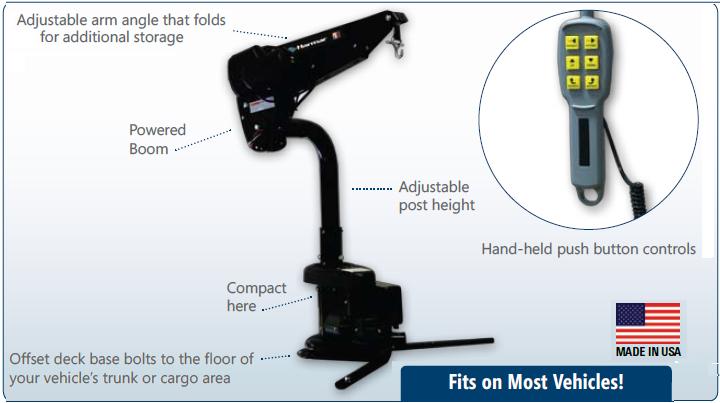

Features

Can lift large scooters and powerchairs into small vehicle openings
Installs on either side of the vehicle
Adjustable post height
Powered lifting and rotation with manual rotation release in case of power failure
Ergonomic push button hand control
Compatible with power hatches

Key Specs

Works With Hitch Size: N/A
Weight capacity: 400 lbs.
Weight: 114 lbs.

Specifications for the AL435 Axis III

Lifting Capacity: 400 lbs.
Product Weight: 114 lbs.
Lifting Height Range: 31"-39"
Boom Adjustment Range: 21"-33"
Harmar Mobility's 3 Year Manufacturer's Warranty
Arm Angle Adjustment: 5º Increments from Horizontal to 35+
Column Rotation: 180º Adjustable with 20º Increments
Base Leg Adjustment: 180º Adjustment
Operation: Power Lifting and Power Rotation



AL435 controler and items



Maximum Lifting Capacity: 400 pounds
Weight of Lift: 114 pounds
Maximum Lifting Height: 39” at Horizontal Boom Position
Minimum Lifting Height: 31” at Horizontal Boom Position
Range of Boom Adjustment: 12” Powered from 21” to 33”
Column Rotation: 180˚ Adj. at +/- 20˚ Increments
Base Leg Adjustment: 180˚ Total Adjustment
  AL435 Specs
  AL435 Brochure
Use The Harmar Calculator To Determine The Best Lift For Your Application.

Harmar Mobility AL435 Axis III / 3-Axis Inside Lift



The AL-435 Harmar Mobility Lift

Qty: Price: $3740.

Year Make And Model Of Your Vehicle:
Name Of Your Scooter Or Wheelchair:

Select Docking Device (Part That Connects Your Scooter Or Wheelchair):
DD-17 (Lift Scooter Or Wheelchair Without Seat On)
FREE
DD-19 (Lift Scooter Or Wheelchair Without removing The Seat) $128.
DD-14 Power Chair Bridles $99.00
DD-20 (Used Only For Power Wheelchairs) $119.
DD-21 Spreader bar docking device with power chair bridle $139.

AL205 - Battery Pack $279.00
AT01 Optional All Thread Kit for Irregular Floors $39.00
DD18 Telescoping Docking Device for use with C ARM $38.00

Select Shipping:
Standard Ground
FREE
Three Day Air $98.
Two Day Air $187.
