Tzora APT1 & APT 5 Active Passive Hand Bike






Active Passive Trainer

Highly portable, weighing only 22 lbs / 10kg the APT-1 can be positioned anywhere. Place it on the floor for lower body exercises or on a table top for upper body workout.

Other features include exclusive, easily changeable accessories that enable complete utilization of the APT-1 by users with different and varied physical difficulties.

Passive Mode
5 speeds for passive exercising.
Auto reverse feature ensures release of seized muscles.

Upper and lower limb training for passive, disabled users.

Improve circulation, muscle tone and range of motion.

Decrease atrophy, spasms and swelling.
Reduces total limb resistance to passive cycling.
Normalizes lower extremities muscle tone.



Clinical Applications:
Spinal cord injury
Spina Bifida
Cerebrovascular Incidence (CVA)
Cerebral Palsy
Myopathies
Congenital Muscular Dystrophy

Active Mode
5 levels of resistance for Active exercising.
Active training for upper and lower limbs.
Adjustable crank-arm height and length.
Improve blood circulation, strength
endurance and muscle-tone.
Learn the motorics of cycling.
Activate rhythmical locomotion patterns.

Clinical Applications:
Senior citizens
Orthopedic pathologies (partial weight bearing)
Children with motoric disorders
Post traumatic brain damage
Parkinson
Multiple Sclerosis
Post Polio Syndrome
Post Cardiac Rehabilitation


The APT is a revolutionary family of Active and Passive Trainers for upper and lower limb exercising. Whatever your age or fitness level, the APT offers you a wide choice of exercise options.

  • For Active limbs the APT offers muscle strengthening, increasing range of motion and cardio-vascular exercising.


  • For Passive limbs the APT offers improves blood circulation, range of motion and muscle tone.





The heart of all the APT models is the patented drive/resistant unit that offers the users:
  • A smooth rotation in both the active a passive modes utilizing the unique flywheel that rotates at

    an ultra-high velocity.

  • The simple effortless range of motion adjustment.

  • Quick release handgrips and footrests interchanging.




The APT is available in two main models, Active Passive Trainer and Active Trainer.


Both trainers can be supplied in the portable folding version or heavy duty Hi-Lo version.

A wide range of accessories is available for all the different models.





Footplate's allow the user to work out their lower body as well as upper body and although the footplate are normally a option we include them FREE.



The height of the crank arms can be adjusted on both the folding and Hi-lo versions of the APT's for maximum exercising efficiency.


Auto Reverse to Relieve Spasms

An individual that experiences spasms can benefit from the AUTO REVERSE  technology and feel safe in the process. When AUTO REVERSE   is activated, the APT Cycle will automatically shut off when it senses a spasm, wait a few seconds and then continue in the opposite direction. This sensor-activated therapy is repeated until the user's spasms are relieved! Auto Reverse to Build Strength





A person that doesn't have enough strength to manually exercise on a stationary bike is able to increase his or her strength by using AUTO REVERSE. This muscle strengthening therapy consists of putting pressure against the APT Cycle, while in its motorized mode until the machine stops. After the Cycle stops, the machine will reverse its direction.

Bio-Feedback

The APT-5 Cycle displays Bio-Feedback which enables users to gauge their progressions in range of motion, muscle stiffness and strength. People with no use of their upper and (or) lower limbs can use the Bio-feedback to measure improvements in their range of motion and muscle stiffness.

Resistance Mechanism

The Cycles GEAR-BASED RESISTANCE MECHANISM provides resistance that is
smooth, consistent and reliable. Upper and Lower Body.




10 speeds for passive exercising.
Auto reverse feature ensures release of seized muscles.


Upper and lower limb training for passive, disabled users.

Improve circulation, muscle tone and range of motion.

Decrease atrophy, spasms and swelling.
Reduces total limb resistance to passive cycling.

Normalizes lower extremities muscle tone.






Cycles are available in portable
packages (weighing only 22 pounds)
or on counterbalanced stands for
ease of height adjustment.

4 The APT-5 Cycle utilize
interchangeable, hand grips and
foot plates.


Increases:

  • Blood circulation
  • Stamina
  • Strength
  • Range of motion
  • Bladder control
  • Muscle tone


Decrease:


  • Atrophy
  • Spasm
  • Swelling






Clinical Studies & Why The APT


Why It Helps The Brian why-brain.pdf
Why It Helps Cerebral Palsy why-cp.pdf
Why It Helps Dialysis Patients why-dialysis.pdf
Why It Helps Muscular Sclerosis why-ms.pdf
Why It Helps Muscular Conditions why-musclar.pdf
Why It Helps Parkinson's why-parkinson.pdf
Why It Helps PPS why-pps.pdf
Why It Helps Rehab Patients why-rehab.pdf
Why It Helps Seniors why-senior.pdf
Why It Helps Spinal Cord Injuries why-spital.pdf
Why It Helps Children wy-children.pdf


Videos - Watch The PT In Action


Clinical Application CPaGLV.mpg
Home Care CVA - catching.mpg
Operation Dial.mpg

A.P.T.

Active Passive Trainer



The APT is an electrically powered exercise trainer designed to improve physical abilities.
The
APT is designed to provide an extensive range of active and passive exercise modes for upper and lower body training and fitness.

The APT can be operated in either ACTIVE mode at varying degrees of resistance or in
PASSIVE mode at adjustable speed and torque levels. While the machine is in PASSIVE mode, it is possible to combine both PASSIVE and ACTIVE training by using physical effort in conjunction with the electrical operation of the motor.

The APT serves individuals with limited or no muscular power (i.e. spinal cord injuries, MS, Polio, CP, ALS, Dialysis, etc.).

The APT's light weight (only 22lb /10Kg) makes it portable, easy to store and convenient to use in the comfort of one's home. The unit is also suitable for use in healthcare institutions.

The APT can be supplied as a stand alone unit or attached to a Hi-Lo stand.




1

On/Off button: green indicator is lit when the APT-5 is switched on.

2

Mode button: for selecting active or passive mode of operation.

3

Green indicator is lit when ACTIVE mode is selected by mode button.

4

Green indicator is lit when PASSIVE mode is selected by mode button.

5

Indicates actual load level as percentage of chosen load level (see 16).

6

Button for forward operation in the PASSIVE mode. The green indicator is lit to indicate forward operation.

7

Button for backward operation in the PASSIVE mode. The green indicator is lit to indicate backward operation.

8

Button activating Auto-Reverse function in the PASSIVE mode. In the ACTIVE mode this button activates the constant force function. The green indicator is lit when activated.

9

Button for selecting display of data, (see 10-13):

10

Green indicator is lit when Timer display is selected. The display will show the time the APT-5 has been used in the current exercise period.

11 Green indicator is lit when Counter display is selected. The display will show the total amount of revolutions of the crank arm in the current exercise period.
12 Green indicator is lit when Power display is selected. The display will show the power during exercise in Watts � only in Active mode.
13 Green indicator is lit when heart rate display is selected. The display will show the current heart rate per minute � only when the Heart Rate receiver is plugged in.
14 Display for Timer, Counter, Energy and Heart Rate.
15

Exercise speed level selection push buttons

15a � Increases speed level (up to 10)
15b � Decreases speed level (down to 1)

16

Exercise load level selection push buttons

16a Increases load level (up to 10)
16b Decreases load level (down to 1)





Spesifications:

Weight            - Trainer

10 Kg. (22 lbs.)



                         - Power supply

1.4 Kg. (3lbs.)



Length

72 cm. (28 in.) overall



Width

46 cm. (18 in.)



Height

16 cm. (6 in.) folded



Mains supply (to Power Unit)

110/230 VAC



Working voltage

18 VAC



Revolutions per minute

20 - 60 RPM



Power consumption

60 VA





Class II equipment







Type B equipment





Standard Features

Manual Mode
Yes
Motorized Mode
Yes
Commercial Quality - Warranty
Yes
Gear-Based Resistance Mechanism
Yes
Resistance Levels
10
Speed Adjustments
10
Torque Adjustments
10
Bi-Directional
Yes
Adjustable Height
Yes
Adjustable Range of Motion
Yes
Anti-Spasm Mechanism
Yes
Auto Reverse - See Below
Yes
Bio-Feedback - See Below
Yes
Digital Timer
Yes
Digital Counter
Yes
Ready for Heart Beat Transmitter
Yes
Clinical Studies.  Five Star


Active Passive Trainer - APT.


  • Ultra quiet and maintenance-free electromagnetic resistance

  • Earlobe pulse rate sensor

  • One-touch digital readout displaying elapsed time, speed, total distance, trip distance, estimated calories burned and pulse rate.

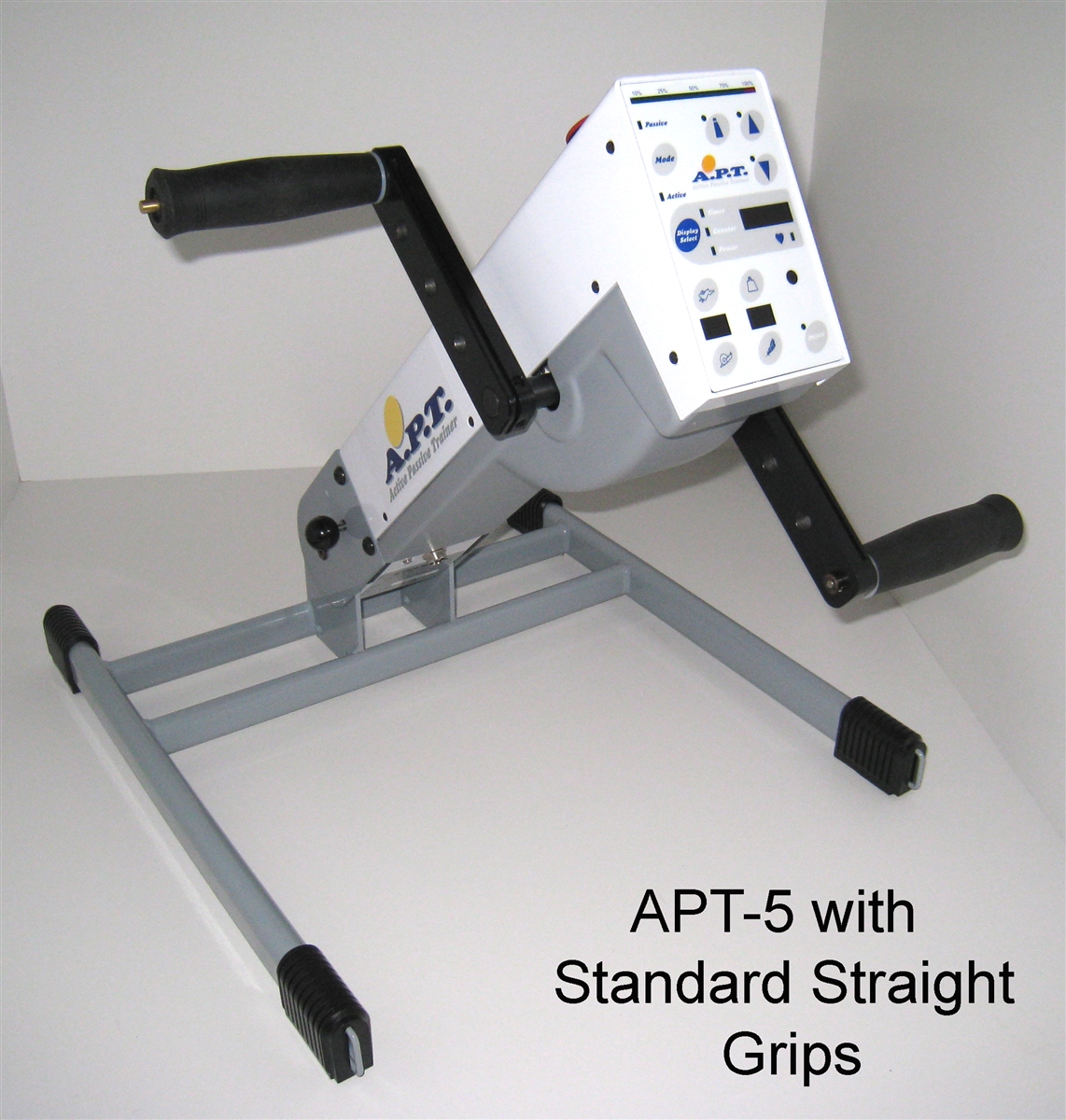

Straight Hand Grips FREE

Safety Guards FREE

Angled Hand Grips Optional

Foot Plates FREE

Tri Pin Hand Grips Optional

Hemi Glove Optional

High Support Optional









APT Active Passive Trainer





APT Active Passive Trainer
Qty:

Please Select Model:
APT 1 Portable Active Passive Hand Bike $1787.
APT 1 Hi-Lo Active Passive Hand Bike $1987.
APT 5 Portable Active Passive Hand Bike $2487.
APT 5 Hi-Lo Active Passive Hand Bike $2987.

AS-00-0-043 Straight Hand Grips (Pair):
None
AS-00-0-043 Straight Hand Grips (Pair)
Free

AS-00-0-042 Foot Plate (Pair):
None
AS-00-0-042 Foot Pair (Pair)
Free

AS-00-0-978 Protective Nylon Cover:
Free
None
AS-00-0-978 Protective Nylon Cover
Free

AS-00-0-041 Angled Hand Grips (Pair):
None
AS-00-0-041 Angled Hand Grips (Pair) $278.

AS-00-0-040 High Support for Footrest (Pair):
None
AS-00-0-040 High Support for Footrest (Pair) $254.

AS-00-0-051 Pediatric Footrests (Pair):
None
AS-00-0-051 Pediatric Footrests (Pair) $292.

AS-00-0-049 Right Hemi Glove:
None
AS-00-0-049 Right Hemi Glove $98.
AS-00-0-049-l Left Hemi Glove $98.
AS-00-0-062 Pediatric Set Of Two Hemi Glove (Set Of 2) $158.

AS-00-0-021 Remote Control APT-5:
None
AS-00-0-021 Remote Control APT-5 $149.

AS-00-0-020 Heart Beat Kit APT-5 Available Only On APT-5:
None
AS-00-0-020 Heart Beat Kit APT-5 Available Only On APT-5 $189.

Please Select Shipping:
Standard Ground
Free
Three Day Air $94.
Two Day Air $157.
Next Day Air $197.

Instant Internet Rebate:
Redeem
$30. Instant Internet Rebate Now.!
Redeem
$30. Rebate By Receiving A Refund Check By Mail.
