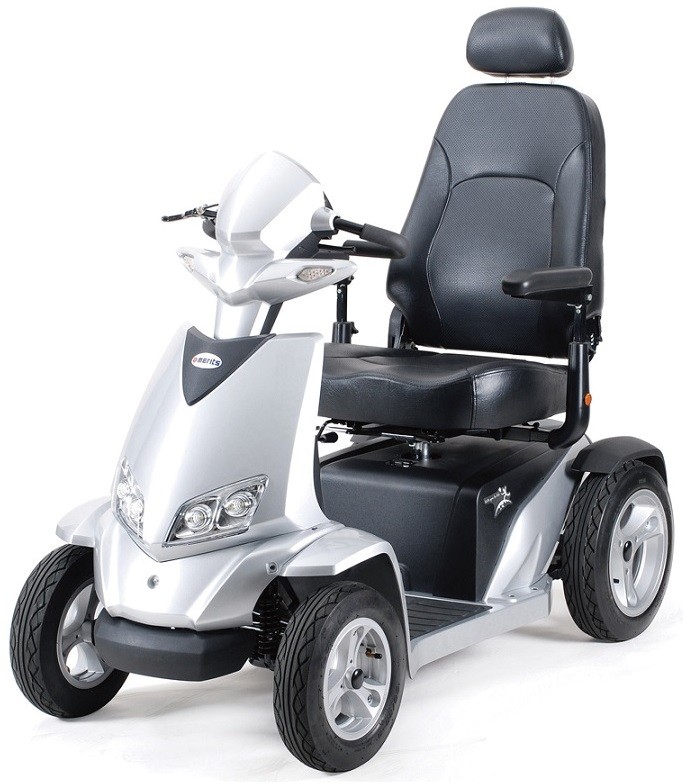

Merits Silverado Extreem S941L









S941L

Silverado Extreme
4-Wheel Full Suspension Electric Scooter



  • Brand new sporty streamline design.
  • Full suspension system with stock absorbers offers delivers a smooth and comfortable ride.
  • Modern LED lighting system delivers a brilliant light with less power consumption.
  • Digital LCD dashboard display: battery gauge, accumulated usage hours, temperature, maintenance messages.
  • Automatic safety turning half speed control by sensor.
  • Mecha lock tiller for easy position adjustment.
  • Extra storage space beneath tiller.
  • New base design to fit 100ah battery for longer drive range.
  • 450 lbs. capacity.



The Merits Silverado ExtreemS941-LFull LED Light Package
Wow, everything at your finger tips.! LCD Dashboard Display.
Infinite Adjustable Tiller allows you to set the steering right where it is comfortable for you.
The Merits Silverado Extreem S941-L High Performance 4 Wheel Scooter Including Luxurious Captain Seat With Head Support.



TECHNICAL SPECS
Max Speed 15kph/ 9.6mph ; 12kph/ 7.5mph
Range 60km/ 37.5mi. ; 88km/ 55mi (optional)
Turning Radius 210cm/ 82.7"
Ground Clearance 13cm/ 5.1"
Motor DC 24V, 650W(Rating)/ 2200W(Max)
Controller 120A
Battery 12V 100AH x 2pcs (306x168x214 mm) ; 12V 75AH x 2pcs (optional)
Charger 8A off-board
Gradient 10
Drive Wheels 16"(4.00-10) pneumatic tire
Brakes intelligent, regenerative, electromagnetic brakes

































































Model  S941L Silverado Extreme

Weight Capacity  450lb
Max. Speed  9.5mph
Range  32mi. / 55mi.

Turn Radius  82.7"
Ground Clearance  5.1"
Motor  Motor DC 24V, 650W(Rating)/ 2200W(Max)
Controller  120A
Battery  Battery 12V 100AH x 2pcs (306x168x214 mm) ; 12V 75AH x 2pcs (optional)
Charger  8A off-board
Gradient  up to 10
Front Wheel  14" - Pneumatic

Rear Wheel  16" - Pneumatic

Brake  Intelligent, regenerative, electromagnetic brakes



Seat

 Swivel, Slide and Headrest
Width 20
Depth 18
Back Height 25
Overall Dimensions
Wheelbase 45
Seat to Ground 26.4
Seat to Deck 19
Total Length 61
Total Width 29
Total Height 57.3
Battery 75AH / 100AH
Weight
Seat 40
Total 387
Capacity 450
Brochure S941L-brochure.pdf
Manual S941_Owners_Manual (1).pdf







One Full Year In Home Service Limited Warranty.

Your new scooter comes with a full One Year In Home Service Warranty. Stop worrying about who would repair your scooter or how you would get your scooter to them. This warranty has you covered! We will send a trained professional repair technician directly to your home in the event your scooter should need repair. We cover the entire United States. The map below indicates the location of our service affiliates.

Personalize your new scooter. Its Free & Easy, Simply select letter of font style below you like and enter it in the order form along with the name or text you would like to use to personalize your new scooter.

A



B


C   D

E   F

G   H

I   J

  We include a Oxygen Tank Holder Free with the purchase of this scooter. This Oxygen Tank Holder will hold most any size tank. The chart shown on the left indicates with a red arrow all tank sizes this tank holder will accommodate. Also included free are all items listed below.





Merits Silverado Extreme S941L 4 Wheel Scooter

Merits Silverado Extreme S941L 4 Wheel Scooter
Qty: Price: $3481.00

Please Select Color:
Only Available In Black

High Performance Batteries:
No Thank You
High Performance Batteries
Free

Cup Holder:
No Thank You
Cup Holder Free

Cane Holder:
No Thank You
Cane Holder Free

Arm Bag:
No Thank You
Arm Bag Free

Automotive Car Charger:
No Thank You
Automotive Car Charger Free

Household Charger:
No Thank You
Household Charger Free

Heavy Duty Rear Basket:
No Thank You
Heavy Duty Rear Basket Free

Orange Safety Flag:
No Thank You
Orange Safety Flag Free

Collapsible Umbrella With Mounting Bracket:
No Thank You
Collapsible Umbrella With Mounting Bracket Free

Oxygen Tank Holder:
No Thank You
Oxygen Tank Holder Free

Front Basket:
No Thank You.
Front Basket Free

Heavy Duty Nylon Cover:
No Thank You
Heavy Duty Nylon Cover Free

2 Rear View Mirrors:
No Thank You
2 Rear View Mirrors Free

Scooter Coach:
No Thank You.
Patented Scooter Coach $287.

Select Shipping:
Standard Ground 3 To 5 Days Free
Express Freight Not Available


(Optional) Personalize It By Entering Information Below, Otherwise Leave Blank.!

Enter Font Code: Enter The Name To Personalize It.:

Select Color Of Personalized Logo:









See Our Unconditional Guarantee
